AT151R-TEKDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 4AL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )4AL#

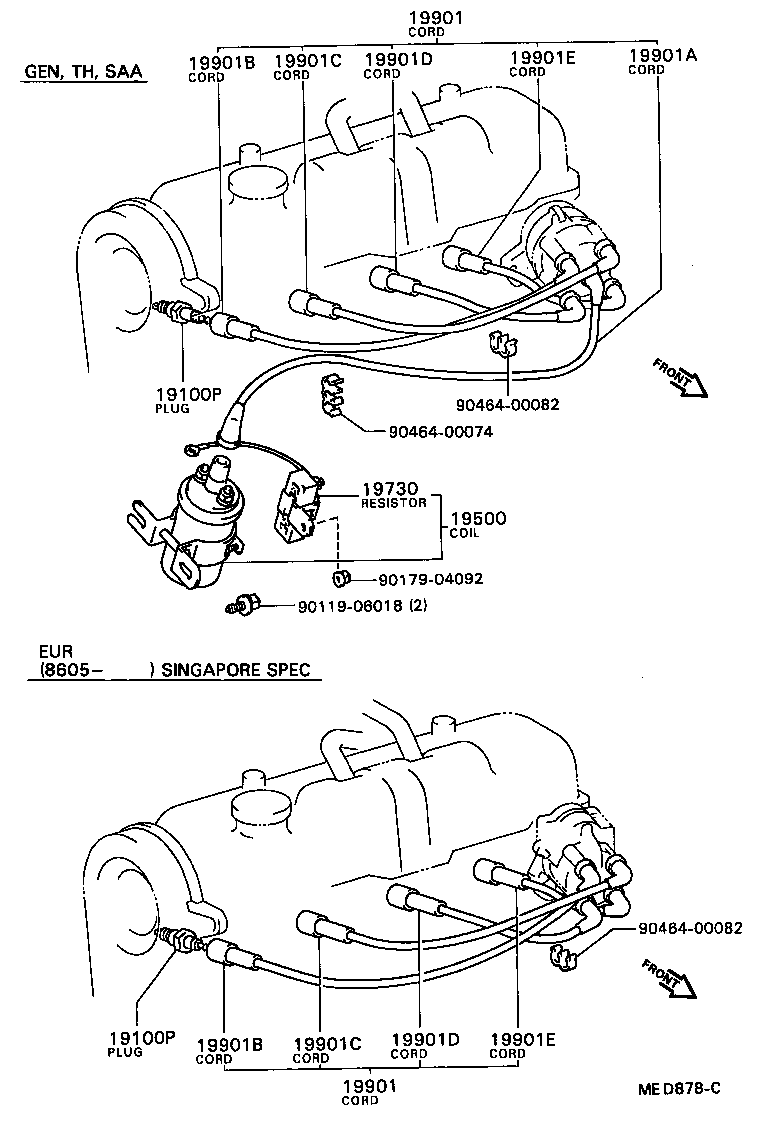

Click highlighted areas on diagram

diagram 19100P 19100P 19500 19730 19901 19901 19901A 19901B 19901B 19901C 19901C 19901D 19901D 19901E 19901E 9011906018 9017904092 9046400074 9046400082 9046400082
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01059

4AL..AT151..GEN

W16EX-U,W16EX-U

 4
90919-01064

4AL..AT151..GEN,SAA

W16EXR-U,W16EXR-U

 4
19100P - PLUG, SPARK
90919-01059

4AL..AT151..GEN

W16EX-U,W16EX-U

 4
90919-01064

4AL..AT151..GEN,SAA

W16EXR-U,W16EXR-U

 4
19500 - COIL ASSY, IGNITION
90919-02148

4AL..AT151..GEN,SAA,TH

 1
19730 - RESISTOR, IGNITION COIL
90919-04040

4AL..AT151..GEN,SAA,TH

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21327

4AL..AT151..GEN,SAA,TH

 1
90919-22105

4AL..AT151..SED..RHD..GEN

SINGAPORE SPEC

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21327

4AL..AT151..GEN,SAA,TH

 1
90919-22105

4AL..AT151..SED..RHD..GEN

SINGAPORE SPEC

 1
19901A - CORD, COIL RESISTIVE
90919-13214

4AL..AT151..GEN,SAA,TH

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12356

4AL..AT151..SED..RHD..GEN

SINGAPORE SPEC

 1
90919-12506

4AL..AT151..GEN,SAA,TH

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12356

4AL..AT151..SED..RHD..GEN

SINGAPORE SPEC

 1
90919-12506

4AL..AT151..GEN,SAA,TH

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12507

4AL..AT151..GEN,SAA,TH

 1
90919-12357

4AL..AT151..SED..RHD..GEN

SINGAPORE SPEC

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12507

4AL..AT151..GEN,SAA,TH

 1
90919-12357

4AL..AT151..SED..RHD..GEN

SINGAPORE SPEC

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12508

4AL..AT151..GEN,SAA,TH

 1
90919-12358

4AL..AT151..SED..RHD..GEN

SINGAPORE SPEC

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12508

4AL..AT151..GEN,SAA,TH

 1
90919-12358

4AL..AT151..SED..RHD..GEN

SINGAPORE SPEC

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12509

4AL..AT151..GEN,SAA,TH

 1
90919-12359

4AL..AT151..SED..RHD..GEN

SINGAPORE SPEC

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12509

4AL..AT151..GEN,SAA,TH

 1
90919-12359

4AL..AT151..SED..RHD..GEN

SINGAPORE SPEC

 1
Common parts
90119-06018
90179-04092
90464-00074
90464-00082
