AT151R-TEHDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 4AL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )AT151..ATM ; (8508- )ST15#..4FC

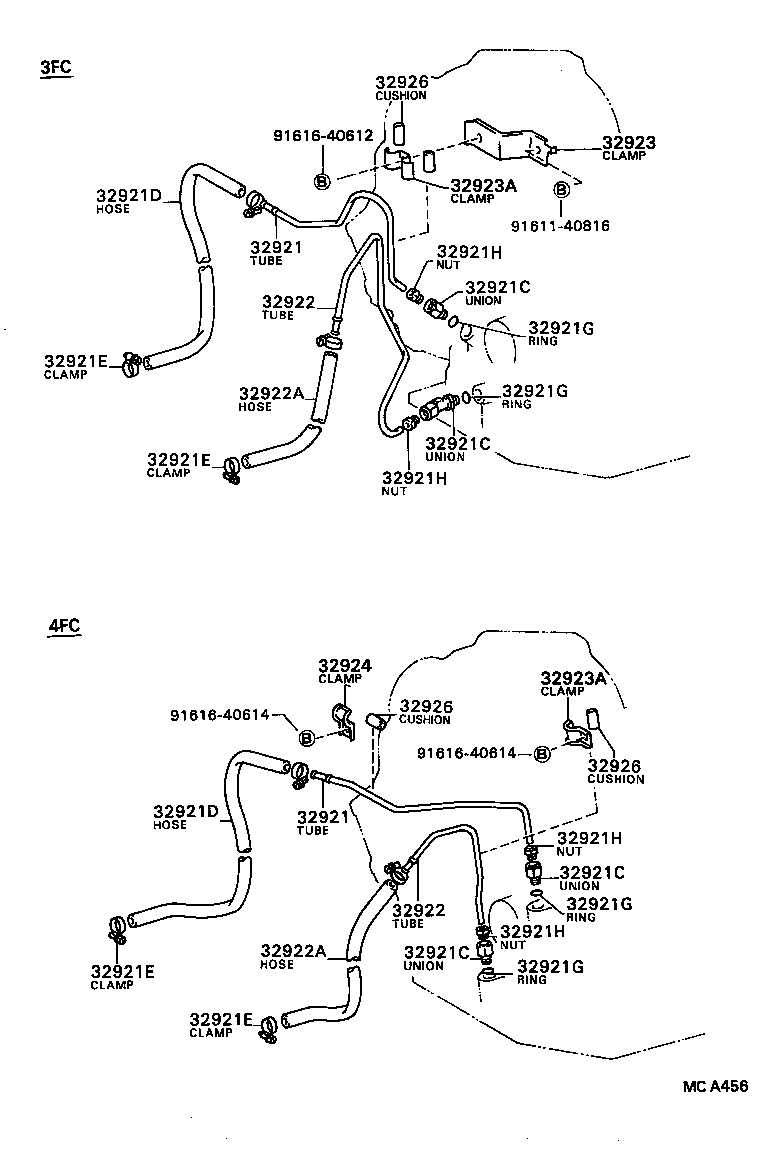

Click highlighted areas on diagram

diagram 32921 32921 32921C 32921C 32921C 32921C 32921D 32921D 32921E 32921E 32921E 32921E 32921G 32921G 32921G 32921G 32921H 32921H 32921H 32921H 32922 32922 32922A 32922A 32923 32923A 32923A 32924 32926 32926 32926 9161140816 9161640612 9161640614 9161640614
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-12220

AT151..3FC

 1
32921 - TUBE, OIL COOLER INLET, NO.1
32921-12220

AT151..3FC

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-14004

AT151,ST150..3FC

OUTLET

 1
90404-14007

AT151,ST150..3FC

INLET

 1
90407-14004

AT151..3FC

OUTLET

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-14004

AT151,ST150..3FC

OUTLET

 1
90404-14007

AT151,ST150..3FC

INLET

 1
90407-14004

AT151..3FC

OUTLET

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-14004

AT151,ST150..3FC

OUTLET

 1
90404-14007

AT151,ST150..3FC

INLET

 1
90407-14004

AT151..3FC

OUTLET

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-14004

AT151,ST150..3FC

OUTLET

 1
90404-14007

AT151,ST150..3FC

INLET

 1
90407-14004

AT151..3FC

OUTLET

 1
32921D - HOSE(FOR OIL COOLER INLET)
90445-16026

AT151..ATM

 1
90445-14052

AT151..ATM

 1
32921D - HOSE(FOR OIL COOLER INLET)
90445-16026

AT151..ATM

 1
90445-14052

AT151..ATM

 1
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-14085

AT151,ST150..ATM

 4
90460-18002

AT151,ST15#..ATM

 4
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-14085

AT151,ST150..ATM

 4
90460-18002

AT151,ST15#..ATM

 4
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-14085

AT151,ST150..ATM

 4
90460-18002

AT151,ST15#..ATM

 4
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-14085

AT151,ST150..ATM

 4
90460-18002

AT151,ST15#..ATM

 4
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

AT151,ST15#..ATM

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

AT151,ST15#..ATM

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

AT151,ST15#..ATM

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

AT151,ST15#..ATM

 2
32921H - NUT, FLARE(FOR OIL COOLER TUBE)
96310-11400

AT151,ST150..3FC

 2
90402-14004

AT151,ST150..3FC

 2
32921H - NUT, FLARE(FOR OIL COOLER TUBE)
96310-11400

AT151,ST150..3FC

 2
90402-14004

AT151,ST150..3FC

 2
32921H - NUT, FLARE(FOR OIL COOLER TUBE)
96310-11400

AT151,ST150..3FC

 2
90402-14004

AT151,ST150..3FC

 2
32921H - NUT, FLARE(FOR OIL COOLER TUBE)
96310-11400

AT151,ST150..3FC

 2
90402-14004

AT151,ST150..3FC

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-12210

AT151..3FC

 1
32922-12250

AT151..3FC

 1
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-12210

AT151..3FC

 1
32922-12250

AT151..3FC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-14080

AT151,ST150..ATM

 1
90445-16019

AT151,ST150..3FC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-14080

AT151,ST150..ATM

 1
90445-16019

AT151,ST150..3FC

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923-12070

AT151..3FC

 1
32923-12071

AT151..3FC

 1
32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
90462-12085

AT151,ST150..3FC

 1
32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
90462-12085

AT151,ST150..3FC

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30011

AT151,ST15#..ATM

L=25,ID=8

 3
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30011

AT151,ST15#..ATM

L=25,ID=8

 3
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30011

AT151,ST15#..ATM

L=25,ID=8

 3
Common parts
91611-40816
91616-40612
91616-40614
