AT151R-TEHDS (1983)
Toyota Corona/Carina 2

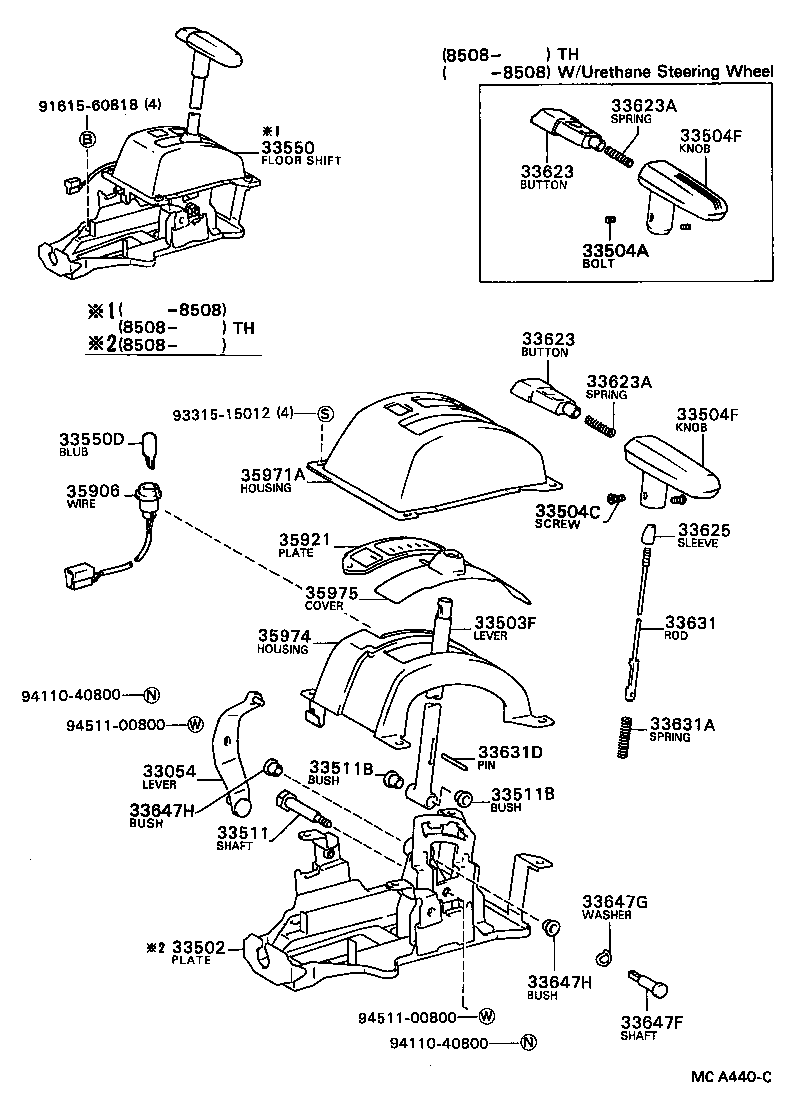

(8310- )3FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33054 - LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT) | ||||
| 33054-20020 |
AT151,ST150..RHD..ATM |
1 | ||
| 33054-20021 |
AT151,ST15#..RHD..ATM..(EUR,GEN) |
1 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-20210 |
AT151,ST15#..RHD..ATM |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-20250 |
AT151,ST150..3FC W/URETHANE STEERING WHEEL |
1 | ||
| 33503-20220 |
AT151,ST150..3FC..XL |
1 | ||
| 33503-20220 |
AT151,ST150..3FC..(EUR,GEN,SAA) |
1 | ||
| 33504A - BOLT OR PIN (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90113-05034 |
AT151,ST150..3FC |
2 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
AT151,ST15#..ATM..(EUR,GEN,SAA) |
2 | ||
| 90149-40004 |
AT151..4FC;AT151,ST150..3FC..XL |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-2403033 |
AT151,ST150..3FC GRAY,W/*USW,GRAY,TRIM1# |
1 | ||
| 33542-2403004 |
AT151,ST150..3FC BLUE,W/*USW,BLUE,TRIM8# |
1 | ||
| 33542-2403022 |
AT151,ST150..3FC MAROON,W/*USW,RED/MAROON,TRIM3# |
1 | ||
| 33542-1211004 |
AT151,ST150..3FC..XL BLUE,BLUE,TRIM8# |
1 | ||
| 33542-1211003 |
AT151,ST150..3FC..XL GRAY,GRAY,TRIM1# |
1 | ||
| 33542-1002024 |
AT151,ST150..3FC..(EUR,GEN,SAA) BLUE,W/*USW,BLUE,TRIM8# |
1 | ||
| 33542-1211014 |
AT151,ST150..3FC..XL BLUE,BLUE,TRIM8# |
1 | ||
| 33542-1002003 |
AT151,ST150..3FC..(EUR,GEN,SAA) GRAY,W/*USW,GRAY,TRIM1# |
1 | ||
| 33542-1211002 |
AT151,ST150..3FC..XL MAROON,RED/MAROON,TRIM3# |
1 | ||
| 33542-1002012 |
AT151,ST150..3FC..(EUR,GEN,SAA) MAROON,W/*USW,MAROON,TRIM3# |
1 | ||
| 33542-1211033 |
AT151,ST150..3FC..XL GRAY,GRAY,TRIM1# |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-2403033 |
AT151,ST150..3FC GRAY,W/*USW,GRAY,TRIM1# |
1 | ||
| 33542-2403004 |
AT151,ST150..3FC BLUE,W/*USW,BLUE,TRIM8# |
1 | ||
| 33542-2403022 |
AT151,ST150..3FC MAROON,W/*USW,RED/MAROON,TRIM3# |
1 | ||
| 33542-1211004 |
AT151,ST150..3FC..XL BLUE,BLUE,TRIM8# |
1 | ||
| 33542-1211003 |
AT151,ST150..3FC..XL GRAY,GRAY,TRIM1# |
1 | ||
| 33542-1002024 |
AT151,ST150..3FC..(EUR,GEN,SAA) BLUE,W/*USW,BLUE,TRIM8# |
1 | ||
| 33542-1211014 |
AT151,ST150..3FC..XL BLUE,BLUE,TRIM8# |
1 | ||
| 33542-1002003 |
AT151,ST150..3FC..(EUR,GEN,SAA) GRAY,W/*USW,GRAY,TRIM1# |
1 | ||
| 33542-1211002 |
AT151,ST150..3FC..XL MAROON,RED/MAROON,TRIM3# |
1 | ||
| 33542-1002012 |
AT151,ST150..3FC..(EUR,GEN,SAA) MAROON,W/*USW,MAROON,TRIM3# |
1 | ||
| 33542-1211033 |
AT151,ST150..3FC..XL GRAY,GRAY,TRIM1# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-20240 |
AT151,ST15#..ATM |
1 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90385-11003 |
AT151,ST15#..ATM |
2 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90385-11003 |
AT151,ST15#..ATM |
2 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-2033002 |
AT151,ST150..RHD..3FC..XL MAROON,RED/MAROON,TRIM3# |
1 | ||
| 33550-2039002 |
AT151,ST150..RHD..3FC MAROON,W/*USW,RED/MAROON,TRIM3# |
1 | ||
| 33550-2033003 |
AT151,ST150..RHD..3FC..XL GRAY,GRAY,TRIM1# |
1 | ||
| 33550-2039004 |
AT151,ST150..RHD..3FC BLUE,W/*USW,BLUE,TRIM8# |
1 | ||
| 33550-2033004 |
AT151,ST150..RHD..3FC..XL BLUE,BLUE,TRIM8# |
1 | ||
| 33550-2039003 |
AT151,ST150..RHD..3FC GRAY,W/*USW,GRAY,TRIM1# |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 99132-12034 |
AT151,ST15#..ATM 12V 3.4W,12V 3.4W |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-3004033 |
AT151,ST150..3FC GRAY,GRAY,TRIM1# |
1 | ||
| 33623-3004022 |
AT151,ST150..3FC MAROON,RED/MAROON,TRIM3# |
1 | ||
| 33623-3004014 |
AT151,ST150..3FC BLUE,BLUE,TRIM8# |
1 | ||
| 33623-3004034 |
AT151,ST150..3FC BLUE,BLUE,TRIM8# |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-3004033 |
AT151,ST150..3FC GRAY,GRAY,TRIM1# |
1 | ||
| 33623-3004022 |
AT151,ST150..3FC MAROON,RED/MAROON,TRIM3# |
1 | ||
| 33623-3004014 |
AT151,ST150..3FC BLUE,BLUE,TRIM8# |
1 | ||
| 33623-3004034 |
AT151,ST150..3FC BLUE,BLUE,TRIM8# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
AT151,ST15#..ATM |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
AT151,ST15#..ATM |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-22020 |
AT151,ST150..3FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-20070 |
AT151,ST150..3FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-08017 |
AT151,ST15#..ATM |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04001 |
AT151,ST15#..ATM |
1 | ||
| 33647F - SHAFT, CONTROL LINK (FOR FLOOR SHIFT) | ||||
| 33647-32010 |
AT151,ST15#..ATM |
1 | ||
| 33647G - WASHER, WAVE (FOR CONTROL LINK SHAFT) | ||||
| 90206-10003 |
AT151,ST15#..ATM |
1 | ||
| 33647H - BUSH (FOR CONTROL LINK SHAFT) | ||||
| 90386-10012 |
AT151,ST15#..ATM |
2 | ||
| 33647H - BUSH (FOR CONTROL LINK SHAFT) | ||||
| 90386-10012 |
AT151,ST15#..ATM |
2 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-20020 |
AT151,ST15#..RHD..ATM |
1 | ||
| 35906-20020 |
AT151,ST15#..ATM |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-20190 |
AT151,ST150..RHD..3FC |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-20110 |
AT151,ST15#..RHD..ATM |
1 | ||
| 35971-20090 |
AT151,ST150..RHD..ATM |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-20080 |
AT151,ST15#..RHD..ATM |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-20050 |
AT151,ST150..3FC |
1 | ||
| Common parts | ||||
| 91615-60818 | ||||
| 93315-15012 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||

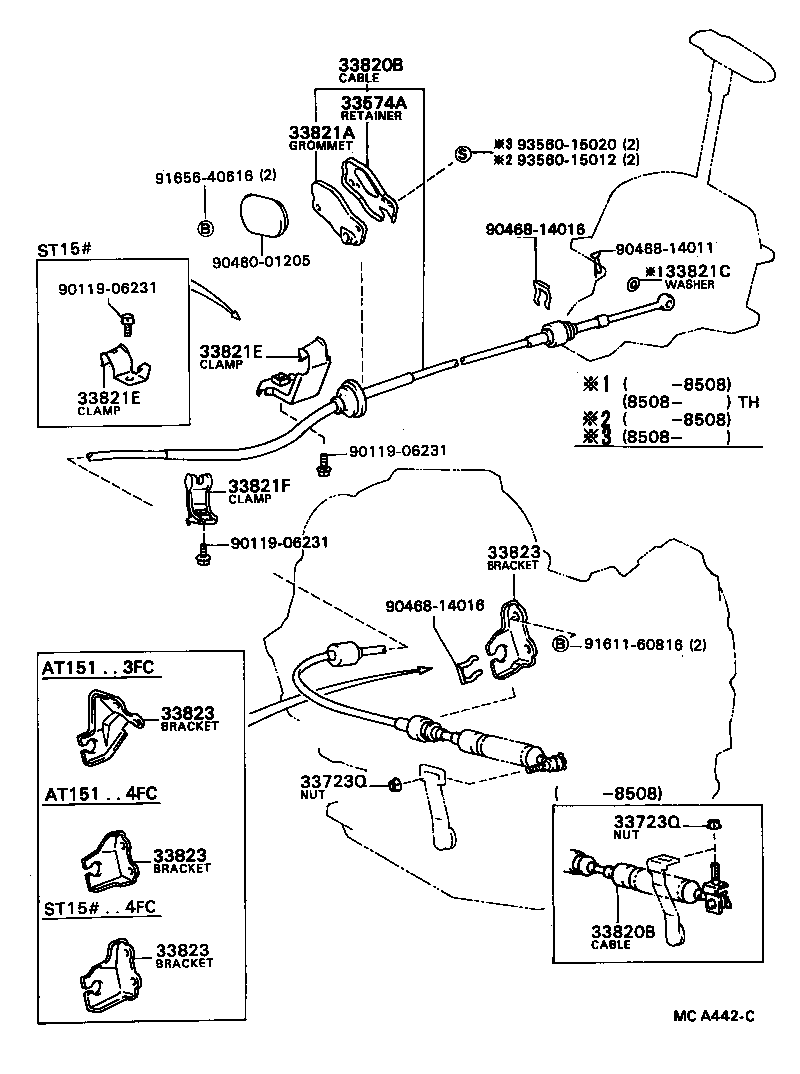

(8310- )ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-20040 |
AT151,ST15#..ATM |
1 | ||
| 33723Q - NUT (FOR CONNECTING ROD SWIVEL) | ||||
| 90179-08061 |
AT151,ST15#..ATM |
1 | ||
| 33723Q - NUT (FOR CONNECTING ROD SWIVEL) | ||||
| 90179-08061 |
AT151,ST15#..ATM |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-20151 |
AT151..3FC..GEN HARSH ROAD PACKAGE |
1 | ||
| 33820-20021 |
AT151,ST15#..ATM..(EUR,GEN,SAA) |
1 | ||
| 33820-20020 |
AT151,ST150..ATM |
1 | ||
| 33820-20150 |
AT151..3FC..GEN HARSH ROAD PACKAGE |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-20021 |
AT151,ST15#..ATM..(EUR,GEN,SAA) |
1 | ||
| 33820-20151 |
AT151..3FC..GEN HARSH ROAD PACKAGE |
1 | ||
| 33820-20020 |
AT151,ST150..ATM |
1 | ||
| 33820-20150 |
AT151..3FC..GEN HARSH ROAD PACKAGE |
1 | ||
| 33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01203 |
AT151,ST15#..ATM |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
AT151,CT150,ST150 SHIFT LEVER SIDE |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01133 |
AT151..ATM |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01133 |
AT151..ATM |
1 | ||
| 33821F - CLAMP, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01070 |
AT151,ST15#..ATM |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-12010 |
AT151..3FC |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-12010 |
AT151..3FC |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-12010 |
AT151..3FC |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-12010 |
AT151..3FC |
1 | ||
| Common parts | ||||
| 90119-06231 | ||||
| 90468-14011 | ||||
| 90468-14016 | ||||
| 90480-01205 | ||||
| 91611-60816 | ||||
| 91656-40616 | ||||
| 93560-15012 | ||||
| 93560-15020 | ||||
