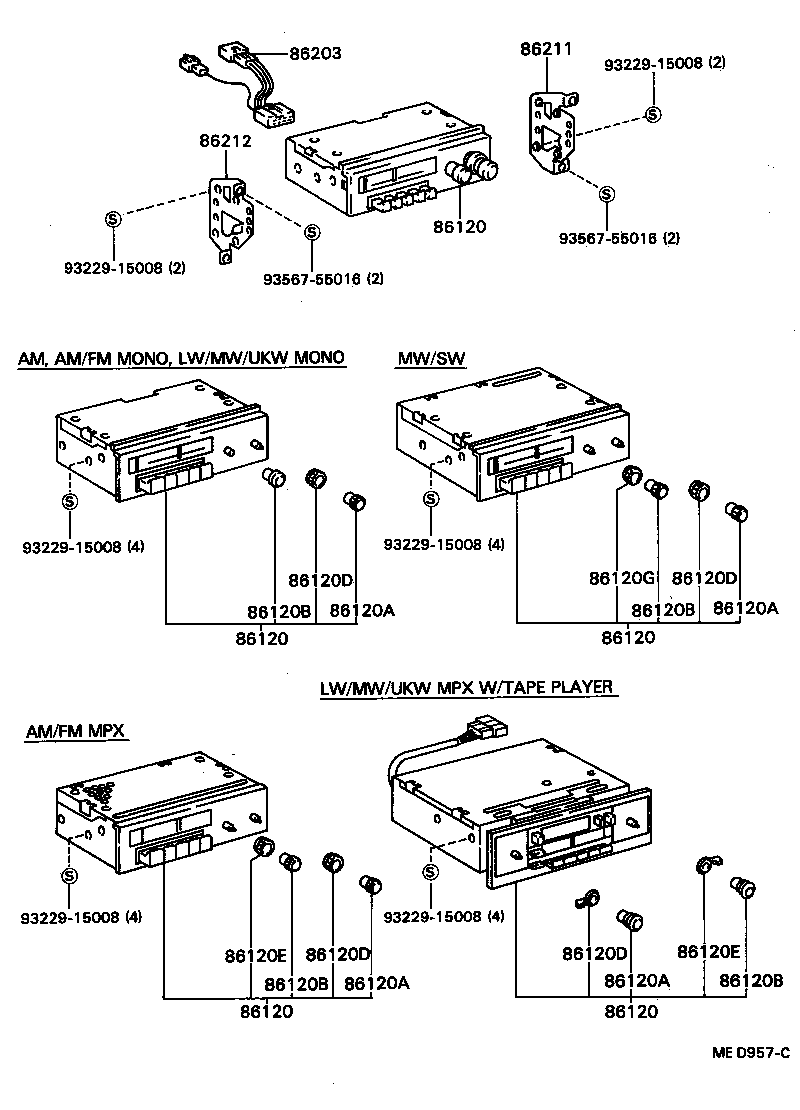

Toyota Corona/carina 2 AT151 RADIO RECEIVER & AMPLIFIER & CONDENSER

Part #	Description	Period	Qty
86120 - RECEIVER ASSY, RADIO
86120-22390	AT151,CT150..EUR LW/MW/UKW,MONO	10/1983 - 12/1984	1
86120-22400	AT151..SDZ LW/MW/UKW,W/ARI	10/1983 - 02/1985	1
86120-22401	AT151..SDZ LW/MW/UKW,W/ARI	02/1985 - 03/1986	1
86120-22402	AT151..SDZ FUJITSU TEN,LW/MW/UKW,W/ARI	03/1986 - 08/1986	1
86120 - RECEIVER ASSY, RADIO
86120-22390	AT151,CT150..EUR LW/MW/UKW,MONO	10/1983 - 12/1984	1
86120-22400	AT151..SDZ LW/MW/UKW,W/ARI	10/1983 - 02/1985	1
86120-22401	AT151..SDZ LW/MW/UKW,W/ARI	02/1985 - 03/1986	1
86120-22402	AT151..SDZ FUJITSU TEN,LW/MW/UKW,W/ARI	03/1986 - 08/1986	1
86120 - RECEIVER ASSY, RADIO
86120-22390	AT151,CT150..EUR LW/MW/UKW,MONO	10/1983 - 12/1984	1
86120-22400	AT151..SDZ LW/MW/UKW,W/ARI	10/1983 - 02/1985	1
86120-22401	AT151..SDZ LW/MW/UKW,W/ARI	02/1985 - 03/1986	1
86120-22402	AT151..SDZ FUJITSU TEN,LW/MW/UKW,W/ARI	03/1986 - 08/1986	1
86120 - RECEIVER ASSY, RADIO
86120-22390	AT151,CT150..EUR LW/MW/UKW,MONO	10/1983 - 12/1984	1
86120-22400	AT151..SDZ LW/MW/UKW,W/ARI	10/1983 - 02/1985	1
86120-22401	AT151..SDZ LW/MW/UKW,W/ARI	02/1985 - 03/1986	1
86120-22402	AT151..SDZ FUJITSU TEN,LW/MW/UKW,W/ARI	03/1986 - 08/1986	1
86120 - RECEIVER ASSY, RADIO
86120-22390	AT151,CT150..EUR LW/MW/UKW,MONO	10/1983 - 12/1984	1
86120-22400	AT151..SDZ LW/MW/UKW,W/ARI	10/1983 - 02/1985	1
86120-22401	AT151..SDZ LW/MW/UKW,W/ARI	02/1985 - 03/1986	1
86120-22402	AT151..SDZ FUJITSU TEN,LW/MW/UKW,W/ARI	03/1986 - 08/1986	1
86120A - KNOB, RADIO RECEIVER SWITCH
86128-14240	AT151..SDZ LW/MW/UKW,W/ARI	12/1984 - 02/1985	1
86128-14240	AT151,CT150..EUR LW/MW/UKW MONO	10/1983 - 12/1984	1
86128-14680	AT151..SDZ LW/MW/UKW,W/ARI	02/1985 - 08/1986	1
86120A - KNOB, RADIO RECEIVER SWITCH
86128-14240	AT151..SDZ LW/MW/UKW,W/ARI	12/1984 - 02/1985	1
86128-14240	AT151,CT150..EUR LW/MW/UKW MONO	10/1983 - 12/1984	1
86128-14680	AT151..SDZ LW/MW/UKW,W/ARI	02/1985 - 08/1986	1
86120A - KNOB, RADIO RECEIVER SWITCH
86128-14240	AT151..SDZ LW/MW/UKW,W/ARI	12/1984 - 02/1985	1
86128-14240	AT151,CT150..EUR LW/MW/UKW MONO	10/1983 - 12/1984	1
86128-14680	AT151..SDZ LW/MW/UKW,W/ARI	02/1985 - 08/1986	1
86120A - KNOB, RADIO RECEIVER SWITCH
86128-14240	AT151..SDZ LW/MW/UKW,W/ARI	12/1984 - 02/1985	1
86128-14240	AT151,CT150..EUR LW/MW/UKW MONO	10/1983 - 12/1984	1
86128-14680	AT151..SDZ LW/MW/UKW,W/ARI	02/1985 - 08/1986	1
86120B - KNOB, RADIO RECEIVER TUNING, NO.1
86128-14240	AT151,CT150..EUR LW/MW/UKW	10/1983 - 12/1984	1
86128-14240	AT151..SDZ LW/MW/UKW,W/ARI	12/1984 - 02/1985	1
86128-14680	AT151..SDZ LW/MW/UKW,W/ARI	02/1985 - 08/1986	1
86120B - KNOB, RADIO RECEIVER TUNING, NO.1
86128-14240	AT151,CT150..EUR LW/MW/UKW	10/1983 - 12/1984	1
86128-14240	AT151..SDZ LW/MW/UKW,W/ARI	12/1984 - 02/1985	1
86128-14680	AT151..SDZ LW/MW/UKW,W/ARI	02/1985 - 08/1986	1
86120B - KNOB, RADIO RECEIVER TUNING, NO.1
86128-14240	AT151,CT150..EUR LW/MW/UKW	10/1983 - 12/1984	1
86128-14240	AT151..SDZ LW/MW/UKW,W/ARI	12/1984 - 02/1985	1
86128-14680	AT151..SDZ LW/MW/UKW,W/ARI	02/1985 - 08/1986	1
86120B - KNOB, RADIO RECEIVER TUNING, NO.1
86128-14240	AT151,CT150..EUR LW/MW/UKW	10/1983 - 12/1984	1
86128-14240	AT151..SDZ LW/MW/UKW,W/ARI	12/1984 - 02/1985	1
86128-14680	AT151..SDZ LW/MW/UKW,W/ARI	02/1985 - 08/1986	1
86120D - KNOB, RADIO RECEIVER TONE
86128-14260	AT151..SDZ LW/MW/UKW,W/ARI	12/1984 - 02/1985	1
86128-14720	AT151..SDZ LW/MW/UKW,W/ARI	02/1985 - 08/1986	1
86128-14260	AT151,CT150..EUR LW/MW/UKW	10/1983 - 12/1984	1
86120D - KNOB, RADIO RECEIVER TONE
86128-14260	AT151..SDZ LW/MW/UKW,W/ARI	12/1984 - 02/1985	1
86128-14720	AT151..SDZ LW/MW/UKW,W/ARI	02/1985 - 08/1986	1
86128-14260	AT151,CT150..EUR LW/MW/UKW	10/1983 - 12/1984	1
86120D - KNOB, RADIO RECEIVER TONE
86128-14260	AT151..SDZ LW/MW/UKW,W/ARI	12/1984 - 02/1985	1
86128-14720	AT151..SDZ LW/MW/UKW,W/ARI	02/1985 - 08/1986	1
86128-14260	AT151,CT150..EUR LW/MW/UKW	10/1983 - 12/1984	1
86120D - KNOB, RADIO RECEIVER TONE
86128-14260	AT151..SDZ LW/MW/UKW,W/ARI	12/1984 - 02/1985	1
86128-14720	AT151..SDZ LW/MW/UKW,W/ARI	02/1985 - 08/1986	1
86128-14260	AT151,CT150..EUR LW/MW/UKW	10/1983 - 12/1984	1
86211 - BRACKET, RADIO, NO.1
86211-20190	AT151,CT150,ST15#	10/1983 - 11/1987	1
86212 - BRACKET, RADIO, NO.2
86212-20160	AT151,CT150,ST15#	10/1983 - 11/1987	1
Common parts
93229-15008
93567-55016

AT151L-TLMNCC (1983)

(8310- )

(8310- )

Part Price Details

Part #	Description	Period	Qty

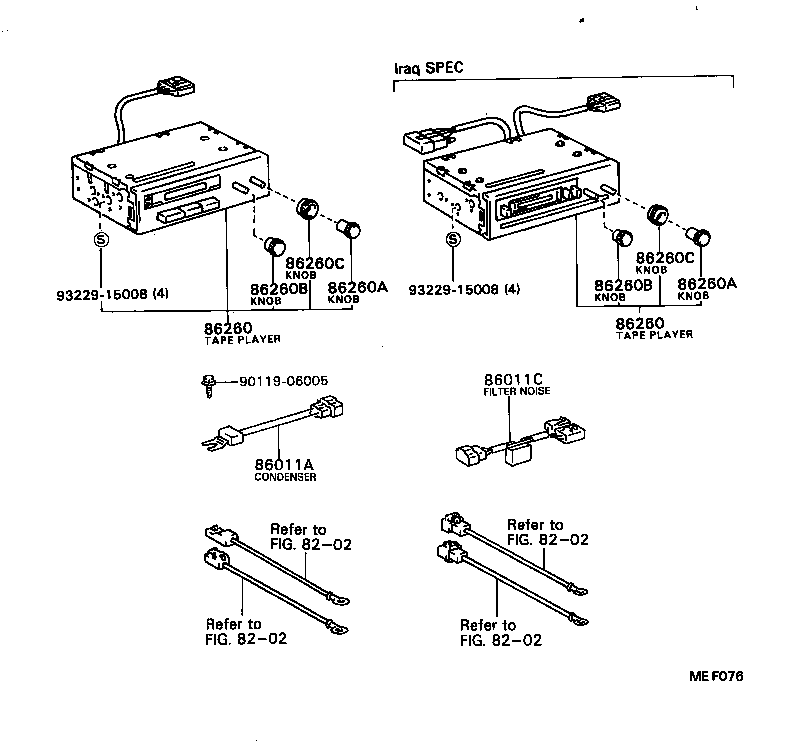

86011A - CONDENSER, RADIO SETTING
90980-04041	AT151,ST150	10/1983 - 08/1985	1
86011C - FILTER, NOISE
90980-05087	AT151,CT150,ST15#	10/1983 - 11/1987	1
Common parts
90119-06005
93229-15008
Linked diagrams
8202
