AT151L-TLMNCC (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Aug 1986
Engine 4ALC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )

Click highlighted areas on diagram

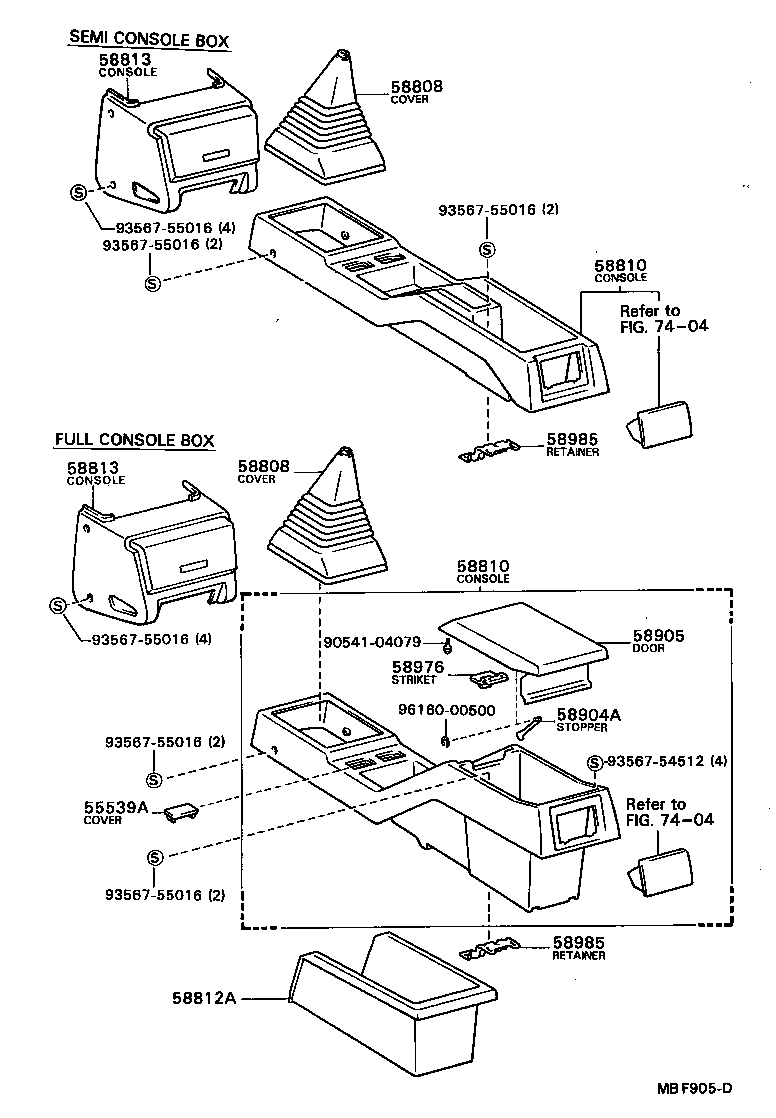

diagram 55539A 58808 58808 58810 58810 58812A 58813 58813 58904A 58905 58976 58985 58985 7404 7404 9054104079 9356754512 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9616000500
Part # Description Qty Price
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-2004002

AT151,CT150,ST15#..MTM

DEEP MAROON,RED/MAROON,TRIM3#

 1
58808-2004004

AT151,CT150,ST150..MTM

BLUE,BLUE,TRIM8#

 1
58808-2004003

AT151,CT150,ST15#..MTM

SHADOW GRAY,GRAY,TRIM1#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-2004002

AT151,CT150,ST15#..MTM

DEEP MAROON,RED/MAROON,TRIM3#

 1
58808-2004004

AT151,CT150,ST150..MTM

BLUE,BLUE,TRIM8#

 1
58808-2004003

AT151,CT150,ST15#..MTM

SHADOW GRAY,GRAY,TRIM1#

 1
58810 - CONSOLE ASSY
58801-2007004

CT150;AT151..EUR;AT151,ST150..STD,XL

BLUE,BLUE,TRIM8#

 1
58801-2007002

CT150;AT151..EUR;AT151,ST150..STD,XL

DEEP MAROON,RED/MAROON,TRIM3#

 1
58801-2007003

CT150;AT151..EUR;AT151,ST150..STD,XL

SHADOW GRAY,GRAY,TRIM1#

 1
58810 - CONSOLE ASSY
58801-2007004

CT150;AT151..EUR;AT151,ST150..STD,XL

BLUE,BLUE,TRIM8#

 1
58801-2007002

CT150;AT151..EUR;AT151,ST150..STD,XL

DEEP MAROON,RED/MAROON,TRIM3#

 1
58801-2007003

CT150;AT151..EUR;AT151,ST150..STD,XL

SHADOW GRAY,GRAY,TRIM1#

 1
58985 - RETAINER, CONSOLE BOX
58985-20020

AT151,CT150,ST15#

 1
58985 - RETAINER, CONSOLE BOX
58985-20020

AT151,CT150,ST15#

 1
Common parts
90541-04079
93567-54512
93567-55016
96160-00500
Linked diagrams
7404
