AT151L-TLMNCC (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Aug 1986
Engine 4ALC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )

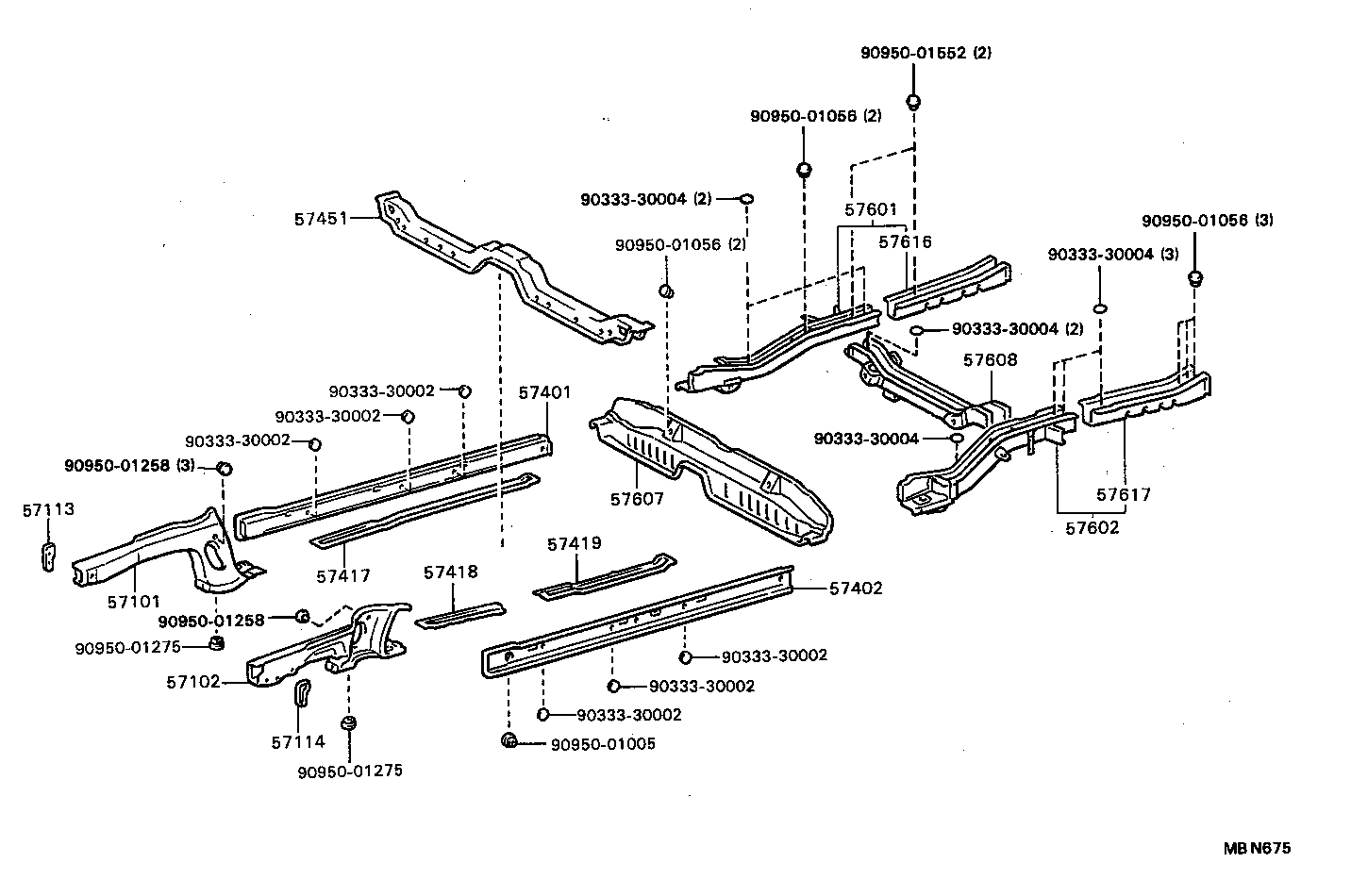

Click highlighted areas on diagram

diagram 57101 57102 57113 57114 57401 57402 57417 57418 57419 57451 57601 57602 57607 57608 57616 57617 9033330002 9033330002 9033330002 9033330002 9033330002 9033330002 9033330004 9033330004 9033330004 9033330004 9095001005 9095001056 9095001056 9095001056 9095001258 9095001258 9095001275 9095001275 9095001552
Part # Description Qty Price
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-20390

AT151..LB..4FC;AT151..SED..LHD..4FC;AT151..(3FC,4F,5F)..EUR

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-20340

AT151..LB..4FC;AT151..SED..LHD..4FC;AT151..(3FC,4F,5F)..EUR

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-12090

AT151,CT150,ST15#

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-12090

AT151,CT150,ST15#

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-20190

AT151,CT150,ST150..EUR,SAA

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-20190

AT151,CT150,ST150..EUR,SAA

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-20030

AT151,CT150,ST15#

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-20040

AT151,CT150,ST15#

 1
57419 - REINFORCEMENT, FRONT FLOOR UNDER, LH NO.2
57419-20020

AT151,CT150,ST15#

 1
57451 - MEMBER, FRONT FLOOR CROSS
57408-20010

AT151,CT150,ST15#

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-20140

AT151,CT150,ST15#..DX,GL,XL

W/*UB

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-20140

AT151,CT150,ST15#..DX,GL,XL

W/*UB

 1
57607 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1
57605-32010

AT151,CT150,ST15#

 1
57608 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2
57606-20060

AT151,CT150,ST15#

 1
57616 - MEMBER, REAR FLOOR SIDE, REAR RH
57615-32901

AT151,CT150,ST15#

 1
57617 - MEMBER, REAR FLOOR SIDE, REAR LH
57616-32901

AT151,CT150,ST15#

 1
Common parts
90333-30002
90333-30004
90950-01005
90950-01056
90950-01258
90950-01275
90950-01552
