AT151L-TLMDSW (1983)
Toyota Corona/Carina 2
Production
Oct 1983
-
Nov 1987
Engine
4AL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

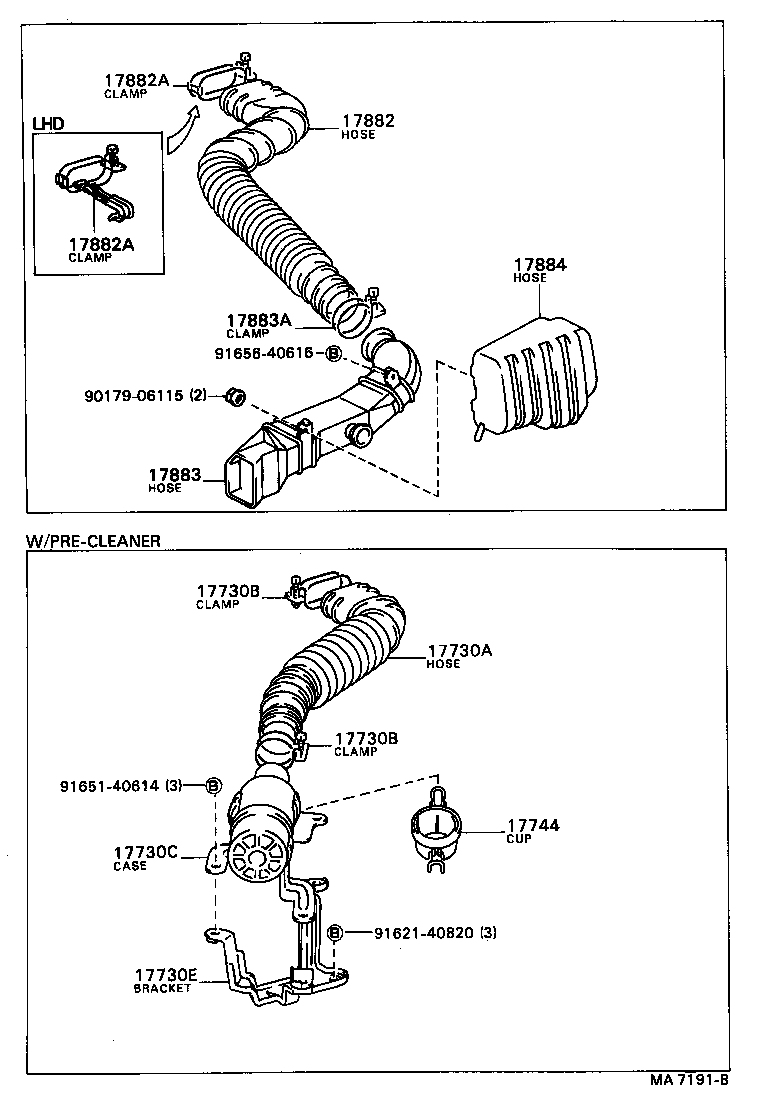

(8310- )4AL#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17881-12060 |
4AL#..AT151 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 78194-20040 |
4AL#..AT151..LHD |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 78194-20040 |
4AL#..AT151..LHD |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17882-20050 |
4AL#..AT151 |
1 | ||
| 17882-63090 |
4AL#..AT151..EUR,GEN,SAA |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10670 |
4AL#..AT151 |
1 | ||
| 96111-10650 |
4AL#..AT151 |
1 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 17883-20010 |
4AL#..AT151..EUR,GEN,SAA |
1 | ||
| Common parts | ||||
| 90179-06115 | ||||
| 91621-40820 | ||||
| 91651-40614 | ||||
| 91656-40616 | ||||

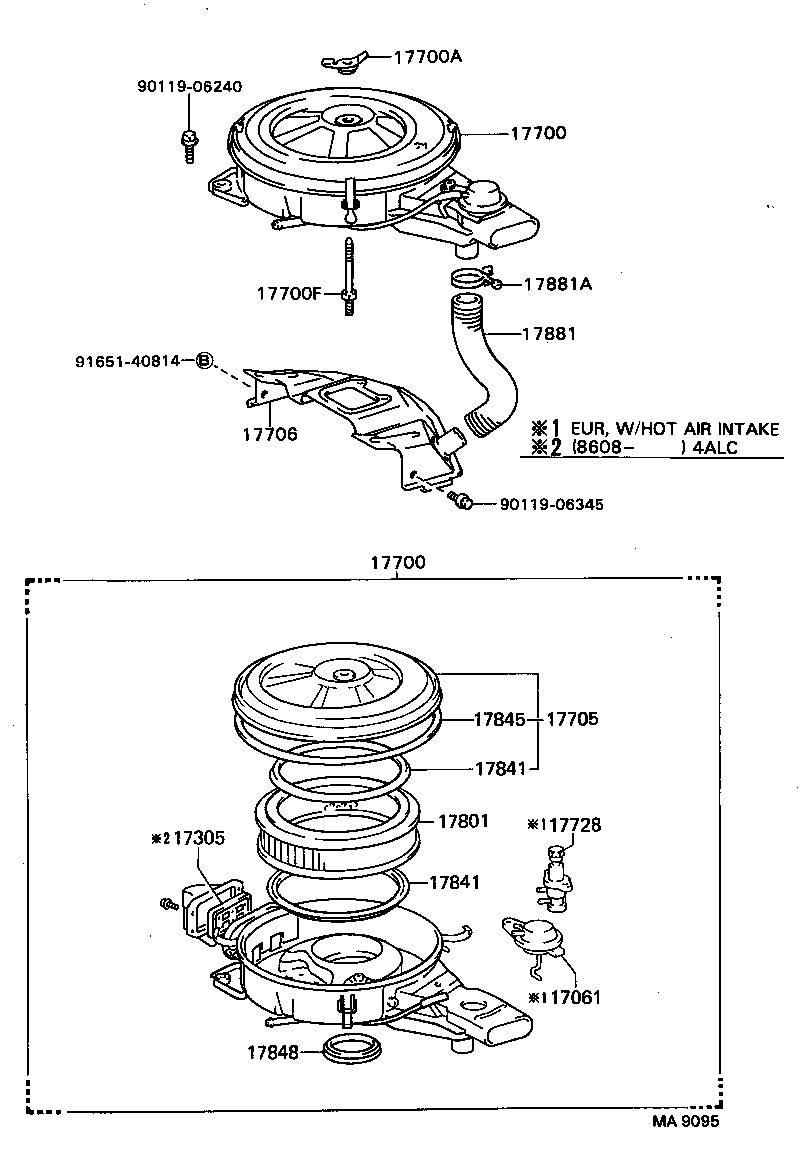

(8310- )4AL#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-15030 |
4AL#..AT151..EUR W/HOT AIR INTAKE |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-16040 |
4AL..AT151..EUG |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-16040 |
4AL..AT151..EUG |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
4AL#..AT151 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06039 |
4AL#..AT151 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-16050 |
4AL#..AT151 |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17902-16020 |
4AL..AT151 |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-15020 |
4AL#..AT151..EUR |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-15010 |
4AL#..AT151 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-15010 |
4AL#..AT151 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-15010 |
4AL#..AT151 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-61011 |
4AL#..AT151 *G,L=1060 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-63001 |
4AL#..AT151 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-63010 |
4AL#..AT151..EUR;4AL..AT151..LHD..GEN W/HOT AIR INTAKE |
1 | ||
| 17881-16110 |
4AL#..AT151..EUR |
1 | ||
| 17881-74040 |
4AL#..AT151..EUR;4AL..AT151..LHD..GEN W/HOT AIR INTAKE |
1 | ||
| 17881-16210 |
4AL#..AT151..EUR |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10460 |
4AL#..AT151..EUR |
1 | ||
| 96111-10460 |
4AL..AT151..EUG |
1 | ||
| Common parts | ||||
| 90119-06240 | ||||
| 90119-06345 | ||||
| 91651-40814 | ||||
