AT151L-TLMDSW (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 4AL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )4AL#

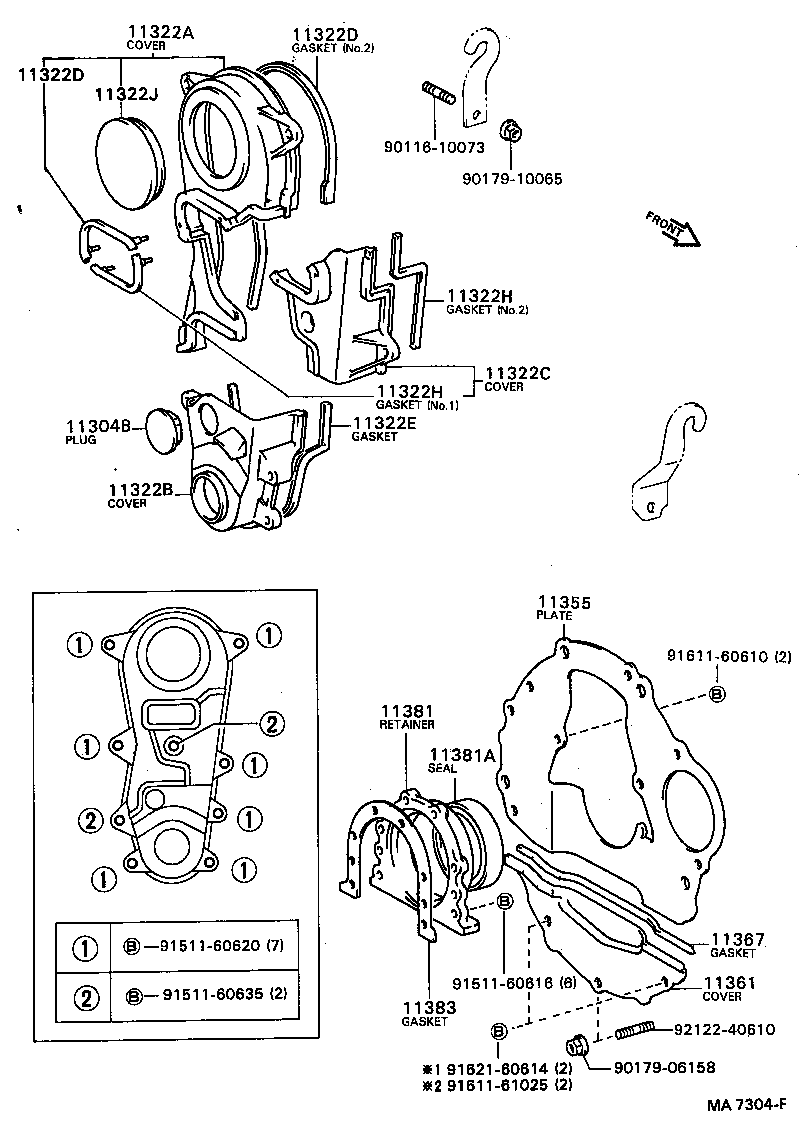

Click highlighted areas on diagram

diagram 11304B 11322A 11322B 11322C 11322D 11322D 11322E 11322H 11322H 11322J 11355 11361 11367 11381 11381A 11383 9011610073 9017906158 9017910065 9151160616 9151160620 9151160635 9161160610 9161161025 9162160614 9212240610
Part # Description Qty Price
11304B - PLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)
90950-01391

4AL#..AT151

OD=34

 1
11322A - COVER, TIMING BELT, NO.1
11302-15030

4AL#..AT151

 1
11302-15031

4AL#..AT151

 1
11322B - COVER, TIMING BELT, NO.2
11303-15031

4AL#..AT151

 1
11303-15030

4AL#..AT151

 1
11322C - COVER, TIMING BELT, NO.3
11304-15010

4AL#..AT151

 1
11322D - GASKET, TIMING BELT COVER, NO.1
11346-15010

4AL#..AT151

NO.1

 1
11328-15030

4AL#..AT151

NO.2

 1
11322D - GASKET, TIMING BELT COVER, NO.1
11346-15010

4AL#..AT151

NO.1

 1
11328-15030

4AL#..AT151

NO.2

 1
11322E - GASKET, TIMING BELT COVER, NO.2
11329-15030

4AL#..AT151

 1
11322H - GASKET, TIMING BELT COVER, NO.3
11319-15010

4AL#..AT151

NO.2

 1
11346-15010

4AL#..AT151

NO.1

 1
11322H - GASKET, TIMING BELT COVER, NO.3
11319-15010

4AL#..AT151

NO.2

 1
11346-15010

4AL#..AT151

NO.1

 1
11322J - RETAINER(FOR TIMING BELT COVER)
90950-01390

4AL#..AT151

 1
11355 - PLATE, REAR END
11355-15050

4AL#..AT151

 1
11355-15060

4AL#..AT151

 1
11361 - COVER, FLYWHEEL HOUSING UNDER
11361-15021

4AL#..AT151

 1
11361-15020

4AL#..AT151

 1
11361-16020

4AL#..AT151

 1
11361-16040

4AL#..AT151

 1
11367 - GASKET, FLYWHEEL HOUSING UNDER
11367-15030

4AL#..AT151

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-15010

4AL#..AT151

 1
11381A - SEAL, ENGINE REAR OIL
90311-70004

4AL#..AT151

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-15010

4AL#..AT151

 1
Common parts
90116-10073
90179-06158
90179-10065
91511-60616
91511-60620
91511-60635
91611-60610
91611-61025
91621-60614
92122-40610
