AT151L-TLMDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 4AL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )

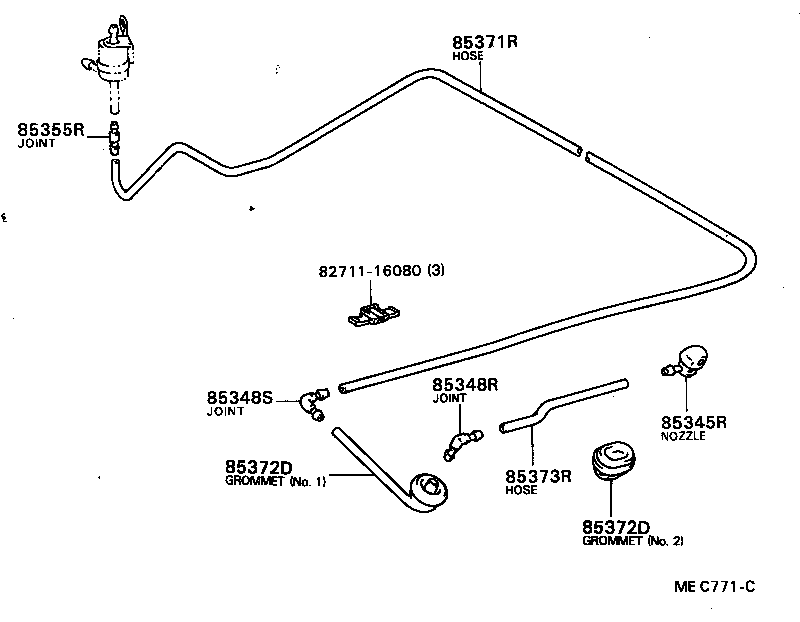

Click highlighted areas on diagram

diagram 8271116080 85345R 85348R 85348S 85355R 85371R 85372D 85372D 85373R
Part # Description Qty Price
85345R - NOZZLE, REAR WASHER
85341-32010

AT151,CT150,ST15#..LB

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85355-20200

AT151,CT150,ST15#..LB

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-20200

AT151,CT150,ST15#..LB

 1
85355R - VALVE, REAR WASHER HOSE
85349-89122

AT151,CT150,ST15#..LB

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-33422

AT151,CT150,ST15#..LB

 1
85372D - GROMMET, REAR WASHER HOSE
85372-20020

AT151,CT150,ST15#..LB

NO.2

 1
85372-20010

AT151,CT150,ST15#..LB

NO.1

 1
85372D - GROMMET, REAR WASHER HOSE
85372-20020

AT151,CT150,ST15#..LB

NO.2

 1
85372-20010

AT151,CT150,ST15#..LB

NO.1

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33299

AT151,CT150,ST15#..LB

L=1000

 1
Common parts
82711-16080
