AT151L-TLMDS (1983)
Toyota Corona/Carina 2
(8310- )

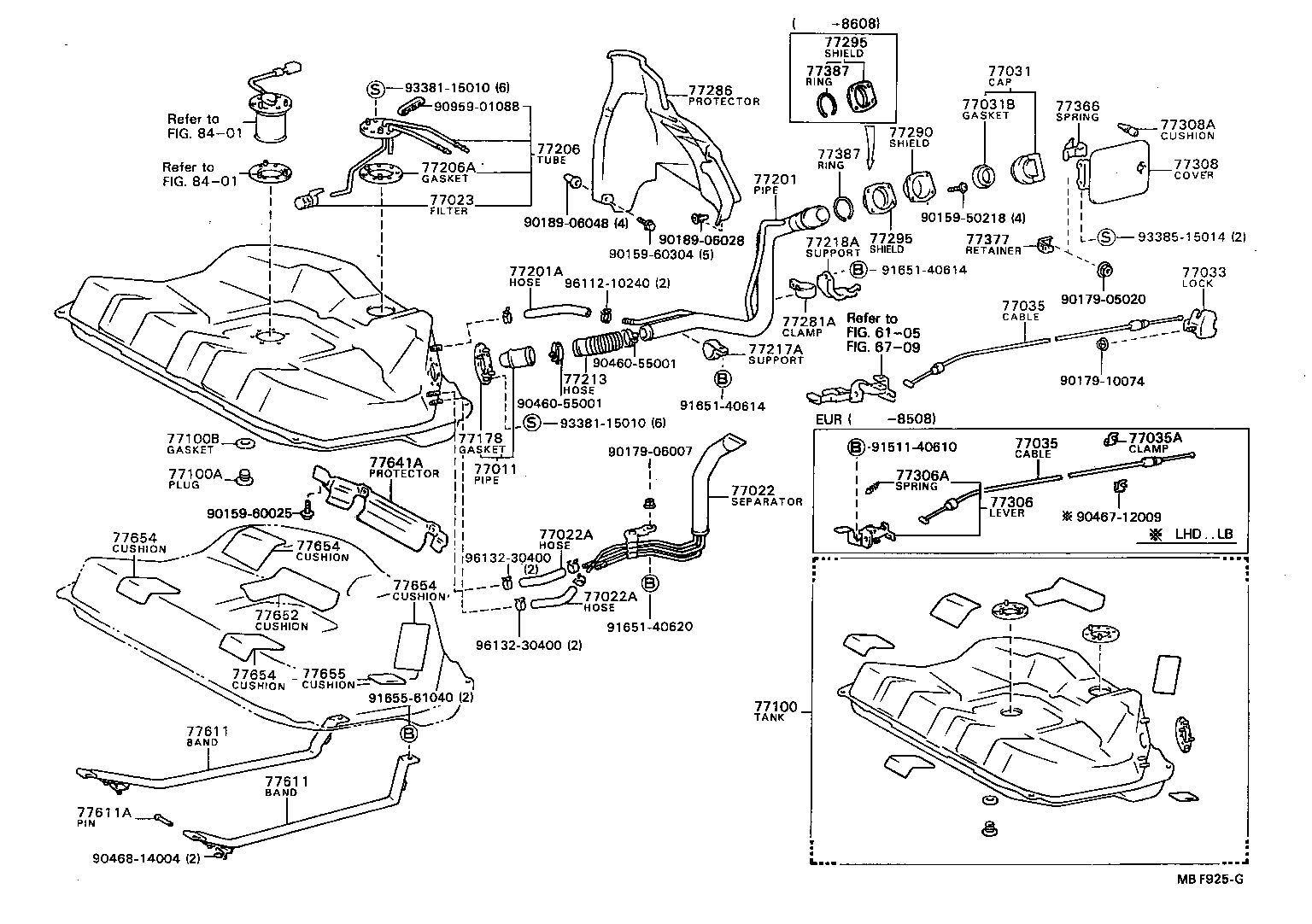

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-16030 |
AT151,CT150,ST15# |
1 | ||
| 77022 - SEPARATOR SUB-ASSY, FUEL EVAPORATIVE | ||||
| 77022-32011 |
AT151,CT150,ST15# |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-04030 |
AT151,CT150,ST15# *H,L=220 |
2 | ||
| 95332-04030 |
AT151,CT150,ST15# *H,L=220 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-04030 |
AT151,CT150,ST15# *H,L=220 |
2 | ||
| 95332-04030 |
AT151,CT150,ST15# *H,L=220 |
2 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12050 |
AT151,ST150 |
1 | ||
| 77023-12050 |
AT151,ST150..GEN,SAA,TH |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
AT151,ST15# |
1 | ||
| 77310-12100 |
ST15#;AT151..EUG;AT151..GEN,SAA |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
AT151,CT150,ST15# |
1 | ||
| 77033 - LOCK SUB-ASSY, FUEL TANK CAP | ||||
| 77037-32010 |
AT151,CT150,ST150..DX,GL,XL |
1 | ||
| 77037-12040 |
AT151,CT150,ST150..(DX,GL,XL)..(EUR,GEN,SAA) |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-20070 |
AT151,CT150,ST150..LHD..(GL,XL) |
1 | ||
| 77035-20070 |
AT151,CT150,ST150..LHD |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-20070 |
AT151,CT150,ST150..LHD..(GL,XL) |
1 | ||
| 77035-20070 |
AT151,CT150,ST150..LHD |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-39135 |
AT151,ST150 |
1 | ||
| 77001-39135 |
AT151,ST150..GEN,SAA,TH |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20003 |
AT151,CT150,ST150 |
1 | ||
| 90341-20004 |
AT151,CT150,ST15# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
AT151,CT150,ST15# |
1 | ||
| 90430-20006 |
AT151,CT150,ST150 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-13020 |
AT151,CT150,ST15# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-32010 |
CT150,ST15#;AT151..EUG,SDZ;AT151..GEN,SAA,TH |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90445-22011 |
AT151,CT150,ST15# L=220 |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77017-32011 |
AT151,ST150 |
1 | ||
| 77017-32011 |
AT151,ST150..GEN,SAA,TH |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-32010 |
AT151,CT150,ST150..GEN,SAA,TH |
1 | ||
| 77169-32010 |
AT151,CT150,ST150 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-32010 |
AT151,CT150,ST15# L=248 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-32010 |
AT151,CT150,ST15# |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-32010 |
AT151,CT150,ST15# |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-32010 |
AT151,CT150,ST15# |
1 | ||
| 77286 - PROTECTOR, FUEL TANK INLET PIPE | ||||
| 77277-20070 |
AT151,CT150,ST150..GEN W/PP BUMPER |
1 | ||
| 77277-20070 |
AT151,CT150,ST150 |
1 | ||
| 77277-20110 |
AT151,CT150,ST15#..EUR,GEN,SAA W/*UB |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-20011 |
AT151,CT150,ST15# |
1 | ||
| 77290-20010 |
AT151,CT150,ST15# |
1 | ||
| 77295 - SHIELD, FUEL FILLER PIPE | ||||
| 77293-32010 |
AT151,CT150,ST15# |
1 | ||
| 77293-20010 |
AT151,CT150,ST15# |
1 | ||
| 77295 - SHIELD, FUEL FILLER PIPE | ||||
| 77293-32010 |
AT151,CT150,ST15# |
1 | ||
| 77293-20010 |
AT151,CT150,ST15# |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-20050 |
AT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA) W/OPENER |
1 | ||
| 77350-20040 |
AT151,CT150,ST150..(DX,STD,XL)..(EUR,GEN,SAA) W/O OPENER |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-06027 |
AT151,CT150,ST15# |
2 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-24010 |
AT151,CT150,ST15# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-24010 |
AT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA) |
1 | ||
| 77387 - RING, FUEL INLET BOX | ||||
| 77391-16011 |
AT151,CT150,ST150 |
1 | ||
| 77391-32010 |
AT151,CT150,ST15# |
1 | ||
| 77387 - RING, FUEL INLET BOX | ||||
| 77391-16011 |
AT151,CT150,ST150 |
1 | ||
| 77391-32010 |
AT151,CT150,ST15# |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-32030 |
AT151,CT150,ST15#..EUR,GEN,TH RH |
1 | ||
| 77602-32020 |
AT151,CT150,ST15# LH |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-32030 |
AT151,CT150,ST15#..EUR,GEN,TH RH |
1 | ||
| 77602-32020 |
AT151,CT150,ST15# LH |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-08020 |
AT151,CT150,ST15# |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32030 |
AT151,CT150,ST15# |
1 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-32020 |
AT151,CT150,ST15# |
4 | ||
| 77652-20040 |
AT151,CT150,ST15# |
4 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-32020 |
AT151,CT150,ST15# |
4 | ||
| 77652-20040 |
AT151,CT150,ST15# |
4 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-32020 |
AT151,CT150,ST15# |
4 | ||
| 77652-20040 |
AT151,CT150,ST15# |
4 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-32020 |
AT151,CT150,ST15# |
4 | ||
| 77652-20040 |
AT151,CT150,ST15# |
4 | ||
| 77655 - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-32020 |
AT151,CT150,ST15# |
1 | ||
| Common parts | ||||
| 90159-50218 | ||||
| 90159-60025 | ||||
| 90159-60304 | ||||
| 90179-05020 | ||||
| 90179-06007 | ||||
| 90179-10074 | ||||
| 90189-06028 | ||||
| 90189-06048 | ||||
| 90460-55001 | ||||
| 90467-12009 | ||||
| 90468-14004 | ||||
| 90959-01088 | ||||
| 91511-40610 | ||||
| 91651-40614 | ||||
| 91651-40620 | ||||
| 91655-61040 | ||||
| 93381-15010 | ||||
| 93385-15014 | ||||
| 96112-10240 | ||||
| 96132-30400 | ||||
| Linked diagrams | ||||
| 6105 | ||||
| 6709 | ||||
| 8401 | ||||

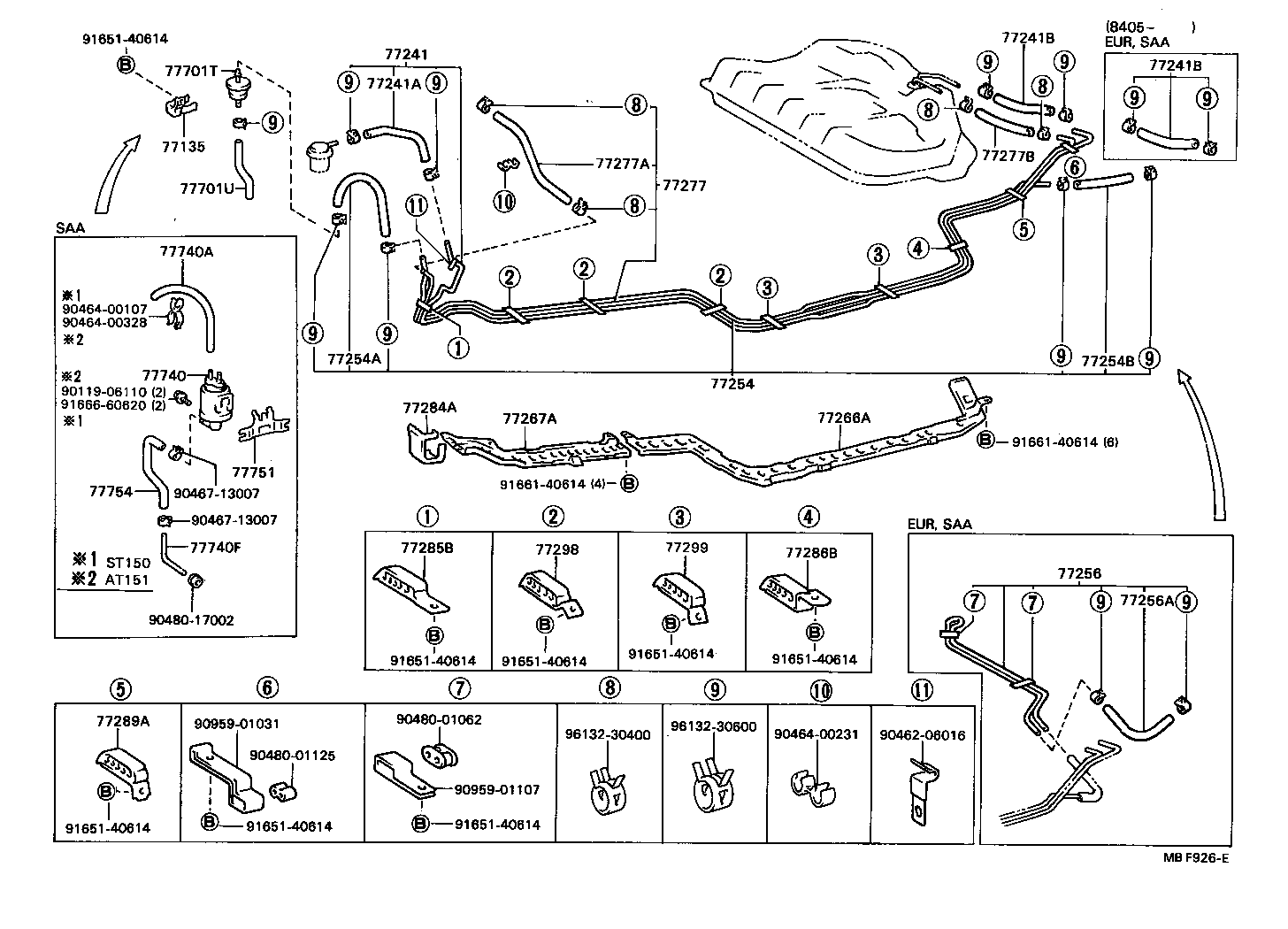

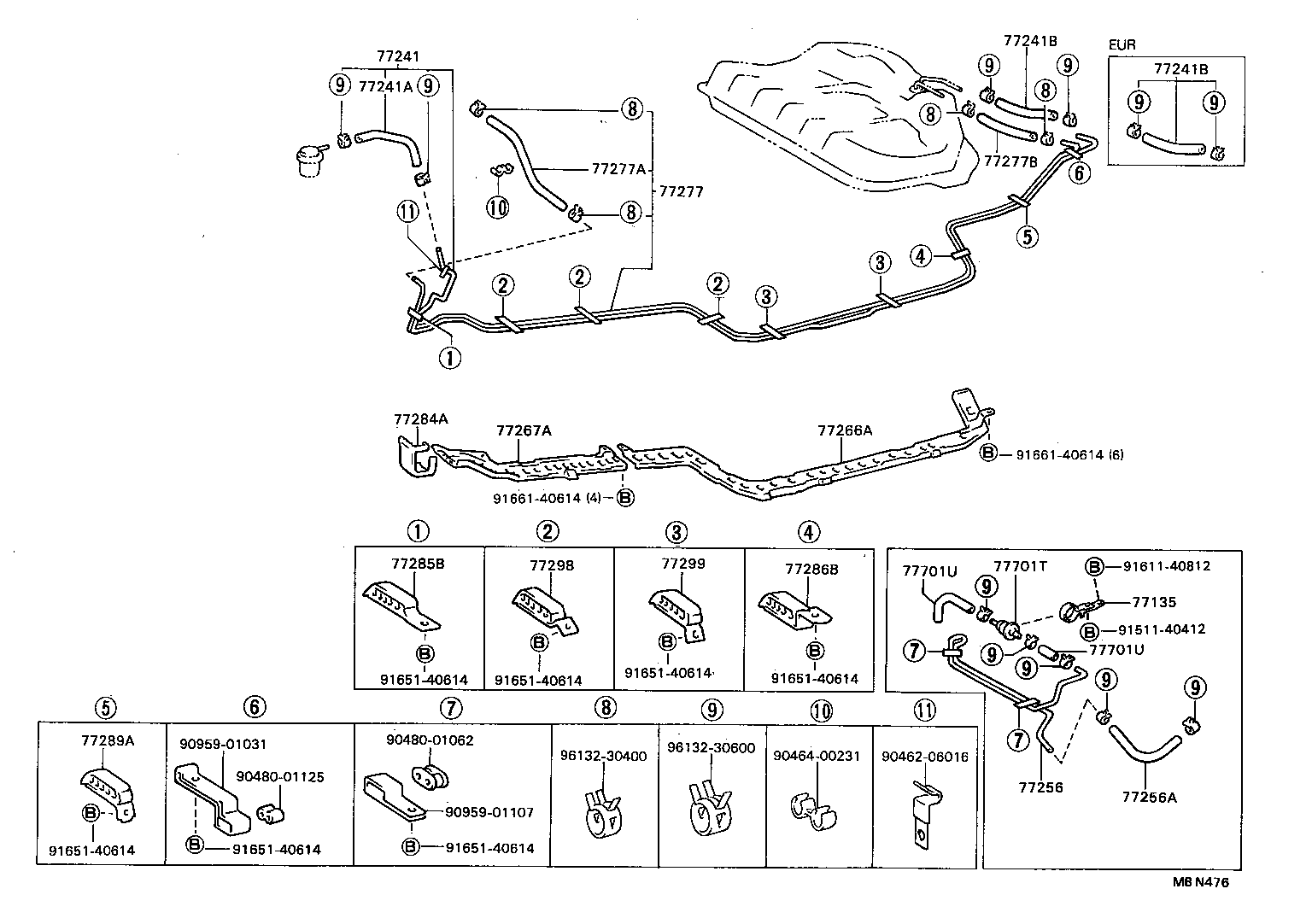

(8310-8508)AT151,ST150 ; (8508-8703)AT151..EUG,SDZ ; (8508-8703)AT151..GEN,SAA,TH ;
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-20040 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN |
1 | ||
| 77135-20020 |
AT151,CT150,ST15#..GEN |
1 | ||
| 77135-32010 |
AT151,CT150,ST150..EUR,GEN |
1 | ||
| 77135-32010 |
AT151,CT150,ST15#..GEN,TH |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77205-20080 |
AT151..GEN |
1 | ||
| 77205-20080 |
AT151..LHD..GEN;AT151..LB..RHD..4FC;AT151..RHD..(3FC,4F,5F) |
1 | ||
| 77205-20110 |
AT151..GEN |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
AT151..EUG;AT151..GEN,SAA *H,L=180 |
1 | ||
| 95332-06020 |
AT151 *H,L=180 |
1 | ||
| 95333-06020 |
AT151..EUG;AT151..GEN,SAA *H,L=180 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
AT151,ST150..GEN,TH *H,L=180 |
1 | ||
| 95333-06020 |
AT151,ST150..GEN *H,L=180 |
1 | ||
| 95332-06020 |
AT151..LB..4FC;AT151..SED..LHD..4FC;AT151,ST150..3FC,4F,5F *H,L=180 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
AT151,ST150..GEN,TH *H,L=180 |
1 | ||
| 95333-06020 |
AT151,ST150..GEN *H,L=180 |
1 | ||
| 95332-06020 |
AT151..LB..4FC;AT151..SED..LHD..4FC;AT151,ST150..3FC,4F,5F *H,L=180 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77019-20120 |
AT151,CT150,ST15#..GEN,SAA |
1 | ||
| 77019-20121 |
AT151,CT150,ST15#..GEN,SAA |
1 | ||
| 77019-20120 |
AT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..3FC,4F,5F |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95333-06030 |
AT151,CT150,ST15#..GEN,SAA *H,L=220 |
1 | ||
| 95332-06030 |
AT151,CT150,ST15#..GEN,SAA,TH *H,L=280 |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06030 |
AT151,CT150,ST15# *H,L=260 |
1 | ||
| 95333-06030 |
AT151,CT150,ST15# *H,L=260 |
1 | ||
| 77256 - TUBE, FUEL EMISSION, NO.3 | ||||
| 77263-20050 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN |
1 | ||
| 77256A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.3) | ||||
| 95332-06026 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN *H,L=260 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-20050 |
AT151,CT150,ST15# |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-20010 |
AT151,CT150,ST15#..EUR,GEN,SAA POLYETHYLENE |
1 | ||
| 77267-20030 |
AT151..SED..LHD..5F..EUG;AT151,CT150,ST15#..GEN,SAA,TH STEEL |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77207-20060 |
AT151..GEN |
1 | ||
| 77207-20060 |
AT151..LB..4FC;AT151..3FC,4F,5F;AT151..SED..LHD..4FC |
1 | ||
| 77207-20100 |
AT151..EUR,GEN |
1 | ||
| 77207-20100 |
AT151..EUG;AT151..GEN |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-15080 |
AT151..EUR,GEN |
1 | ||
| 23271-15080 |
AT151..EUG;AT151..GEN |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-04030 |
AT151,ST150 *H,L=220 |
1 | ||
| 95332-04030 |
AT151,ST150..GEN,TH *H,L=220 |
1 | ||
| 95333-04030 |
AT151,ST150..GEN *H,L=220 |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-20030 |
AT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..3FC,4F,5F |
1 | ||
| 77284-20031 |
AT151,CT150,ST15# |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-20022 |
AT151,ST150 |
1 | ||
| 77285-20022 |
AT151,ST150..GEN,SAA,TH |
1 | ||
| 77285-20021 |
AT151..LB..4FC;AT151..SED..LHD..4FC;AT151,ST150..3FC,4F,5F |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-32010 |
AT151,ST150..GEN,SAA,TH |
1 | ||
| 77286-32010 |
AT151,ST150 |
1 | ||
| 77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3 | ||||
| 77289-32010 |
AT151,ST150 |
1 | ||
| 77289-32010 |
AT151,ST150..GEN,SAA,TH |
1 | ||
| 77298 - CLAMP, FUEL TUBE W/GROMMET, NO.4 | ||||
| 77285-20030 |
AT151,ST150..GEN,SAA,TH |
3 | ||
| 77285-20030 |
AT151,ST150 |
3 | ||
| 77299 - CLAMP, FUEL TUBE W/GROMMET, NO.5 | ||||
| 77286-20020 |
AT151,ST150 |
2 | ||
| 77286-20020 |
AT151,ST150..GEN,SAA,TH |
2 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
AT151,CT150,ST15#..EUR,GEN,TH |
1 | ||
| 90917-10020 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN |
1 | ||
| 90917-10020 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95332-06020 |
AT151,CT150,ST150..EUR,GEN *H,L=130 |
1 | ||
| 95332-06017 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN *H,L=170 |
1 | ||
| 95332-06020 |
AT151,CT150,ST15#..GEN,TH *H,L=130 |
1 | ||
| 95333-06020 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN *H,L=130 |
1 | ||
| 95332-06020 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN *H,L=130 |
1 | ||
| 95332-06007 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN *H,L=70 |
1 | ||
| Common parts | ||||
| 90119-06110 | ||||
| 90462-06016 | ||||
| 90464-00107 | ||||
| 90464-00231 | ||||
| 90464-00328 | ||||
| 90467-13007 | ||||
| 90480-01062 | ||||
| 90480-01125 | ||||
| 90480-17002 | ||||
| 90959-01031 | ||||
| 90959-01107 | ||||
| 91651-40614 | ||||
| 91661-40614 | ||||
| 91666-60620 | ||||
| 96132-30400 | ||||
| 96132-30600 | ||||
(8703- )AT151..EUG ; (8703- )AT151,ST150..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-20040 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN |
1 | ||
| 77135-20020 |
AT151,CT150,ST15#..GEN |
1 | ||
| 77135-32010 |
AT151,CT150,ST150..EUR,GEN |
1 | ||
| 77135-32010 |
AT151,CT150,ST15#..GEN,TH |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77205-20080 |
AT151..GEN |
1 | ||
| 77205-20080 |
AT151..LHD..GEN;AT151..LB..RHD..4FC;AT151..RHD..(3FC,4F,5F) |
1 | ||
| 77205-20110 |
AT151..GEN |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
AT151..EUG;AT151..GEN,SAA *H,L=180 |
1 | ||
| 95332-06020 |
AT151 *H,L=180 |
1 | ||
| 95333-06020 |
AT151..EUG;AT151..GEN,SAA *H,L=180 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
AT151,ST150..GEN,TH *H,L=180 |
1 | ||
| 95333-06020 |
AT151,ST150..GEN *H,L=180 |
1 | ||
| 95332-06020 |
AT151..LB..4FC;AT151..SED..LHD..4FC;AT151,ST150..3FC,4F,5F *H,L=180 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
AT151,ST150..GEN,TH *H,L=180 |
1 | ||
| 95333-06020 |
AT151,ST150..GEN *H,L=180 |
1 | ||
| 95332-06020 |
AT151..LB..4FC;AT151..SED..LHD..4FC;AT151,ST150..3FC,4F,5F *H,L=180 |
1 | ||
| 77256 - TUBE, FUEL EMISSION, NO.3 | ||||
| 77263-20050 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN |
1 | ||
| 77256A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.3) | ||||
| 95332-06026 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN *H,L=260 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-20050 |
AT151,CT150,ST15# |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-20010 |
AT151,CT150,ST15#..EUR,GEN,SAA POLYETHYLENE |
1 | ||
| 77267-20030 |
AT151..SED..LHD..5F..EUG;AT151,CT150,ST15#..GEN,SAA,TH STEEL |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77207-20060 |
AT151..GEN |
1 | ||
| 77207-20060 |
AT151..LB..4FC;AT151..3FC,4F,5F;AT151..SED..LHD..4FC |
1 | ||
| 77207-20100 |
AT151..EUR,GEN |
1 | ||
| 77207-20100 |
AT151..EUG;AT151..GEN |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-15080 |
AT151..EUR,GEN |
1 | ||
| 23271-15080 |
AT151..EUG;AT151..GEN |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-04030 |
AT151,ST150 *H,L=220 |
1 | ||
| 95332-04030 |
AT151,ST150..GEN,TH *H,L=220 |
1 | ||
| 95333-04030 |
AT151,ST150..GEN *H,L=220 |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-20030 |
AT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..3FC,4F,5F |
1 | ||
| 77284-20031 |
AT151,CT150,ST15# |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-20022 |
AT151,ST150 |
1 | ||
| 77285-20022 |
AT151,ST150..GEN,SAA,TH |
1 | ||
| 77285-20021 |
AT151..LB..4FC;AT151..SED..LHD..4FC;AT151,ST150..3FC,4F,5F |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-32010 |
AT151,ST150..GEN,SAA,TH |
1 | ||
| 77286-32010 |
AT151,ST150 |
1 | ||
| 77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3 | ||||
| 77289-32010 |
AT151,ST150 |
1 | ||
| 77289-32010 |
AT151,ST150..GEN,SAA,TH |
1 | ||
| 77298 - CLAMP, FUEL TUBE W/GROMMET, NO.4 | ||||
| 77285-20030 |
AT151,ST150..GEN,SAA,TH |
3 | ||
| 77285-20030 |
AT151,ST150 |
3 | ||
| 77299 - CLAMP, FUEL TUBE W/GROMMET, NO.5 | ||||
| 77286-20020 |
AT151,ST150 |
2 | ||
| 77286-20020 |
AT151,ST150..GEN,SAA,TH |
2 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
AT151,CT150,ST15#..EUR,GEN,TH |
1 | ||
| 90917-10020 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN |
1 | ||
| 90917-10020 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95332-06020 |
AT151,CT150,ST150..EUR,GEN *H,L=130 |
1 | ||
| 95332-06017 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN *H,L=170 |
1 | ||
| 95332-06020 |
AT151,CT150,ST15#..GEN,TH *H,L=130 |
1 | ||
| 95333-06020 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN *H,L=130 |
1 | ||
| 95332-06020 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN *H,L=130 |
1 | ||
| 95332-06007 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN *H,L=70 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95332-06020 |
AT151,CT150,ST150..EUR,GEN *H,L=130 |
1 | ||
| 95332-06017 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN *H,L=170 |
1 | ||
| 95332-06020 |
AT151,CT150,ST15#..GEN,TH *H,L=130 |
1 | ||
| 95333-06020 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN *H,L=130 |
1 | ||
| 95332-06020 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN *H,L=130 |
1 | ||
| 95332-06007 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN *H,L=70 |
1 | ||
| Common parts | ||||
| 90462-06016 | ||||
| 90464-00231 | ||||
| 90480-01062 | ||||
| 90480-01125 | ||||
| 90959-01031 | ||||
| 90959-01107 | ||||
| 91511-40412 | ||||
| 91611-40812 | ||||
| 91651-40614 | ||||
| 91661-40614 | ||||
| 96132-30400 | ||||
| 96132-30600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
