AT151L-TLMDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 4AL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )

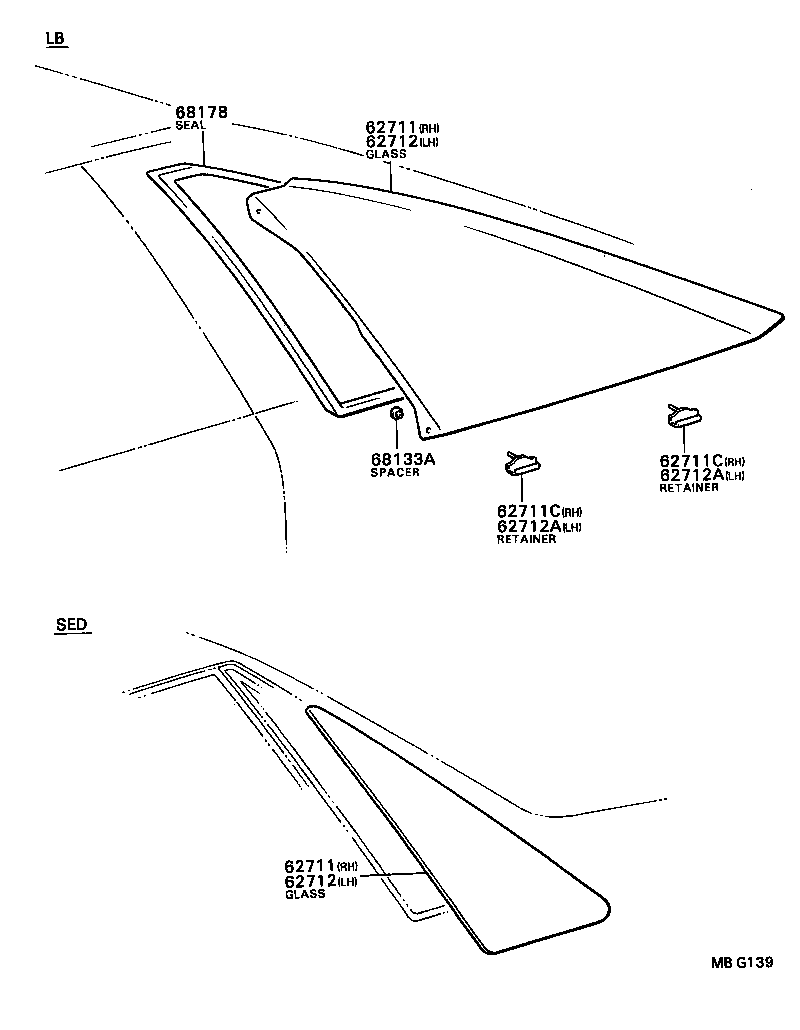

Click highlighted areas on diagram

diagram 62711 62711 62711C 62711C 62712 62712 62712A 62712A 68133A 68178
Part # Description Qty Price
62711 - GLASS, QUARTER WINDOW, RH
62711-20050

AT151,ST15#..LB..(GEN,SAA)

*TT,T=3.5

 1
62711 - GLASS, QUARTER WINDOW, RH
62711-20050

AT151,ST15#..LB..(GEN,SAA)

*TT,T=3.5

 1
62711C - RETAINER, QUARTER WINDOW GLASS, RH
62765-20020

AT151,CT150,ST15#..LB

 2
62711C - RETAINER, QUARTER WINDOW GLASS, RH
62765-20020

AT151,CT150,ST15#..LB

 2
62712 - GLASS, QUARTER WINDOW, LH
62712-20050

AT151,ST15#..LB..(GEN,SAA)

*TT,T=3.5

 1
62712 - GLASS, QUARTER WINDOW, LH
62712-20050

AT151,ST15#..LB..(GEN,SAA)

*TT,T=3.5

 1
62712A - RETAINER, QUARTER WINDOW GLASS, LH
62765-20020

AT151,CT150,ST15#..LB

 2
62712A - RETAINER, QUARTER WINDOW GLASS, LH
62765-20020

AT151,CT150,ST15#..LB

 2
68133A - SPACER, QUARTER WINDOW NO.2 GLASS
68137-20010

AT151,CT150,ST15#..LB

 4
68178 - SEAL, QUARTER WINDOW NO.2 GLASS
68177-20010

AT151,CT150,ST15#..LB

 2
