AT151L-TLMDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 4AL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310-8608)4AL# ; (8608- )4AL

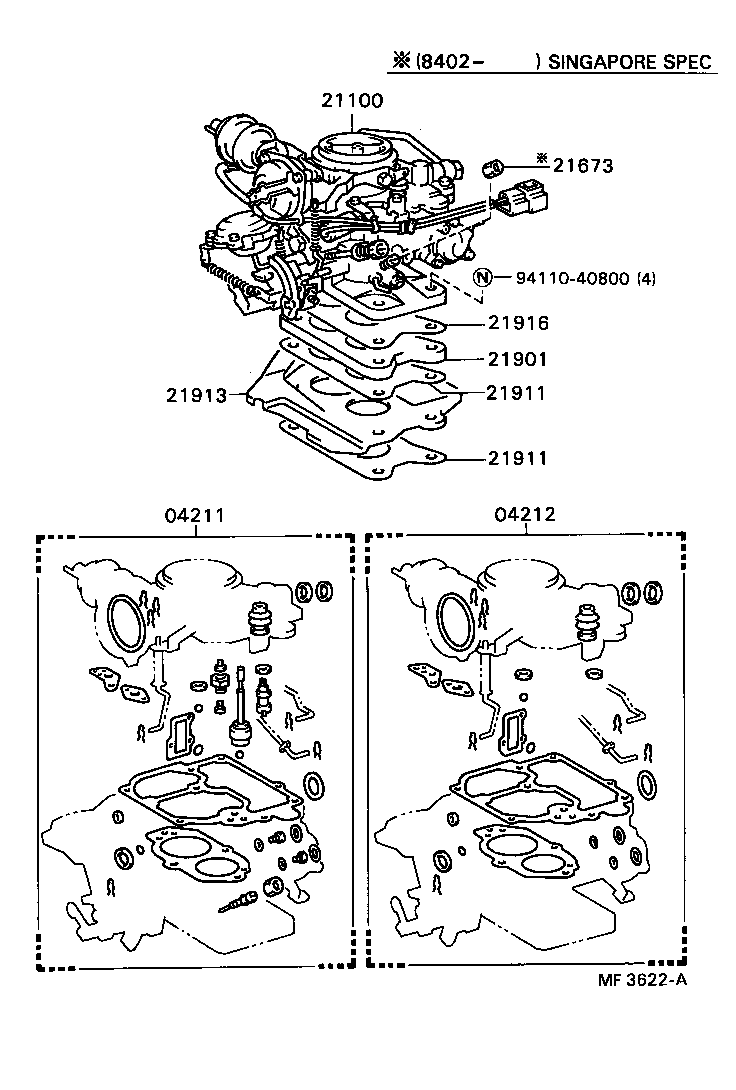

Click highlighted areas on diagram

diagram 04211 04212 21100 21673 21901 21911 21911 21913 21916 9411040800
Part # Description Qty Price
04211 - CARBURETOR KIT
04211-14080

4AL..AT151..GEN

 1
04211-16070

4AL..AT151..GEN,TH

 1
04212 - GASKET KIT, CARBURETOR
04212-14020

4AL..AT151..LB..4FC;4AL#..AT151..3FC,4F,5F;4AL..AT151..SED..LHD..4FC

 1
04212-14020

4AL..AT151

 1
04212-14020

4AL..AT151..GEN,SAA,TH

 1
21100 - CARBURETOR ASSY
21100-16060

4AL..AT151..GEN

 1
21100-16061

4AL..AT151..GEN,TH

 1
21100-16062

4AL..AT151..GEN

 1
21901 - INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1
21901-15012

4AL..AT151

 1
21901-15012

4AL#..AT151

 1
21911 - GASKET, CARBURETOR
21916-15030

4AL#..AT151

 2
21911 - GASKET, CARBURETOR
21916-15030

4AL#..AT151

 2
21913 - INSULATOR, CARBURETOR HEAT, NO.2
21913-15030

4AL#..AT151

 1
21916 - GASKET, CARBURETOR, NO.2
21914-15020

4AL#..AT151

 1
21914-15020

4AL..AT151

 1
Common parts
94110-40800
