AT151L-TLHNCC (1983)
Toyota Corona/Carina 2

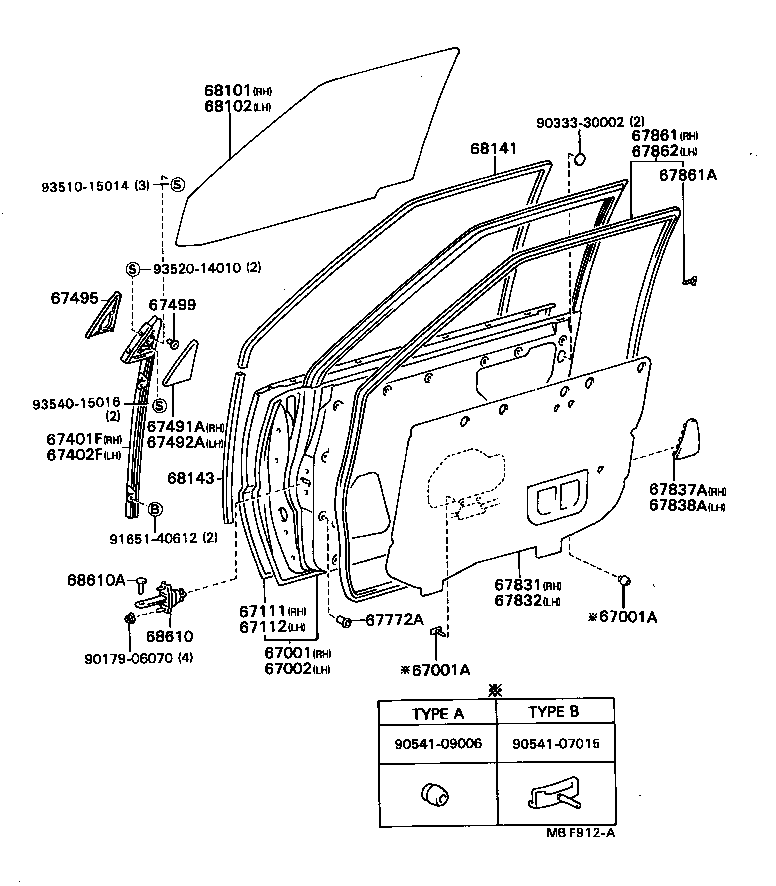

(8310- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-20520 |
AT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..(3FC,4F,5F)..(DX,GL,XL)..(EUR,GEN) W/*WPM |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-07015 |
AT151,CT150,ST15# TYPE B |
2 | ||
| 90541-09006 |
AT151,CT150,ST15# TYPE A |
4 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-07015 |
AT151,CT150,ST15# TYPE B |
2 | ||
| 90541-09006 |
AT151,CT150,ST15# TYPE A |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-20490 |
AT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..(3FC,4F,5F)..(DX,GL,XL)..(EUR,GEN) W/*WPM |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-20230 |
AT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..(3FC,4F,5F)..(DX,GL,XL) W/*WPM |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-20250 |
AT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..(3FC,4F,5F)..(DX,GL,XL) W/*WPM |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-20130 |
AT151,CT150,ST150 |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-20120 |
AT151,CT150,ST150 |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-20070 |
AT151,CT150,ST150..GL |
1 | ||
| 67491-20080 |
AT151,CT150,ST150..GL W/*RCM |
1 | ||
| 67491-20060 |
AT151,CT150,ST15# W/*RCM |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-20100 |
AT151,CT150,ST150..GL W/*RCM |
1 | ||
| 67492-20090 |
AT151,CT150,ST150..GL |
1 | ||
| 67495 - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER | ||||
| 67495-20050 |
AT151,CT150,ST150..LHD..EUR |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-30010 |
AT151,CT150,ST15# |
2 | ||
| 67772A - CAP, FRONT DOOR TRIM RETAINER | ||||
| 67772-20021 |
AT151,CT150,ST15# |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-20210 |
AT151,CT150,ST150 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-20060 |
AT151,CT150,ST150 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-20190 |
AT151,CT150,ST15# |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67868-30040 |
AT151,CT150,ST15# |
42 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-20190 |
AT151,CT150,ST15# |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-20310 |
AT151,CT150,ST15# *TT,T=4.0 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-20230 |
AT151,CT150,ST15# *TT,T=4.0 |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68141-20140 |
AT151,CT150,ST15# |
2 | ||
| 68143 - RUN, FRONT DOOR GLASS, LOWER | ||||
| 68143-20040 |
AT151,CT150,ST15# |
2 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-20030 |
AT151,CT150,ST15# |
2 | ||
| 68610A - PIN(FOR FRONT DOOR CHECK) | ||||
| 68617-12010 |
AT151,CT150,ST150 |
2 | ||
| 68617-22010 |
AT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..3FC,4F,5F |
2 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90333-30002 | ||||
| 90541-07015 | ||||
| 90541-09006 | ||||
| 91651-40612 | ||||
| 93510-15014 | ||||
| 93520-14010 | ||||
| 93540-15016 | ||||

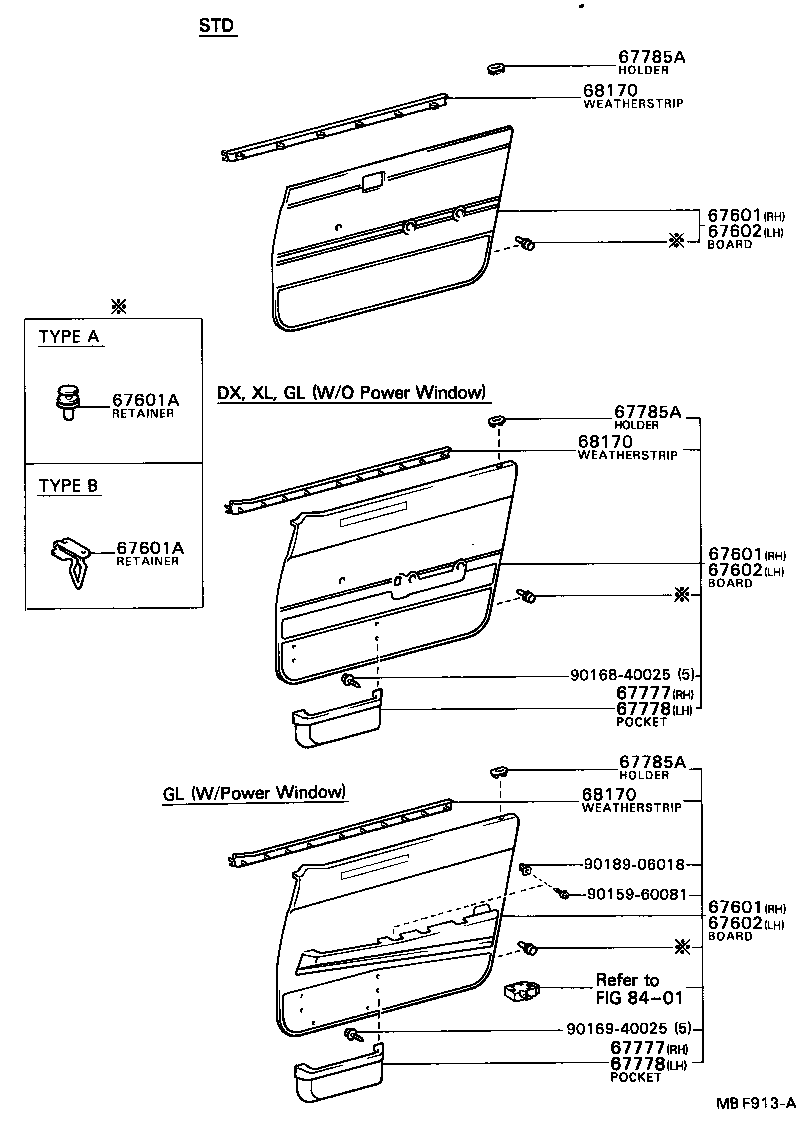

(8310-8508)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-2032004 |
AT151,CT150,ST150..LHD..GL..(EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 67650-2032003 |
AT151,CT150,ST150..LHD..GL..(EUR,GEN) SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67650-2032002 |
AT151,CT150,ST150..LHD..GL..(EUR,GEN) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-2032003 |
AT151..SDZ;AT151,ST150..LHD..GL..GEN SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67650-2032002 |
AT151..SDZ;AT151,ST150..LHD..GL..GEN DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-2032004 |
AT151..SDZ;AT151,ST150..LHD..GL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67650-2033003 |
AT151..SDZ;AT151,ST150..GL..GEN SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67650-2033002 |
AT151..SDZ;AT151,ST150..GL..GEN DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-2033004 |
AT151..SDZ;AT151,ST150..GL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-2032004 |
AT151,CT150,ST150..LHD..GL..(EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 67650-2032003 |
AT151,CT150,ST150..LHD..GL..(EUR,GEN) SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67650-2032002 |
AT151,CT150,ST150..LHD..GL..(EUR,GEN) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-2032003 |
AT151..SDZ;AT151,ST150..LHD..GL..GEN SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67650-2032002 |
AT151..SDZ;AT151,ST150..LHD..GL..GEN DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-2032004 |
AT151..SDZ;AT151,ST150..LHD..GL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67650-2033003 |
AT151..SDZ;AT151,ST150..GL..GEN SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67650-2033002 |
AT151..SDZ;AT151,ST150..GL..GEN DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-2033004 |
AT151..SDZ;AT151,ST150..GL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-2032004 |
AT151,CT150,ST150..LHD..GL..(EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 67650-2032003 |
AT151,CT150,ST150..LHD..GL..(EUR,GEN) SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67650-2032002 |
AT151,CT150,ST150..LHD..GL..(EUR,GEN) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-2032003 |
AT151..SDZ;AT151,ST150..LHD..GL..GEN SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67650-2032002 |
AT151..SDZ;AT151,ST150..LHD..GL..GEN DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-2032004 |
AT151..SDZ;AT151,ST150..LHD..GL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67650-2033003 |
AT151..SDZ;AT151,ST150..GL..GEN SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67650-2033002 |
AT151..SDZ;AT151,ST150..GL..GEN DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-2033004 |
AT151..SDZ;AT151,ST150..GL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-22010 |
AT151,CT150,ST15# TYPE A |
28 | ||
| 67771-14010 |
AT151,CT150,ST15# TYPE B |
2 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-22010 |
AT151,CT150,ST15# TYPE A |
28 | ||
| 67771-14010 |
AT151,CT150,ST15# TYPE B |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2B26004 |
AT151,CT150,ST150..LHD..GL..(EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 67620-2B26003 |
AT151,CT150,ST150..LHD..GL..(EUR,GEN) SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67620-2B26002 |
AT151,CT150,ST150..LHD..GL..(EUR,GEN) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-2B26004 |
AT151..SDZ;AT151,ST150..LHD..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67620-2B26003 |
AT151..SDZ;AT151,ST150..LHD..GEN SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67620-2B26002 |
AT151..SDZ;AT151,ST150..LHD..GEN DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-2B26003 |
AT151..SDZ;AT151,ST150..GL..GEN SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67620-2B26002 |
AT151..SDZ;AT151,ST150..GL..GEN DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-2B26004 |
AT151..SDZ;AT151,ST150..GL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2B26004 |
AT151,CT150,ST150..LHD..GL..(EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 67620-2B26003 |
AT151,CT150,ST150..LHD..GL..(EUR,GEN) SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67620-2B26002 |
AT151,CT150,ST150..LHD..GL..(EUR,GEN) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-2B26004 |
AT151..SDZ;AT151,ST150..LHD..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67620-2B26003 |
AT151..SDZ;AT151,ST150..LHD..GEN SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67620-2B26002 |
AT151..SDZ;AT151,ST150..LHD..GEN DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-2B26003 |
AT151..SDZ;AT151,ST150..GL..GEN SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67620-2B26002 |
AT151..SDZ;AT151,ST150..GL..GEN DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-2B26004 |
AT151..SDZ;AT151,ST150..GL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2B26004 |
AT151,CT150,ST150..LHD..GL..(EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 67620-2B26003 |
AT151,CT150,ST150..LHD..GL..(EUR,GEN) SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67620-2B26002 |
AT151,CT150,ST150..LHD..GL..(EUR,GEN) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-2B26004 |
AT151..SDZ;AT151,ST150..LHD..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67620-2B26003 |
AT151..SDZ;AT151,ST150..LHD..GEN SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67620-2B26002 |
AT151..SDZ;AT151,ST150..LHD..GEN DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-2B26003 |
AT151..SDZ;AT151,ST150..GL..GEN SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67620-2B26002 |
AT151..SDZ;AT151,ST150..GL..GEN DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-2B26004 |
AT151..SDZ;AT151,ST150..GL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67770-2001012 |
AT151,CT150,ST150..LHD..GL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67770-2001004 |
AT151,CT150,ST150..LHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 67770-2001013 |
AT151,CT150,ST150..LHD..GL SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67770-2001012 |
AT151,CT150,ST150..LHD..GL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67770-2001004 |
AT151,CT150,ST150..LHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 67770-2001013 |
AT151,CT150,ST150..LHD..GL SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 69751-20040 |
AT151,CT150,ST150..DX,GL,XL |
2 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 69751-20040 |
AT151,CT150,ST150..DX,GL,XL |
2 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 69751-20040 |
AT151,CT150,ST150..DX,GL,XL |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68220-20170 |
AT151,CT150,ST150..GL LH |
1 | ||
| 68170-20240 |
AT151,CT150,ST150..GL RH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68220-20170 |
AT151,CT150,ST150..GL LH |
1 | ||
| 68170-20240 |
AT151,CT150,ST150..GL RH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68220-20170 |
AT151,CT150,ST150..GL LH |
1 | ||
| 68170-20240 |
AT151,CT150,ST150..GL RH |
1 | ||
| Common parts | ||||
| 90159-60081 | ||||
| 90168-40025 | ||||
| 90169-40025 | ||||
| 90189-06018 | ||||
| Linked diagrams | ||||
| 8401 | ||||

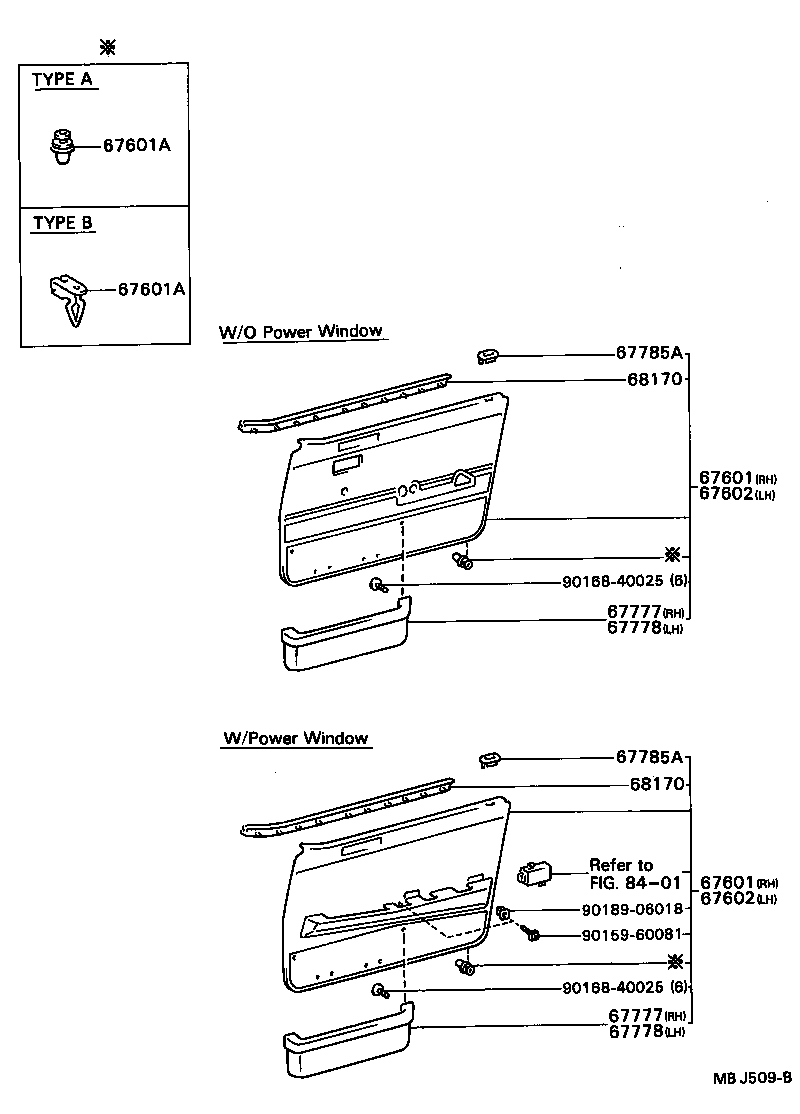

(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-2032004 |
AT151,CT150,ST150..LHD..GL..(EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 67650-2032003 |
AT151,CT150,ST150..LHD..GL..(EUR,GEN) SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67650-2032002 |
AT151,CT150,ST150..LHD..GL..(EUR,GEN) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-2032003 |
AT151..SDZ;AT151,ST150..LHD..GL..GEN SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67650-2032002 |
AT151..SDZ;AT151,ST150..LHD..GL..GEN DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-2032004 |
AT151..SDZ;AT151,ST150..LHD..GL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67650-2033003 |
AT151..SDZ;AT151,ST150..GL..GEN SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67650-2033002 |
AT151..SDZ;AT151,ST150..GL..GEN DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-2033004 |
AT151..SDZ;AT151,ST150..GL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-2032004 |
AT151,CT150,ST150..LHD..GL..(EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 67650-2032003 |
AT151,CT150,ST150..LHD..GL..(EUR,GEN) SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67650-2032002 |
AT151,CT150,ST150..LHD..GL..(EUR,GEN) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-2032003 |
AT151..SDZ;AT151,ST150..LHD..GL..GEN SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67650-2032002 |
AT151..SDZ;AT151,ST150..LHD..GL..GEN DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-2032004 |
AT151..SDZ;AT151,ST150..LHD..GL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67650-2033003 |
AT151..SDZ;AT151,ST150..GL..GEN SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67650-2033002 |
AT151..SDZ;AT151,ST150..GL..GEN DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-2033004 |
AT151..SDZ;AT151,ST150..GL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-22010 |
AT151,CT150,ST15# TYPE A |
28 | ||
| 67771-14010 |
AT151,CT150,ST15# TYPE B |
2 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-22010 |
AT151,CT150,ST15# TYPE A |
28 | ||
| 67771-14010 |
AT151,CT150,ST15# TYPE B |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2B26004 |
AT151,CT150,ST150..LHD..GL..(EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 67620-2B26003 |
AT151,CT150,ST150..LHD..GL..(EUR,GEN) SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67620-2B26002 |
AT151,CT150,ST150..LHD..GL..(EUR,GEN) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-2B26004 |
AT151..SDZ;AT151,ST150..LHD..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67620-2B26003 |
AT151..SDZ;AT151,ST150..LHD..GEN SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67620-2B26002 |
AT151..SDZ;AT151,ST150..LHD..GEN DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-2B26003 |
AT151..SDZ;AT151,ST150..GL..GEN SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67620-2B26002 |
AT151..SDZ;AT151,ST150..GL..GEN DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-2B26004 |
AT151..SDZ;AT151,ST150..GL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2B26004 |
AT151,CT150,ST150..LHD..GL..(EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 67620-2B26003 |
AT151,CT150,ST150..LHD..GL..(EUR,GEN) SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67620-2B26002 |
AT151,CT150,ST150..LHD..GL..(EUR,GEN) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-2B26004 |
AT151..SDZ;AT151,ST150..LHD..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67620-2B26003 |
AT151..SDZ;AT151,ST150..LHD..GEN SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67620-2B26002 |
AT151..SDZ;AT151,ST150..LHD..GEN DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-2B26003 |
AT151..SDZ;AT151,ST150..GL..GEN SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67620-2B26002 |
AT151..SDZ;AT151,ST150..GL..GEN DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-2B26004 |
AT151..SDZ;AT151,ST150..GL..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67770-2001012 |
AT151,CT150,ST150..LHD..GL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67770-2001004 |
AT151,CT150,ST150..LHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 67770-2001013 |
AT151,CT150,ST150..LHD..GL SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67770-2001012 |
AT151,CT150,ST150..LHD..GL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67770-2001004 |
AT151,CT150,ST150..LHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 67770-2001013 |
AT151,CT150,ST150..LHD..GL SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67770-2001012 |
AT151,CT150,ST150..LHD..GL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67770-2001004 |
AT151,CT150,ST150..LHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 67770-2001013 |
AT151,CT150,ST150..LHD..GL SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 69751-20040 |
AT151,CT150,ST150..DX,GL,XL |
2 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 69751-20040 |
AT151,CT150,ST150..DX,GL,XL |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68220-20170 |
AT151,CT150,ST150..GL LH |
1 | ||
| 68170-20240 |
AT151,CT150,ST150..GL RH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68220-20170 |
AT151,CT150,ST150..GL LH |
1 | ||
| 68170-20240 |
AT151,CT150,ST150..GL RH |
1 | ||
| Common parts | ||||
| 90159-60081 | ||||
| 90168-40025 | ||||
| 90189-06018 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
