AT151L-TLHNCC (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Aug 1986
Engine 4ALC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )LB

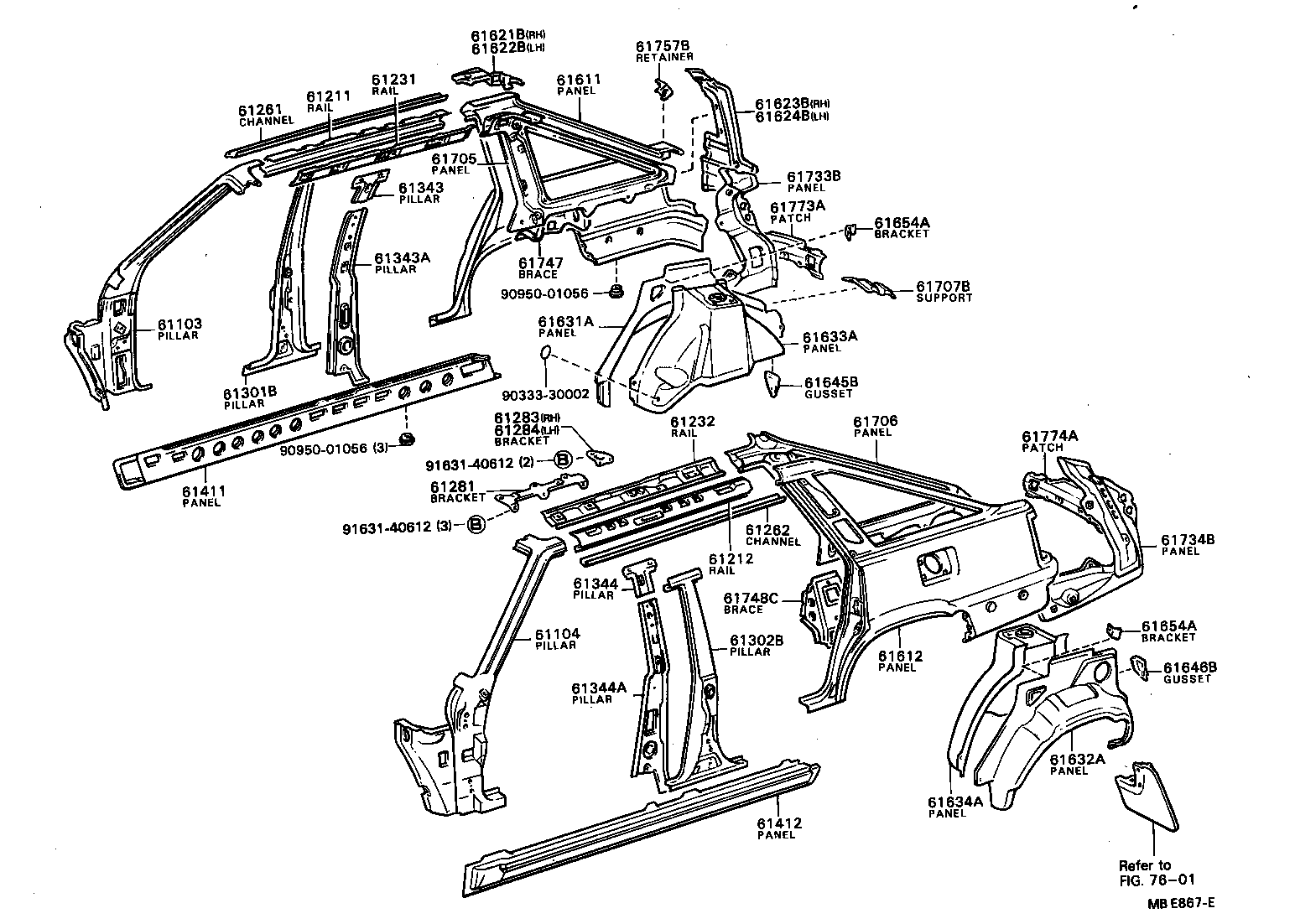

Click highlighted areas on diagram

diagram 61103 61104 61211 61212 61231 61232 61261 61262 61281 61283 61284 61301B 61302B 61343 61343A 61344 61344A 61411 61412 61611 61612 61621B 61622B 61623B 61624B 61631A 61632A 61633A 61634A 61645B 61646B 61654A 61654A 61705 61706 61707B 61733B 61734B 61747 61748C 61757B 61773A 61774A 7601 9033330002 9095001056 9095001056 9163140612 9163140612
Part # Description Qty Price
61103 - PILLAR SUB-ASSY, FRONT BODY, RH
61021-20270

AT151,CT150,ST150..LB..LHD

 1
61104 - PILLAR SUB-ASSY, FRONT BODY, LH
61022-20320

AT151,CT150,ST150..LHD

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-20130

AT151,CT150,ST15#

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-20130

AT151,CT150,ST15#

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-20190

AT151,CT150,ST15#

W/O SUN ROOF

 1
61231-20180

AT151,CT150,ST150..EUR,GEN,SAA

W/SUN ROOF

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-20170

AT151,CT150,ST150..EUR,GEN,SAA

W/SUN ROOF

 1
61232-20180

AT151,CT150,ST15#

W/O SUN ROOF

 1
61261 - CHANNEL, ROOF DRIP, RH
61265-20040

AT151,CT150,ST15#

 1
61262 - CHANNEL, ROOF DRIP, LH
61266-20040

AT151,CT150,ST15#

 1
61281 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1
61281-20020

AT151,CT150,ST15#

 2
61283 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH
61283-20020

AT151,CT150,ST15#

 1
61284 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH
61284-20020

AT151,CT150,ST15#

 1
61301B - PILLAR, CENTER BODY, OUTER RH
61301-20200

AT151,CT150,ST15#

 1
61302B - PILLAR, CENTER BODY, OUTER LH
61302-20210

AT151,CT150,ST15#

 1
61343 - PILLAR, CENTER BODY, INNER UPPER RH
61341-20070

AT151,CT150,ST15#

 1
61343A - PILLAR, CENTER BODY, INNER RH
61343-20900

AT151,CT150,ST15#

 1
61344 - PILLAR, CENTER BODY, INNER UPPER LH
61342-20070

AT151,CT150,ST15#

 1
61344A - PILLAR, CENTER BODY, INNER LH
61344-20900

AT151,CT150,ST15#

 1
61411 - PANEL, ROCKER, OUTER RH
61401-20160

AT151,CT150,ST15#

 1
61412 - PANEL, ROCKER, OUTER LH
61402-20160

AT151,CT150,ST15#

 1
61611 - PANEL, QUARTER, RH
61601-20913

AT151,CT150,ST150..LB

 1
61612 - PANEL, QUARTER, LH
61602-20911

AT151,CT150,ST150..LB

W/OPENER

 1
61621B - TROUGH, BACK DOOR OPENING, FRONT RH
61621-20050

AT151,CT150,ST15#..LB

 1
61622B - TROUGH, BACK DOOR OPENING, FRONT LH
61622-20050

AT151,CT150,ST15#..LB

 1
61623B - TROUGH, BACK DOOR OPENING, REAR RH
61623-20030

AT151,CT150,ST15#..LB

 1
61624B - TROUGH, BACK DOOR OPENING, REAR LH
61624-20010

AT151,CT150,ST15#..LB

 1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61631-20140

AT151,CT150..EUR

 1
61631-20141

AT151,CT150,ST150..EUR

 1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61632-20111

AT151,CT150,ST150..EUR

 1
61632-20110

AT151,CT150..EUR

 1
61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH
61607-20050

AT151,CT150,ST15#..LB..GL

 1
61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH
61608-20070

AT151,CT150,ST15#..LB..GL

 1
61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH
61645-20040

AT151,CT150,ST15#

 1
61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH
61646-20040

AT151,CT150,ST15#

 1
61654A - BRACKET, DECK SIDE TRIM, NO.2
61654-20040

AT151,CT150,ST15#..LB

 2
61654A - BRACKET, DECK SIDE TRIM, NO.2
61654-20040

AT151,CT150,ST15#..LB

 2
61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH
61705-20911

AT151,CT150,ST15#..LB

 1
61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH
61706-20911

AT151,CT150,ST15#..LB

 1
61707B - SUPPORT, JACK CARRIER
58792-20020

AT151,CT150,ST150

 1
61733B - PANEL, ROOF SIDE, INNER REAR RH
61735-20900

AT151,CT150,ST15#..LB

 1
61734B - PANEL, ROOF SIDE, INNER REAR LH
61736-20900

AT151,CT150,ST15#..LB

 1
61757B - RETAINER, DECK SIDE TRIM, LOWER
61757-32010

AT151,CT150,ST15#..LB

 2
61773A - PATCH, BACK DOOR OPENING, LOWER RH
61773-20010

AT151,CT150,ST15#..LB

 1
61774A - PATCH, BACK DOOR OPENING, LOWER LH
61774-20010

AT151,CT150,ST15#..LB

 1
Common parts
90333-30002
90950-01056
91631-40612
Linked diagrams
7601
