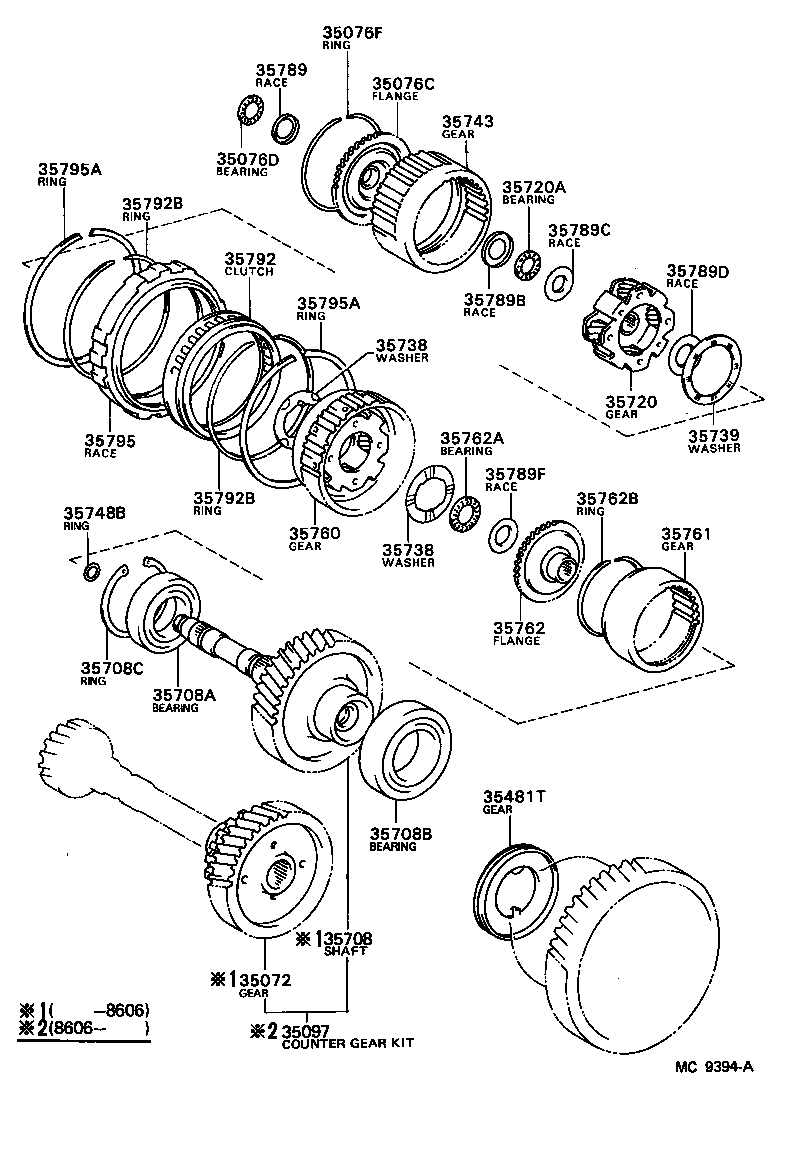

AT151L-TLHNCC (1983)
Toyota Corona/Carina 2
(8310- )3FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35072 - GEAR ASSY, COUNTER DRIVEN | ||||
| 35072-32010 |
AT151,ST150..3FC |
1 | ||
| 35076C - FLANGE SUB-ASSY, FRONT PLANETARY RING GEAR | ||||
| 35076-32010 |
AT151,ST150..ATM |
1 | ||
| 35076D - BEARING, THRUST NEEDLE ROLLER(FOR FRONT PLANETARY FLANG | ||||
| 90374-22001 |
AT151,ST15#..ATM |
1 | ||
| 35076F - RING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR FLANGE) | ||||
| 90521-99014 |
AT151,ST15#..ATM |
1 | ||
| 35481T - GEAR, SPEEDMETER DRIVE (ATM) | ||||
| 33481-12050 |
AT151..3FC N=25,NO MARK |
1 | ||
| 35708 - SHAFT SUB-ASSY, INTERMEDIATE | ||||
| 35708-12021 |
AT151..3FC |
1 | ||
| 35708-12020 |
AT151..3FC |
1 | ||
| 35708-12030 |
AT151..3FC |
1 | ||
| 35708A - BEARING, RADIAL BALL (FOR INTERMEDIATE SHAFT FRONT) | ||||
| 90363-40024 |
AT151,ST15#..ATM |
1 | ||
| 35708B - BEARING, RADIAL BALL (FOR INTERMEDIATE SHAFT REAR) | ||||
| 90363-45004 |
AT151,ST150..3FC |
1 | ||
| 35708C - RING, HOLE SNAP (FOR INTERMEDIATE SHAFT FRONT BEARING) | ||||
| 90521-76003 |
AT151,ST15#..ATM |
1 | ||
| 35720 - GEAR ASSY, FRONT PLANETARY | ||||
| 35720-32010 |
AT151,ST15#..ATM |
1 | ||
| 35720A - BEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR | ||||
| 90374-22001 |
AT151,ST15#..ATM |
1 | ||
| 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35738-32010 |
AT151,ST15#..ATM |
2 | ||
| 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35738-32010 |
AT151,ST15#..ATM |
2 | ||
| 35739 - WASHER, PLANETARY CARRIER THRUST, NO.3 | ||||
| 35739-32010 |
ST150..3FC;AT151..LB..ATM;AT151..SED..3FC;AT151..SED..LHD..4FC |
1 | ||
| 35743 - GEAR, FRONT PLANETARY RING | ||||
| 35743-32010 |
AT151,ST150..3FC |
1 | ||
| 35748B - RING, INTERMEDIATE SHAFT OIL SEAL | ||||
| 35748-32010 |
AT151,ST15#..ATM |
1 | ||
| 35760 - GEAR ASSY, REAR PLANETARY | ||||
| 35760-32010 |
AT151,ST15#..ATM |
1 | ||
| 35761 - GEAR, REAR PLANETARY RING | ||||
| 35761-32010 |
AT151,ST15#..ATM |
1 | ||
| 35762 - FLANGE, REAR PLANETARY RING GEAR | ||||
| 35762-32010 |
AT151,ST15#..ATM |
1 | ||
| 35762A - BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANG | ||||
| 90374-24002 |
AT151,ST15#..ATM |
1 | ||
| 35762B - RING, HOLE SNAP (FOR REAR PLANETARY RING GEAR FLANGE) | ||||
| 90521-90001 |
AT151,ST15#..ATM |
1 | ||
| 35789 - RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE FRONT) | ||||
| 35789-32050 |
AT151,ST15#..ATM |
1 | ||
| 35789B - RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE REAR) | ||||
| 35789-32040 |
AT151,ST15#..ATM |
1 | ||
| 35789C - RACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT) | ||||
| 35789-32060 |
AT151,ST15#..ATM |
1 | ||
| 35789D - RACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR) | ||||
| 35789-32070 |
AT151,ST15#..ATM |
1 | ||
| 35789F - RACE, THRUST BEARING (FOR REAR PLANETARY FLANGE) | ||||
| 35789-32080 |
AT151,ST15#..ATM |
1 | ||
| 35792 - CLUTCH, 1 WAY, NO.2 | ||||
| 35792-32010 |
ST150..3FC;AT151..LB..ATM;AT151..SED..3FC;AT151..SED..LHD..4FC |
1 | ||
| 35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2) | ||||
| 90521-99010 |
AT151,ST15#..ATM |
2 | ||
| 35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2) | ||||
| 90521-99010 |
AT151,ST15#..ATM |
2 | ||
| 35795 - RACE, 1 WAY CLUTCH OUTER | ||||
| 35795-32010 |
AT151,ST15#..ATM |
1 | ||
| 35795A - RING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE) | ||||
| 90521-99011 |
AT151,ST15#..ATM |
2 | ||
| 35795A - RING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE) | ||||
| 90521-99011 |
AT151,ST15#..ATM |
2 | ||
