AT151L-TLHDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Aug 1985
Engine 4AL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )LB

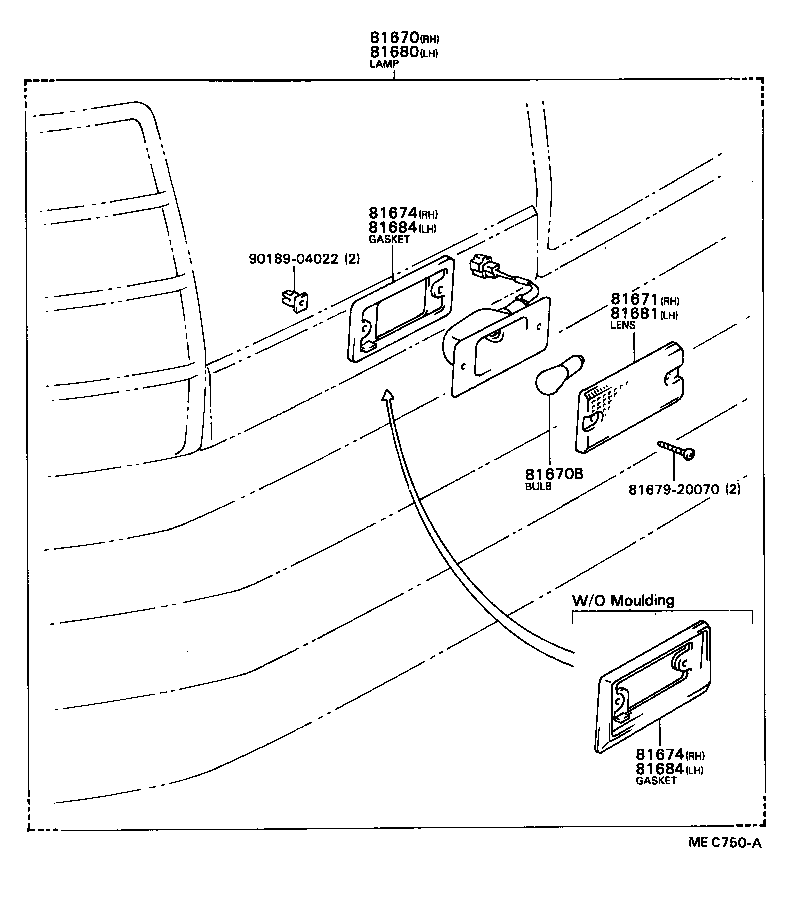

Click highlighted areas on diagram

diagram 81670 81670B 81671 81674 81674 8167920070 81680 81681 81684 81684 9018904022
Part # Description Qty Price
81670 - LAMP ASSY, BACK-UP, RH
81670-29115

AT151,ST150..LB..(GEN,SAA)

W/MOULDING

 1
81670-29125

AT151,ST150..LB..XL

 1
81670B - BULB(FOR BACK-UP LAMP)
99132-11230

AT151,CT150,ST150..GEN,SAA

12V 23W,12V 23W

 2
81671 - LENS, BACK-UP LAMP, RH
81671-20040

AT151,ST150..LB..(GEN,SAA)

 1
81674 - GASKET, BACK-UP LAMP BODY, RH
81672-20030

AT151,ST150..LB..(GEN,SAA)

W/MOULDING

 1
81674-20040

AT151,ST150..LB..XL

 1
81674 - GASKET, BACK-UP LAMP BODY, RH
81672-20030

AT151,ST150..LB..(GEN,SAA)

W/MOULDING

 1
81674-20040

AT151,ST150..LB..XL

 1
81680 - LAMP ASSY, BACK UP, LH
81670-29115

AT151,ST150..LB..(GEN,SAA)

W/MOULDING

 1
81670-29125

AT151,ST150..LB..XL

 1
81681 - LENS, BACK-UP LAMP, LH
81671-20040

AT151,ST150..LB..(GEN,SAA)

 1
81684 - GASKET, BACK UP LAMP BODY, LH
81674-20040

AT151,ST150..LB..XL

 1
81672-20030

AT151,ST150..LB..(GEN,SAA)

W/MOULDING

 1
81684 - GASKET, BACK UP LAMP BODY, LH
81674-20040

AT151,ST150..LB..XL

 1
81672-20030

AT151,ST150..LB..(GEN,SAA)

W/MOULDING

 1
Common parts
81679-20070
90189-04022
