AT151L-TLHDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Aug 1985
Engine 4AL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8310-8508) ; (8508-8608)TH

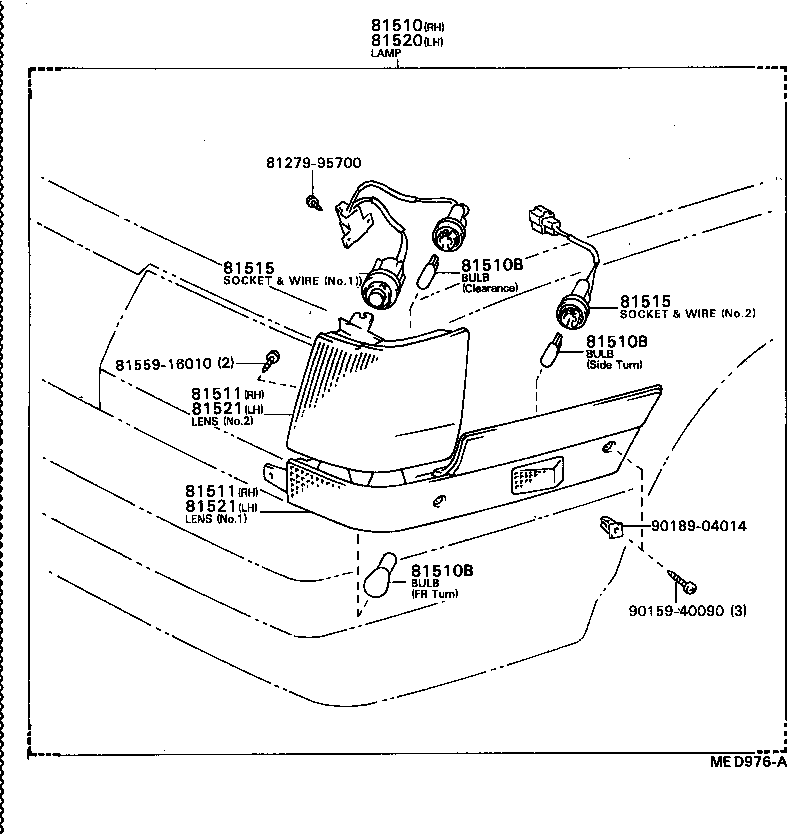

Click highlighted areas on diagram

diagram 8127995700 81510 81510B 81510B 81510B 81511 81511 81515 81515 81520 81521 81521 8155916010 9015940090 9018904014
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-29886

AT151,CT150,ST150..GEN,SAA

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11230

AT151,CT150,ST15#..GEN,SAA,TH

12V 23W,12V 23W

 2
99132-12050

AT151,CT150,ST150

12V 5W,12V 5W

 4
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11230

AT151,CT150,ST15#..GEN,SAA,TH

12V 23W,12V 23W

 2
99132-12050

AT151,CT150,ST150

12V 5W,12V 5W

 4
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11230

AT151,CT150,ST15#..GEN,SAA,TH

12V 23W,12V 23W

 2
99132-12050

AT151,CT150,ST150

12V 5W,12V 5W

 4
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-20290

AT151,CT150,ST150..GEN,SAA

NO.1

 1
81513-20290

AT151,CT150,ST150..GEN,SAA

NO.2

 1
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-20290

AT151,CT150,ST150..GEN,SAA

NO.1

 1
81513-20290

AT151,CT150,ST150..GEN,SAA

NO.2

 1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81516-20290

AT151,CT150,ST150..GEN,SAA

NO.2

 1
81515-20290

AT151,CT150,ST150..GEN,SAA

NO.1

 1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81516-20290

AT151,CT150,ST150..GEN,SAA

NO.2

 1
81515-20290

AT151,CT150,ST150..GEN,SAA

NO.1

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-29876

AT151,CT150,ST150..GEN,SAA

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-20290

AT151,CT150,ST150..GEN,SAA

NO.1

 1
81523-20290

AT151,CT150,ST150..GEN,SAA

NO.2

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-20290

AT151,CT150,ST150..GEN,SAA

NO.1

 1
81523-20290

AT151,CT150,ST150..GEN,SAA

NO.2

 1
Common parts
81279-95700
81559-16010
90159-40090
90189-04014
