AT151L-TEPNSW (1984)

Toyota Corona/Carina 2

Production Jan 1984 - Aug 1985
Engine 4AL
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8401- )4FC

Click highlighted areas on diagram

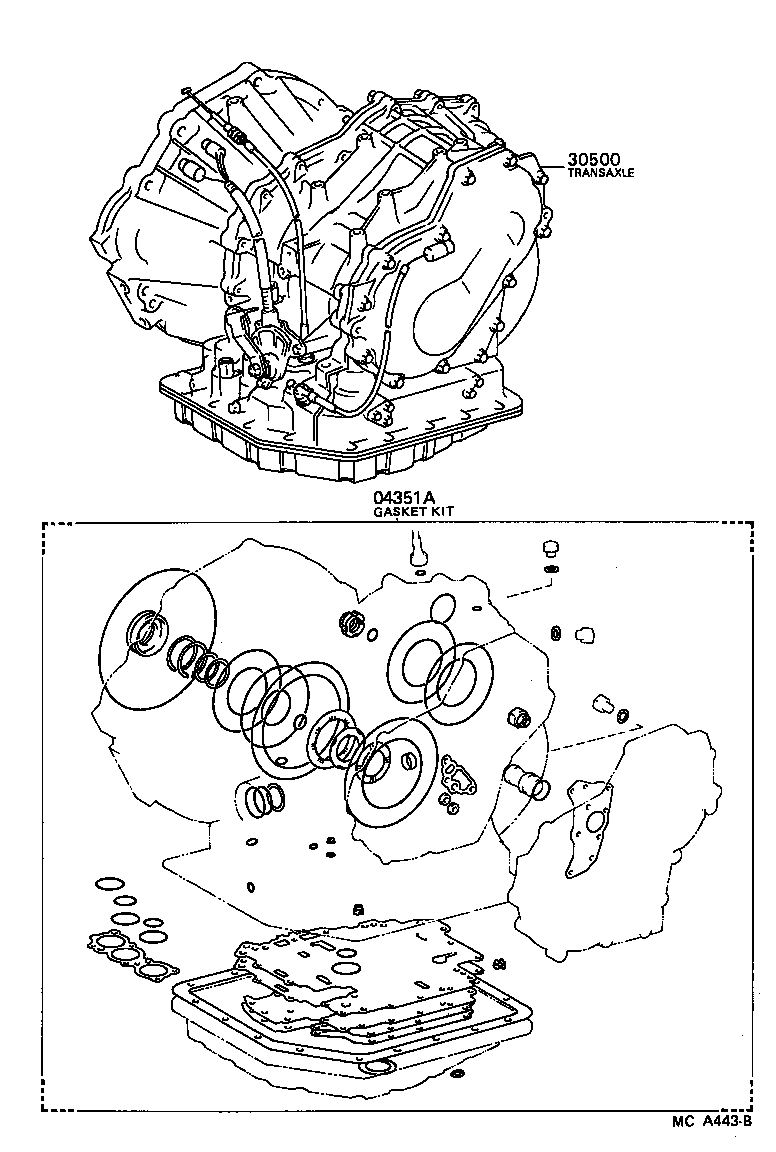

diagram 04351A 30500
Part # Description Qty Price
04351A - GASKET KIT, TRANSAXLE OVERHAUL(ATM)
04351-20051

AT151..4FC

 1
04351-20050

AT151..LB..4FC;AT151..SED..LHD..4FC

 1
30500 - TRANSAXLE ASSY, AUTOMATIC
30500-20111

AT151..LHD..4FC

 1
30500-20110

AT151..LHD..4FC

 1
