AT151L-TEMNSW (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 4AL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )AT151..LHD..DX,GL,XL

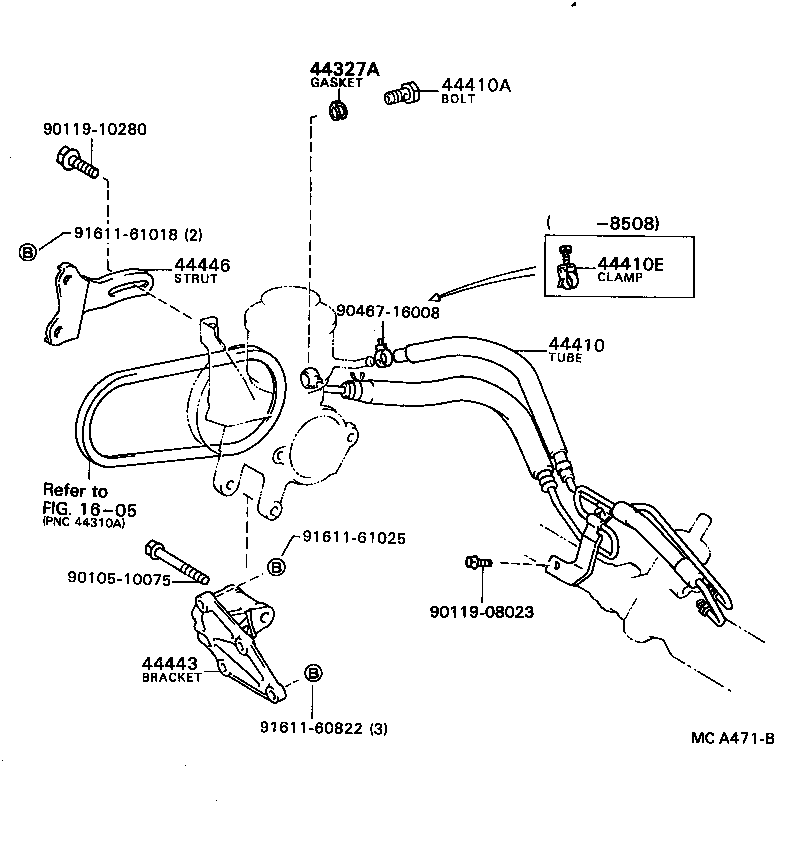

Click highlighted areas on diagram

diagram 1605 44327A 44410 44410A 44410E 44443 44446 9010510075 9011908023 9011910280 9046716008 9161160822 9161161018 9161161025
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

AT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA)

 2
44410 - TUBE ASSY, PRESSURE FEED
44410-20110

AT151..LHD..(DX,GL,XL)

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16008

AT151,CT150..(DX,GL,XL)..(EUR,GEN,SAA)

 1
44410E - CLAMP(FOR PRESSURE FEED TUBE)
90460-01001

CT150;AT151..LHD..(DX,GL,XL)

 2
44443 - BRACKET, PUMP
44443-12050

AT151..(DX,GL,XL)..(EUR,GEN,SAA)

 1
44446 - STRUT, ADJUSTING
44446-12030

AT151..(DX,GL,XL)..(EUR,GEN,SAA)

 1
Common parts
90105-10075
90119-08023
90119-10280
90467-16008
91611-60822
91611-61018
91611-61025
Linked diagrams
1605
