AT151L-TEKDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 4AL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )

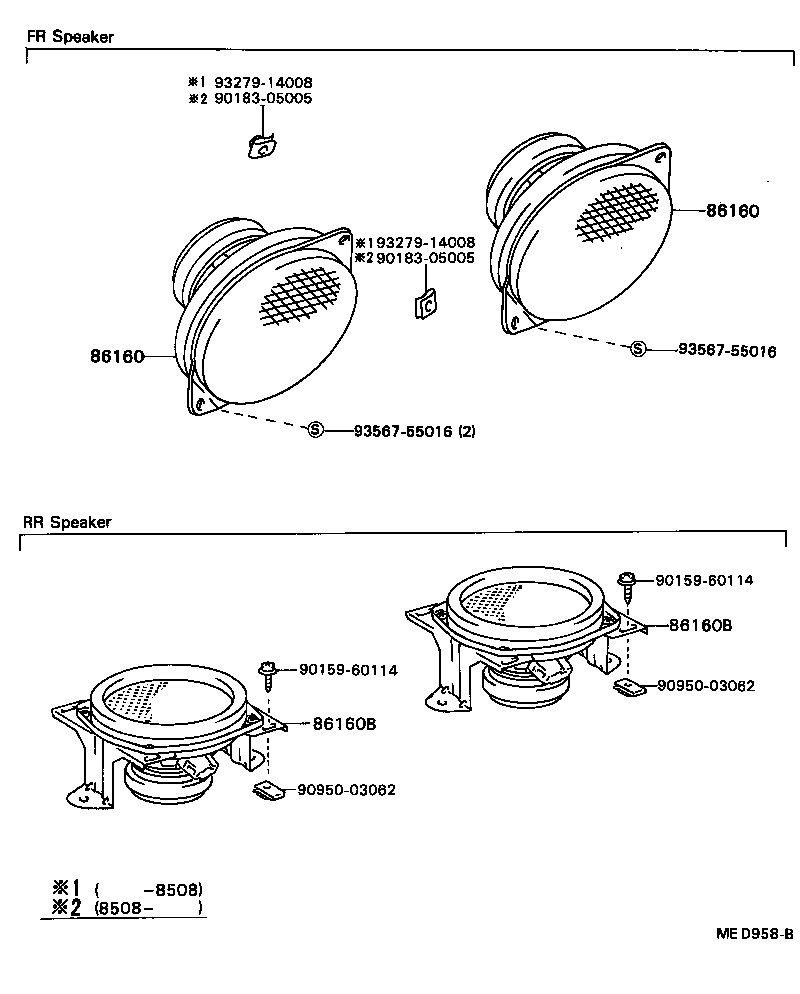

Click highlighted areas on diagram

diagram 86160 86160 86160B 86160B 9015960114 9015960114 9018305005 9018305005 9095003062 9095003062 9327914008 9327914008 9356755016 9356755016
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-20230

AT151,CT150,ST15#

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-20230

AT151,CT150,ST15#

 2
Common parts
90159-60114
90183-05005
90950-03062
93279-14008
93567-55016
