AT151L-TEKDS (1983)
Toyota Corona/Carina 2
(8310- )SED

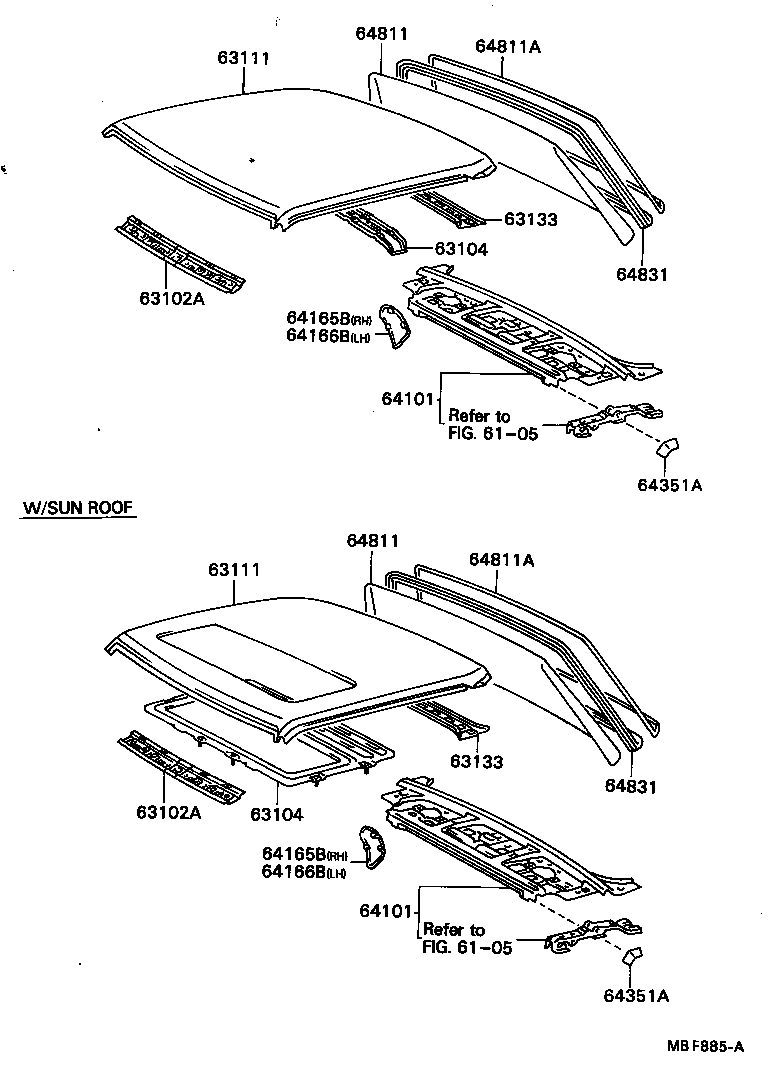

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-20060 |
AT151,CT150,ST15# |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-20060 |
AT151,CT150,ST15# |
1 | ||
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63103-20070 |
AT151,CT150,ST15# W/O SUN ROOF |
1 | ||
| 63142-20020 |
AT151,CT150,ST150..EUR,GEN,SAA W/SUN ROOF |
1 | ||
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63103-20070 |
AT151,CT150,ST15# W/O SUN ROOF |
1 | ||
| 63142-20020 |
AT151,CT150,ST150..EUR,GEN,SAA W/SUN ROOF |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-20170 |
AT151,CT150,ST150..SED..(EUR,GEN,SAA) W/SUN ROOF |
1 | ||
| 63111-20160 |
AT151,CT150,ST15#..SED W/O SUN ROOF |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-20170 |
AT151,CT150,ST150..SED..(EUR,GEN,SAA) W/SUN ROOF |
1 | ||
| 63111-20160 |
AT151,CT150,ST15#..SED W/O SUN ROOF |
1 | ||
| 63133 - FRAME, BACK WINDOW OPENING, UPPER | ||||
| 63133-20090 |
AT151,CT150,ST15#..SED |
1 | ||
| 63133 - FRAME, BACK WINDOW OPENING, UPPER | ||||
| 63133-20090 |
AT151,CT150,ST15#..SED |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-20190 |
AT151,CT150,ST15#..SED |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-20190 |
AT151,CT150,ST15#..SED |
1 | ||
| 64165B - COVER, UPPER BACK PANEL HOLE, NO.1 | ||||
| 64165-20010 |
AT151,CT150,ST150..SED |
1 | ||
| 64165B - COVER, UPPER BACK PANEL HOLE, NO.1 | ||||
| 64165-20010 |
AT151,CT150,ST150..SED |
1 | ||
| 64166B - COVER, UPPER BACK PANEL HOLE, NO.2 | ||||
| 64166-20010 |
AT151,CT150,ST150..SED |
1 | ||
| 64166B - COVER, UPPER BACK PANEL HOLE, NO.2 | ||||
| 64166-20010 |
AT151,CT150,ST150..SED |
1 | ||
| 64351A - PAD, PACKAGE TRAY TRIM, NO.1 | ||||
| 64351-20030 |
AT151..SED..RHD;CT150,ST150..SED;AT151..SED..LHD..EUG;AT151..SED..LHD..(GEN,SAA) |
2 | ||
| 64351A - PAD, PACKAGE TRAY TRIM, NO.1 | ||||
| 64351-20030 |
AT151..SED..RHD;CT150,ST150..SED;AT151..SED..LHD..EUG;AT151..SED..LHD..(GEN,SAA) |
2 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-20470 |
AT151,CT150,ST15#..SED..(EUR,GEN,SAA) *EHTT,T=3.5 |
1 | ||
| 64811-20500 |
AT151,CT150,ST15#..SED..(GEN,SAA) *TT,T=3.5 |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-20470 |
AT151,CT150,ST15#..SED..(EUR,GEN,SAA) *EHTT,T=3.5 |
1 | ||
| 64811-20500 |
AT151,CT150,ST15#..SED..(GEN,SAA) *TT,T=3.5 |
1 | ||
| 64811A - SEAL, BACK WINDOW GLASS WEATHERSTRIP | ||||
| 64814-20010 |
AT151,CT150,ST15#..SED |
1 | ||
| 64814-20030 |
AT151,CT150,ST15#..SED |
1 | ||
| 64814-20010 |
AT151,CT150,ST15#..SED |
1 | ||
| 64811A - SEAL, BACK WINDOW GLASS WEATHERSTRIP | ||||
| 64814-20010 |
AT151,CT150,ST15#..SED |
1 | ||
| 64814-20030 |
AT151,CT150,ST15#..SED |
1 | ||
| 64814-20010 |
AT151,CT150,ST15#..SED |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64812-20040 |
AT151,CT150,ST150..SED..(EUR,GEN,SAA) W/SUN ROOF |
1 | ||
| 64812-20030 |
AT151,CT150,ST15#..SED W/O SUN ROOF |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64812-20040 |
AT151,CT150,ST150..SED..(EUR,GEN,SAA) W/SUN ROOF |
1 | ||
| 64812-20030 |
AT151,CT150,ST15#..SED W/O SUN ROOF |
1 | ||
| Linked diagrams | ||||
| 6105 | ||||
(8310- )

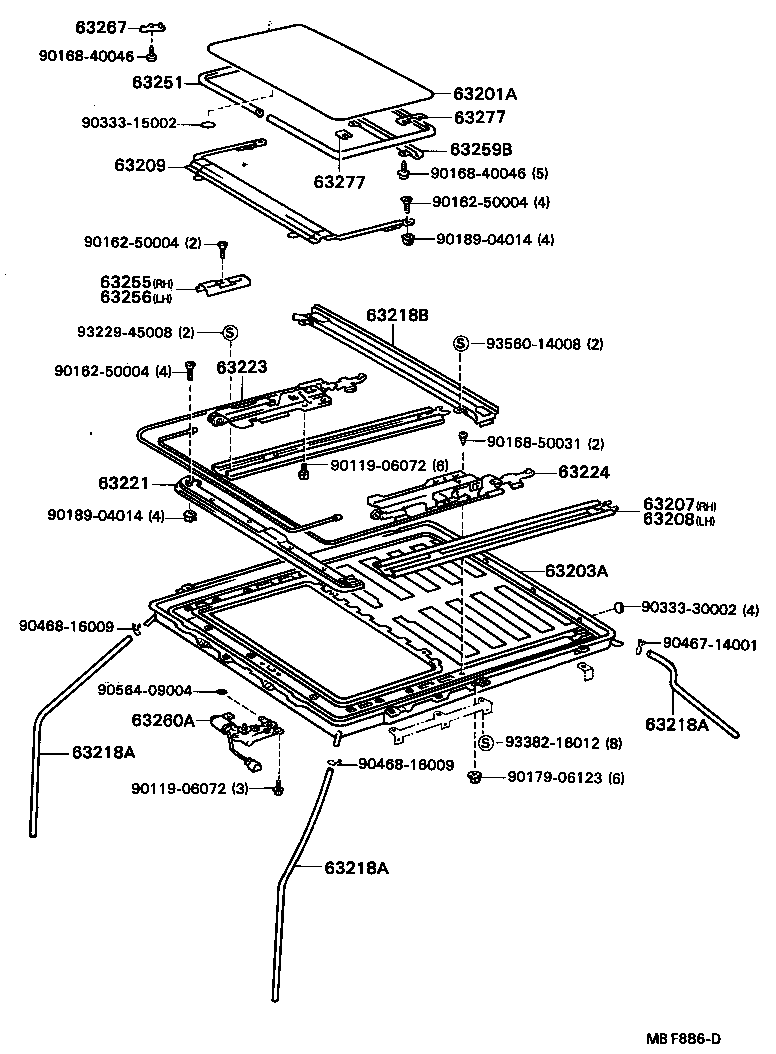

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201A - PANEL SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF | ||||
| 63201-20020 |
AT151,CT150,ST150..EUR,GEN,SAA |
1 | ||
| 63203A - HOUSING SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF | ||||
| 63203-20020 |
AT151,CT150,ST150..EUR,GEN,SAA |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-20020 |
AT151,CT150,ST150..EUR,GEN,SAA |
1 | ||
| 63207-20021 |
AT151,CT150,ST150 |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-20020 |
AT151,CT150,ST150..EUR,GEN,SAA |
1 | ||
| 63208-20021 |
AT151,CT150,ST150 |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-20020 |
AT151,CT150,ST150..EUR,GEN,SAA |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-20080 |
AT151,CT150,ST150..EUR,GEN,SAA FR |
2 | ||
| 63249-20020 |
AT151,CT150,ST150..SED..(EUR,GEN,SAA) RR,LH |
1 | ||
| 63249-32010 |
AT151,CT150,ST150 FR |
2 | ||
| 63249-20010 |
AT151,CT150,ST150..SED..(EUR,GEN,SAA) RR,RH |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-20080 |
AT151,CT150,ST150..EUR,GEN,SAA FR |
2 | ||
| 63249-20020 |
AT151,CT150,ST150..SED..(EUR,GEN,SAA) RR,LH |
1 | ||
| 63249-32010 |
AT151,CT150,ST150 FR |
2 | ||
| 63249-20010 |
AT151,CT150,ST150..SED..(EUR,GEN,SAA) RR,RH |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-20080 |
AT151,CT150,ST150..EUR,GEN,SAA FR |
2 | ||
| 63249-20020 |
AT151,CT150,ST150..SED..(EUR,GEN,SAA) RR,LH |
1 | ||
| 63249-32010 |
AT151,CT150,ST150 FR |
2 | ||
| 63249-20010 |
AT151,CT150,ST150..SED..(EUR,GEN,SAA) RR,RH |
1 | ||
| 63218B - CHANNEL, ROOF DRIP, REAR | ||||
| 63218-20010 |
AT151,CT150,ST150..EUR,GEN,SAA |
1 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-20020 |
AT151,CT150,ST150..EUR,GEN,SAA |
1 | ||
| 63221-20021 |
AT151,CT150,ST150 |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-20020 |
AT151,CT150,ST150..EUR,GEN,SAA |
1 | ||
| 63223-20021 |
AT151,CT150,ST150 |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-20021 |
AT151,CT150,ST150 |
1 | ||
| 63224-20020 |
AT151,CT150,ST150..EUR,GEN,SAA |
1 | ||
| 63251 - WEATHERSTRIP, SLIDING ROOF PANEL OR REMOVABLE ROOF | ||||
| 63251-20020 |
AT151,CT150,ST150..EUR,GEN,SAA |
1 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-20020 |
AT151,CT150,ST150..EUR,GEN,SAA |
1 | ||
| 63256 - COVER, SLIDING ROOF GUIDE RAIL, LH | ||||
| 63255-20020 |
AT151,CT150,ST150..EUR,GEN,SAA |
1 | ||
| 63259B - HOLDER, SLIDING ROOF WEATHERSTRIP | ||||
| 63259-20020 |
AT151,CT150,ST150..EUR,GEN,SAA |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-20020 |
AT151,CT150,ST150 |
1 | ||
| 63260-20021 |
AT151,CT150,ST150..EUR,GEN,SAA |
1 | ||
| 63267 - PROTECTOR, SLIDING ROOF WEATHERSTRIP | ||||
| 63267-20020 |
AT151,CT150,ST150..EUR,GEN,SAA |
2 | ||
| 63277 - SHIM, SLIDING ROOF RAIL | ||||
| 63277-20050 |
AT151,CT150,ST150..EUR,GEN,SAA T=2.0,28X30 |
8 | ||
| 63277-20020 |
AT151,CT150,ST150..EUR,GEN,SAA T=1.0,124X30 |
8 | ||
| 63277-20040 |
AT151,CT150,ST150..EUR,GEN,SAA T=2.0,124X30 |
8 | ||
| 63277-20030 |
AT151,CT150,ST150..EUR,GEN,SAA T=1.0,28X30 |
8 | ||
| 63277 - SHIM, SLIDING ROOF RAIL | ||||
| 63277-20050 |
AT151,CT150,ST150..EUR,GEN,SAA T=2.0,28X30 |
8 | ||
| 63277-20020 |
AT151,CT150,ST150..EUR,GEN,SAA T=1.0,124X30 |
8 | ||
| 63277-20040 |
AT151,CT150,ST150..EUR,GEN,SAA T=2.0,124X30 |
8 | ||
| 63277-20030 |
AT151,CT150,ST150..EUR,GEN,SAA T=1.0,28X30 |
8 | ||
| Common parts | ||||
| 90119-06072 | ||||
| 90162-50004 | ||||
| 90168-40046 | ||||
| 90168-50031 | ||||
| 90179-06123 | ||||
| 90189-04014 | ||||
| 90333-15002 | ||||
| 90333-30002 | ||||
| 90467-14001 | ||||
| 90468-16009 | ||||
| 90564-09004 | ||||
| 93229-45008 | ||||
| 93382-16012 | ||||
| 93560-14008 | ||||
