AE95R-CWMNUW (1990)
Toyota Corolla Wagon
(9009- )
| Part # | Description | Qty | Price |
|---|

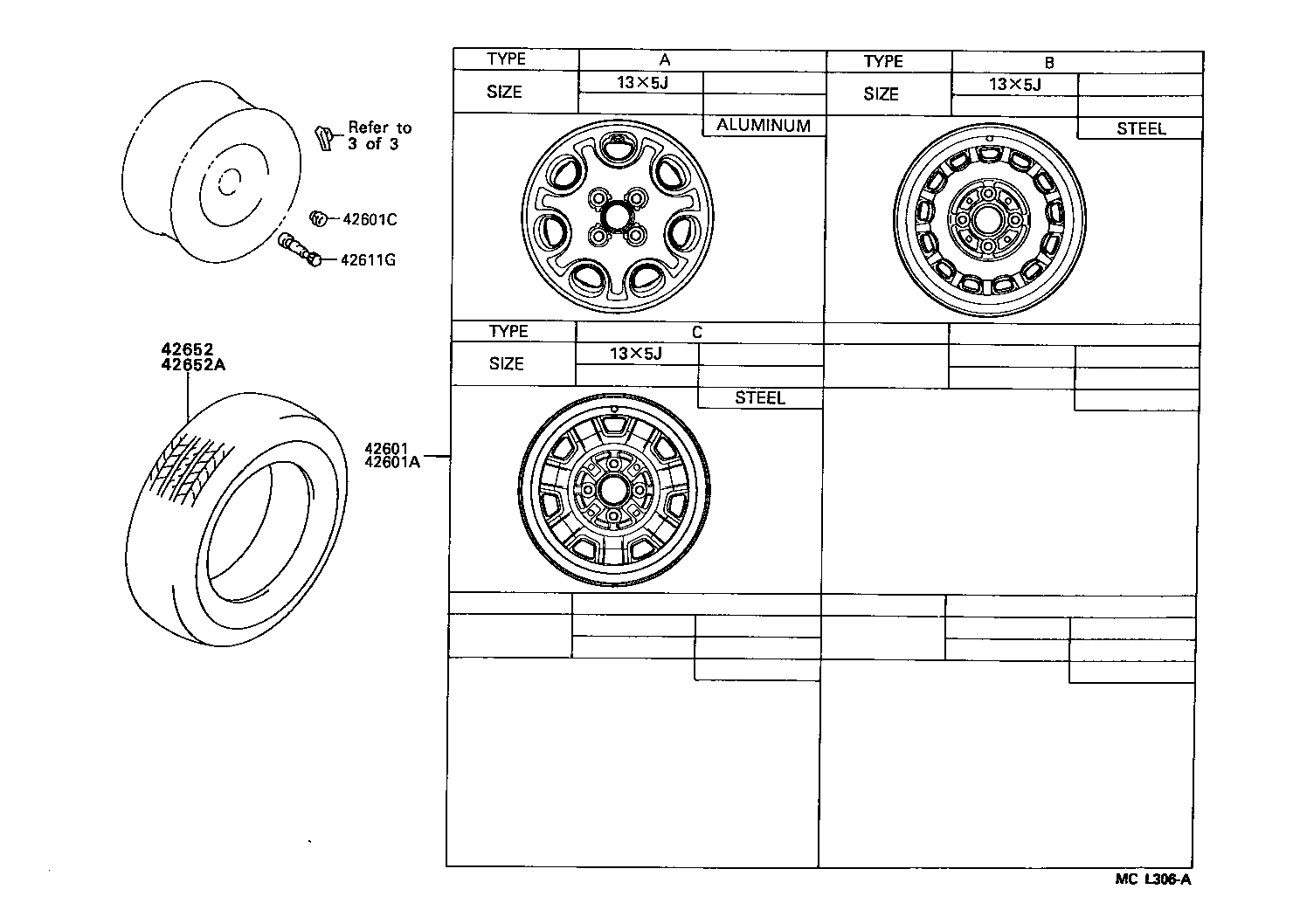

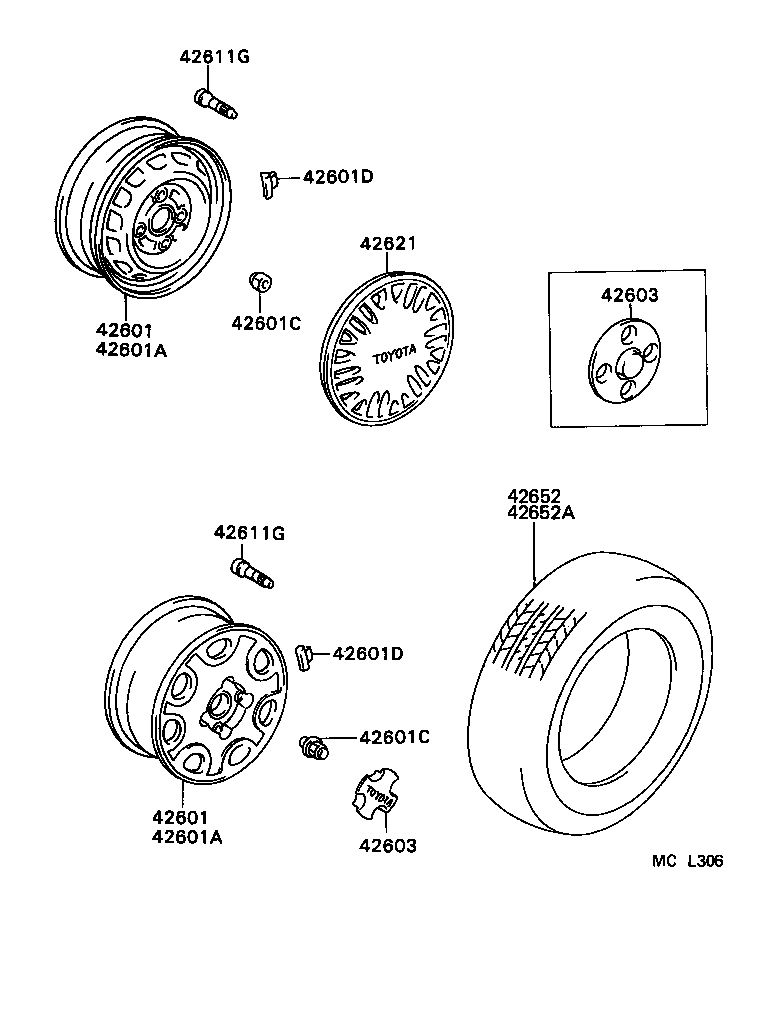

ILLUST NO. 1 OF 3(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-2030003 |
AE95..RHD 13X5J,TYPE C,DARK GRAY |
4 | ||
| 42611-1A030 |
AE95 13X5J,ALUMINUM,TYPE A |
4 | ||
| 42611-1282003 |
AE95 13X5J,TYPE B,SILVER |
4 | ||
| 42611-1308001 |
AE95 13X5J,TYPE B,BLACK |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-1A030 |
AE95 13X5J,ALUMINUM,TYPE A |
1 | ||
| 42611-2030003 |
AE95..RHD 13X5J,TYPE C,DARK GRAY |
1 | ||
| 42611-1282003 |
AE95 13X5J,TYPE B,SILVER |
1 | ||
| 42611-1308001 |
AE95 13X5J,TYPE B,BLACK |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01033 |
AE95 W(ALUMINUM WHEEL) |
16 | ||
| 90942-01021 |
AE95 |
16 | ||
| 90942-01007 |
AE95..RHD W(WHEEL CAP) |
16 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
AE95 |
5 | ||
| 42652 - TIRE | ||||
| 42652-14140 |
AE95..RHD 165SR13,*(B),*(D),*(T) & W(WHEEL CAP) |
4 | ||
| 42652-14180 |
AE95 185/70R13 85H |
4 | ||
| 42652-12780 |
AE95 185/70SR13 |
4 | ||
| 42652-14290 |
AE95..RHD 165SR13,*(Y) & W(WHEEL CAP) |
4 | ||
| 42652-12770 |
AE95 185/70SR13,ALL SEASON |
4 | ||
| 42652-14290 |
AE95 165SR13,*(Y) & W(WHEEL CAP) |
4 | ||
| 42652-12730 |
AE95..RHD 165SR13,ALL SEASON |
4 | ||
| 42652-14140 |
AE95 165SR13,*(B),*(D),*(T) |
4 | ||
| 42652A - TIRE (FOR SPARE) | ||||
| 42652-14140 |
AE95..RHD 165SR13,*(B),*(D),*(T) & W(WHEEL CAP) |
1 | ||
| 42652-12730 |
AE95..RHD 165SR13,ALL SEASON |
1 | ||
| 42652-12780 |
AE95 185/70SR13 |
1 | ||
| 42652-14140 |
AE95 165SR13,*(B),*(D),*(T) & W(WHEEL CAP) |
1 | ||
| 42652-12770 |
AE95 185/70SR13,ALL SEASON |
1 | ||
| 42652-14180 |
AE95 185/70R13 85H |
1 | ||
| 42652-14290 |
AE95..RHD 165SR13,*(Y) & W(WHEEL CAP) |
1 | ||
| 42652-14290 |
AE95 165SR13,*(Y) & W(WHEEL CAP) |
1 | ||

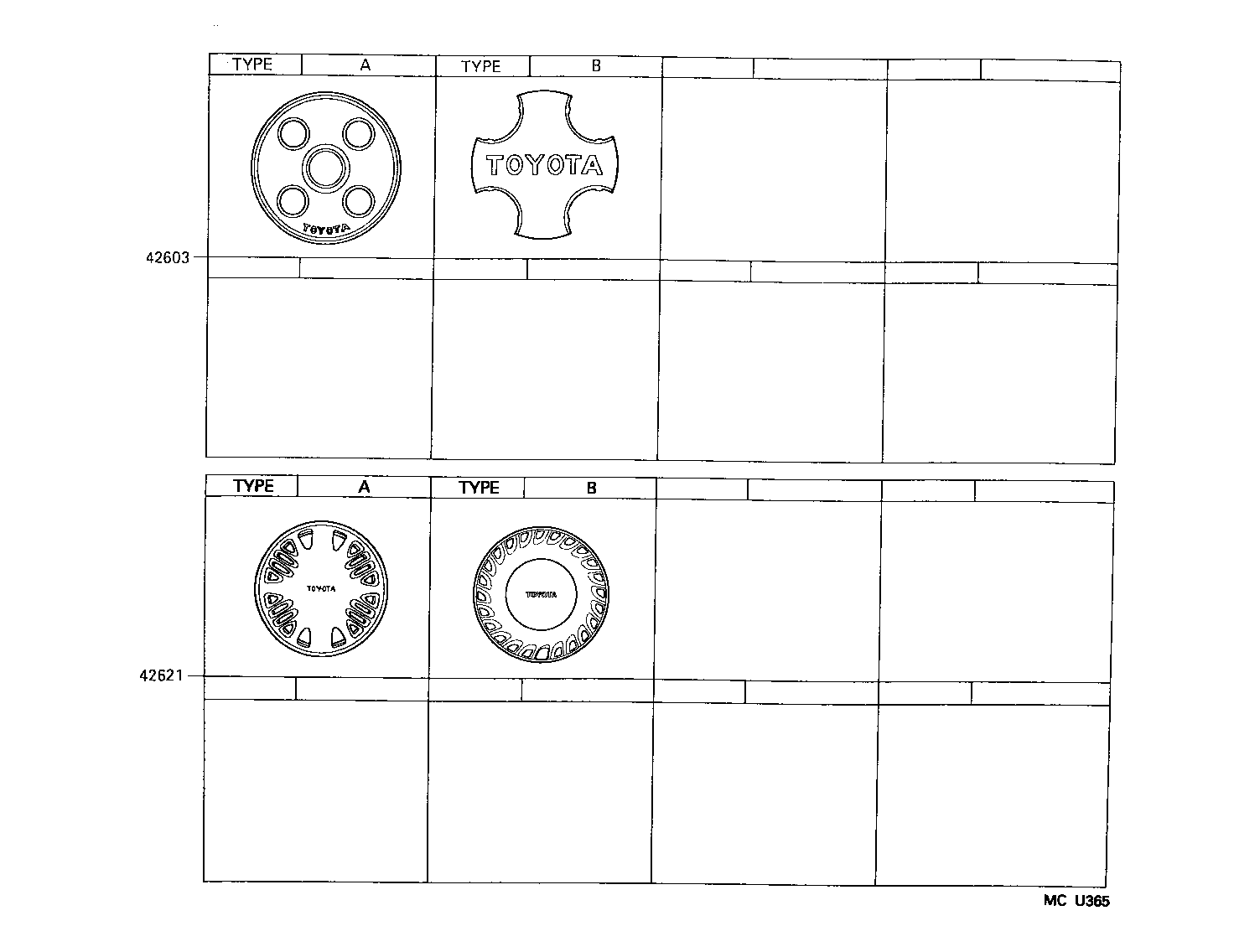

ILLUST NO. 2 OF 3(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-12450 |
AE95 W(ALUMINUM WHEEL),TYPE B |
4 | ||
| 42603-12390 |
AE95 TYPE A |
4 | ||
| 42621 - CAP, WHEEL | ||||
| 42602-1214005 |
AE95..RHD TYPE A,BEIGE M |
4 | ||
| 42602-1214003 |
AE95..RHD TYPE A,SILVER M |
4 | ||
| 42621-20310 |
AE95..RHD TYPE B |
4 | ||

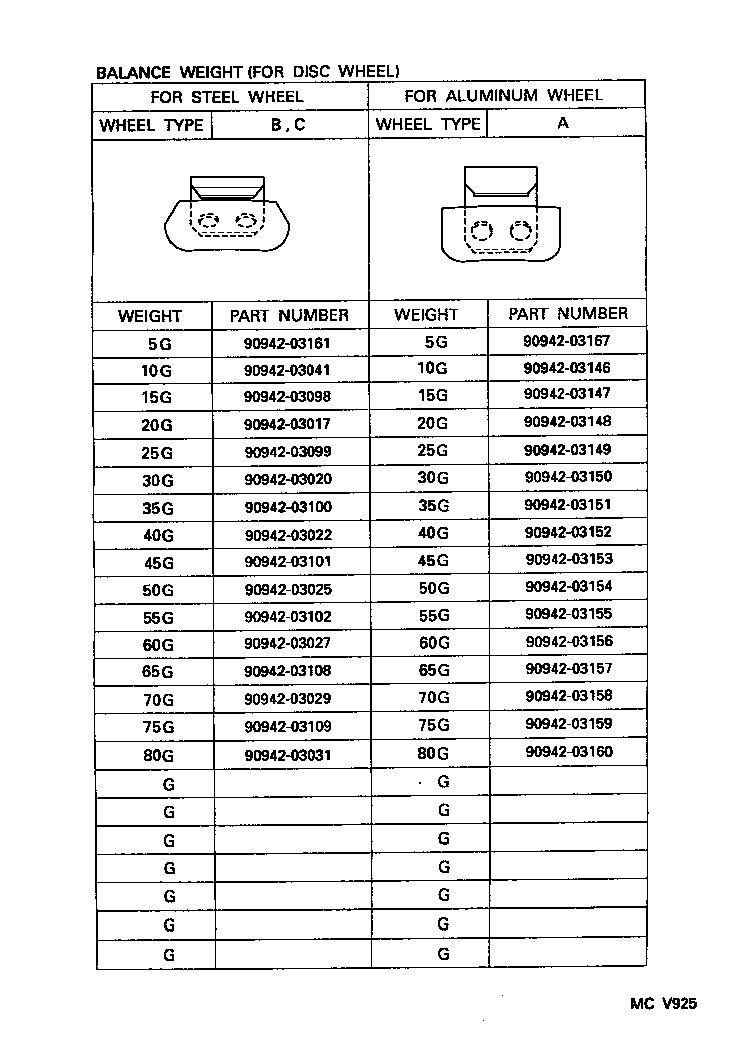

ILLUST NO. 3 OF 3(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90942-03017 | ||||
| 90942-03020 | ||||
| 90942-03022 | ||||
| 90942-03025 | ||||
| 90942-03027 | ||||
| 90942-03029 | ||||
| 90942-03031 | ||||
| 90942-03041 | ||||
| 90942-03098 | ||||
| 90942-03099 | ||||
| 90942-03100 | ||||
| 90942-03101 | ||||
| 90942-03102 | ||||
| 90942-03108 | ||||
| 90942-03109 | ||||
| 90942-03146 | ||||
| 90942-03147 | ||||
| 90942-03148 | ||||
| 90942-03149 | ||||
| 90942-03150 | ||||
| 90942-03151 | ||||
| 90942-03152 | ||||
| 90942-03153 | ||||
| 90942-03154 | ||||
| 90942-03155 | ||||
| 90942-03156 | ||||
| 90942-03157 | ||||
| 90942-03158 | ||||
| 90942-03159 | ||||
| 90942-03160 | ||||
| 90942-03161 | ||||
| 90942-03167 | ||||
