AE95R-CWMNUW (1990)

Toyota Corolla Wagon

Production Sep 1990 - May 1992
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )5F

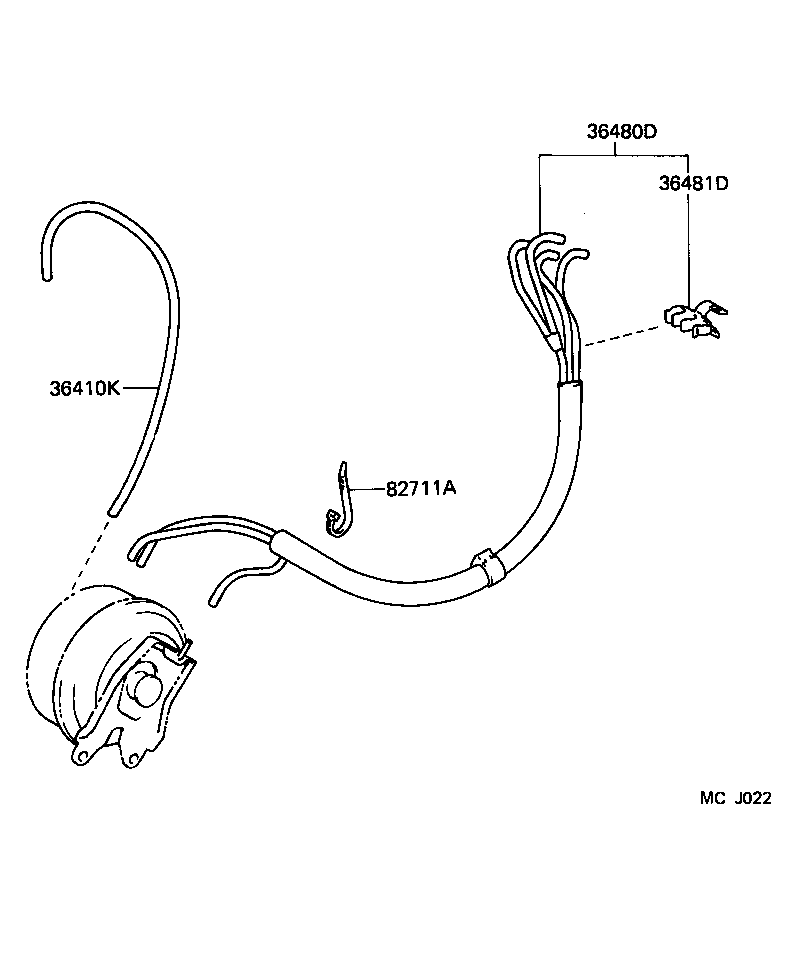

Click highlighted areas on diagram

E57F5

diagram 36410K 36480D 36481D 82711A
Part # Description Qty Price

(9009- )

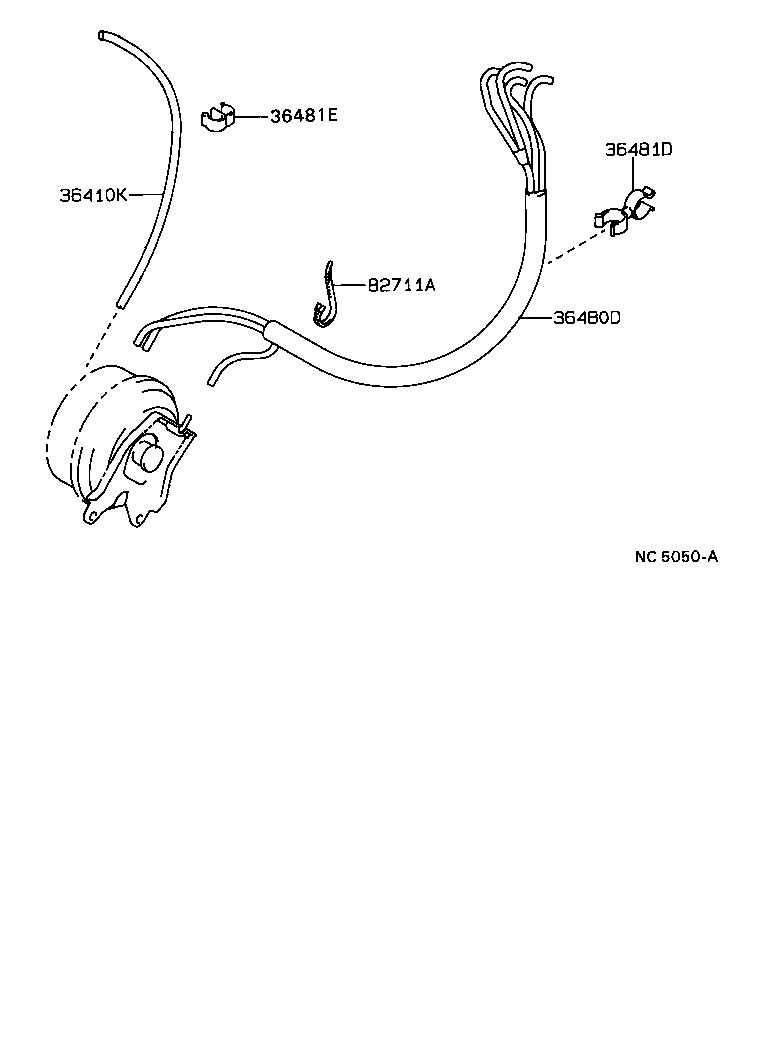

Click highlighted areas on diagram

E57F5

diagram 36410K 36480D 36481D 36481E 82711A
Part # Description Qty Price
36410K - HOSE, VACUUM (FOR TRANSFER VACUUM)
90999-92003

AE95

 1
36480D - TUBE ASSY, TRANSFER VACUUM
36480-12021

AE95..CBR

 1
36481D - CLAMP, NO.1 (FOR TRANSFER VACUUM)
90464-00497

AE95

 1
36481E - CLAMP, NO.2 (FOR TRANSFER VACUUM)
90464-00082

AE95..CBR

 1
82711A - CLAMP(FOR TRANSFER VACUUM TUBE)
82711-22270

AE95

 1
