AE95L-CWPDKK (1990)
Toyota Corolla Wagon
Production
Sep 1990
-
Aug 1993
Engine
4AFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9009- )

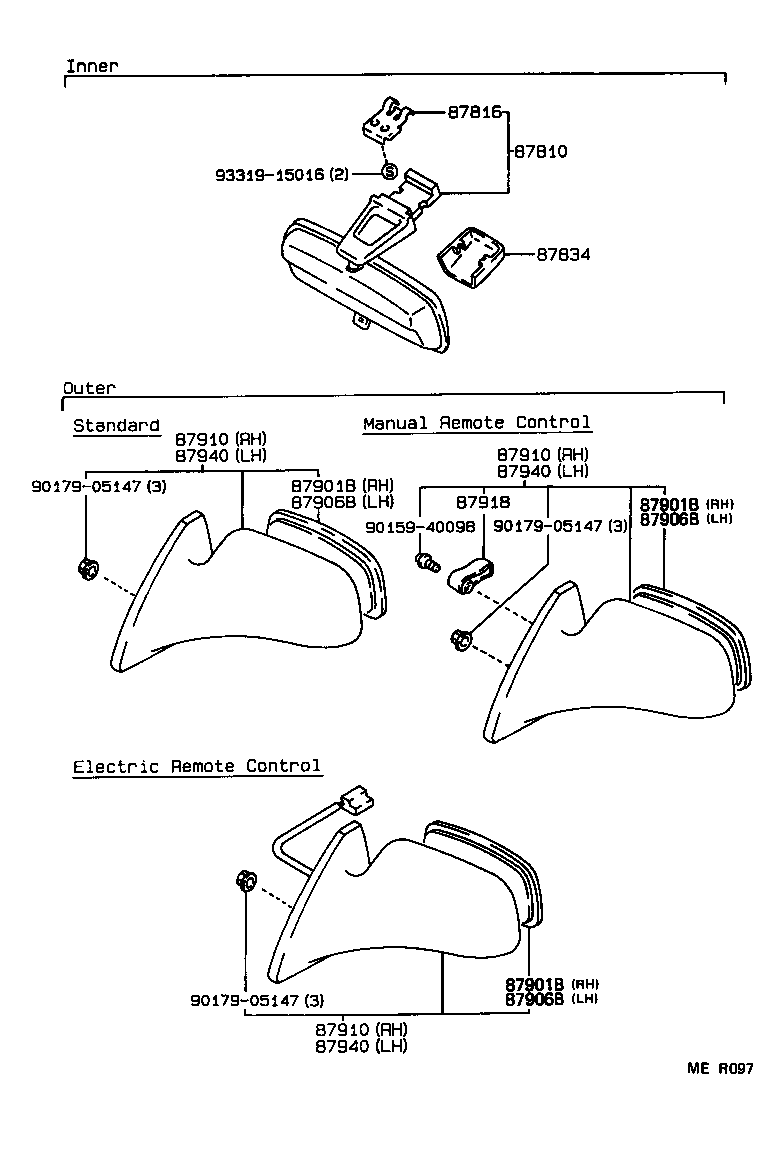

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-12240B1 |
AE95 SHADOW GRAY,TRIM1# |
1 | ||
| 87810-12240J0 |
AE95 DARK BLUE,TRIM8# |
1 | ||
| 87816 - SPRING, INNER REAR VIEW MIRROR | ||||
| 74372-30030 |
AE95 |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87834-12030B2 |
AE95 SHADOW GRAY,TRIM1# |
1 | ||
| 87834-12030J1 |
AE95 DARK BLUE,TRIM8# |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87908-1A240 |
AE95..DX |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87908-1A240 |
AE95..DX |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87908-1A240 |
AE95..DX |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87909-1A320 |
AE95 |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87909-1A320 |
AE95 |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87909-1A320 |
AE95 |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-1A230 |
AE95..DX |
1 | ||
| 87910-1A240 |
AE95 MANUAL REMOTE CONTROL MIRROR |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-1A230 |
AE95..DX |
1 | ||
| 87910-1A240 |
AE95 MANUAL REMOTE CONTROL MIRROR |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-1A230 |
AE95..DX |
1 | ||
| 87910-1A240 |
AE95 MANUAL REMOTE CONTROL MIRROR |
1 | ||
| 87918 - KNOB, CONTROL OUTER MIRROR | ||||
| 87918-16010 |
AE95..DX |
2 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-1A310 |
AE95..DX |
1 | ||
| 87940-1A320 |
AE95..DX MANUAL REMOTE CONTROL MIRROR |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-1A310 |
AE95..DX |
1 | ||
| 87940-1A320 |
AE95..DX MANUAL REMOTE CONTROL MIRROR |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-1A310 |
AE95..DX |
1 | ||
| 87940-1A320 |
AE95..DX MANUAL REMOTE CONTROL MIRROR |
1 | ||
| Common parts | ||||
| 90159-40098 | ||||
| 90179-05147 | ||||
| 93319-15016 | ||||
(9009- )

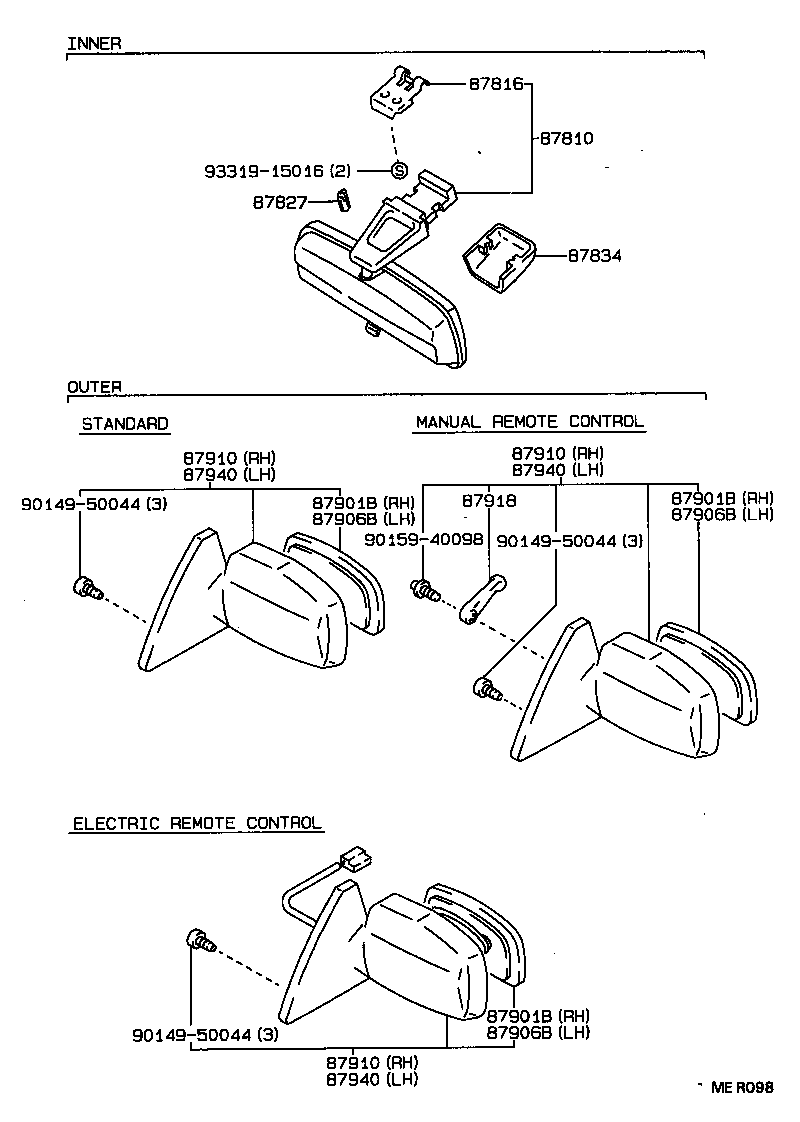

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90149-50044 | ||||
| 90159-40098 | ||||
| 93319-15016 | ||||
