AE95L-CWPDKK (1990)
Toyota Corolla Wagon
Production
Sep 1990
-
Aug 1993
Engine
4AFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9009- )

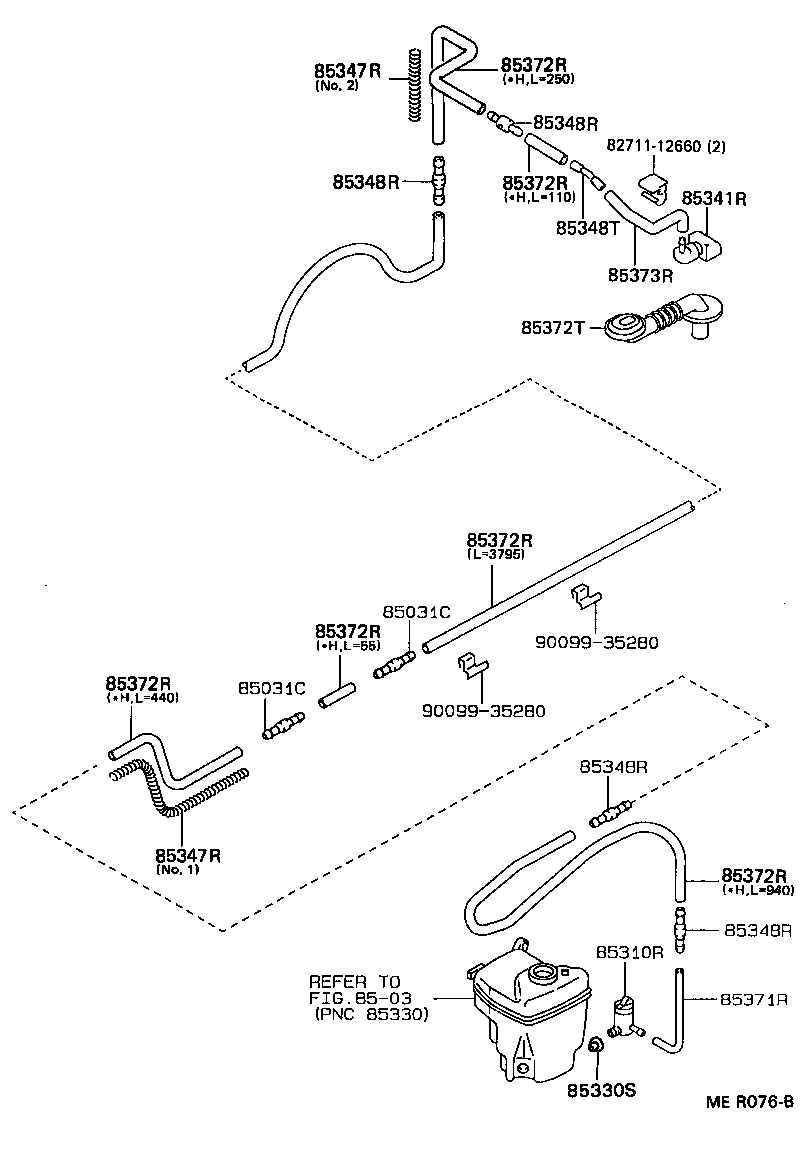

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031C - VALVE SUB-ASSY, WASHER | ||||
| 85031-30010 |
AE95 |
2 | ||
| 85031C - VALVE SUB-ASSY, WASHER | ||||
| 85031-30010 |
AE95 |
2 | ||
| 85310R - MOTOR ASSY, REAR WASHER | ||||
| 85310-12170 |
AE95 |
1 | ||
| 85330S - BUSH, REAR WASHER JAR | ||||
| 90099-32089 |
AE95 |
1 | ||
| 85341R - NOZZLE ASSY, WASHER | ||||
| 85341-12240 |
AE95 |
1 | ||
| 85347R - SPRING | ||||
| 85347-13100 |
AE95 NO.1 |
1 | ||
| 85347-12150 |
AE95 NO.2 |
1 | ||
| 85347R - SPRING | ||||
| 85347-13100 |
AE95 NO.1 |
1 | ||
| 85347-12150 |
AE95 NO.2 |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
AE95 |
4 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
AE95 |
4 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
AE95 |
4 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
AE95 |
4 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85355-20080 |
AE95 |
1 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33299 |
AE95 L=1000 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33080 |
AE95 L=1450 |
1 | ||
| 90099-33299 |
AE95 L=1000 |
1 | ||
| 90099-33852 |
AE95 *H,L=3801 |
1 | ||
| 90446-07001 |
AE95 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33080 |
AE95 L=1450 |
1 | ||
| 90099-33299 |
AE95 L=1000 |
1 | ||
| 90099-33852 |
AE95 *H,L=3801 |
1 | ||
| 90446-07001 |
AE95 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33080 |
AE95 L=1450 |
1 | ||
| 90099-33299 |
AE95 L=1000 |
1 | ||
| 90099-33852 |
AE95 *H,L=3801 |
1 | ||
| 90446-07001 |
AE95 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33080 |
AE95 L=1450 |
1 | ||
| 90099-33299 |
AE95 L=1000 |
1 | ||
| 90099-33852 |
AE95 *H,L=3801 |
1 | ||
| 90446-07001 |
AE95 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33080 |
AE95 L=1450 |
1 | ||
| 90099-33299 |
AE95 L=1000 |
1 | ||
| 90099-33852 |
AE95 *H,L=3801 |
1 | ||
| 90446-07001 |
AE95 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33080 |
AE95 L=1450 |
1 | ||
| 90099-33299 |
AE95 L=1000 |
1 | ||
| 90099-33852 |
AE95 *H,L=3801 |
1 | ||
| 90446-07001 |
AE95 |
1 | ||
| 85372T - GROMMET, WASHER | ||||
| 85372-12020 |
AE95 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33299 |
AE95 L=1000 |
1 | ||
| Common parts | ||||
| 82711-12660 | ||||
| 90099-35280 | ||||
| Linked diagrams | ||||
| 8503 | ||||
(9009- )

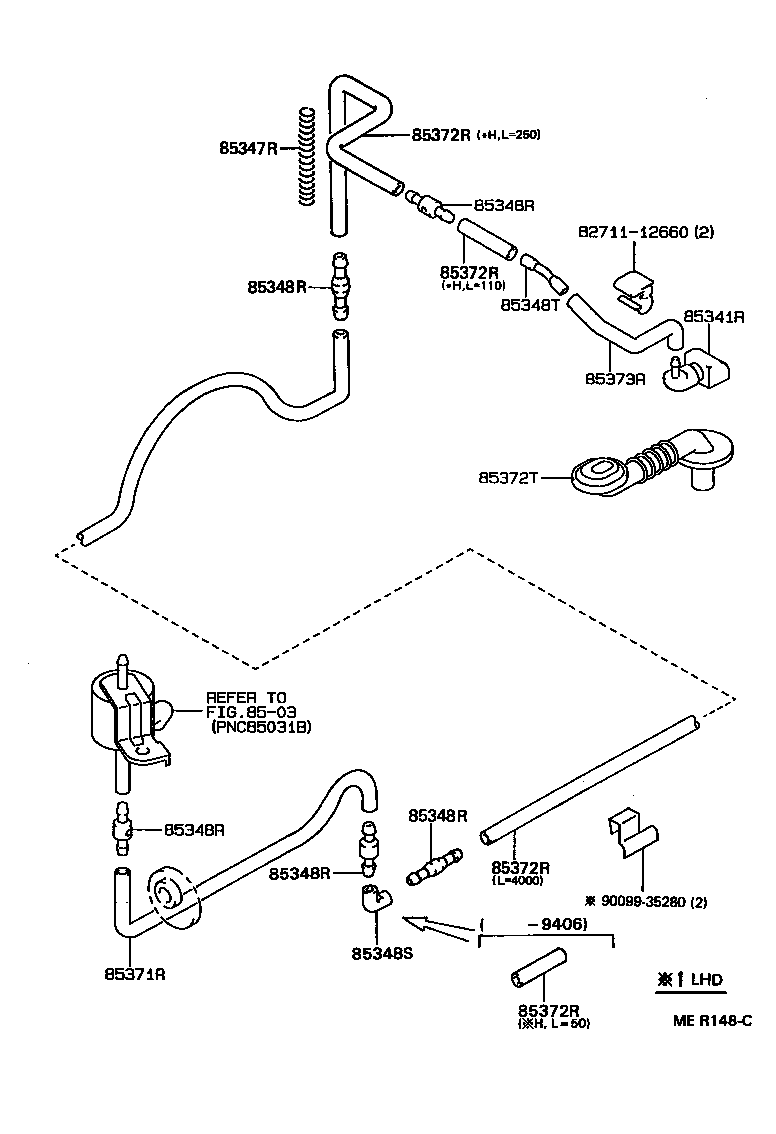

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12660 | ||||
| 90099-35280 | ||||
| Linked diagrams | ||||
| 8503 | ||||
