AE95L-CWPDKK (1990)
Toyota Corolla Wagon
Production
Sep 1990
-
Aug 1993
Engine
4AFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9009- )

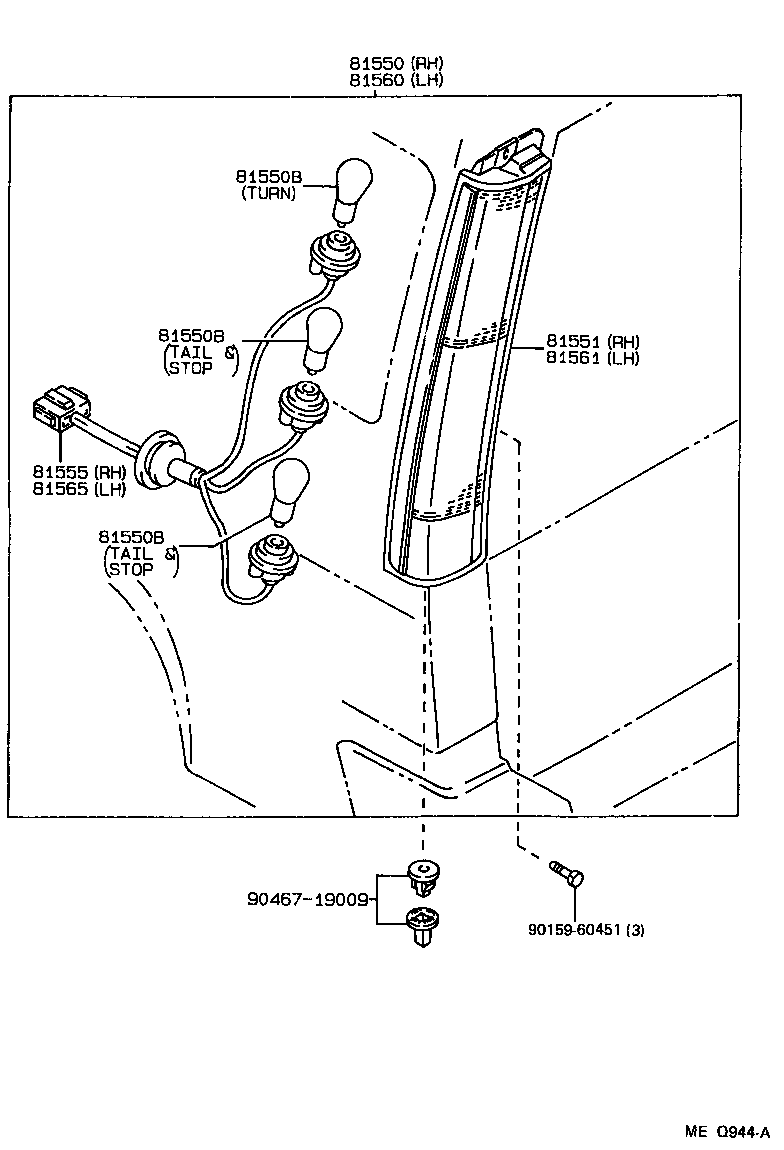

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-1A461 |
AE95 |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11270 |
AE95 12V 27W |
2 | ||
| 99132-21270 |
AE95 12V 27/8W |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11270 |
AE95 12V 27W |
2 | ||
| 99132-21270 |
AE95 12V 27/8W |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11270 |
AE95 12V 27W |
2 | ||
| 99132-21270 |
AE95 12V 27/8W |
4 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-1A451 |
AE95 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-1A460 |
AE95 |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-1A431 |
AE95 |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-1A421 |
AE95 |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-1A460 |
AE95 |
1 | ||
| Common parts | ||||
| 90159-60451 | ||||
| 90467-19009 | ||||
(9009- )

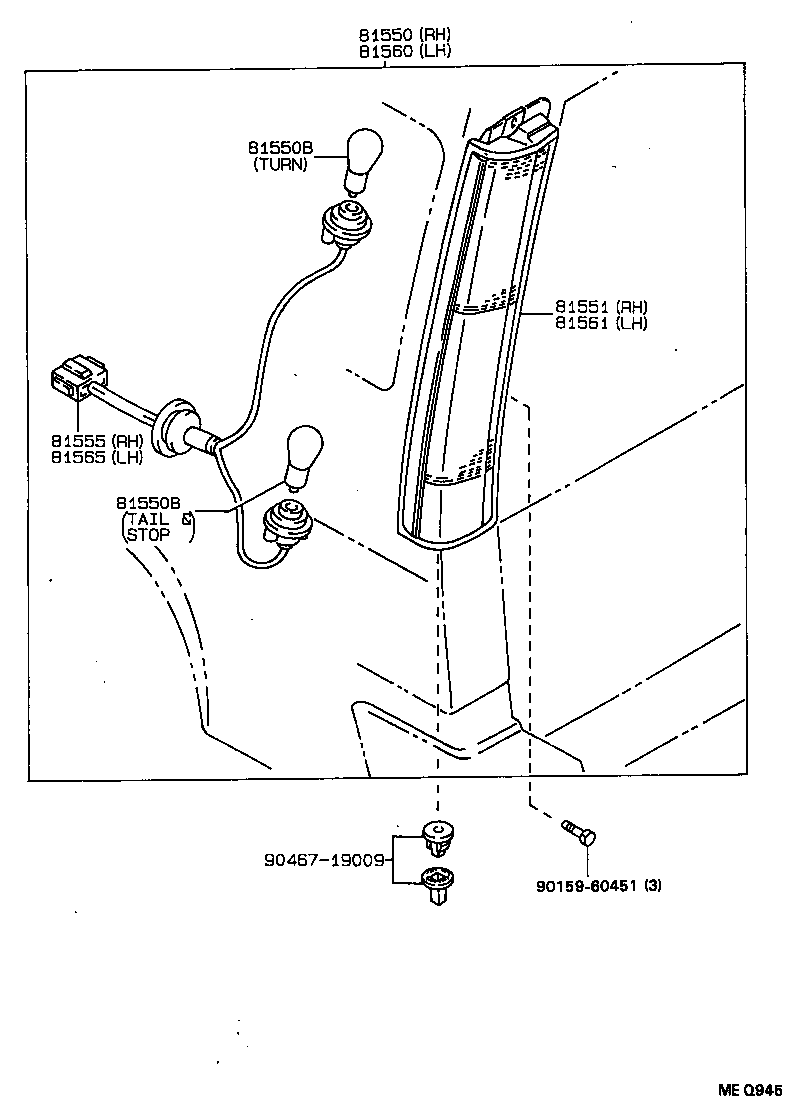

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60451 | ||||
| 90467-19009 | ||||
