AE95L-CWPDKK (1990)
Toyota Corolla Wagon
Production
Sep 1990
-
Aug 1993
Engine
4AFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9009- )

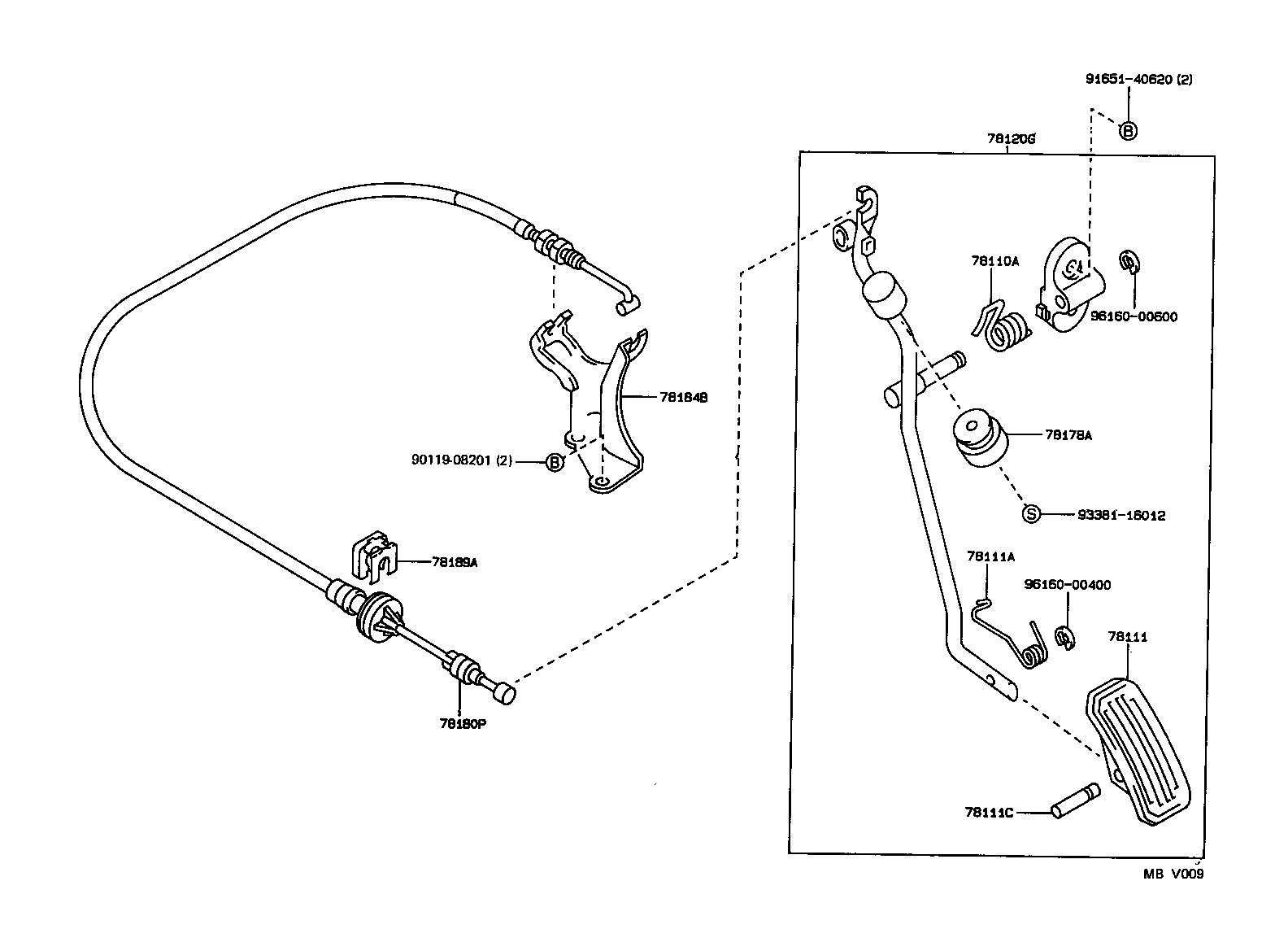

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18025 |
AE95..4FC |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-32010 |
AE95 |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-20056 |
AE95 |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
AE95 |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-12100 |
AE95..4FC |
1 | ||
| 78178A - DAMPER, ACCELRATOR PEDAL ROD DYNAMIC | ||||
| 78178-12030 |
AE95 |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-1A350 |
AE95 |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-12250 |
AE95 |
1 | ||
| 78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2 | ||||
| 78189-12030 |
AE95 |
1 | ||
| Common parts | ||||
| 90119-08201 | ||||
| 91651-40620 | ||||
| 93381-16012 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||

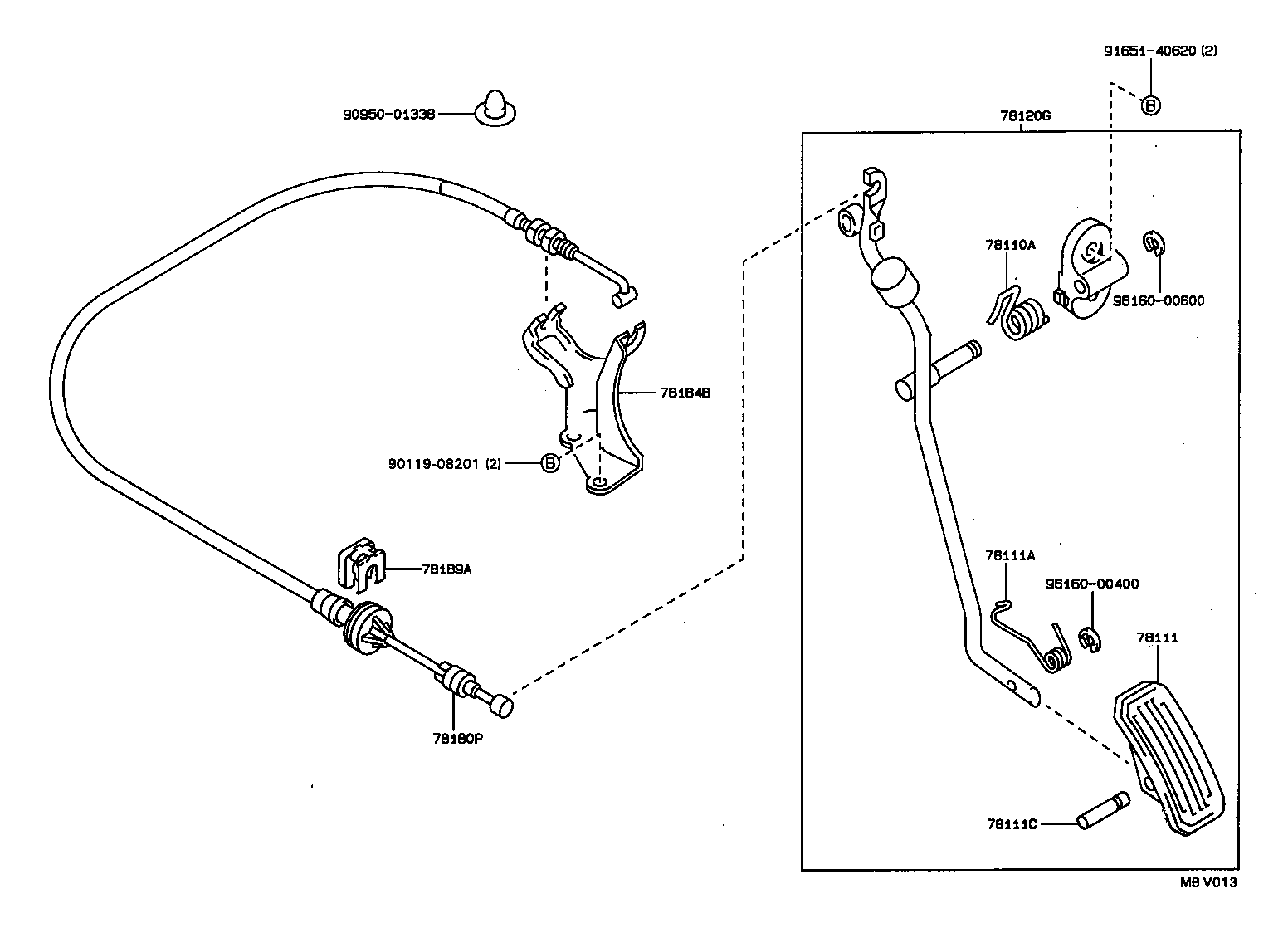

(9009- )EFI
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08201 | ||||
| 90950-01338 | ||||
| 91651-40620 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
