AE95L-CWPDKK (1990)
Toyota Corolla Wagon
Production
Sep 1990
-
Aug 1993
Engine
4AFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

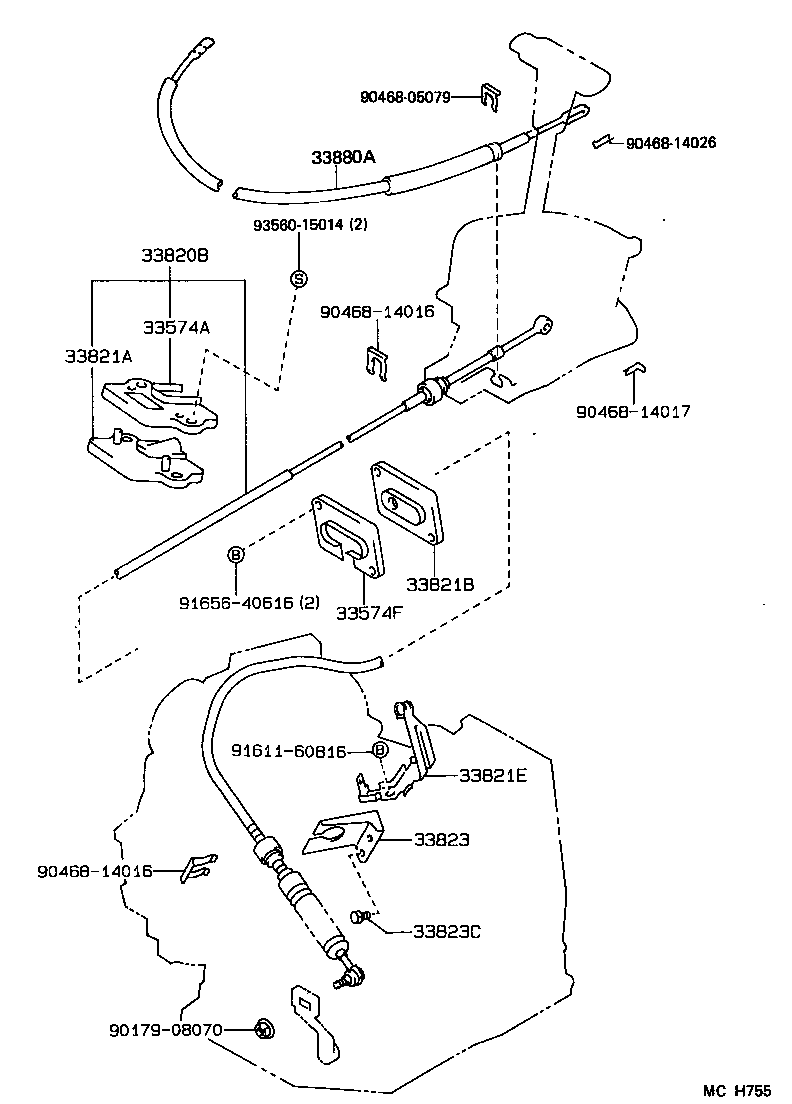

ILLUST NO. 2 OF 2(9009- )4FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-12040 |
AE95..4FC |
1 | ||
| 33574F - RETAINER, DUST SEAL (FOR FLOOR SHIFT) | ||||
| 33574-12030 |
AE95..4FC |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-12340 |
AE95..4FC |
1 | ||
| 33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01395 |
AE95..4FC |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01391 |
AE95..4FC |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01381 |
AE95..4FC |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-12070 |
AE95..4FC |
1 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91611-61022 |
AE95..4FC |
2 | ||
| 33880A - CABLE ASSY, PARKING LOCK (FOR FLOOR SHIFT) | ||||
| 33880-12010 |
AE95..4FC |
1 | ||
| Common parts | ||||
| 90179-08070 | ||||
| 90468-05079 | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 90468-14026 | ||||
| 91611-60816 | ||||
| 91656-40616 | ||||
| 93560-15014 | ||||

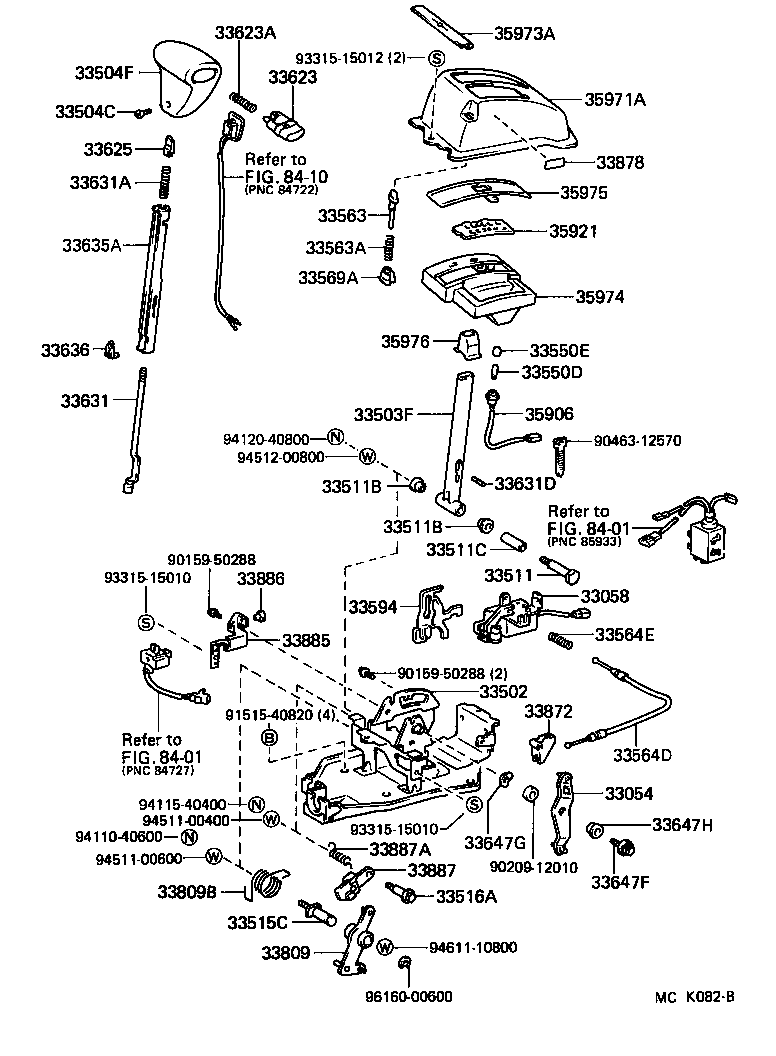

ILLUST NO. 1 OF 2(9009- )4FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33054 - LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT) | ||||
| 33054-12050 |
AE95..4FC |
1 | ||
| 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID | ||||
| 33058-12030 |
AE95..4FC |
1 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-12370 |
AE95..4FC |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-12470 |
AE95..4FC |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
AE95..4FC |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-20090J0 |
AE95..4FC DARK BLUE,TRIM8# |
1 | ||
| 33542-20090B1 |
AE95..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-12070 |
AE95..4FC |
1 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90386-11012 |
AE95..4FC |
2 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90386-11012 |
AE95..4FC |
2 | ||
| 33511C - COLLAR (FOR CONTROL SHAFT) | ||||
| 90387-08114 |
AE95..4FC |
1 | ||
| 33515C - SHAFT, CONTROL, NO.2 | ||||
| 33515-12010 |
AE95..4FC |
1 | ||
| 33516A - SHAFT, CONTROL, NO.3 | ||||
| 33516-12010 |
AE95..4FC |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 99132-12034 |
AE95..4FC 12V 3.4W |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-09004 |
AE95..4FC |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-12020J0 |
AE95..4FC DARK BLUE,TRIM8# |
1 | ||
| 33563-12020B0 |
AE95..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) | ||||
| 90501-07086 |
AE95..4FC |
1 | ||
| 33564D - CABLE, SHIFT LOCK RELEASE | ||||
| 33564-12020 |
AE95..4FC |
1 | ||
| 33564E - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE CABLE) | ||||
| 90501-07087 |
AE95..4FC |
1 | ||
| 33569A - GUIDE, SHIFT LOCK RELEASE BUTTON | ||||
| 33569-12030 |
AE95..4FC |
1 | ||
| 33594 - PLATE, SHIFT LOCK (FOR FLOOR SHIFT) | ||||
| 33594-12040 |
AE95..4FC |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-20030J0 |
AE95..4FC DARK BLUE,TRIM8# |
1 | ||
| 33623-20030B1 |
AE95..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
AE95..4FC |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-24010 |
AE95..4FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-16050 |
AE95..4FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-08128 |
AE95..4FC |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04003 |
AE95..4FC |
1 | ||
| 33635A - GUIDE, WIRE, NO.1 (FOR SHIFT LEVER) | ||||
| 33635-12040 |
AE95..4FC |
1 | ||
| 33636 - GUIDE, WIRE, NO.2 (FOR SHIFT LEVER) | ||||
| 33636-35010 |
AE95..4FC |
1 | ||
| 33647F - SHAFT, CONTROL LINK (FOR FLOOR SHIFT) | ||||
| 90119-08606 |
AE95..4FC |
1 | ||
| 33647G - WASHER, WAVE (FOR CONTROL LINK SHAFT) | ||||
| 90206-12002 |
AE95..4FC |
1 | ||
| 33647H - BUSH (FOR CONTROL LINK SHAFT) | ||||
| 90386-12040 |
AE95..4FC |
1 | ||
| 33809 - LEVER SUB-ASSY, CABLE CONTROL | ||||
| 33809-12040 |
AE95..4FC |
1 | ||
| 33809B - SPRING, TORSION (FOR CABLE CONTROL LEVER) | ||||
| 90508-08026 |
AE95..4FC |
1 | ||
| 33872 - LINK, SHIFT LOCK RELEASE, NO.2 | ||||
| 33872-12020 |
AE95..4FC |
1 | ||
| 33878 - LABEL, SHIFT LOCK INFORMATION, NO.2 | ||||
| 33878-32010 |
AE95..4FC |
1 | ||
| 33885 - BRACKET, SHIFT LEVER STOPPER | ||||
| 33885-12040 |
AE95..4FC |
1 | ||
| 33886 - STOPPER, SHIFT LEVER | ||||
| 33886-16010 |
AE95..4FC |
1 | ||
| 33887 - STOPPER, CABLE CONTROL LEVER | ||||
| 33887-12010 |
AE95..4FC |
1 | ||
| 33887A - SPRING, TORSION (FOR CABLE CONTOROL LEVER STOPPER) | ||||
| 90508-10046 |
AE95..4FC |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-20030 |
AE95..4FC |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-12310 |
AE95..4FC |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-12220J0 |
AE95..4FC DARK BLUE,TRIM8# |
1 | ||
| 35971-12220B0 |
AE95..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 35973A - ATTACHMENT, POSITION INDICATOR HOUSING COVER | ||||
| 35973-12030 |
AE95..4FC |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-12120 |
AE95..4FC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-12180J0 |
AE95..4FC DARK BLUE,TRIM8# |
1 | ||
| 35975-12180B0 |
AE95..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-12050B0 |
AE95..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 35976-12050J0 |
AE95..4FC DARK BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90159-50288 | ||||
| 90209-12010 | ||||
| 90463-12570 | ||||
| 91515-40820 | ||||
| 93315-15010 | ||||
| 93315-15012 | ||||
| 94110-40600 | ||||
| 94115-40400 | ||||
| 94120-40800 | ||||
| 94511-00400 | ||||
| 94511-00600 | ||||
| 94512-00800 | ||||
| 94611-10800 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8410 | ||||

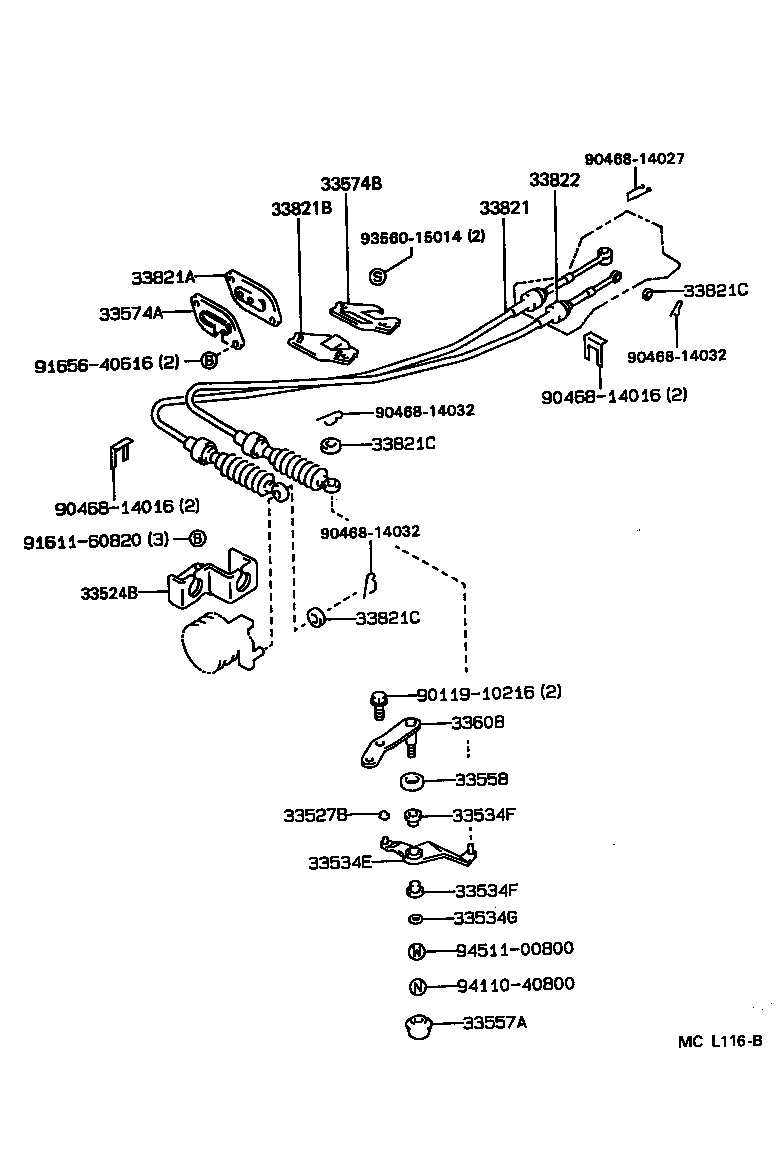

ILLUST NO. 1 OF 2(9009-9109)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-12470 |
AE95..4FC |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-20090J0 |
AE95..4FC DARK BLUE,TRIM8# |
1 | ||
| 33542-20090B1 |
AE95..4FC SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 91651-40610 | ||||
| 91665-40830 | ||||
ILLUST NO. 2 OF 2(9009-9109)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-10216 | ||||
| 90468-14016 | ||||
| 90468-14027 | ||||
| 90468-14032 | ||||
| 91611-60820 | ||||
| 91656-40616 | ||||
| 93560-15014 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
(9109- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08946 | ||||
| 90119-10216 | ||||
| 90468-14016 | ||||
| 90468-14027 | ||||
| 90468-14032 | ||||
| 91611-60820 | ||||
| 91656-40616 | ||||
| 93560-15014 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
