AE95L-CWPDKA (1990)
Toyota Corolla Wagon
Production
Sep 1990
-
Aug 1992
Engine
4AFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

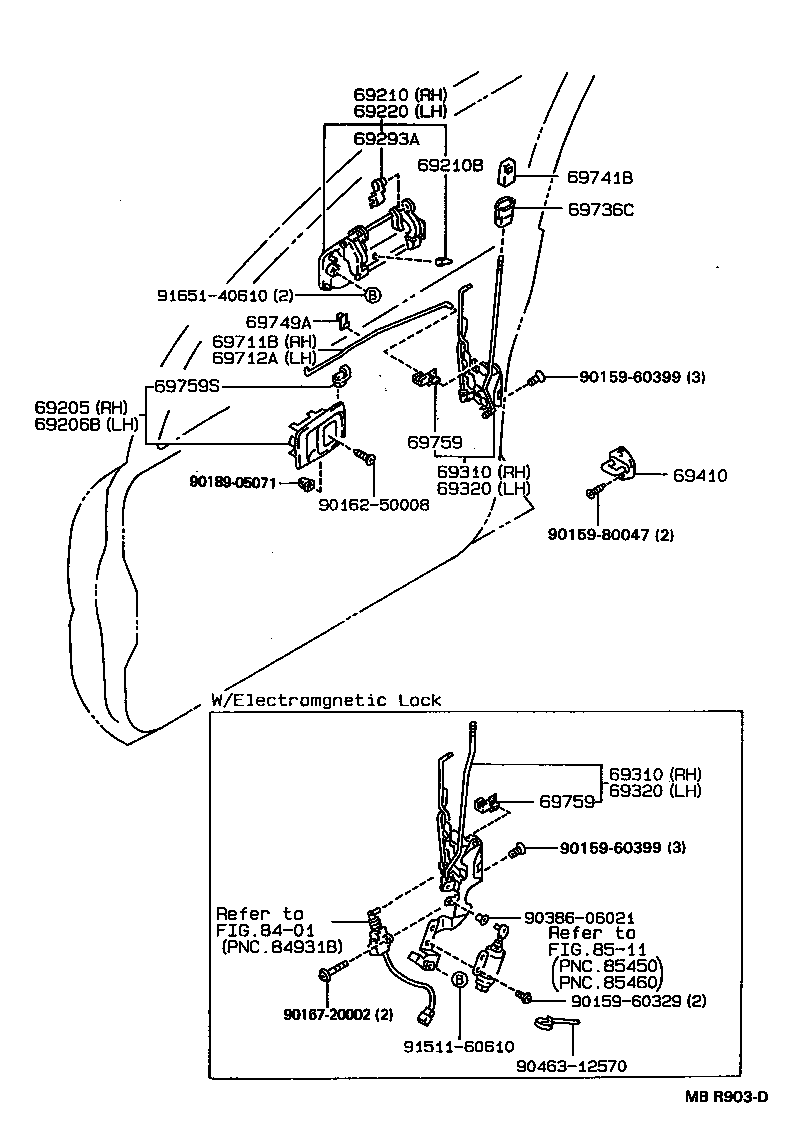

(9009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69206-1004034 |
AE95..DX BLUE,TRIM8# |
1 | ||
| 69206-1004013 |
AE95..DX GRAY,TRIM1# |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69205-1004013 |
AE95..DX GRAY,TRIM1# |
1 | ||
| 69205-1004034 |
AE95..DX BLUE,TRIM8# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-12110 |
AE95 |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-04014 |
AE95 |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-12110 |
AE95 |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12040 |
AE95 LH |
1 | ||
| 69293-12030 |
AE95 RH |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-12391 |
AE95 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-12391 |
AE95 |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-12411 |
AE95 |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-12411 |
AE95 |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-87001 |
AE95 |
2 | ||
| 69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69711-12100 |
AE95 |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-12110 |
AE95 |
1 | ||
| 69736C - GUIDE, FRONT DOOR LOCKING LINK | ||||
| 69736-20090 |
AE95 |
2 | ||
| 69741B - KNOB, FRONT DOOR LOCK CONTROL | ||||
| 69741-90K0043 |
AE95 GRAY,TRIM1# |
2 | ||
| 69741-90K00J0 |
AE95 DARK BLUE,TRIM8# |
2 | ||
| 69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1 | ||||
| 69749-20010 |
AE95 |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-20050 |
AE95 RH |
1 | ||
| 69759-20040 |
AE95 LH |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-20050 |
AE95 RH |
1 | ||
| 69759-20040 |
AE95 LH |
1 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-20070 |
AE95 LH |
1 | ||
| 69759-20060 |
AE95 RH |
1 | ||
| Common parts | ||||
| 90159-60329 | ||||
| 90159-60399 | ||||
| 90159-80047 | ||||
| 90162-50008 | ||||
| 90167-20002 | ||||
| 90189-05071 | ||||
| 90386-06021 | ||||
| 90463-12570 | ||||
| 91511-60610 | ||||
| 91651-40610 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8511 | ||||

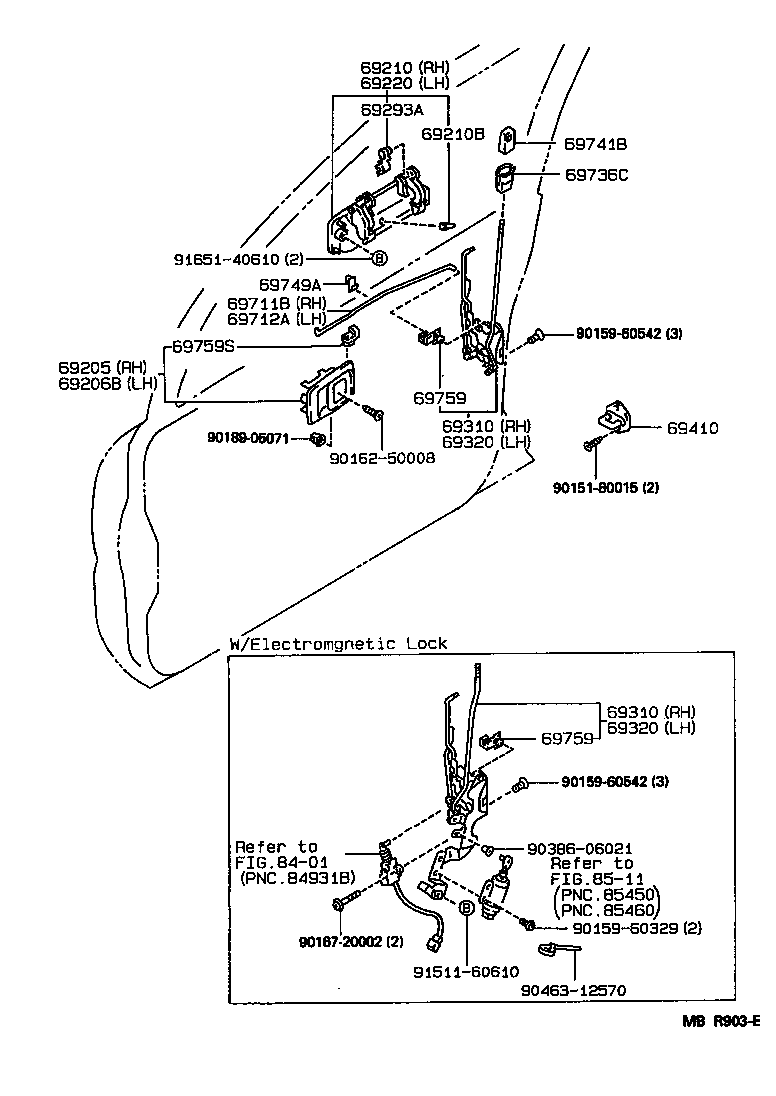

(9009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90151-80015 | ||||
| 90159-60329 | ||||
| 90159-60542 | ||||
| 90162-50008 | ||||
| 90167-20002 | ||||
| 90189-05071 | ||||
| 90386-06021 | ||||
| 90463-12570 | ||||
| 91511-60610 | ||||
| 91651-40610 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8511 | ||||
