AE95L-CWPDKA (1990)

Toyota Corolla Wagon

Production Sep 1990 - Aug 1992
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )

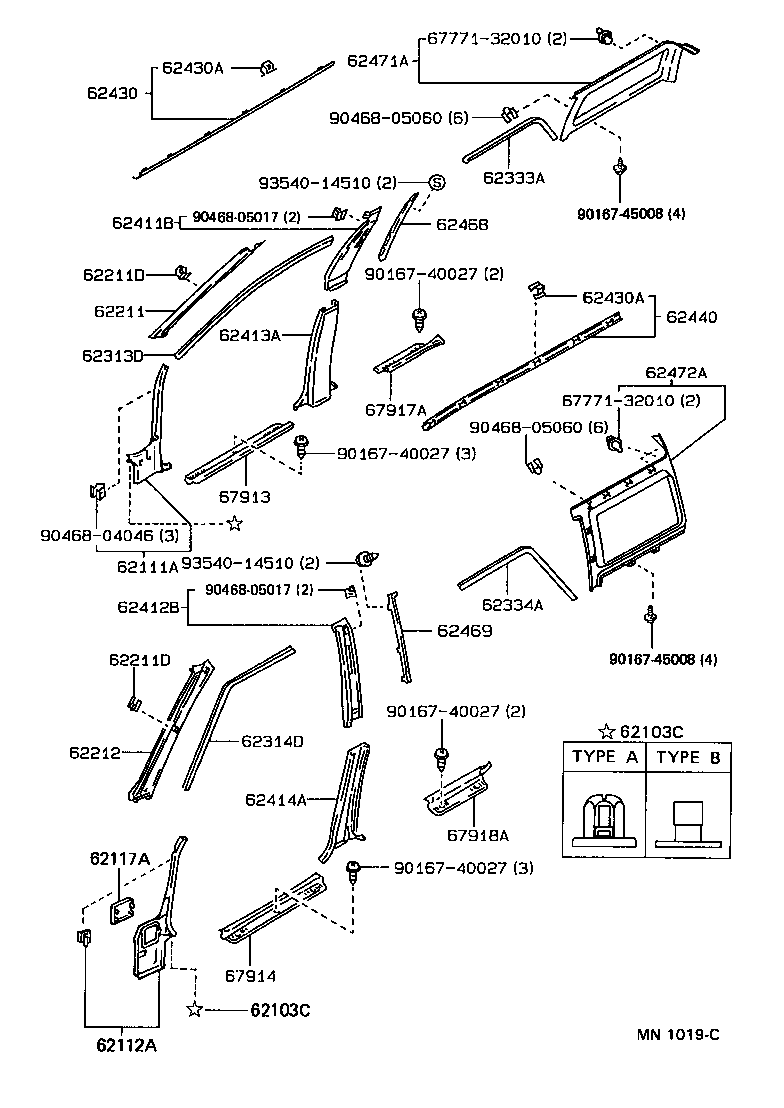

Click highlighted areas on diagram

diagram 62103C 62103C 62111A 62112A 62117A 62211 62211D 62211D 62212 62313D 62314D 62333A 62334A 62411B 62412B 62413A 62414A 62430 62430A 62430A 62440 62468 62469 62471A 62472A 6777132010 6777132010 67913 67914 67917A 67918A 9016740027 9016740027 9016740027 9016740027 9016745008 9016745008 9046804046 9046805017 9046805017 9046805060 9046805060 9354014510 9354014510
Part # Description Qty Price
62103C - CLIP, COWL SIDE TRIM BOARD SET
90467-0505001

AE95

BLACK,TRIM1#,8#,TYPE A

 2
62103C - CLIP, COWL SIDE TRIM BOARD SET
90467-0505001

AE95

BLACK,TRIM1#,8#,TYPE A

 2
62111A - TRIM SUB-ASSY, COWL SIDE, RH
62101-1215004

AE95

DARK BLUE,TRIM8#

 1
62101-1215003

AE95

SHADOW GRAY,TRIM1#

 1
62112A - TRIM SUB-ASSY, COWL SIDE, LH
62102-1215004

AE95

DARK BLUE,TRIM8#

 1
62102-1215003

AE95

SHADOW GRAY,TRIM1#

 1
62117A - COVER, COWL SIDE TRIM SERVICE HOLE
62117-1210003

AE95

SHADOW GRAY,TRIM1#

 1
62117-1210004

AE95

DARK BLUE,TRIM8#

 1
62211 - GARNISH, FRONT PILLAR, RH
62211-1221003

AE95

SHADOW GRAY,TRIM1#

 1
62211-1221004

AE95

DARK BLUE,TRIM8#

 1
62211D - CLIP(FOR FRONT BODY PILLAR GARNISH)
90468-05060

AE95

 4
62211D - CLIP(FOR FRONT BODY PILLAR GARNISH)
90468-05060

AE95

 4
62212 - GARNISH, FRONT PILLAR, LH
62212-1221004

AE95

DARK BLUE,TRIM8#

 1
62212-1221003

AE95

SHADOW GRAY,TRIM1#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-1214003

AE95

SHADOW GRAY,TRIM1#

 1
62313-1214004

AE95

DARK BLUE,TRIM8#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-1214003

AE95

SHADOW GRAY,TRIM1#

 1
62313-1214004

AE95

DARK BLUE,TRIM8#

 1
62333A - TRIM, REAR DOOR OPENING, RH
62333-1210003

AE95

SHADOW GRAY,TRIM1#

 1
62333-1210004

AE95

DARK BLUE,TRIM8#

 1
62334A - TRIM, REAR DOOR OPENING, LH
62333-1210004

AE95

DARK BLUE,TRIM8#

 1
62333-1210003

AE95

SHADOW GRAY,TRIM1#

 1
62411B - GARNISH, CENTER PILLAR, UPPER RH
62411-12410J0

AE95..USA

DARK BLUE,TRIM8#

 1
62411-12410B1

AE95..USA

SHADOW GRAY,TRIM1#

 1
62412B - GARNISH, CENTER PILLAR, UPPER LH
62412-12410B1

AE95..USA

SHADOW GRAY,TRIM1#

 1
62412-12410J0

AE95..USA

DARK BLUE,TRIM8#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-1217003

AE95

SHADOW GRAY,TRIM1#

 1
62413-1217004

AE95

DARK BLUE,TRIM8#

 1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-1217003

AE95

SHADOW GRAY,TRIM1#

 1
62414-1217004

AE95

DARK BLUE,TRIM8#

 1
62430 - GARNISH ASSY, ROOF SIDE RAIL, RH
62431-1213003

AE95

SHADOW GRAY,TRIM1#

 1
62431-1213004

AE95

DARK BLUE,TRIM8#

 1
62430A - CLIP, ROOF SIDE RAIL GARNISH
90468-05017

AE95

 12
62430A - CLIP, ROOF SIDE RAIL GARNISH
90468-05017

AE95

 12
62440 - GARNISH ASSY, ROOF SIDE RAIL, LH
62432-1211003

AE95

SHADOW GRAY,TRIM1#

 1
62432-1211004

AE95

DARK BLUE,TRIM8#

 1
62468 - GARNISH, CENTER PILLAR, REAR RH
62468-1202003

AE95

SHADOW GRAY,TRIM1#

 1
62468-1202004

AE95

DARK BLUE,TRIM8#

 1
62469 - GARNISH, CENTER PILLAR, REAR LH
62469-1202004

AE95

DARK BLUE,TRIM8#

 1
62469-1202003

AE95

SHADOW GRAY,TRIM1#

 1
62471A - GARNISH, ROOF SIDE, INNER RH
62405-1217003

AE95

SHADOW GRAY,TRIM1#

 1
62405-1217004

AE95

DARK BLUE,TRIM8#

 1
62472A - GARNISH, ROOF SIDE, INNER LH
62406-1217003

AE95

SHADOW GRAY,TRIM1#

 1
62406-1217004

AE95

DARK BLUE,TRIM8#

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-1216003

AE95

SHADOW GRAY,TRIM1#

 1
67913-1216004

AE95

DARK BLUE,TRIM8#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67913-1216004

AE95

DARK BLUE,TRIM8#

 1
67913-1216003

AE95

SHADOW GRAY,TRIM1#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-1206003

AE95

SHADOW GRAY,TRIM1#

 1
67917-1206004

AE95

DARK BLUE,TRIM8#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-1205003

AE95

SHADOW GRAY,TRIM1#

 1
67918-1205004

AE95

DARK BLUE,TRIM8#

 1
Common parts
67771-32010
90167-40027
90167-45008
90468-04046
90468-05017
90468-05060
93540-14510

(9009- )

Click highlighted areas on diagram

diagram 62103C 62111A 62112A 62117A 62211 62211D 62211D 62212 62313D 62314D 62333A 62334A 62411B 62412B 62413A 62414A 62430 62430A 62430A 62440 62468 62469 62471A 62472A 6777132010 6777132010 67913 67914 67917A 67918A 9016740027 9016740027 9016740027 9016740027 9016745008 9016745008 9046804046 9046804046 9046805017 9046805017 9046805060 9046805060 9354014510 9354014510
Part # Description Qty Price
Common parts
67771-32010
90167-40027
90167-45008
90468-04046
90468-05017
90468-05060
93540-14510
