AE95L-CWPDKA (1990)
Toyota Corolla Wagon
Production
Sep 1990
-
Aug 1992
Engine
4AFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9009- )

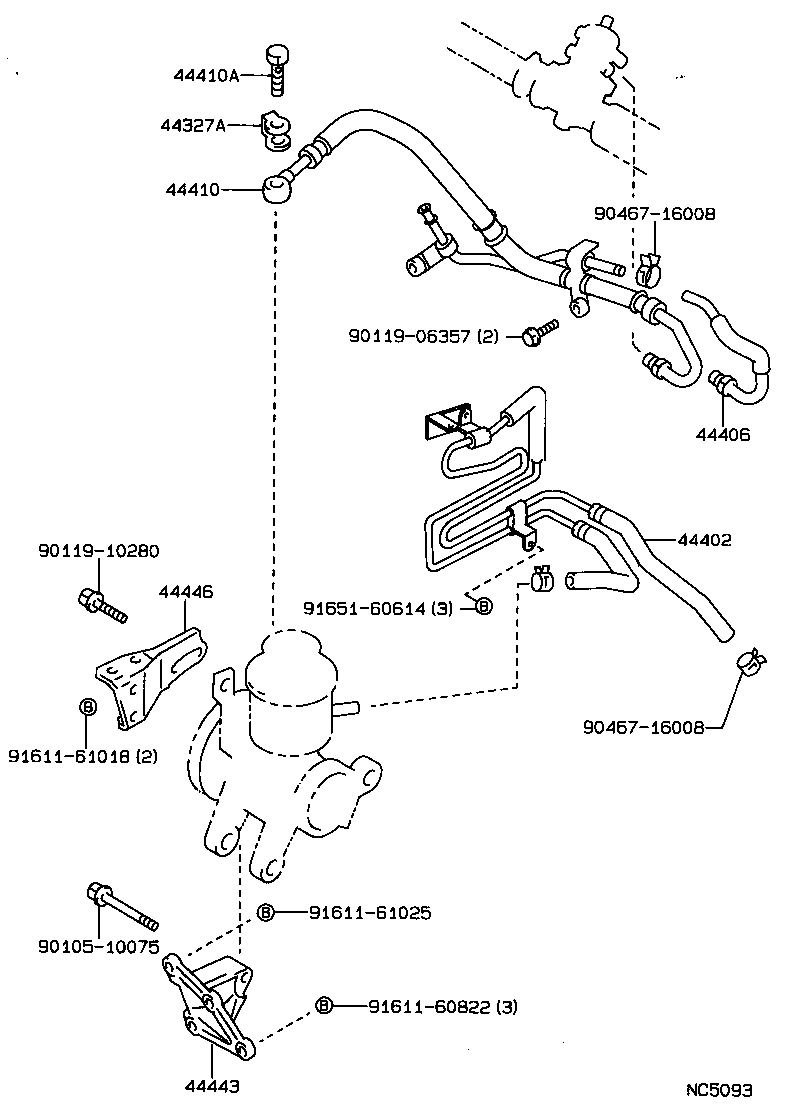

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-12010 |
AE95 |
1 | ||
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44402-12080 |
AE95 |
1 | ||
| 44406 - TUBE SUB-ASSY, RETURN | ||||
| 44406-12110 |
AE95 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-12300 |
AE95 |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16012 |
AE95 |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-12050 |
AE95 |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-12040 |
AE95 |
1 | ||
| Common parts | ||||
| 90105-10075 | ||||
| 90119-06357 | ||||
| 90119-10280 | ||||
| 90467-16008 | ||||
| 91611-60822 | ||||
| 91611-61018 | ||||
| 91611-61025 | ||||
| 91651-60614 | ||||
