AE95L-CWMXKK (1990)
Toyota Corolla Wagon
Production
Sep 1990
-
Aug 1992
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9009- )

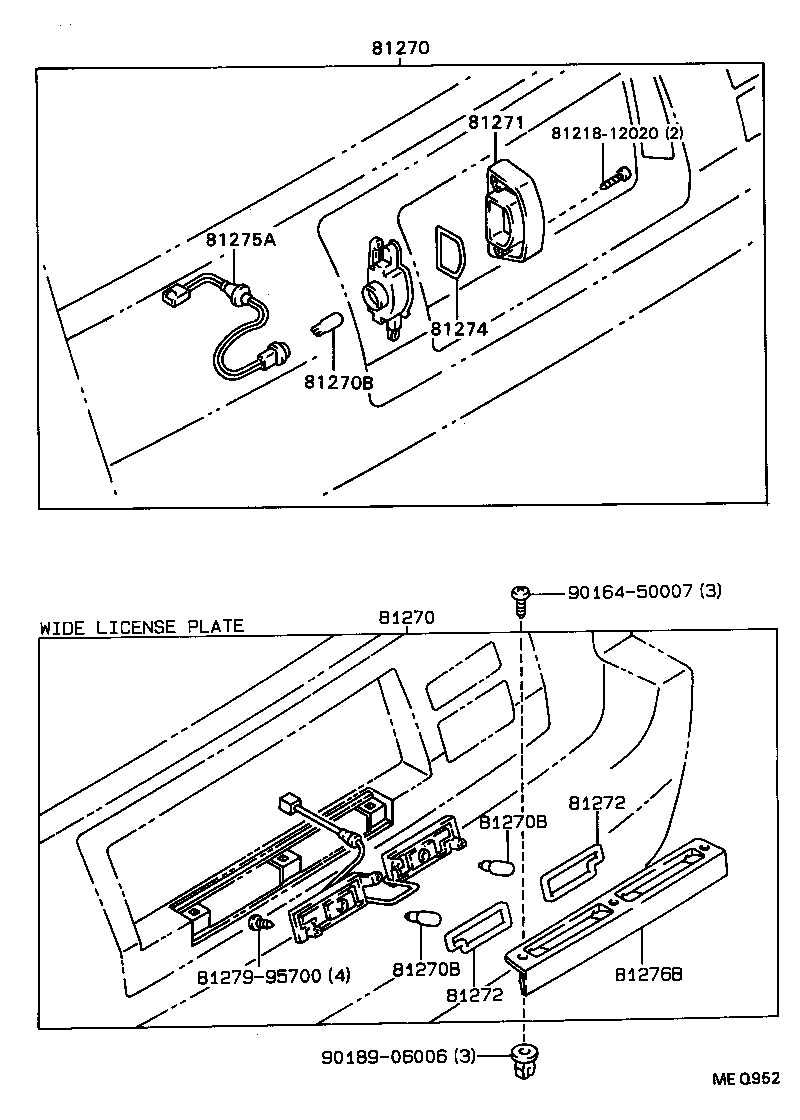

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81690-13010 |
AE95 LH |
1 | ||
| 81270-13230 |
AE95 RH |
1 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
AE95 12V 5W |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81691-13010 |
AE95 LH |
1 | ||
| 81271-13230 |
AE95 RH |
1 | ||
| 81274 - GASKET, LICENSE PLATE LAMP BODY | ||||
| 81274-13230 |
AE95 |
2 | ||
| 81275A - CORD, LICENSE PLATE LAMP | ||||
| 81275-13230 |
AE95 |
2 | ||
| Common parts | ||||
| 81218-12020 | ||||
(9009- )

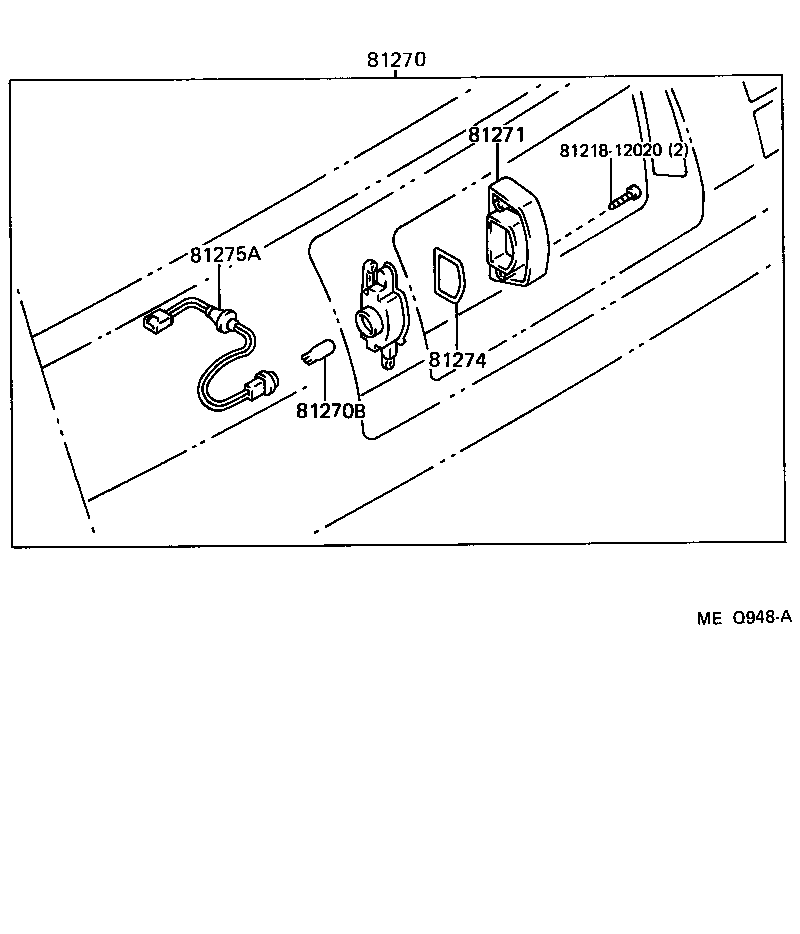

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 81218-12020 | ||||
| 81279-95700 | ||||
| 90164-50007 | ||||
| 90189-06006 | ||||
