AE95L-CWMXKA (1990)

Toyota Corolla Wagon

Production Sep 1990 - Aug 1992
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

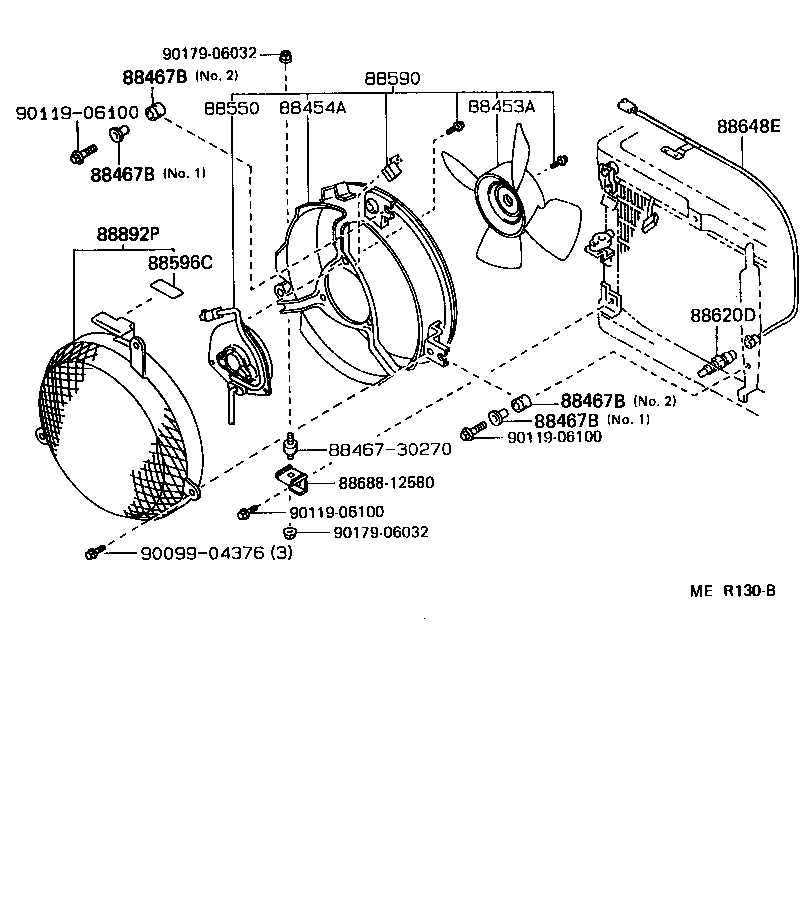

ILLUST NO. 2 OF 3(9009- )

Click highlighted areas on diagram

diagram 88453A 88454A 8846730270 88467B 88467B 88467B 88467B 88550 88590 88596C 88620D 88648E 8868812580 88892P 9009904376 9011906100 9011906100 9011906100 9017906032 9017906032
Part # Description Qty Price
88453A - FAN, COOLING
88453-12050

AE95

 1
88454A - SHROUD, FAN
88454-12100

AE95

 1
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-14070

AE95..USA

NO.1

 2
88467-20040

AE95..USA

NO.2

 2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-14070

AE95..USA

NO.1

 2
88467-20040

AE95..USA

NO.2

 2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-14070

AE95..USA

NO.1

 2
88467-20040

AE95..USA

NO.2

 2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-14070

AE95..USA

NO.1

 2
88467-20040

AE95..USA

NO.2

 2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12120

AE95

 1
88590 - BLOWER ASSY, W/SHROUD
88590-12170

AE95

 1
88596C - PLATE, CAUTION, NO.2
88723-12030

AE95..USA

 1
88892P - NET, FAN SHROUD
88892-12180

AE95

 1
Common parts
88467-30270
88688-12580
90099-04376
90119-06100
90179-06032

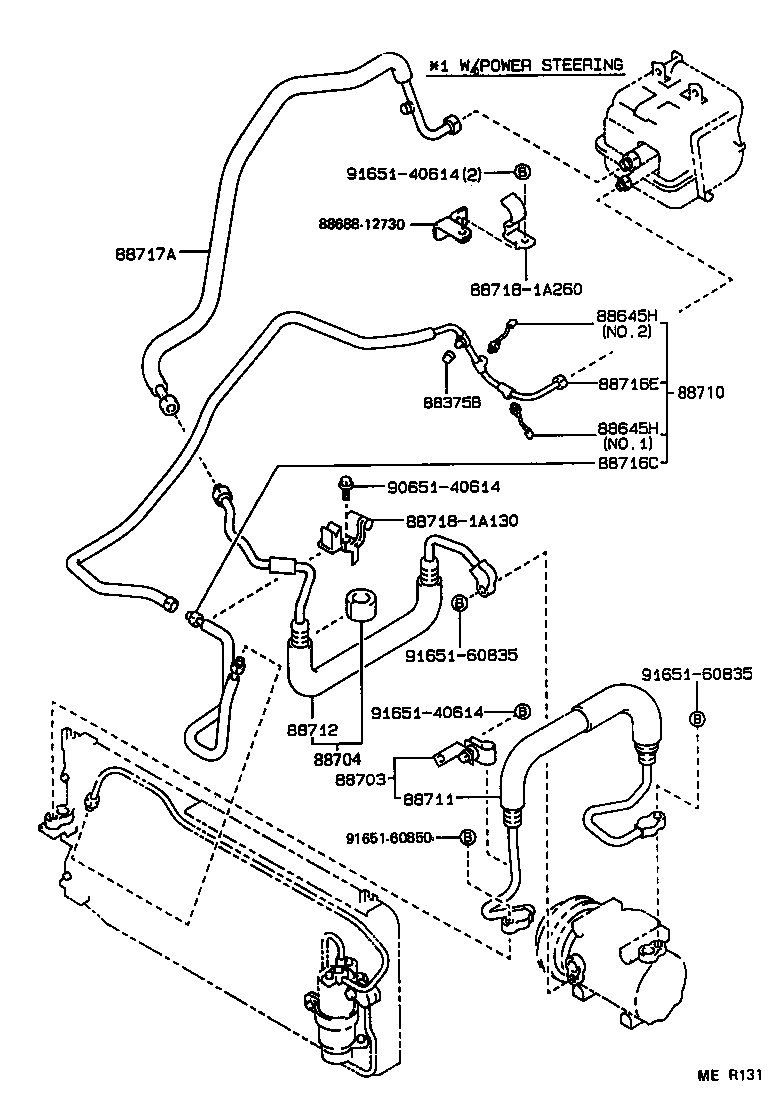

ILLUST NO. 3 OF 3(9009- )

Click highlighted areas on diagram

diagram 88375B 88645H 88645H 8868812730 88703 88704 88710 88711 88712 88716C 88716E 88717A 887181A130 887181A260 9065140614 9165140614 9165160835 9165160835 9165160850 9165440614
Part # Description Qty Price
88375B - CAP, SERVICE VALVE, NO.1
88375-24010

AE95..USA

 1
88375-20010

AE95..USA

 1
88645H - SWITCH, PRESSURE NO.1
88645-10020

AE95..USA

NO.1

 1
88645-16050

AE95..USA

NO.2

 1
88645H - SWITCH, PRESSURE NO.1
88645-10020

AE95..USA

NO.1

 1
88645-16050

AE95..USA

NO.2

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-12070

AE95..USA

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-12071

AE95..USA

 1
88710 - TUBE ASSY, AIR CONDITIONER
88706-12032

AE95..USA

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12460

AE95

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-12651

AE95

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88726-12291

AE95

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-12271

AE95..USA

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-12410

AE95

 1
Common parts
88688-12730
88718-1A130
88718-1A260
90651-40614
91651-40614
91651-60835
91651-60850
91654-40614

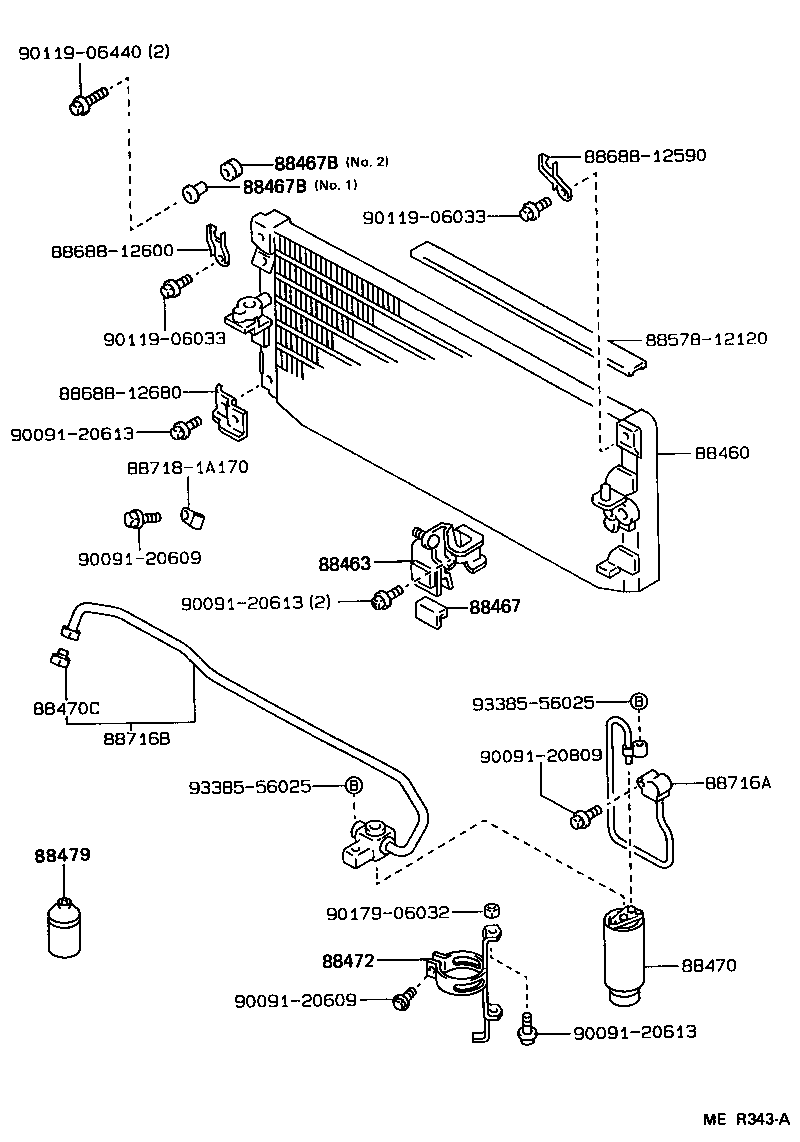

ILLUST NO. 1 OF 3(9009- )

Click highlighted areas on diagram

diagram 88460 88463 88467 88467B 88467B 88470 88470C 88472 88479 8857812120 8868812590 8868812600 8868812680 88716A 88716B 887181A170 9009120609 9009120609 9009120613 9009120613 9009120613 9009120809 9011906033 9011906033 9011906440 9017906032 9338556025 9338556025
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-12370

AE95

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-12041

AE95

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12081

AE95

 2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-14070

AE95..USA

NO.1

 2
88467-20040

AE95..USA

NO.2

 2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-14070

AE95..USA

NO.1

 2
88467-20040

AE95..USA

NO.2

 2
88470 - RECEIVER & DRYER ASSY, COOLER
88471-16040

AE95

 1
88470C - BOLT, FUSE
88475-12020

AE95..USA

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-12070

AE95

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-12340

AE95

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-12251

AE95..USA

 1
Common parts
88578-12120
88688-12590
88688-12600
88688-12680
88718-1A170
90091-20609
90091-20613
90091-20809
90119-06033
90119-06440
90179-06032
93385-56025
