Toyota Corolla wagon AE95 CRUISE CONTROL (AUTO DRIVE)

Part #	Description	Period	Qty
83731 - CABLE, CRUISE CONTROL
83731-12030	AE95	09/1990 - 08/1993	1
88200B - HOSE, CRUISE CONTROL VACUUM
88283-12100	AE95	09/1990 - 08/1993	1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-12071	AE95	09/1990 - 08/1993	1
88212A - COVER, CRUISE CONTROL ACTUATOR
88212-12070	AE95	09/1990 - 08/1993	1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-12140	AE95	09/1990 - 08/1993	1
88250A - PUMP ASSY, CRUISE CONTROL
88251-12090	AE95	09/1990 - 08/1993	1
88252 - CUSHION, VACUUM PUMP
88252-14110	AE95	09/1990 - 08/1993	3
88280C - SWITCH ASSY, CLUTCH
88280-12030	AE95..5F	09/1990 - 08/1993	1
88288 - SWITCH, VACUUM SPEED CONTROL
88288-12010	AE95	09/1990 - 08/1993	1
88290A - BELLCRANK ASSY, CRUISE CONTROL
88290-12020	AE95	09/1990 - 08/1993	1
88291 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1
88291-12100	AE95 NO.2	09/1990 - 08/1993	1
88291-12080	AE95 NO.1	09/1990 - 08/1993	1
88291 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1
88291-12100	AE95 NO.2	09/1990 - 08/1993	1
88291-12080	AE95 NO.1	09/1990 - 08/1993	1
Common parts
78186-12230
88276-12080
88276-12090
90179-06045
90179-06070
90464-00220
91651-40612
91651-40614

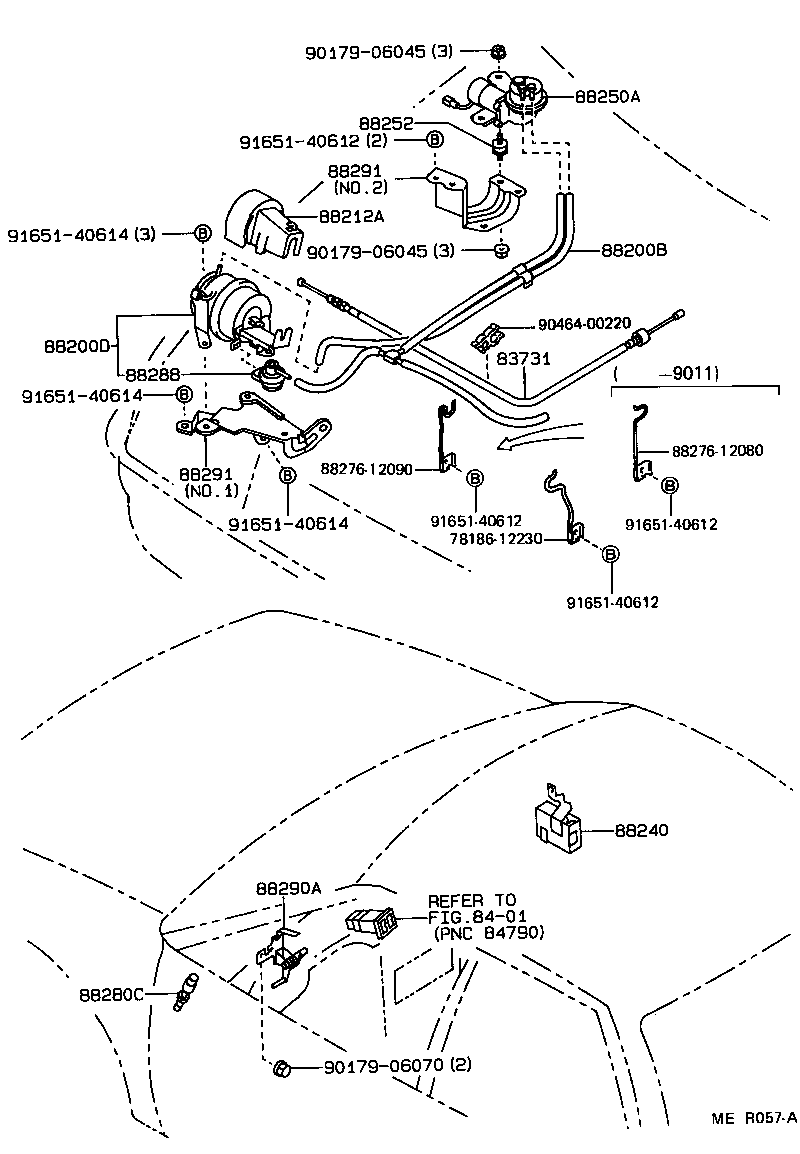

Linked diagrams
8401

AE95L-CWMXKA (1990)
