Toyota Corolla wagon AE95 MUDGUARD & SPOILER

AE95L-CWMXKA (1990)

Toyota Corolla Wagon

Production Sep 1990 - Aug 1992

Engine 4AFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

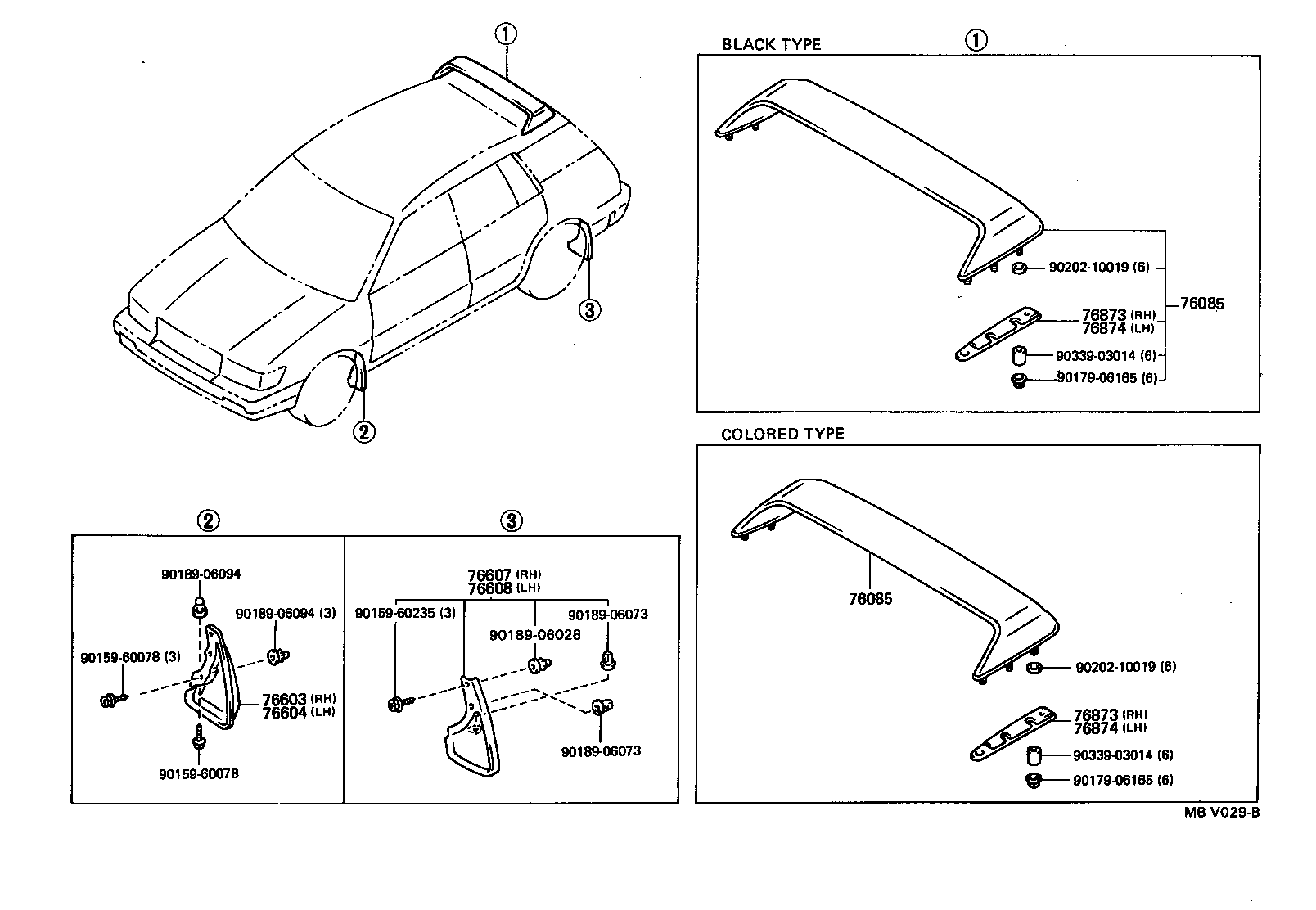

Click highlighted areas on diagram

Part #	Description	Period	Qty
76085 - SPOILER SUB-ASSY, REAR
76085-12160	AE95 BLACK TYPE	09/1990 - 08/1993	1
76085-12904	AE95 COLORED TYPE	09/1990 - 08/1993	1
76085 - SPOILER SUB-ASSY, REAR
76085-12160	AE95 BLACK TYPE	09/1990 - 08/1993	1
76085-12904	AE95 COLORED TYPE	09/1990 - 08/1993	1
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-12050	AE95..SR5	09/1990 - 08/1992	1
76621-1206033	AE95..USA GRAY,20G	09/1990 - 08/1991	1
76621-12060D1	AE95..USA LIGHT BEIGE M,27T	08/1991 - 08/1992	1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-1206033	AE95..USA GRAY,20G	09/1990 - 08/1991	1
76622-12050	AE95..SR5	09/1990 - 08/1992	1
76622-12060D1	AE95..USA LIGTE BEIGE M,27T	08/1991 - 08/1992	1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-1929513	AE95..USA GRAY,20G	09/1990 - 08/1991	1
76625-19265	AE95..SR5	09/1990 - 08/1992	1
76625-19295D0	AE95..USA LIGHT BEIGE,27T	08/1991 - 08/1992	1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-1930513	AE95..USA GRAY,20G	09/1990 - 08/1991	1
76626-19305D0	AE95..USA LIGHT BEIGE M,27T	08/1991 - 08/1992	1
76626-19275	AE95..SR5	09/1990 - 08/1992	1
76873 - PROTECTOR, REAR SPOILER, NO.2
76873-12080	AE95	09/1990 - 08/1993	1
76873 - PROTECTOR, REAR SPOILER, NO.2
76873-12080	AE95	09/1990 - 08/1993	1
76874 - PROTECTOR, REAR SPOILER, NO.3
76874-12080	AE95	09/1990 - 08/1993	1
76874 - PROTECTOR, REAR SPOILER, NO.3
76874-12080	AE95	09/1990 - 08/1993	1
Common parts
90159-60078
90159-60235
90179-06165
90189-06028
90189-06073
90189-06094
90202-10019
90339-03014

Click highlighted areas on diagram

Part #	Description	Period	Qty
76085 - SPOILER SUB-ASSY, REAR
76085-12160	AE95 BLACK TYPE	09/1990 - 08/1993	1
76085-12904	AE95 COLORED TYPE	09/1990 - 08/1993	1
76085 - SPOILER SUB-ASSY, REAR
76085-12160	AE95 BLACK TYPE	09/1990 - 08/1993	1
76085-12904	AE95 COLORED TYPE	09/1990 - 08/1993	1
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-12050	AE95..SR5	09/1990 - 08/1992	1
76621-1206033	AE95..USA GRAY,20G	09/1990 - 08/1991	1
76621-12060D1	AE95..USA LIGHT BEIGE M,27T	08/1991 - 08/1992	1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-1206033	AE95..USA GRAY,20G	09/1990 - 08/1991	1
76622-12050	AE95..SR5	09/1990 - 08/1992	1
76622-12060D1	AE95..USA LIGTE BEIGE M,27T	08/1991 - 08/1992	1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-1929513	AE95..USA GRAY,20G	09/1990 - 08/1991	1
76625-19265	AE95..SR5	09/1990 - 08/1992	1
76625-19295D0	AE95..USA LIGHT BEIGE,27T	08/1991 - 08/1992	1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-1930513	AE95..USA GRAY,20G	09/1990 - 08/1991	1
76626-19305D0	AE95..USA LIGHT BEIGE M,27T	08/1991 - 08/1992	1
76626-19275	AE95..SR5	09/1990 - 08/1992	1
76873 - PROTECTOR, REAR SPOILER, NO.2
76873-12080	AE95	09/1990 - 08/1993	1
76873 - PROTECTOR, REAR SPOILER, NO.2
76873-12080	AE95	09/1990 - 08/1993	1
76874 - PROTECTOR, REAR SPOILER, NO.3
76874-12080	AE95	09/1990 - 08/1993	1
76874 - PROTECTOR, REAR SPOILER, NO.3
76874-12080	AE95	09/1990 - 08/1993	1
Common parts
90159-60078
90159-60235
90179-06165
90189-06028
90189-06073
90189-06094
90202-10019
90339-03014
