Toyota Corolla wagon AE95 ROOF HEADLINING & SILENCER PAD

Manufacturers Home
Toyota
EU
COROLLA WAGON
AE95L-CWMXKA (1990)
6402 - ROOF HEADLINING & SILENCER PAD

AE95L-CWMXKA (1990)

Toyota Corolla Wagon

Production Sep 1990 - Aug 1992

Engine 4AFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9009- )

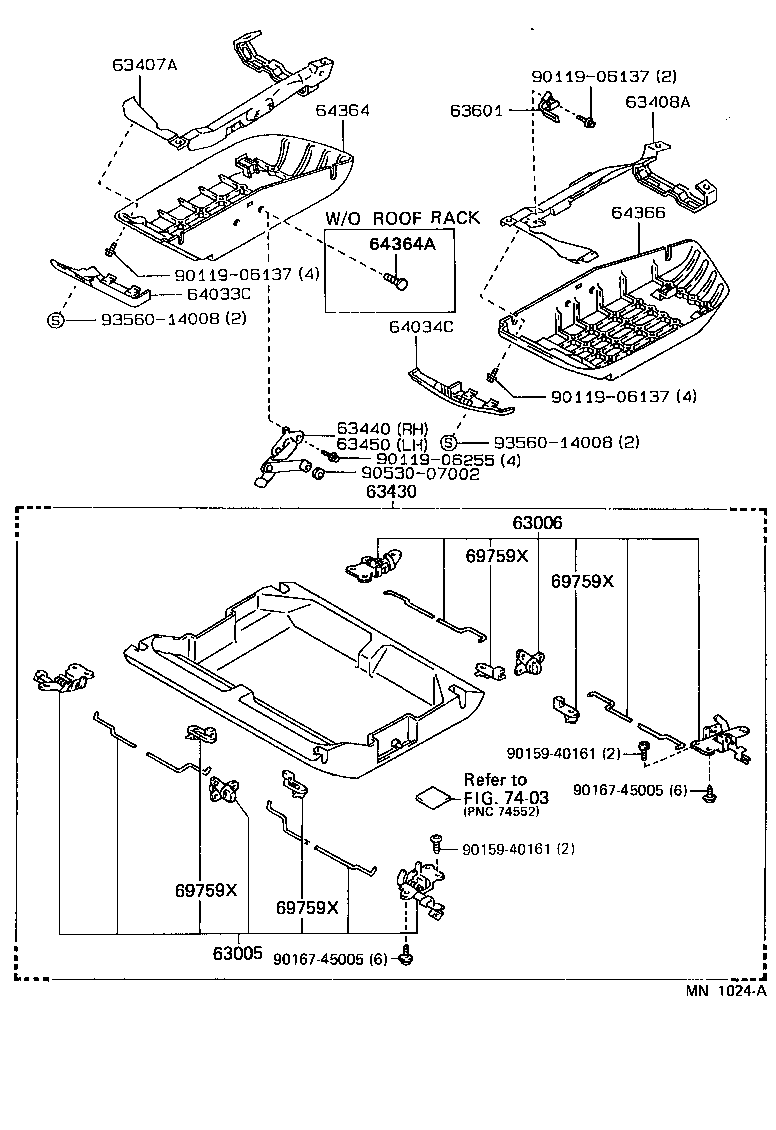

Click highlighted areas on diagram

Part #	Description	Period	Qty
63005 - LOCK SET, ROOF INNER RACK, FRONT
63005-1201004	AE95 LIGHT BLUE,TRIM8#	09/1990 - 08/1993	1
63005-1201003	AE95 LIGHT GRAY,TRIM1#	09/1990 - 08/1993	1
63006 - LOCK SET, ROOF INNER RACK, REAR
63006-1201004	AE95 LIGHT BLUE,TRIM8#	09/1990 - 08/1993	1
63006-1201003	AE95 LIGHT GRAY,TRIM1#	09/1990 - 08/1993	1
63407A - BRACKET SUB-ASSY, ROOF INNER RACK, RH
63407-12010	AE95	09/1990 - 08/1993	1
63408A - BRACKET SUB-ASSY, ROOF INNER RACK, LH
63408-12010	AE95	09/1990 - 08/1993	1
63430 - RACK ASSY, ROOF, INNER
63430-1201004	AE95 LIGHT BLUE,TRIM8#	09/1990 - 08/1993	1
63430-1201003	AE95 LIGHT GRAY,TRIM1#	09/1990 - 08/1993	1
63440 - HINGE ASSY, ROOF INNER RACK, RH
63440-12010	AE95	09/1990 - 08/1993	1
63450 - HINGE ASSY, ROOF INNER RACK, LH
63450-12010	AE95	09/1990 - 08/1993	1
63601 - STRIKER SUB-ASSY, ROOF INNER RACK LOCK
63601-12010	AE95	09/1990 - 08/1993	4
64033C - GRILLE SUB-ASSY, REAR SPEAKER, RH
64033-1208003	AE95 SHADOW GRAY,TRIM1#	09/1990 - 08/1993	1
64033-1208004	AE95 DARK BLUE,TRIM8#	09/1990 - 08/1993	1
64034C - GRILLE SUB-ASSY, REAR SPEAKER, LH
64034-1204004	AE95 DARK BLUE,TRIM8#	09/1990 - 08/1993	1
64034-1204003	AE95 SHADOW GRAY,TRIM1#	09/1990 - 08/1993	1
64364 - COVER, REAR SPEAKER GRILLE, NO.1
64364-1206004	AE95 W(ROOF INNER RACK),LIGHT BLUE,TRIM8#	09/1990 - 08/1993	1
64364-1205003	AE95 LIGHT GRAY,TRIM1#	09/1990 - 08/1993	1
64364-1206003	AE95 W(ROOF INNER RACK),LIGHT GRAY,TRIM1#	09/1990 - 08/1993	1
64364-1205004	AE95 LIGHT BLUE,TRIM8#	09/1990 - 08/1993	1
64364A - CLIP
90467-0604934	AE95 LIGHT BLUE,TRIM8#	09/1990 - 08/1993	2
90467-0604943	AE95 LIGHT GRAY,TRIM1#	09/1990 - 08/1993	2
64366 - COVER, REAR SPEAKER GRILLE, NO.2
64366-1201003	AE95 LIGHT GRAY,TRIM1#	09/1990 - 08/1993	1
64366-1202004	AE95 W(ROOF INNER RACK),LIGHT BLUE,TRIM8#	09/1990 - 08/1993	1
64366-1201004	AE95 LIGHT BLUE,TRIM8#	09/1990 - 08/1993	1
64366-1202003	AE95 W(ROOF INNER RACK),LIGHT GRAY,TRIM1#	09/1990 - 08/1993	1
69759X - SNAP, ROOF INNER RACK LOCK
69759-30040	AE95	09/1990 - 08/1993	4
69759X - SNAP, ROOF INNER RACK LOCK
69759-30040	AE95	09/1990 - 08/1993	4
69759X - SNAP, ROOF INNER RACK LOCK
69759-30040	AE95	09/1990 - 08/1993	4
69759X - SNAP, ROOF INNER RACK LOCK
69759-30040	AE95	09/1990 - 08/1993	4
Common parts
90119-06137
90119-06255
90159-40161
90167-45005
90530-07002
91067-45005
93560-14008
Linked diagrams
7403

(9009- )

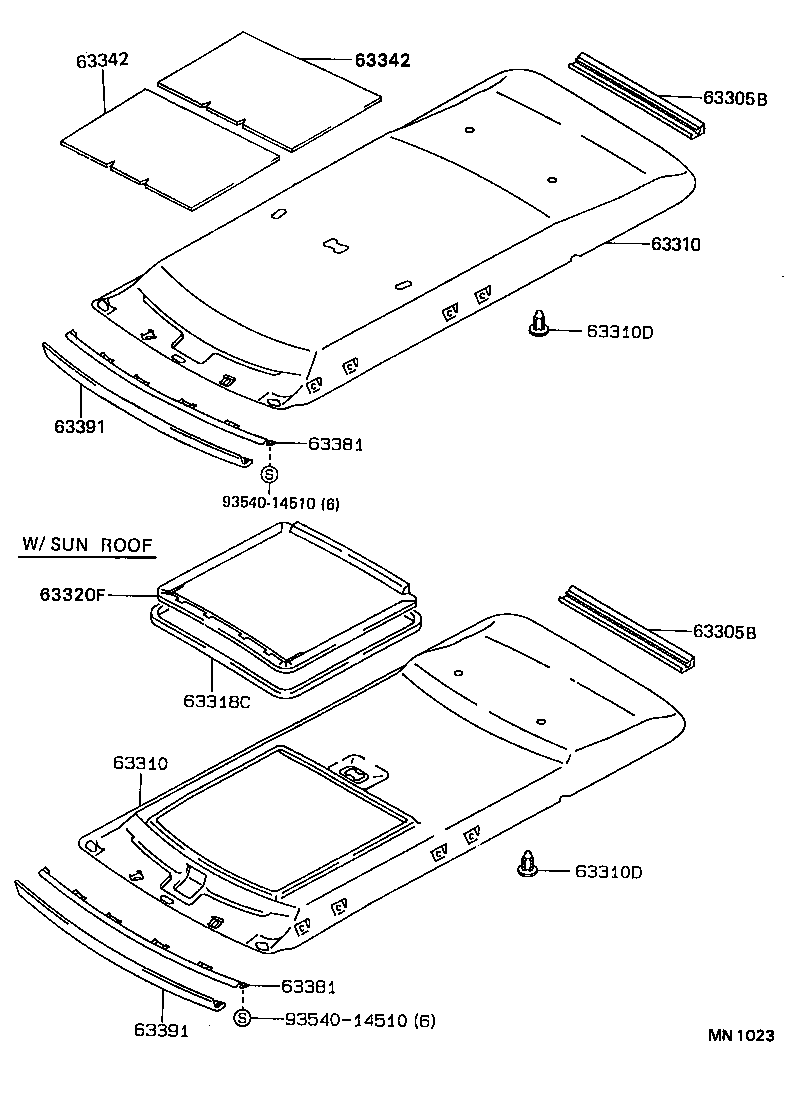

Click highlighted areas on diagram

Part #	Description	Period	Qty
63305B - TRIM SUB-ASSY, ROOF HEADLINING, REAR
63305-1213003	AE95 SHADOW GRAY,TRIM1#	09/1990 - 08/1993	1
63305-1213004	AE95 DARK BLUE,TRIM8#	09/1990 - 08/1993	1
63305B - TRIM SUB-ASSY, ROOF HEADLINING, REAR
63305-1213003	AE95 SHADOW GRAY,TRIM1#	09/1990 - 08/1993	1
63305-1213004	AE95 DARK BLUE,TRIM8#	09/1990 - 08/1993	1
63310 - HEADLINING ASSY, ROOF
63310-1A13003	AE95 W(SUN ROOF),LIGHT GRAY,TRIM1#	09/1990 - 08/1993	1
63310-1A12003	AE95 LIGHT GRAY,TRIM1#	09/1990 - 08/1993	1
63310-1A12004	AE95 LIGHT BLUE,TRIM8#	09/1990 - 08/1993	1
63310-1A13004	AE95 W(SUN ROOF),LIGHT BLUE,TRIM8#	09/1990 - 08/1993	1
63310 - HEADLINING ASSY, ROOF
63310-1A13003	AE95 W(SUN ROOF),LIGHT GRAY,TRIM1#	09/1990 - 08/1993	1
63310-1A12003	AE95 LIGHT GRAY,TRIM1#	09/1990 - 08/1993	1
63310-1A12004	AE95 LIGHT BLUE,TRIM8#	09/1990 - 08/1993	1
63310-1A13004	AE95 W(SUN ROOF),LIGHT BLUE,TRIM8#	09/1990 - 08/1993	1
63318C - MOULDING, SUN ROOF OPENING TRIM
63318-1204004	AE95 LIGHT BLUE,TRIM8#	09/1990 - 08/1993	1
63318-1204003	AE95 LIGHT GRAY,TRIM1#	09/1990 - 08/1993	1
63320F - HEADLINING ASSY, SUN ROOF
63320-1209003	AE95 LIGHT GRAY,TRIM1#	09/1990 - 08/1993	1
63320-1209004	AE95 LIGHT BLUE,TRIM8#	09/1990 - 08/1993	1
63342 - PAD, ROOF SILENCER, NO.2
63343-12050	AE95	09/1990 - 08/1993	2
63342 - PAD, ROOF SILENCER, NO.2
63343-12050	AE95	09/1990 - 08/1993	2
63381 - RETAINER, HEADLINING, FRONT
63381-12150	AE95	09/1990 - 08/1993	1
63381 - RETAINER, HEADLINING, FRONT
63381-12150	AE95	09/1990 - 08/1993	1
63391 - TRIM, ROOF HEADLINING, FRONT
63391-12080J0	AE95 DARK BLUE,TRIM8#	09/1990 - 08/1993	1
63391 - TRIM, ROOF HEADLINING, FRONT
63391-12080J0	AE95 DARK BLUE,TRIM8#	09/1990 - 08/1993	1
Common parts
93540-14510

(9009- )

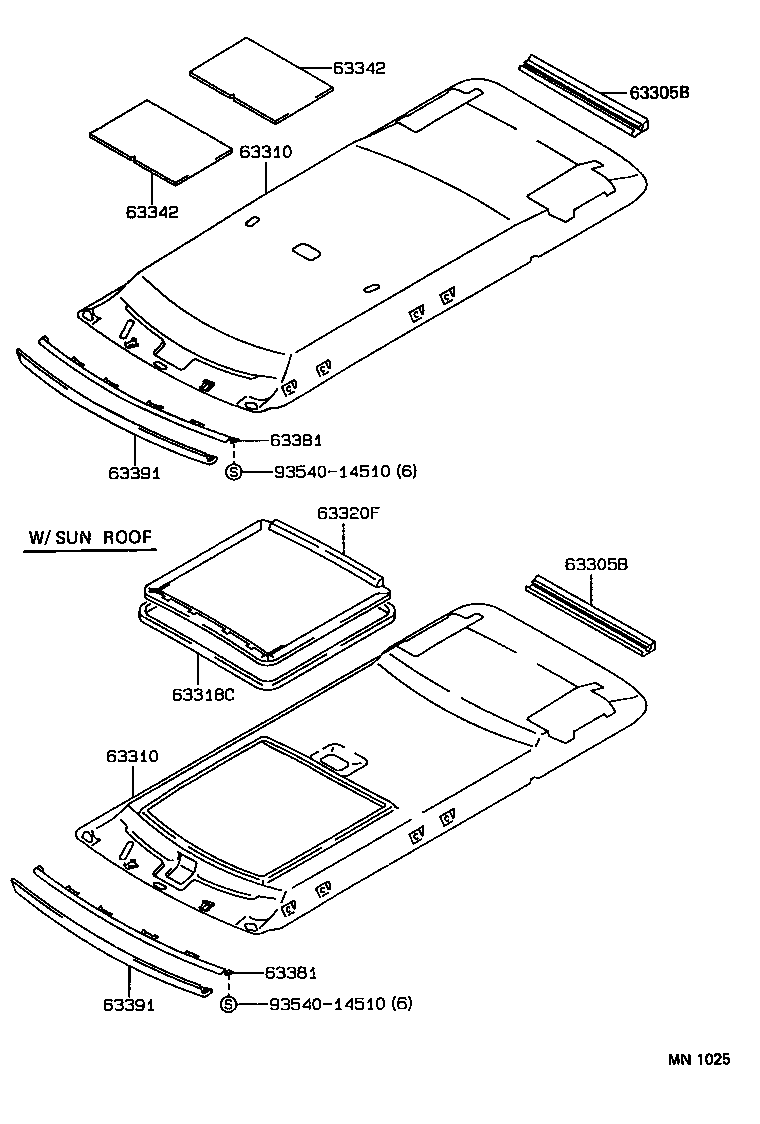

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
93540-14510

(9009- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
63005 - LOCK SET, ROOF INNER RACK, FRONT
63005-1201004	AE95 LIGHT BLUE,TRIM8#	09/1990 - 08/1993	1
63005-1201003	AE95 LIGHT GRAY,TRIM1#	09/1990 - 08/1993	1
63006 - LOCK SET, ROOF INNER RACK, REAR
63006-1201004	AE95 LIGHT BLUE,TRIM8#	09/1990 - 08/1993	1
63006-1201003	AE95 LIGHT GRAY,TRIM1#	09/1990 - 08/1993	1
63407A - BRACKET SUB-ASSY, ROOF INNER RACK, RH
63407-12010	AE95	09/1990 - 08/1993	1
63408A - BRACKET SUB-ASSY, ROOF INNER RACK, LH
63408-12010	AE95	09/1990 - 08/1993	1
63430 - RACK ASSY, ROOF, INNER
63430-1201004	AE95 LIGHT BLUE,TRIM8#	09/1990 - 08/1993	1
63430-1201003	AE95 LIGHT GRAY,TRIM1#	09/1990 - 08/1993	1
63440 - HINGE ASSY, ROOF INNER RACK, RH
63440-12010	AE95	09/1990 - 08/1993	1
63450 - HINGE ASSY, ROOF INNER RACK, LH
63450-12010	AE95	09/1990 - 08/1993	1
63601 - STRIKER SUB-ASSY, ROOF INNER RACK LOCK
63601-12010	AE95	09/1990 - 08/1993	4
64033C - GRILLE SUB-ASSY, REAR SPEAKER, RH
64033-1208003	AE95 SHADOW GRAY,TRIM1#	09/1990 - 08/1993	1
64033-1208004	AE95 DARK BLUE,TRIM8#	09/1990 - 08/1993	1
64034C - GRILLE SUB-ASSY, REAR SPEAKER, LH
64034-1204004	AE95 DARK BLUE,TRIM8#	09/1990 - 08/1993	1
64034-1204003	AE95 SHADOW GRAY,TRIM1#	09/1990 - 08/1993	1
64364 - COVER, REAR SPEAKER GRILLE, NO.1
64364-1206004	AE95 W(ROOF INNER RACK),LIGHT BLUE,TRIM8#	09/1990 - 08/1993	1
64364-1205003	AE95 LIGHT GRAY,TRIM1#	09/1990 - 08/1993	1
64364-1206003	AE95 W(ROOF INNER RACK),LIGHT GRAY,TRIM1#	09/1990 - 08/1993	1
64364-1205004	AE95 LIGHT BLUE,TRIM8#	09/1990 - 08/1993	1
64364A - CLIP
90467-0604934	AE95 LIGHT BLUE,TRIM8#	09/1990 - 08/1993	2
90467-0604943	AE95 LIGHT GRAY,TRIM1#	09/1990 - 08/1993	2
64366 - COVER, REAR SPEAKER GRILLE, NO.2
64366-1201003	AE95 LIGHT GRAY,TRIM1#	09/1990 - 08/1993	1
64366-1202004	AE95 W(ROOF INNER RACK),LIGHT BLUE,TRIM8#	09/1990 - 08/1993	1
64366-1201004	AE95 LIGHT BLUE,TRIM8#	09/1990 - 08/1993	1
64366-1202003	AE95 W(ROOF INNER RACK),LIGHT GRAY,TRIM1#	09/1990 - 08/1993	1
69759X - SNAP, ROOF INNER RACK LOCK
69759-30040	AE95	09/1990 - 08/1993	4
69759X - SNAP, ROOF INNER RACK LOCK
69759-30040	AE95	09/1990 - 08/1993	4
69759X - SNAP, ROOF INNER RACK LOCK
69759-30040	AE95	09/1990 - 08/1993	4
69759X - SNAP, ROOF INNER RACK LOCK
69759-30040	AE95	09/1990 - 08/1993	4
Common parts
90119-06137
90119-06255
90159-40161
90167-45005
90530-07002
91067-45005
93560-14008
Linked diagrams
7403

AE95L-CWMXKA (1990)

(9009- )

(9009- )

(9009- )

(9009- )
