AE95L-CWMXKA (1990)
Toyota Corolla Wagon
Production
Sep 1990
-
Aug 1992
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9009- )

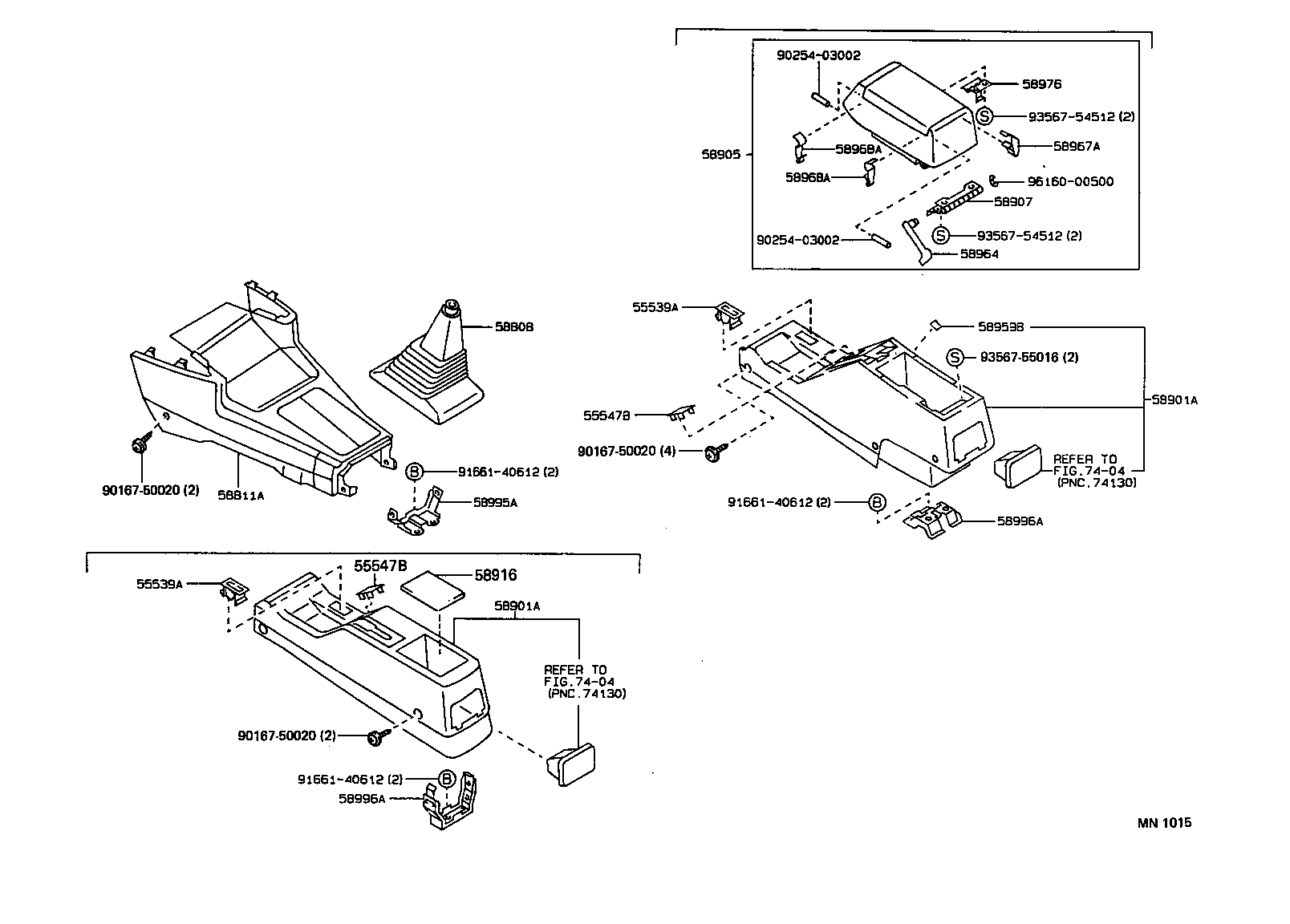

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-2002003 |
AE95 SHADOW GRAY,TRIM1# |
1 | ||
| 55539-20020J0 |
AE95 DARK BLUE,TRIM8# |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-2002003 |
AE95 SHADOW GRAY,TRIM1# |
1 | ||
| 55539-20020J0 |
AE95 DARK BLUE,TRIM8# |
1 | ||
| 55547B - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-2002014 |
AE95 DARK BLUE,TRIM8# |
1 | ||
| 55547-2002003 |
AE95 SHADOW GRAY,TRIM1# |
1 | ||
| 55547B - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-2002014 |
AE95 DARK BLUE,TRIM8# |
1 | ||
| 55547-2002003 |
AE95 SHADOW GRAY,TRIM1# |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-1210003 |
AE95..5F SHADOW GRAY,TRIM1# |
1 | ||
| 58808-1210004 |
AE95..5F DARK BLUE,TRIM8# |
1 | ||
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58811-1244003 |
AE95 SHADOW GRAY,TRIM1# |
1 | ||
| 58811-1244004 |
AE95 DARK BLUE,TRIM8# |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-1220004 |
AE95..USA DARK BLUE,TRIM8# |
1 | ||
| 58901-1220003 |
AE95..USA SHADOW GRAY,TRIM1# |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-1220004 |
AE95..USA DARK BLUE,TRIM8# |
1 | ||
| 58901-1220003 |
AE95..USA SHADOW GRAY,TRIM1# |
1 | ||
| 58916 - MAT, BOX BOTTOM | ||||
| 58916-1203004 |
AE95..USA DARK BLUE,TRIM8# |
1 | ||
| 58916-12030P0 |
AE95..USA SHADOW GRAY,TRIM1# |
1 | ||
| 58916-12030R8 |
AE95..USA DARK BLUE,TRIM8# |
1 | ||
| 58916-1203003 |
AE95..USA SHADOW GRAY,TRIM1# |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-12071 |
AE95 |
1 | ||
| Common parts | ||||
| 90167-50020 | ||||
| 90254-03002 | ||||
| 91661-40612 | ||||
| 93567-54512 | ||||
| 93567-55016 | ||||
| 96160-00500 | ||||
| Linked diagrams | ||||
| 7404 | ||||
(9009- )

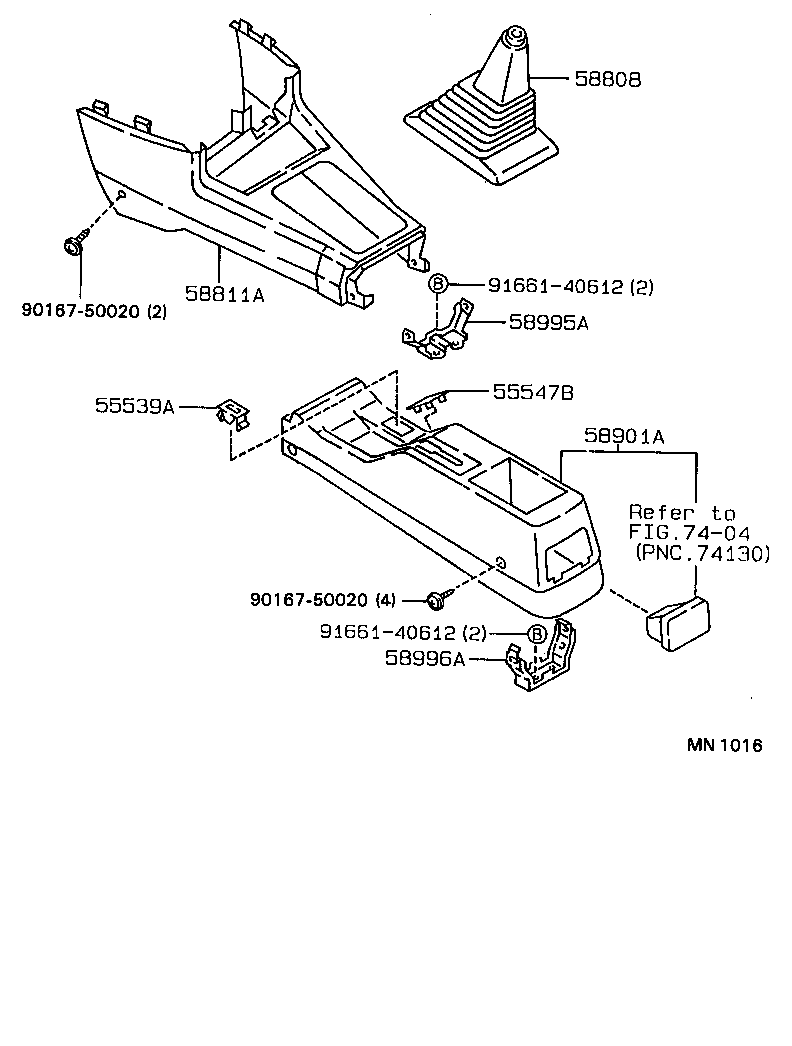

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90167-50020 | ||||
| 91661-40612 | ||||
| Linked diagrams | ||||
| 7404 | ||||
