AE95L-CWMXKA (1990)
Toyota Corolla Wagon
Production
Sep 1990
-
Aug 1992
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9009- )

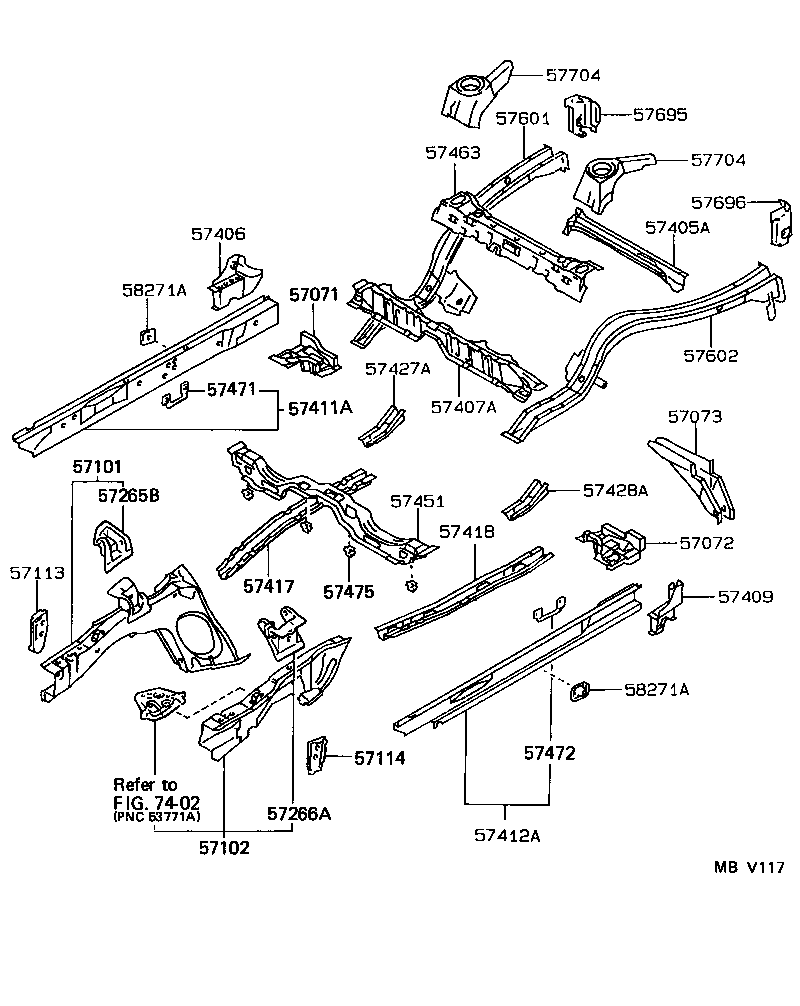

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57071 - BOX SUB-ASSY, TORQUE, REAR RH | ||||
| 57071-12030 |
AE95 |
1 | ||
| 57072 - BOX SUB-ASSY, TORQUE, REAR LH | ||||
| 57072-12030 |
AE95 |
1 | ||
| 57073 - BRACKET SUB-ASSY, LATERAL ROD | ||||
| 57073-12041 |
AE95 |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-12361 |
AE95 |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-12391 |
AE95 |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-12120 |
AE95 |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-12120 |
AE95 |
1 | ||
| 57265B - BRACKET, ENGINE MOUNTING, RH | ||||
| 57265-12030 |
AE95 |
1 | ||
| 57266A - BRACKET, ENGINE MOUNTING, LH | ||||
| 57208-12080 |
AE95 |
1 | ||
| 57405A - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2 | ||||
| 57405-12050 |
AE95 |
1 | ||
| 57406 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | ||||
| 57406-12020 |
AE95 |
1 | ||
| 57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS | ||||
| 57407-12030 |
AE95 |
1 | ||
| 57409 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57409-12020 |
AE95 |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57411-12900 |
AE95..USA |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57412-12900 |
AE95..USA |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-12090 |
AE95 |
1 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57418-12050 |
AE95 |
1 | ||
| 57427A - REINFORCEMENT, FRONT FLOOR, NO.3 RH | ||||
| 57427-12010 |
AE95 |
1 | ||
| 57428A - REINFORCEMENT, FRONT FLOOR, NO.3 LH | ||||
| 57428-12030 |
AE95 |
1 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57451-12121 |
AE95 |
1 | ||
| 57463 - MEMBER, CENTER FLOOR CROSS, NO.3 | ||||
| 57463-12050 |
AE95 |
1 | ||
| 57471 - REINFORCEMENT, SEAT BELT ANCHOR TO FLOOR MEMBER, RH | ||||
| 57471-12100 |
AE95..USA |
1 | ||
| 57472 - REINFORCEMENT, SEAT BELT ANCHOR TO FLOOR MEMBER, LH | ||||
| 57472-12080 |
AE95..USA |
1 | ||
| 57475 - PLATE, FRONT FLOOR CROSSMEMBER | ||||
| 57475-32010 |
AE95 |
4 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-12620 |
AE95 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-12520 |
AE95 |
1 | ||
| 57695 - EXTENSION, REAR FLOOR CROSS REAR SIDE, RH | ||||
| 57695-12010 |
AE95 |
1 | ||
| 57696 - EXTENSION, REAR FLOOR CROSS REAR SIDE, LH | ||||
| 57696-12010 |
AE95 |
1 | ||
| 57704 - SUPPORT SUB-ASSY, REAR SUSPENSION SPRING | ||||
| 57701-12060 |
AE95 RH |
1 | ||
| 57704-12070 |
AE95 LH |
1 | ||
| 57704 - SUPPORT SUB-ASSY, REAR SUSPENSION SPRING | ||||
| 57701-12060 |
AE95 RH |
1 | ||
| 57704-12070 |
AE95 LH |
1 | ||
| Linked diagrams | ||||
| 7402 | ||||

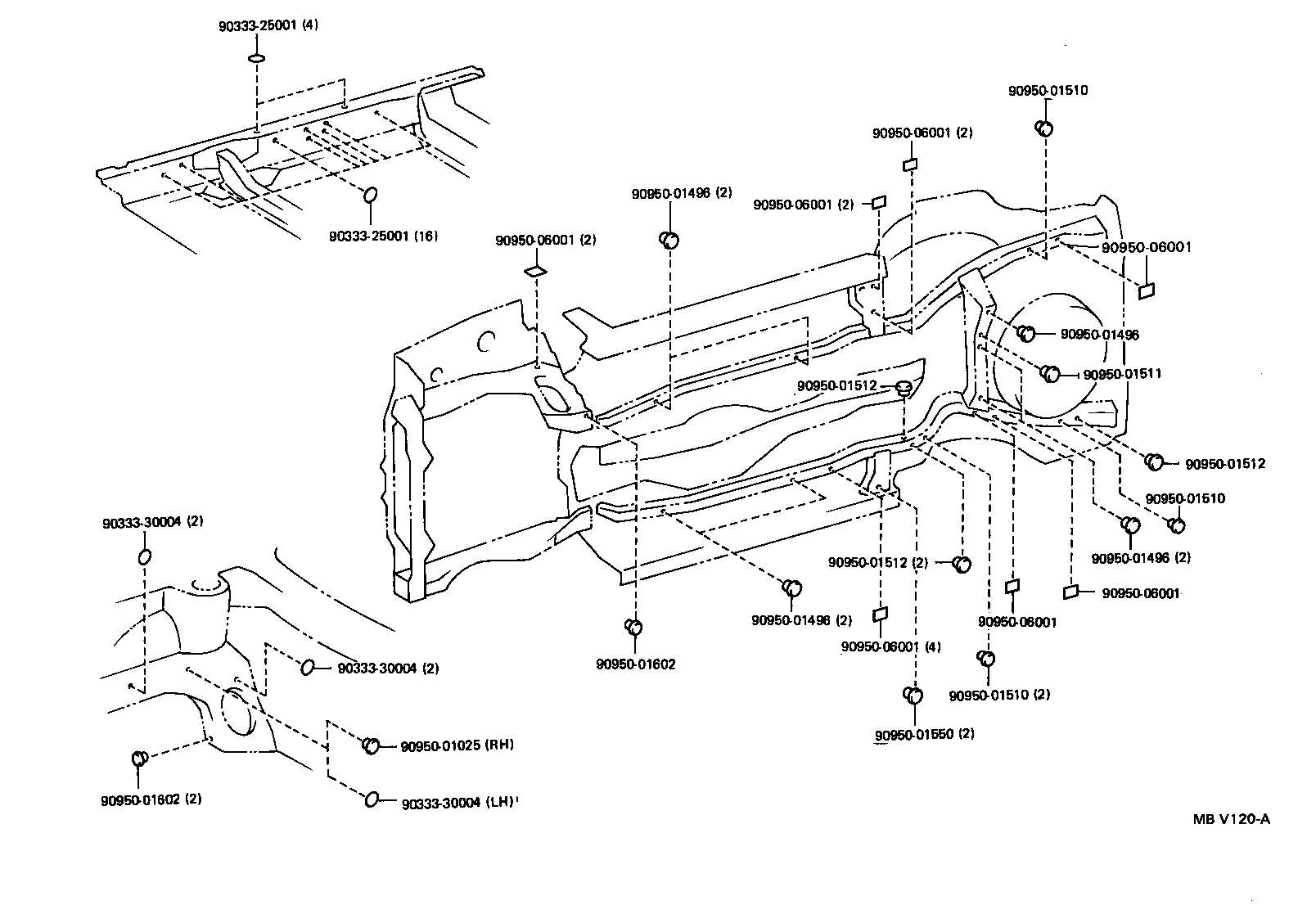

(9009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90333-25001 | ||||
| 90333-30004 | ||||
| 90950-01025 | ||||
| 90950-01496 | ||||
| 90950-01510 | ||||
| 90950-01511 | ||||
| 90950-01512 | ||||
| 90950-01550 | ||||
| 90950-01602 | ||||
| 90950-06001 | ||||

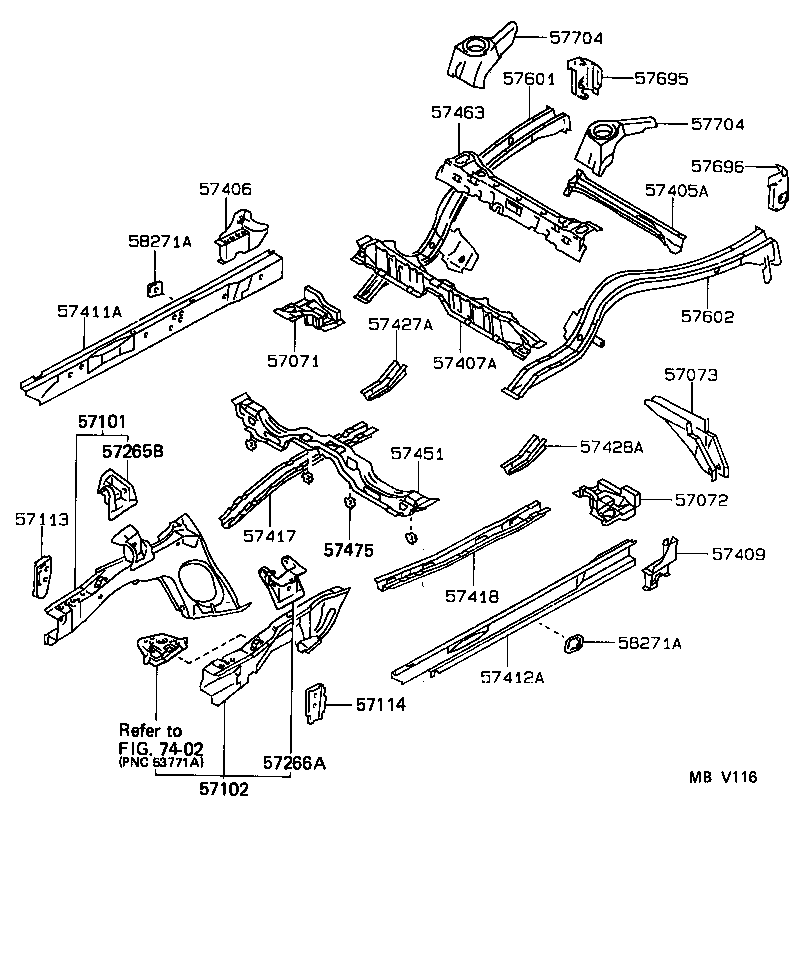

(9009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 7402 | ||||

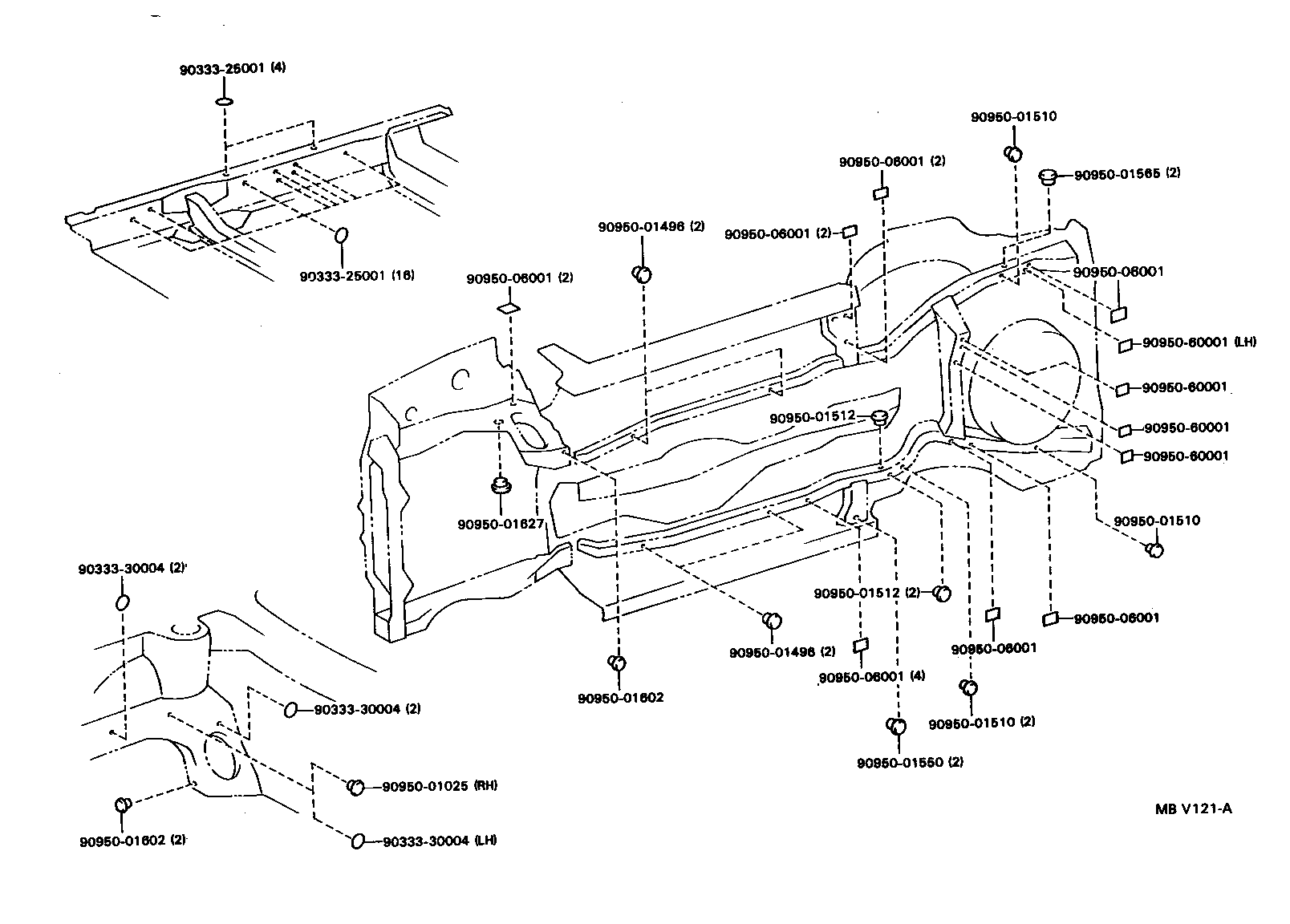

(9009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90333-25001 | ||||
| 90333-30004 | ||||
| 90950-01025 | ||||
| 90950-01496 | ||||
| 90950-01510 | ||||
| 90950-01512 | ||||
| 90950-01550 | ||||
| 90950-01565 | ||||
| 90950-01602 | ||||
| 90950-01627 | ||||
| 90950-06001 | ||||
| 90950-60001 | ||||
