Toyota Corolla wagon AE95 STARTER

AE95L-CWMXKA (1990)

Toyota Corolla Wagon

Production Sep 1990 - Aug 1992

Engine 4AFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9009- )4AFE..USA

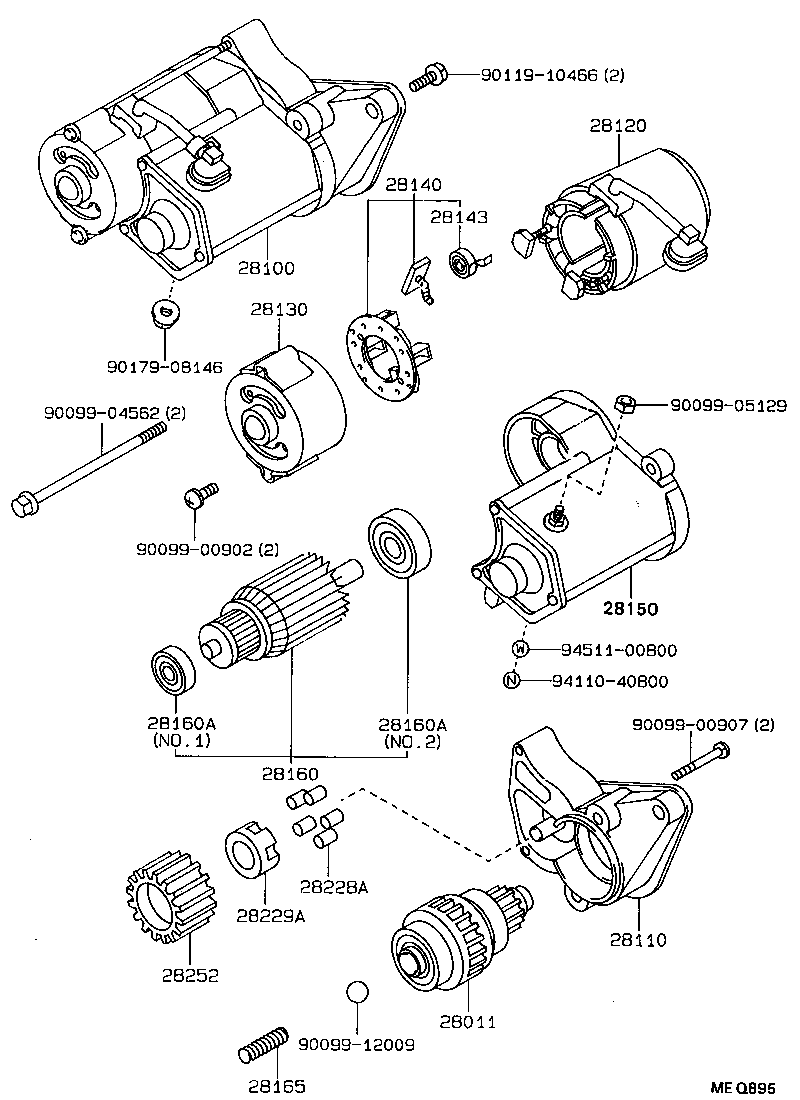

Click highlighted areas on diagram

12V 1.0KW

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-26042	4AFE..AE95	09/1990 - 08/1993	1
28100 - STARTER ASSY
28100-16080	4AFE..AE95..USA 12V 1.0KW	09/1990 - 08/1992	1
28100-16090	4AFE..AE95..USA 12V 1.4KW,COLD SPEC	09/1990 - 08/1992	1
28110 - HOUSING ASSY, STARTER DRIVE
28110-16080	4AFE..AE95..USA	09/1990 - 08/1992	1
28110-16090	4AFE..AE95..USA COLD SPEC	09/1990 - 08/1992	1
28120 - YOKE ASSY, STARTER
28120-26071	4AFE..AE95..USA	09/1990 - 08/1992	1
28120-15090	4AFE..AE95..USA COLD SPEC	09/1990 - 08/1992	1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-16080	4AFE..AE95..USA	09/1990 - 08/1992	1
28130-16090	4AFE..AE95..USA COLD SPEC	09/1990 - 08/1992	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-15090	4AFE..AE95..USA COLD SPEC	09/1990 - 08/1992	1
28140-26070	4AFE..AE95..USA	09/1990 - 08/1992	1
28143 - SPRING, STARTER BRUSH
90099-17112	4AFE..AE95	09/1990 - 08/1993	4
28150 - SWITCH ASSY, MAGNET STARTER
28150-16090	4AFE..AE95..USA COLD SPEC	09/1990 - 08/1992	1
28150-16080	4AFE..AE95..USA	09/1990 - 08/1992	1
28160 - ARMATURE ASSY, STARTER
28160-26071	4AFE..AE95..USA	09/1990 - 08/1992	1
28160-15090	4AFE..AE95..USA COLD SPEC	09/1990 - 08/1992	1
28160A - BEARING, STARTER ARMATURE
28253-45020	4AFE..AE95..USA NO.1	09/1990 - 08/1992	1
90099-10144	4AFE..AE95..USA COLD SPEC,NO.1	09/1990 - 08/1992	1
90099-10143	4AFE..AE95..USA COLD SPEC,NO.2	09/1990 - 08/1992	1
90099-10113	4AFE..AE95..USA NO.2	09/1990 - 08/1992	1
28160A - BEARING, STARTER ARMATURE
28253-45020	4AFE..AE95..USA NO.1	09/1990 - 08/1992	1
90099-10144	4AFE..AE95..USA COLD SPEC,NO.1	09/1990 - 08/1992	1
90099-10143	4AFE..AE95..USA COLD SPEC,NO.2	09/1990 - 08/1992	1
90099-10113	4AFE..AE95..USA NO.2	09/1990 - 08/1992	1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-26040	4AFE..AE95	09/1990 - 08/1993	1
28228A - ROLLER, STARTER CLUTCH
28228-26040	4AFE..AE95	09/1990 - 08/1993	5
28229A - RETAINER, STARTER IDLE GEAR
28229-26040	4AFE..AE95	09/1990 - 08/1993	1
28252 - GEAR, STARTER IDLE
28254-45020	4AFE..AE95	09/1990 - 08/1993	1
Common parts
90099-00902
90099-00907
90099-04562
90099-05129
90099-12009
90119-10466
90179-08146
94110-40800
94511-00800

(9009- )

Click highlighted areas on diagram

1.2V 1.4KW

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-26042	4AFE..AE95	09/1990 - 08/1993	1
28100 - STARTER ASSY
28100-16080	4AFE..AE95..USA 12V 1.0KW	09/1990 - 08/1992	1
28100-16090	4AFE..AE95..USA 12V 1.4KW,COLD SPEC	09/1990 - 08/1992	1
28110 - HOUSING ASSY, STARTER DRIVE
28110-16080	4AFE..AE95..USA	09/1990 - 08/1992	1
28110-16090	4AFE..AE95..USA COLD SPEC	09/1990 - 08/1992	1
28120 - YOKE ASSY, STARTER
28120-26071	4AFE..AE95..USA	09/1990 - 08/1992	1
28120-15090	4AFE..AE95..USA COLD SPEC	09/1990 - 08/1992	1
28120A - RING, O(FOR STARTER YOKE)
90099-14064	4AFE..AE95..USA COLD SPEC	09/1990 - 08/1992	2
28120A - RING, O(FOR STARTER YOKE)
90099-14064	4AFE..AE95..USA COLD SPEC	09/1990 - 08/1992	2
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-16080	4AFE..AE95..USA	09/1990 - 08/1992	1
28130-16090	4AFE..AE95..USA COLD SPEC	09/1990 - 08/1992	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-15090	4AFE..AE95..USA COLD SPEC	09/1990 - 08/1992	1
28140-26070	4AFE..AE95..USA	09/1990 - 08/1992	1
28143 - SPRING, STARTER BRUSH
90099-17112	4AFE..AE95	09/1990 - 08/1993	4
28150 - SWITCH ASSY, MAGNET STARTER
28150-16090	4AFE..AE95..USA COLD SPEC	09/1990 - 08/1992	1
28150-16080	4AFE..AE95..USA	09/1990 - 08/1992	1
28160 - ARMATURE ASSY, STARTER
28160-26071	4AFE..AE95..USA	09/1990 - 08/1992	1
28160-15090	4AFE..AE95..USA COLD SPEC	09/1990 - 08/1992	1
28160A - BEARING, STARTER ARMATURE
28253-45020	4AFE..AE95..USA NO.1	09/1990 - 08/1992	1
90099-10144	4AFE..AE95..USA COLD SPEC,NO.1	09/1990 - 08/1992	1
90099-10143	4AFE..AE95..USA COLD SPEC,NO.2	09/1990 - 08/1992	1
90099-10113	4AFE..AE95..USA NO.2	09/1990 - 08/1992	1
28160A - BEARING, STARTER ARMATURE
28253-45020	4AFE..AE95..USA NO.1	09/1990 - 08/1992	1
90099-10144	4AFE..AE95..USA COLD SPEC,NO.1	09/1990 - 08/1992	1
90099-10143	4AFE..AE95..USA COLD SPEC,NO.2	09/1990 - 08/1992	1
90099-10113	4AFE..AE95..USA NO.2	09/1990 - 08/1992	1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-26040	4AFE..AE95	09/1990 - 08/1993	1
28199A - PROTECTOR, DUST STARTER
28199-15090	4AFE..AE95..USA COLD SPEC	09/1990 - 08/1992	1
28228A - ROLLER, STARTER CLUTCH
28228-26040	4AFE..AE95	09/1990 - 08/1993	5
28229A - RETAINER, STARTER IDLE GEAR
28229-26040	4AFE..AE95	09/1990 - 08/1993	1
28251 - PINION, STARTER DRIVE
28251-15090	4AFE..AE95..USA COLD SPEC	09/1990 - 08/1992	1
28252 - GEAR, STARTER IDLE
28254-45020	4AFE..AE95	09/1990 - 08/1993	1
Common parts
28176-15090
90099-00907
90099-04974
90099-05129
90099-12009
90119-10466
90179-08146
94110-40800
94511-00600
94511-00800

(9009- )

Click highlighted areas on diagram

12V 0.8KW

Part #	Description	Period	Qty	Price
Common parts
28176-15090
90096-90030
90099-01538
90099-01539
90099-01542
90099-04373
90099-05178
90099-07124
90099-12405
90099-14092
90119-10466
90179-08146

(9009- )

Click highlighted areas on diagram

12V 1.0KW

Part #	Description	Period	Qty	Price
Common parts
90099-00902
90099-00907
90099-04473
90099-04562
90099-05129
90099-12009
90119-10466
90179-08146
