Toyota Corolla wagon AE95 FRONT DOOR PANEL & GLASS

Manufacturers Home
Toyota
EU
COROLLA WAGON
AE95L-CWMNUW (1990)
6701 - FRONT DOOR PANEL & GLASS

AE95L-CWMNUW (1990)

Toyota Corolla Wagon

Production Sep 1990 - May 1992

Engine 4AF

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

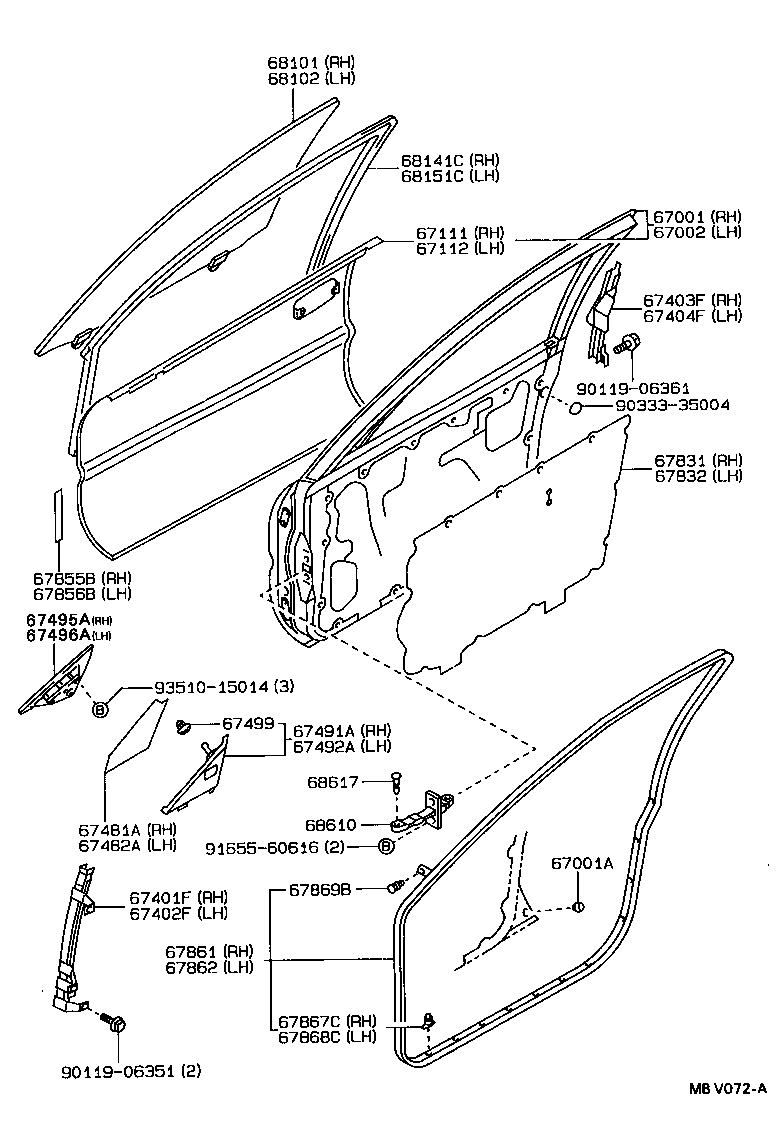

ILLUST NO. 1 OF 2(9009- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-06351
90119-06361
90333-35004
91655-60616
93510-15014

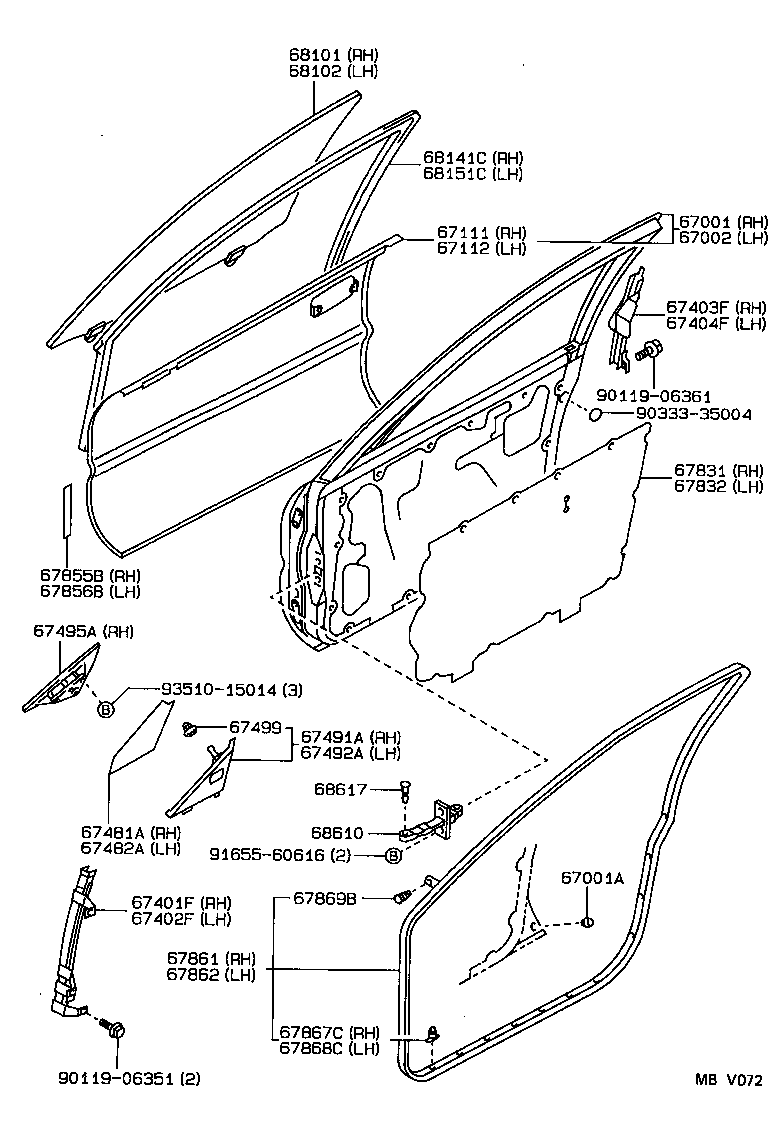

ILLUST NO. 1 OF 2(9009- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-1A241	AE95	09/1990 - 08/1995	1
67001A - CUSHION, FRONT DOOR PANEL
90541-09035	AE95	09/1990 - 08/1995	2
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-1A221	AE95	09/1990 - 08/1995	1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-12460	AE95	09/1990 - 08/1995	1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-12450	AE95	09/1990 - 08/1995	1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-12290	AE95	09/1990 - 08/1995	1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-12310	AE95	09/1990 - 08/1995	1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-12100	AE95	09/1990 - 08/1995	1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-12100	AE95	09/1990 - 08/1995	1
67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH
67481-12210	AE95	09/1990 - 08/1995	1
67482A - SEAL, FRONT DOOR FRONT LOWER FRAME, LH
67482-12140	AE95	09/1990 - 08/1995	1
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-12170	AE95	09/1990 - 08/1995	1
67491-12180	AE95..LHD W(MANUAL REMOTE CONTROL MIRROR)	09/1990 - 08/1995	1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-12170	AE95	09/1990 - 08/1995	1
67492-12180	AE95..LHD W(MANUAL REMOTE CONTROL MIRROR)	09/1990 - 08/1995	1
67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67495-12130	AE95..LHD	09/1990 - 08/1995	1
67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67499-12030	AE95	09/1990 - 08/1995	2
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-12350	AE95	09/1990 - 08/1995	1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67831-12350	AE95	09/1990 - 08/1995	1
67855B - PROTECTOR, FRONT DOOR PANEL, RH
58741-12060	AE95	09/1990 - 08/1995	1
67856B - PROTECTOR, FRONT DOOR PANEL, LH
58741-12060	AE95	09/1990 - 08/1995	1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-12671	AE95	09/1990 - 08/1995	1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-12591	AE95	09/1990 - 08/1995	1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67868-12050	AE95	09/1990 - 08/1995	16
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67868-12050	AE95	09/1990 - 08/1995	16
67869B - CLIP, FRONT DOOR WEATHERSTRIP
67869-12020	AE95	09/1990 - 08/1995	2
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-12570	AE95 *TT,T=3.5	09/1990 - 08/1995	1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-12570	AE95 *TT,T=3.5	09/1990 - 08/1995	1
68141C - RUN, FRONT DOOR GLASS, RH
68141-12351	AE95	09/1990 - 08/1995	1
68151C - RUN, FRONT DOOR GLASS, LH
68151-12071	AE95	09/1990 - 08/1995	1
68610 - CHECK ASSY, FRONT DOOR
68610-12050	AE95	09/1990 - 08/1995	2
68617 - PIN, FRONT DOOR CHECK
68617-12030	AE95	09/1990 - 08/1995	2
Common parts
90119-06351
90119-06361
90333-35004
91655-60616
93510-15014

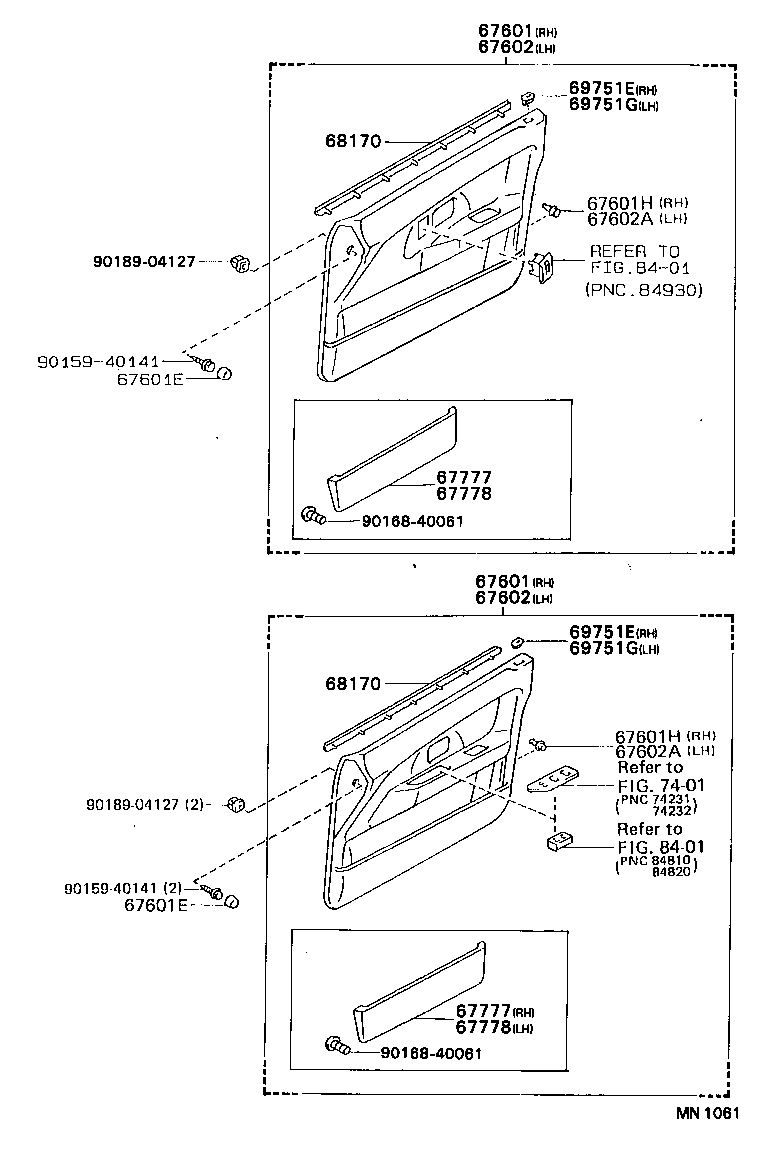

ILLUST NO. 2 OF 2(9009- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-1E86004	AE95..GL,GLI DARK BLUE,TRIM8#	09/1990 - 08/1995	1
67610-1E86003	AE95..GL,GLI SHADOW GRAY,TRIM1#	09/1990 - 08/1995	1
67610-1E53004	AE95..LHD..(GL,GLI) W(PW & EL),DARK BLUE,TRIM8#	09/1990 - 08/1995	1
67610-1E53003	AE95..LHD..(GL,GLI) W(PW & EL),SHADOW GRAY,TRIM1#	09/1990 - 08/1995	1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-1E86004	AE95..GL,GLI DARK BLUE,TRIM8#	09/1990 - 08/1995	1
67610-1E86003	AE95..GL,GLI SHADOW GRAY,TRIM1#	09/1990 - 08/1995	1
67610-1E53004	AE95..LHD..(GL,GLI) W(PW & EL),DARK BLUE,TRIM8#	09/1990 - 08/1995	1
67610-1E53003	AE95..LHD..(GL,GLI) W(PW & EL),SHADOW GRAY,TRIM1#	09/1990 - 08/1995	1
67601E - CAP(FOR FRONT DOOR TRIM BOARD)
90339-10002B3	AE95 SHADOW GRAY,TRIM1#	09/1990 - 08/1995	2
90339-10002J1	AE95 DARK BLUE,TRIM8#	09/1990 - 08/1995	2
67601E - CAP(FOR FRONT DOOR TRIM BOARD)
90339-10002B3	AE95 SHADOW GRAY,TRIM1#	09/1990 - 08/1995	2
90339-10002J1	AE95 DARK BLUE,TRIM8#	09/1990 - 08/1995	2
67601H - RETAINER, DOOR TRIM, RH
67771-12030	AE95..GL,GLI	09/1990 - 08/1995	8
67601H - RETAINER, DOOR TRIM, RH
67771-12030	AE95..GL,GLI	09/1990 - 08/1995	8
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1H64004	AE95..LHD..(GL,GLI) W(PW & EL),DARK BLUE,TRIM8#	09/1990 - 05/1993	1
67620-1H64003	AE95..LHD..(GL,GLI) W(PW & EL),SHADOW GRAY,TRIM1#	09/1990 - 05/1993	1
67620-1K09004	AE95..LHD..(GL,GLI) W(*EL),DARK BLUE,TRIM8#	09/1990 - 08/1995	1
67620-1K08004	AE95..GL,GLI DARK BLUE,TRIM8#	09/1990 - 08/1995	1
67620-1K08003	AE95..GL,GLI SHADOW GRAY,TRIM1#	09/1990 - 08/1995	1
67620-1K09003	AE95..LHD..(GL,GLI) W(*EL),SHADOW GRAY,TRIM1#	09/1990 - 08/1995	1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1H64004	AE95..LHD..(GL,GLI) W(PW & EL),DARK BLUE,TRIM8#	09/1990 - 05/1993	1
67620-1H64003	AE95..LHD..(GL,GLI) W(PW & EL),SHADOW GRAY,TRIM1#	09/1990 - 05/1993	1
67620-1K09004	AE95..LHD..(GL,GLI) W(*EL),DARK BLUE,TRIM8#	09/1990 - 08/1995	1
67620-1K08004	AE95..GL,GLI DARK BLUE,TRIM8#	09/1990 - 08/1995	1
67620-1K08003	AE95..GL,GLI SHADOW GRAY,TRIM1#	09/1990 - 08/1995	1
67620-1K09003	AE95..LHD..(GL,GLI) W(*EL),SHADOW GRAY,TRIM1#	09/1990 - 08/1995	1
67602A - RETAINER, DOOR TRIM, LH
67771-12030	AE95..GL,GLI	09/1990 - 08/1995	8
67602A - RETAINER, DOOR TRIM, LH
67771-12030	AE95..GL,GLI	09/1990 - 08/1995	8
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68172-12110	AE95..GL,GLI LH	09/1990 - 08/1995	1
68171-12180	AE95..GL,GLI RH	09/1990 - 08/1995	1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68172-12110	AE95..GL,GLI LH	09/1990 - 08/1995	1
68171-12180	AE95..GL,GLI RH	09/1990 - 08/1995	1
69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB
69751-12040J0	AE95 DARK BLUE,TRIM8#	09/1990 - 08/1995	1
69751-12040B1	AE95 SHADOW GRAY,TRIM1#	09/1990 - 08/1995	1
69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB
69751-12040J0	AE95 DARK BLUE,TRIM8#	09/1990 - 08/1995	1
69751-12040B1	AE95 SHADOW GRAY,TRIM1#	09/1990 - 08/1995	1
69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB
69751-12040J0	AE95 DARK BLUE,TRIM8#	09/1990 - 08/1995	1
69751-12040B1	AE95 SHADOW GRAY,TRIM1#	09/1990 - 08/1995	1
69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB
69751-12040J0	AE95 DARK BLUE,TRIM8#	09/1990 - 08/1995	1
69751-12040B1	AE95 SHADOW GRAY,TRIM1#	09/1990 - 08/1995	1
Common parts
90159-40141
90168-40061
90189-04127
