AE95L-CWMNUW (1990)
Toyota Corolla Wagon
Production
Sep 1990
-
May 1992
Engine
4AF
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9009- )

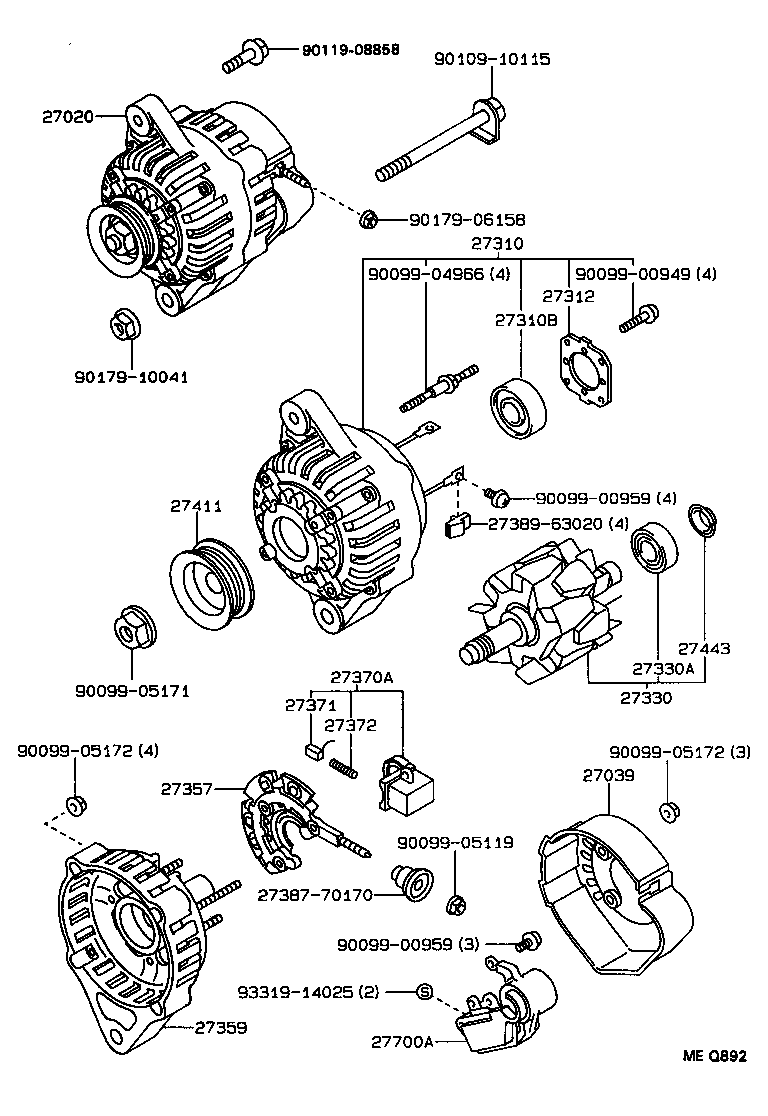

Click highlighted areas on diagram
12V 70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-16170 |
4AF#..AE95 12V 70A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-72010 |
4AF#..AE95 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-16190 |
4AF#..AE95 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10178 |
4AF#..AE95 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-70200 |
4AF#..AE95 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72101 |
4AF#..AE95 |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
4AF#..AE95 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63020 |
4AF#..AE95 |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16151 |
4AF#..AE95 |
1 | ||
| 27370A - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-63021 |
4AF#..AE95 |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-63020 |
4AF#..AE95 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
4AF#..AE95 |
2 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-16180 |
4AF#..AE95 |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
4AF#..AE95 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-70030 |
4AF#..AE95 |
1 | ||
| Common parts | ||||
| 27387-70170 | ||||
| 27389-63020 | ||||
| 90099-00949 | ||||
| 90099-00959 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90109-10115 | ||||
| 90119-08858 | ||||
| 90179-06158 | ||||
| 90179-10041 | ||||
| 93319-14025 | ||||
(9009- )
Click highlighted areas on diagram
12V 70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-16170 |
4AF#..AE95 12V 70A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-72010 |
4AF#..AE95 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-16190 |
4AF#..AE95 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10178 |
4AF#..AE95 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-70200 |
4AF#..AE95 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72101 |
4AF#..AE95 |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
4AF#..AE95 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63020 |
4AF#..AE95 |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16151 |
4AF#..AE95 |
1 | ||
| 27370A - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-63021 |
4AF#..AE95 |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-63020 |
4AF#..AE95 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
4AF#..AE95 |
2 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-16180 |
4AF#..AE95 |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
4AF#..AE95 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-70030 |
4AF#..AE95 |
1 | ||
| Common parts | ||||
| 27387-70170 | ||||
| 27389-63020 | ||||
| 90099-00949 | ||||
| 90099-00959 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90109-10115 | ||||
| 90119-08858 | ||||
| 90179-06158 | ||||
| 90179-10041 | ||||
| 93319-14025 | ||||
