AE95L-CWMNKW (1990)
Toyota Corolla Wagon
Production
Sep 1990
-
Aug 1995
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9009- )LHD

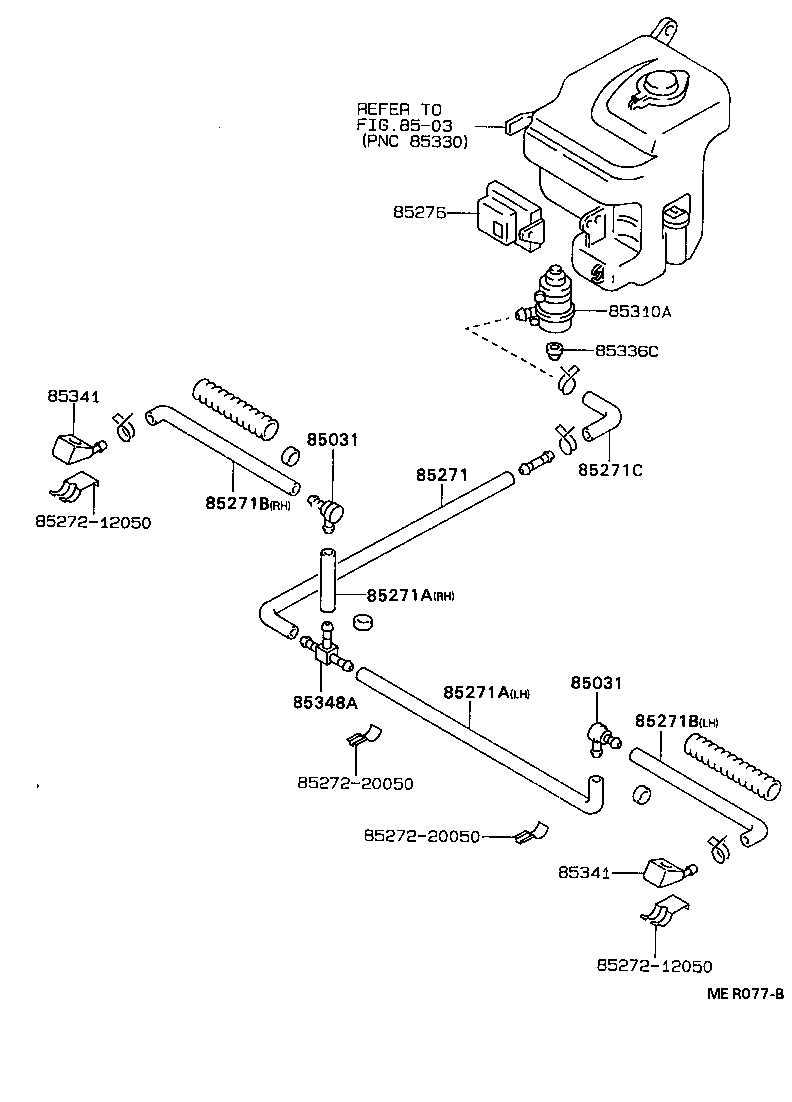

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031 - VALVE, HEADLAMP CLEANER WASHER HOSE | ||||
| 85031-30020 |
AE95..LHD |
2 | ||
| 85031 - VALVE, HEADLAMP CLEANER WASHER HOSE | ||||
| 85031-30020 |
AE95..LHD |
2 | ||
| 85271 - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 85375-12380 |
AE95..LHD |
1 | ||
| 85271A - HOSE, HEADLAMP CLEANER, NO.2 | ||||
| 90445-14071 |
AE95..LHD L=50,RH |
1 | ||
| 85343-12050 |
AE95..LHD LH |
1 | ||
| 85271A - HOSE, HEADLAMP CLEANER, NO.2 | ||||
| 90445-14071 |
AE95..LHD L=50,RH |
1 | ||
| 85343-12050 |
AE95..LHD LH |
1 | ||
| 85271B - HOSE, HEADLAMP CLEANER, NO.3 | ||||
| 85377-12380 |
AE95..LHD RH |
1 | ||
| 85375-12510 |
AE95..LHD LH |
1 | ||
| 85271B - HOSE, HEADLAMP CLEANER, NO.3 | ||||
| 85377-12380 |
AE95..LHD RH |
1 | ||
| 85375-12510 |
AE95..LHD LH |
1 | ||
| 85271C - HOSE, HEADLAMP CLEANER, NO.4 | ||||
| 85343-95700 |
AE95..LHD L=135 |
1 | ||
| 85276 - RELAY, CLEANER CONTROL | ||||
| 85276-12050 |
AE95..LHD |
1 | ||
| 85310A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER | ||||
| 85280-12050 |
AE95..LHD |
1 | ||
| 85336C - PACKING, HEADLAMP CLEANER MOTOR | ||||
| 85336-10010 |
AE95..LHD |
1 | ||
| 85341 - NOZZLE, HEADLAMP CLEANER WASHER | ||||
| 85035-12320 |
AE95..LHD |
2 | ||
| 85341 - NOZZLE, HEADLAMP CLEANER WASHER | ||||
| 85035-12320 |
AE95..LHD |
2 | ||
| 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 85352-12010 |
AE95..LHD |
1 | ||
| Common parts | ||||
| 85272-12050 | ||||
| 85272-20050 | ||||
| Linked diagrams | ||||
| 8503 | ||||
