AE95L-CWMNKW (1990)
Toyota Corolla Wagon

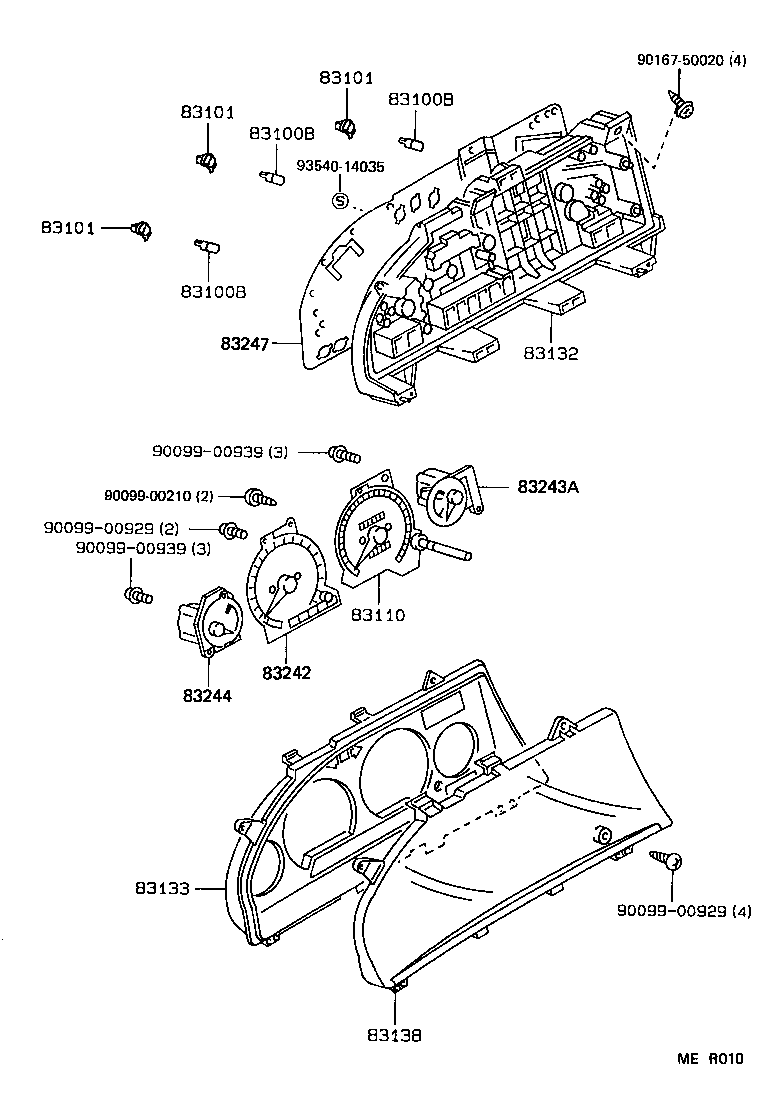

ILLUST NO. 1 OF 2(9009- )
W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-00210 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 90167-50020 | ||||
| 93540-14035 | ||||

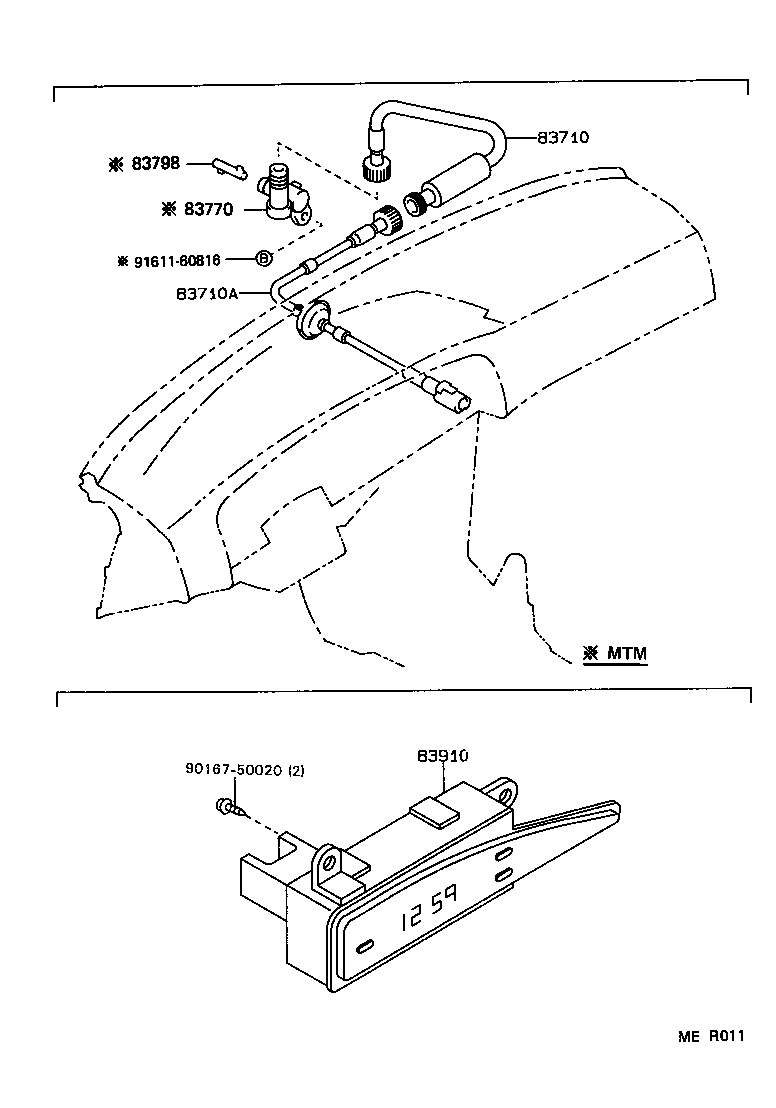

ILLUST NO. 2 OF 2(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90167-50020 | ||||
| 91611-60816 | ||||

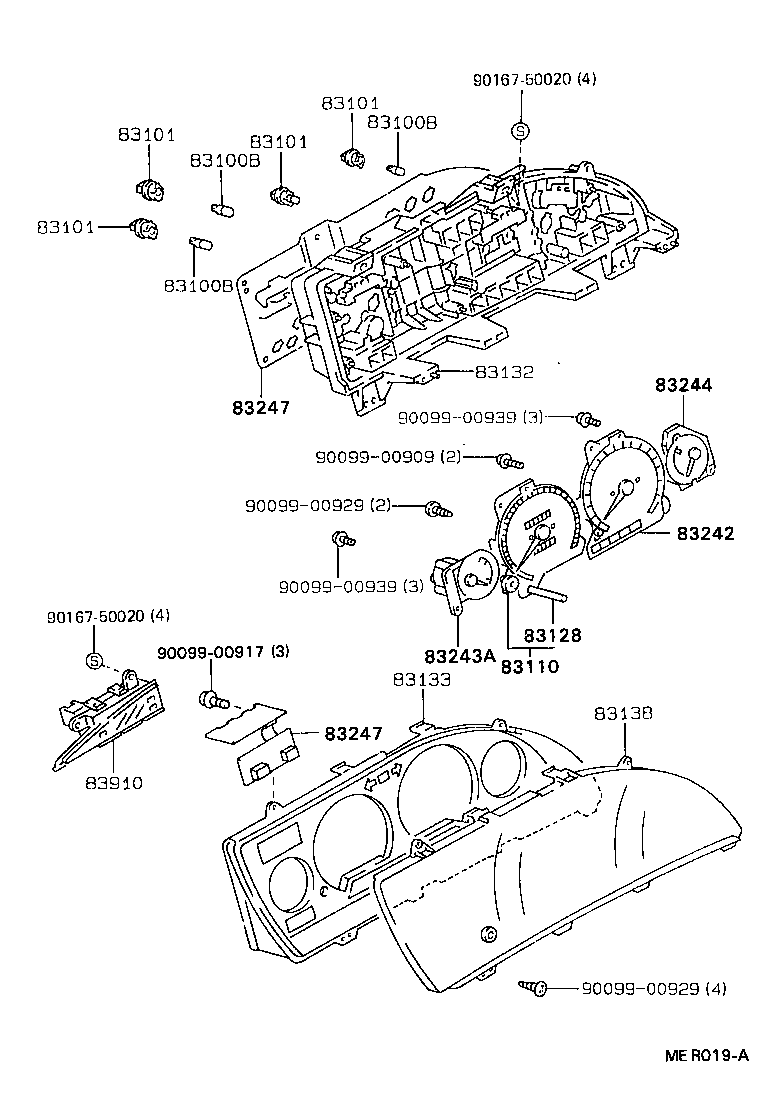

ILLUST NO. 1 OF 3(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE95..EFI 12V 1.2W W/O SOCKET |
8 | ||
| 83109-12030 |
AE95 12V 3.4W,BLUE CAP |
3 | ||
| 99132-12034 |
AE95 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE95..EFI 12V 1.2W W/O SOCKET |
8 | ||
| 83109-12030 |
AE95 12V 3.4W,BLUE CAP |
3 | ||
| 99132-12034 |
AE95 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE95..EFI 12V 1.2W W/O SOCKET |
8 | ||
| 83109-12030 |
AE95 12V 3.4W,BLUE CAP |
3 | ||
| 99132-12034 |
AE95 12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE95 12V 3.4W BULB |
4 | ||
| 83101-14040 |
AE95..EFI 12V 1.4W BULB |
8 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE95 12V 3.4W BULB |
4 | ||
| 83101-14040 |
AE95..EFI 12V 1.4W BULB |
8 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE95 12V 3.4W BULB |
4 | ||
| 83101-14040 |
AE95..EFI 12V 1.4W BULB |
8 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE95 12V 3.4W BULB |
4 | ||
| 83101-14040 |
AE95..EFI 12V 1.4W BULB |
8 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1E411 |
AE95..EFI |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-14630 |
AE95 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1A270 |
AE95..LHD |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-13110 |
AE95..EFI |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-1A030 |
AE95..LHD |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-1E051 |
AE95..LHD |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-1A251 |
AE95..LHD |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1A671 |
AE95..LHD |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-1E700 |
AE95..LHD ED MONITER |
1 | ||
| 83247-13730 |
AE95..EFI |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-1E700 |
AE95..LHD ED MONITER |
1 | ||
| 83247-13730 |
AE95..EFI |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12410 |
AE95..LHD |
1 | ||
| Common parts | ||||
| 90099-00909 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 90167-50020 | ||||

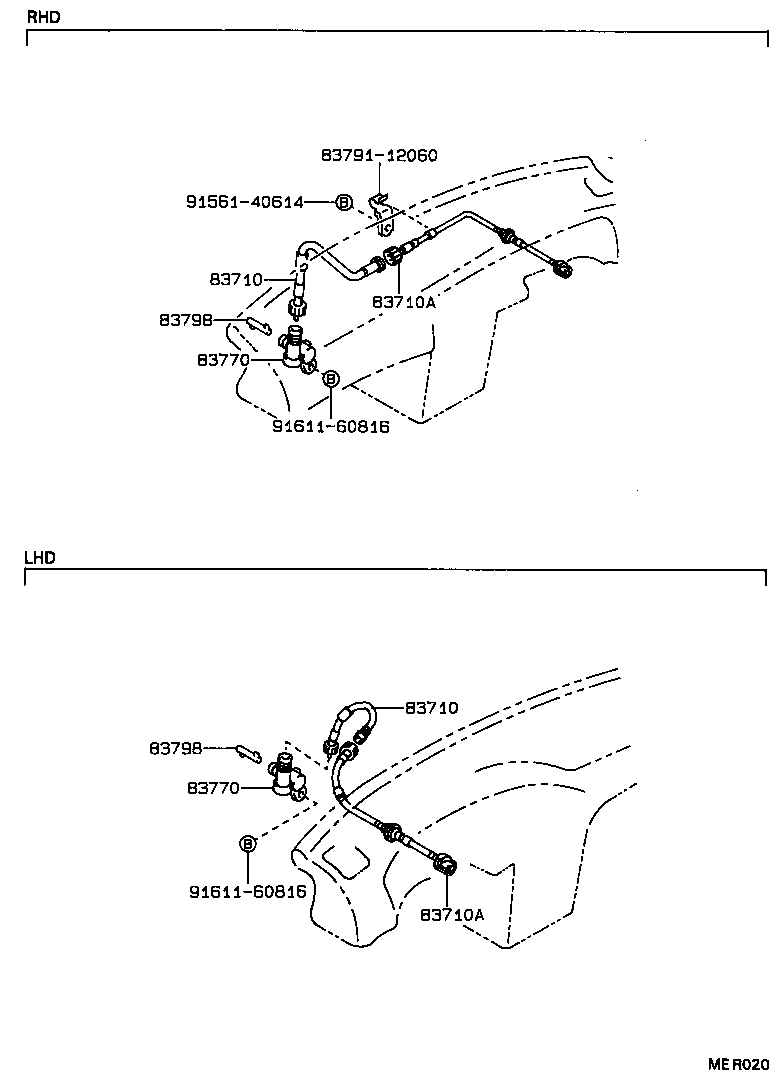

ILLUST NO. 2 OF 3(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-12581 |
AE95 |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-12581 |
AE95 |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-12640 |
AE95..LHD |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-12640 |
AE95..LHD |
1 | ||
| 83770 - ADAPTER ASSY, SPEEDOMETER CABLE | ||||
| 83770-17010 |
AE95 |
1 | ||
| 83770 - ADAPTER ASSY, SPEEDOMETER CABLE | ||||
| 83770-17010 |
AE95 |
1 | ||
| 83798 - KEY, SPEEDOMETER CABLE ADAPTER | ||||
| 83798-17010 |
AE95 |
1 | ||
| 83798 - KEY, SPEEDOMETER CABLE ADAPTER | ||||
| 83798-17010 |
AE95 |
1 | ||
| Common parts | ||||
| 83791-12060 | ||||
| 91561-40614 | ||||
| 91611-60816 | ||||

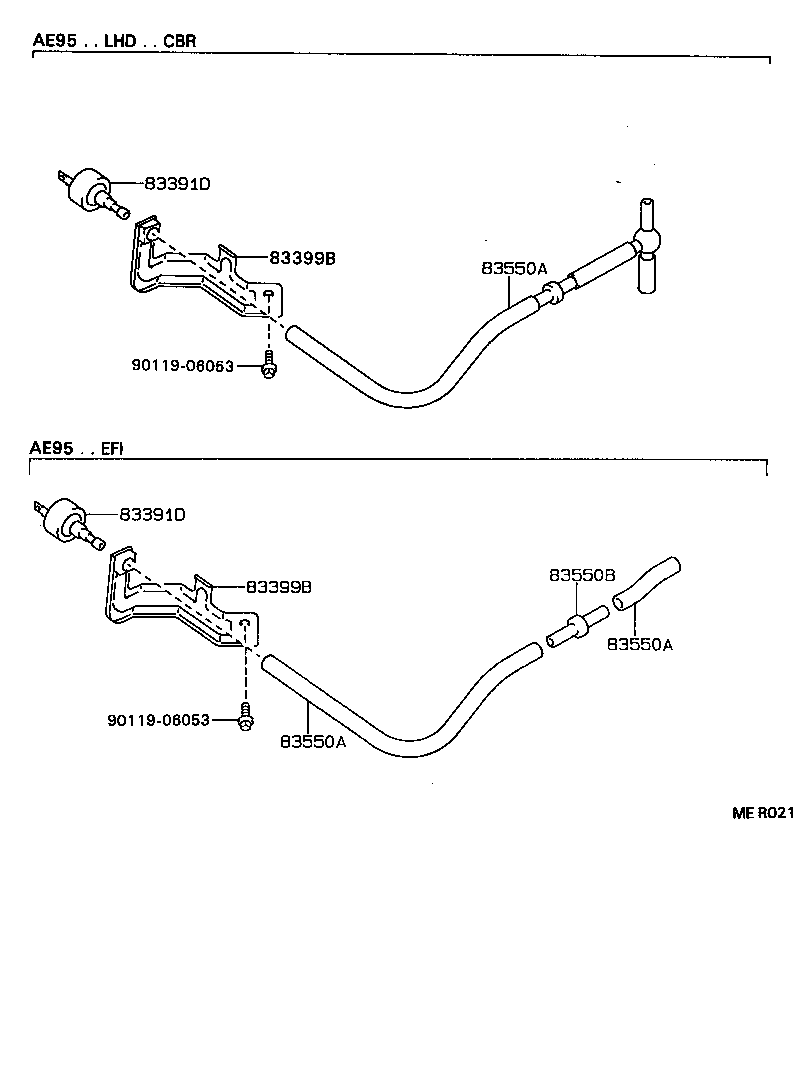

ILLUST NO. 3 OF 3(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83391D - SWITCH, VACUUM | ||||
| 83391-16020 |
AE95..LHD |
1 | ||
| 83391D - SWITCH, VACUUM | ||||
| 83391-16020 |
AE95..LHD |
1 | ||
| 83399B - BRACKET, VACUUM SWITCH | ||||
| 83399-12140 |
AE95..LHD |
1 | ||
| 83399B - BRACKET, VACUUM SWITCH | ||||
| 83399-12140 |
AE95..LHD |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 90999-92002 |
AE95..EFI *H,L=300 |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 90999-92002 |
AE95..EFI *H,L=300 |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 90999-92002 |
AE95..EFI *H,L=300 |
1 | ||
| 83550B - UNION OR WAY, ED MONITOR GAGE | ||||
| 90412-05001 |
AE95..EFI |
1 | ||
| Common parts | ||||
| 90119-06053 | ||||
