AE95L-CWMNKW (1990)

Toyota Corolla Wagon

Production Sep 1990 - Aug 1995
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )

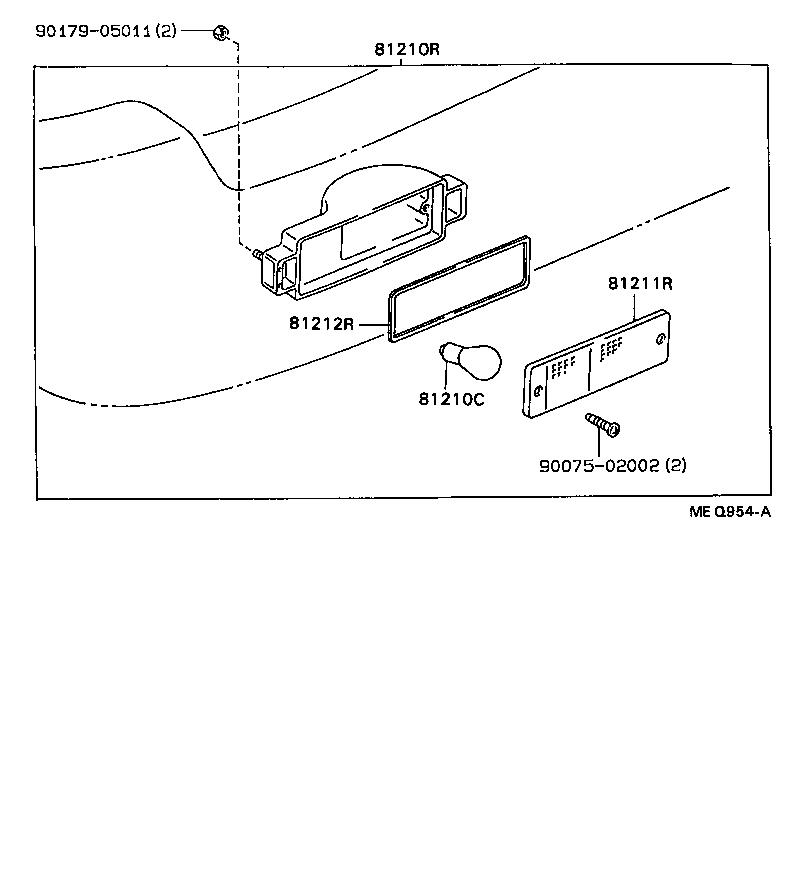

Click highlighted areas on diagram

diagram 81210C 81210R 81211R 81212R 9007502002 9017905011
Part # Description Qty Price
81210C - BULB, REAR FOG LAMP
99132-11210

AE95

12V 21W

 1
81210R - LAMP ASSY, REAR FOG
81220-12050

AE95..LHD

LH

 1
81210-12060

AE95..LHD

RH

 1
81211R - LENS, REAR FOG LAMP
81221-12050

AE95..LHD

LH

 1
81211-12060

AE95..LHD

RH

 1
81212R - GASKET, REAR FOG LAMP, NO.1
81212-12070

AE95

 2
Common parts
90075-02002
90179-05011
