AE95L-CWMNKW (1990)
Toyota Corolla Wagon
Production
Sep 1990
-
Aug 1995
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

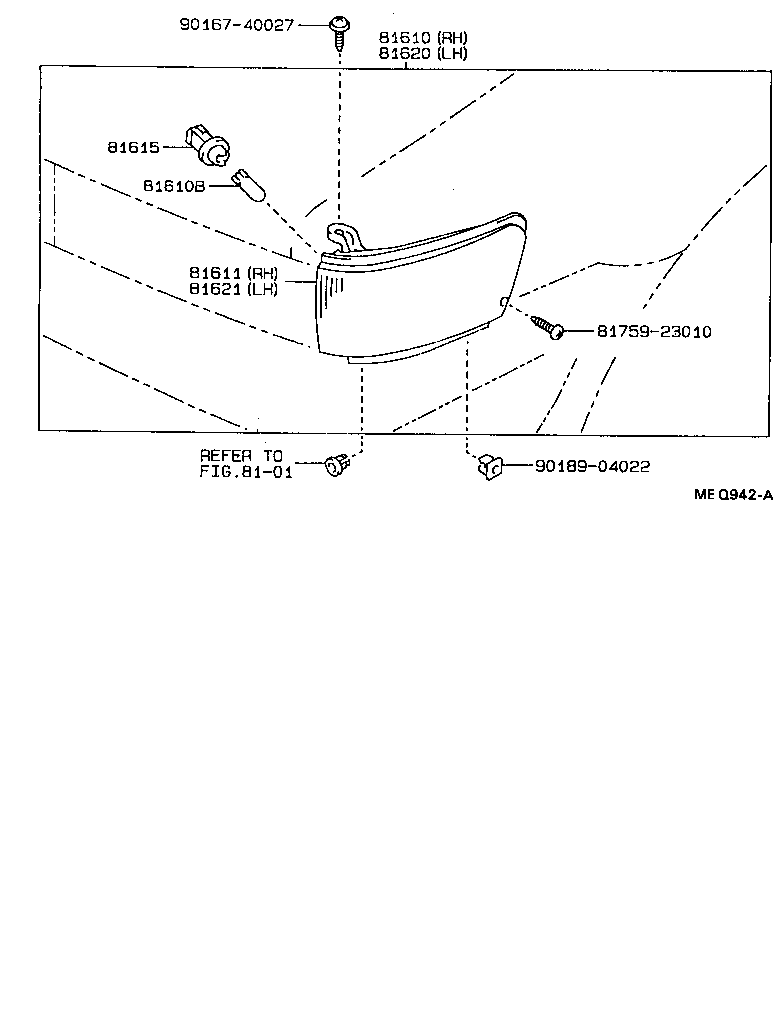

(9009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 81759-23010 | ||||
| 90167-40027 | ||||
| 90189-04022 | ||||
| Linked diagrams | ||||
| 8101 | ||||

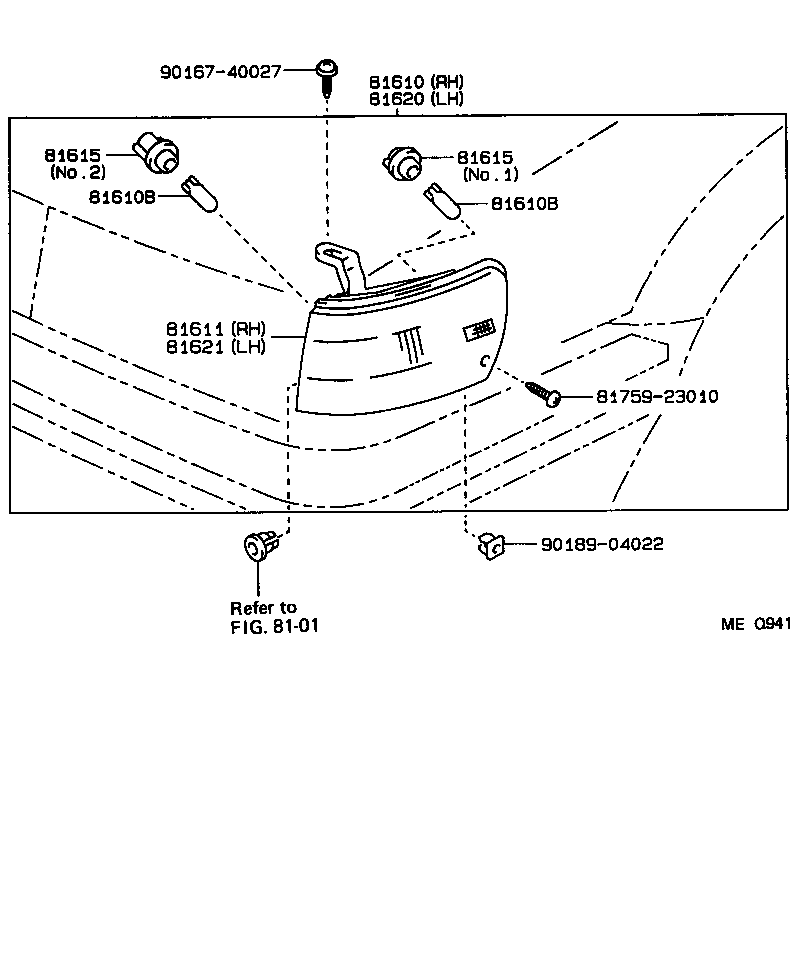

(9009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81610 - LAMP ASSY, PARKING & CLEARANCE, RH | ||||
| 81610-12460 |
AE95 |
1 | ||
| 81610-12461 |
AE95 |
1 | ||
| 81610B - BULB(FOR PARKING & CLEARANCE LAMP) | ||||
| 99132-12050 |
AE95 12V 5W |
2 | ||
| 81611 - LENS, PARKING & CLEARANCE LAMP, RH | ||||
| 81611-12460 |
AE95 |
1 | ||
| 81611-12461 |
AE95 |
1 | ||
| 81615 - SOCKET AND WIRE, CLEARANCE LAMP | ||||
| 81735-12180 |
AE95 |
2 | ||
| 81620 - LAMP ASSY, PARKING & CLEARANCE, LH | ||||
| 81620-12460 |
AE95 |
1 | ||
| 81620-12461 |
AE95 |
1 | ||
| 81621 - LENS, PARKING & CLEARANCE LAMP, LH | ||||
| 81621-12461 |
AE95 |
1 | ||
| 81621-12460 |
AE95 |
1 | ||
| Common parts | ||||
| 81759-23010 | ||||
| 90167-40027 | ||||
| 90189-04022 | ||||
| Linked diagrams | ||||
| 8101 | ||||
