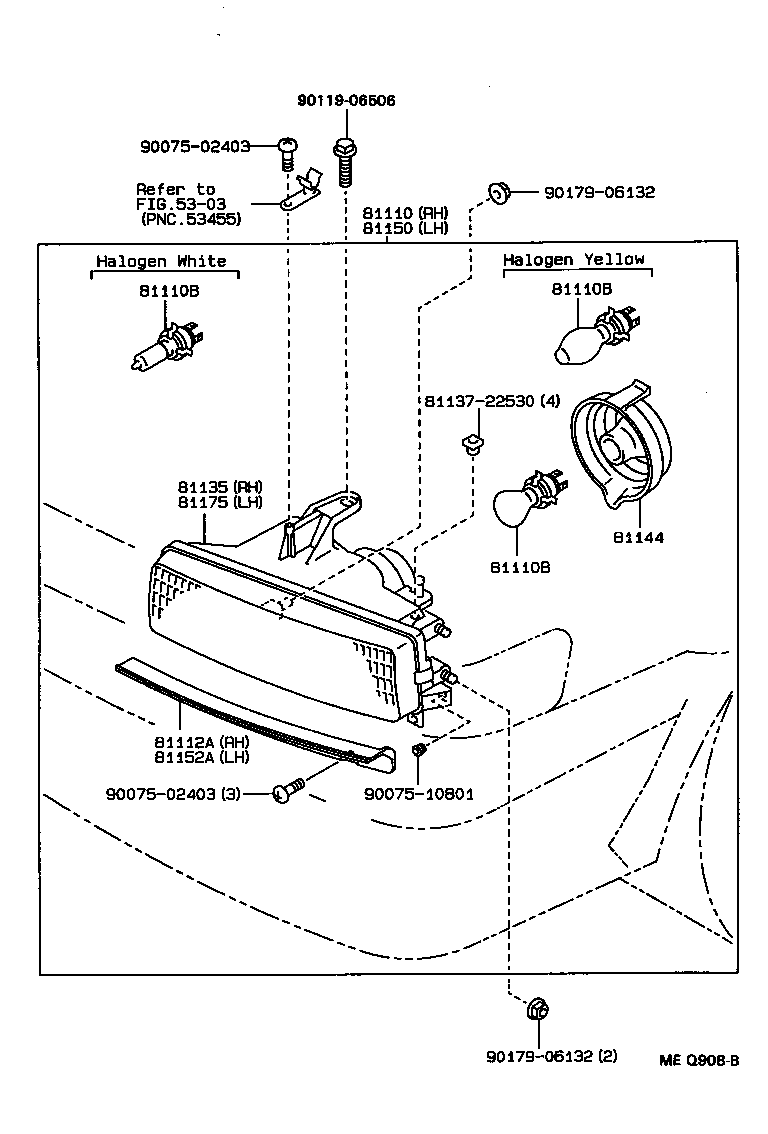

Toyota Corolla wagon AE95 HEADLAMP

Part #	Description	Period	Qty
81110 - HEADLAMP ASSY, RH
81110-1A890	AE95..LHD HALOGEN WHITE	09/1990 - 05/1992	1
81110-1A880	AE95..LHD	09/1990 - 05/1992	1
81110-1E130	AE95..EFI *FRG,HALOGEN WHITE	09/1990 - 07/1993	1
81110-1E010	AE95..LHD HALOGEN YELLOW	09/1990 - 05/1993	1
81110-1E130	AE95 *FRG	07/1993 - 08/1995	1
81110-1A890	AE95	05/1992 - 08/1995	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015	AE95..LHD 12V 60/55W,HAL WH	09/1990 - 05/1992	2
90981-13015	AE95 12V 60/55W,HAL WH	05/1992 - 01/1994	2
90981-13016	AE95..LHD 12V 60/55W,HAL YE	09/1990 - 05/1993	2
90981-22004	AE95 12V 60/55W,HAL WH	01/1994 - 08/1995	2
90981-13013	AE95 12V 45/40W,WHITE	09/1990 - 05/1992	2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015	AE95..LHD 12V 60/55W,HAL WH	09/1990 - 05/1992	2
90981-13015	AE95 12V 60/55W,HAL WH	05/1992 - 01/1994	2
90981-13016	AE95..LHD 12V 60/55W,HAL YE	09/1990 - 05/1993	2
90981-22004	AE95 12V 60/55W,HAL WH	01/1994 - 08/1995	2
90981-13013	AE95 12V 45/40W,WHITE	09/1990 - 05/1992	2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015	AE95..LHD 12V 60/55W,HAL WH	09/1990 - 05/1992	2
90981-13015	AE95 12V 60/55W,HAL WH	05/1992 - 01/1994	2
90981-13016	AE95..LHD 12V 60/55W,HAL YE	09/1990 - 05/1993	2
90981-22004	AE95 12V 60/55W,HAL WH	01/1994 - 08/1995	2
90981-13013	AE95 12V 45/40W,WHITE	09/1990 - 05/1992	2
81112A - RIM, HEADLAMP, RH
81116-1A850	AE95	09/1990 - 08/1995	1
81135 - UNIT ASSY, HEADLAMP, RH
81130-1A720	AE95..LHD	09/1990 - 05/1992	1
81130-1A730	AE95	05/1992 - 08/1995	1
81130-1E120	AE95 *FRG	07/1993 - 08/1995	1
81130-1E120	AE95..EFI *FRG,HALOGEN WHITE	09/1990 - 07/1993	1
81130-1A730	AE95..LHD HALOGEN	09/1990 - 05/1992	1
81144 - COVER, HEADLAMP, NO.1
81139-20730	AE95	09/1990 - 08/1995	2
81150 - HEADLAMP ASSY, LH
81160-1E010	AE95..LHD HALOGEN YELLOW	09/1990 - 05/1993	1
81160-1A880	AE95..LHD	09/1990 - 05/1992	1
81160-1A890	AE95..LHD HALOGEN WHITE	09/1990 - 05/1992	1
81160-1E130	AE95 *FRG	07/1993 - 08/1995	1
81160-1E130	AE95..EFI *FRG,HALOGEN WHITE	09/1990 - 07/1993	1
81160-1A890	AE95	05/1992 - 08/1995	1
81152A - RIM, HEADLAMP, LH
81156-1A850	AE95	09/1990 - 08/1995	1
81175 - UNIT ASSY, HEADLAMP, LH
81170-1A730	AE95	05/1992 - 08/1995	1
81170-1E120	AE95..EFI *FRG,HALOGEN WHITE	09/1990 - 07/1993	1
81170-1A730	AE95..LHD HALOGEN	09/1990 - 05/1992	1
81170-1E120	AE95 *FRG	07/1993 - 08/1995	1
81170-1A720	AE95..LHD	09/1990 - 05/1992	1
Common parts
81137-22530
90075-02403
90075-10801
90119-06506
90179-06132
Linked diagrams
5303

AE95L-CWMNKW (1990)

(9009- )

(9009- )

Part Price Details

Part #	Description	Period	Qty	Price
Common parts
81132-32121
81137-22530
90075-10801
90075-10806
90075-10807
90075-99010
90119-06615
90179-06132
