AE95L-CWMNKW (1990)

Toyota Corolla Wagon

Production Sep 1990 - Aug 1995
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )

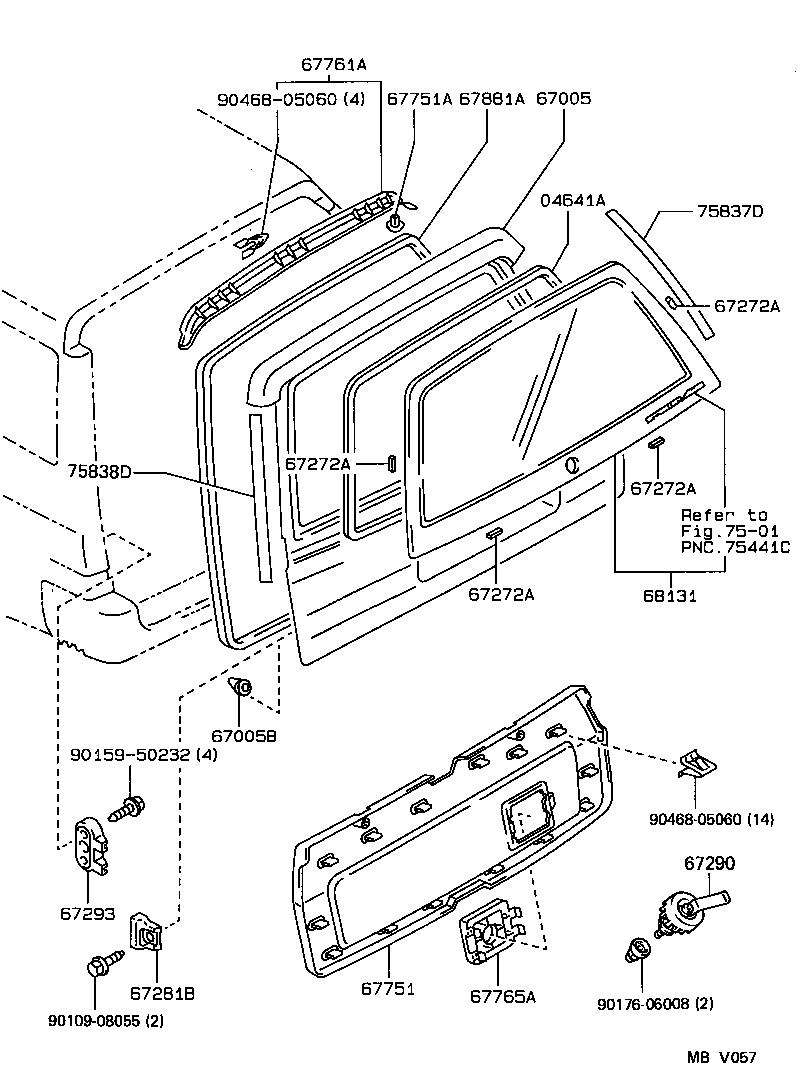

Click highlighted areas on diagram

diagram 04641A 67005 67005B 67272A 67272A 67272A 67272A 67281B 67290 67293 67751 67751A 67761A 67765A 67881A 68131 7501 75837D 75838D 9010908055 9015950232 9017606008 9046805060 9046805060
Part # Description Qty Price
Common parts
90109-08055
90159-50232
90176-06008
90468-05060
Linked diagrams
7501

(9009- )

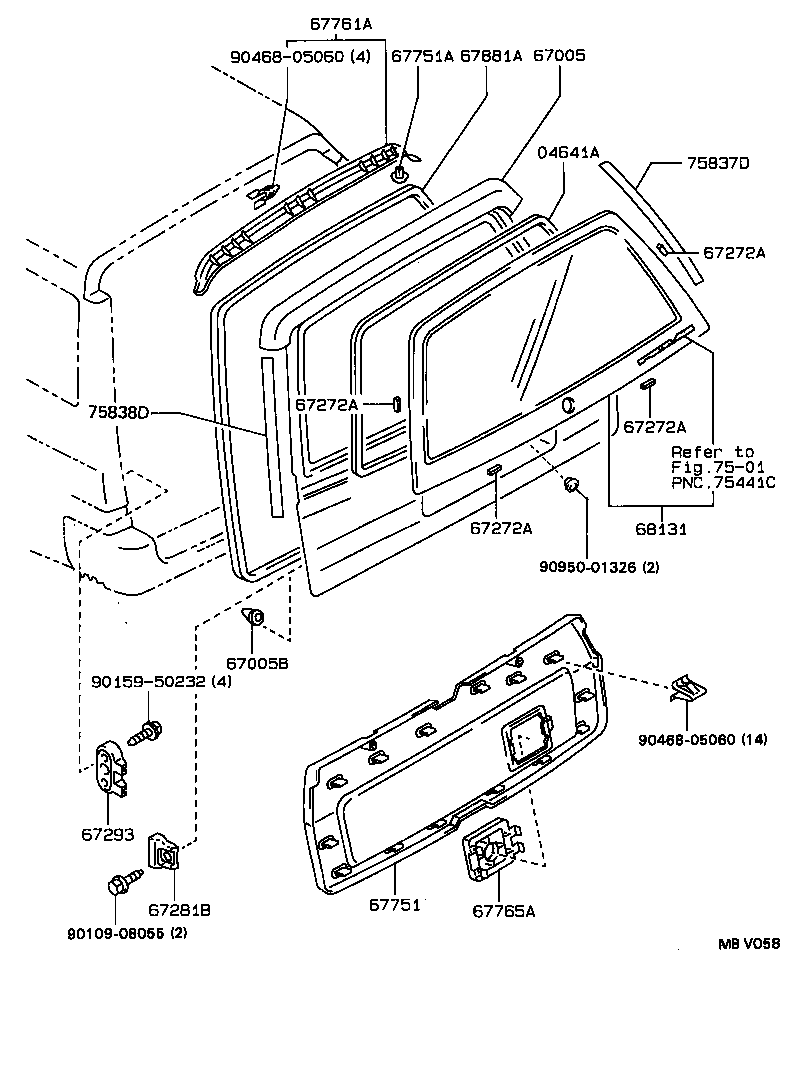

Click highlighted areas on diagram

diagram 04641A 67005 67005B 67272A 67272A 67272A 67272A 67281B 67293 67751 67751A 67761A 67765A 67881A 68131 7501 75837D 75838D 9010908055 9015950232 9046805060 9046805060 9095001326
Part # Description Qty Price
04641A - DAM KIT, BACK WINDOW GLASS ADHESIVE
04562-12010

AE95

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-1A481

AE95

 1
67005-1A461

AE95..EFI

SWITZERLAND SPEC

 1
67005B - CUSHION(FOR BACK DOOR PANEL)
64459-12010

AE95

 2
67272A - CUSHION, BACK DOOR STOPPER, NO.2
67272-12030

AE95

 8
67272A - CUSHION, BACK DOOR STOPPER, NO.2
67272-12030

AE95

 8
67272A - CUSHION, BACK DOOR STOPPER, NO.2
67272-12030

AE95

 8
67272A - CUSHION, BACK DOOR STOPPER, NO.2
67272-12030

AE95

 8
67281B - STOPPER, BACK DOOR, LOWER
67284-12010

AE95

LH

 1
67283-12010

AE95

RH

 1
67293 - CUSHION, BACK DOOR LOWER STOPPER
67293-20020

AE95

 2
67751 - BOARD, BACK DOOR TRIM
67751-1211004

AE95

DARK BLUE,TRIM8#

 1
67751-1211003

AE95

SHADOW GRAY,TRIM1#

 1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-05062B0

AE95

SHADOW GRAY,TRIM1#

 2
90467-05062J0

AE95

DARK BLUE,TRIM8#

 2
67761A - COVER, BACK DOOR TRIM
67761-1214004

AE95

DARK BLUE,TRIM8#

 1
67761-1214003

AE95

SHADOW GRAY,TRIM1#

 1
67765A - COVER, BACK DOOR SERVICE HOLE, NO.1
67765-1208004

AE95

DARK BLUE,TRIM8#

 1
67765-1208003

AE95

SHADOW GRAY,TRIM1#

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-12220

AE95

 1
68131 - GLASS, BACK DOOR
68131-12890

AE95

*EHTT,T=3.5

 1
75837D - COVER, BACK DOOR FINISH, RH
75837-12050

AE95

 1
75838D - COVER, BACK DOOR FINISH, LH
75837-12050

AE95

 1
Common parts
90109-08055
90159-50232
90468-05060
90950-01326
Linked diagrams
7501
