AE95L-CWMNKW (1990)

Toyota Corolla Wagon

Production Sep 1990 - Aug 1995
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )

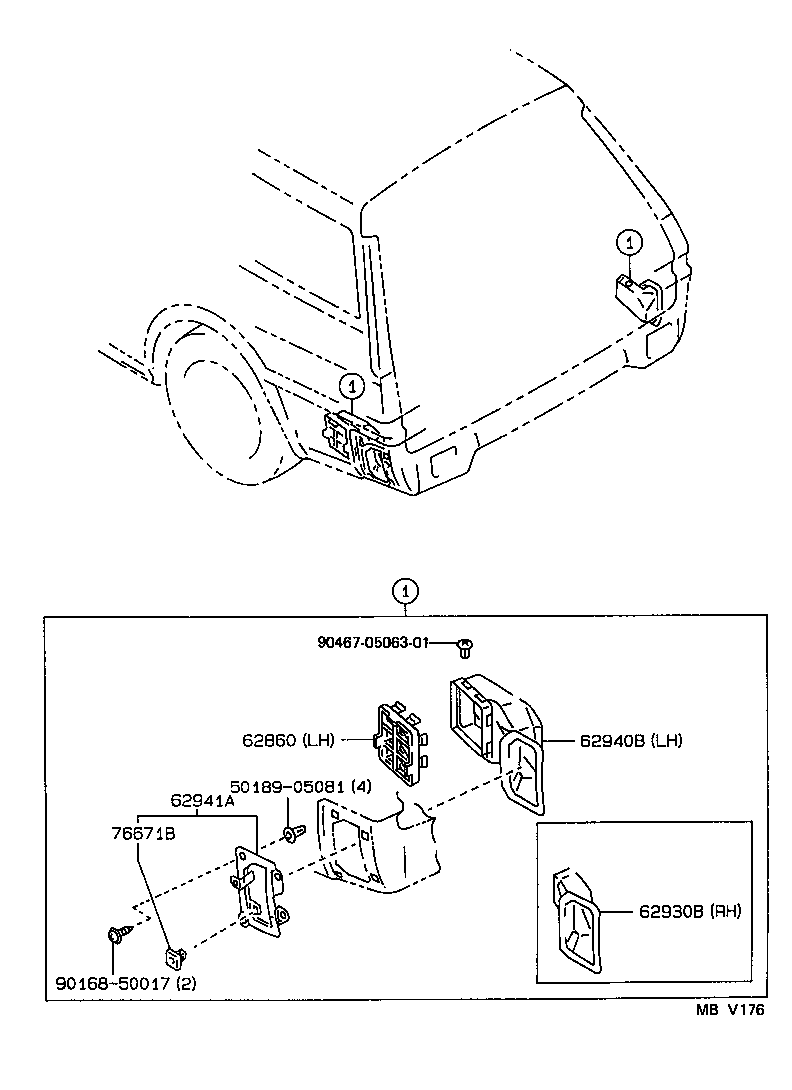

Click highlighted areas on diagram

diagram 5018905081 62860 62930B 62940B 62941A 76671B 9016850017 904670506301
Part # Description Qty Price
Common parts
50189-05081
90168-50017
90467-0506301

(9009- )

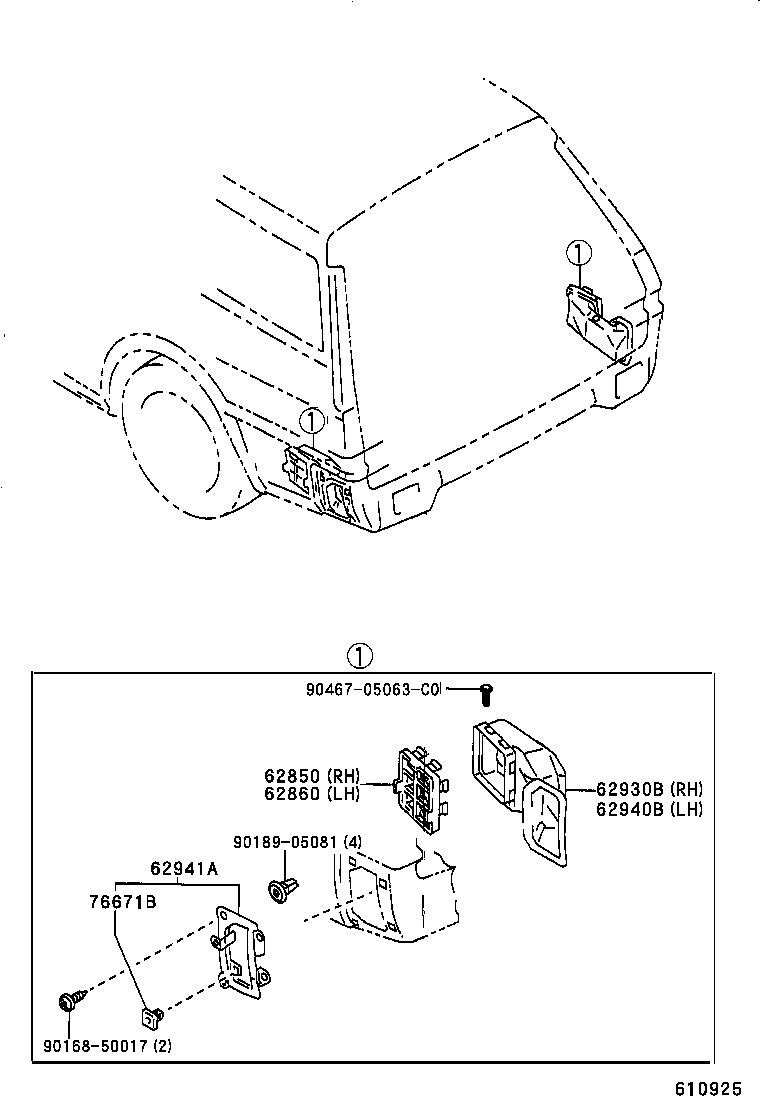

Click highlighted areas on diagram

diagram 62850 62860 62930B 62940B 62941A 76671B 9016850017 9018905081 9046705063C0
Part # Description Qty Price
62850 - VALVE ASSY, ROOM PRESSURE RELIEF, RH
62850-12110

AE95

 1
62860 - VALVE ASSY, ROOM PRESSURE RELIEF, LH
62850-12110

AE95

 1
62930B - DUCT ASSY, QUARTER VENT, RH
62930-12071

AE95

 1
62940B - DUCT ASSY, QUARTER VENT, LH
62940-12091

AE95

 1
62941A - RETAINER, QUARTER VENT DUCT
62942-12090

AE95

LH

 1
62941-12110

AE95

RH

 1
76671B - CLIP, QUARTER VENT DUCT RETAINER
76671-12020

AE95

 2
Common parts
90168-50017
90189-05081
90467-05063C0
