AE95L-CWMNKW (1990)

Toyota Corolla Wagon

Production Sep 1990 - Aug 1995
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )

Click highlighted areas on diagram

diagram 52023 52152B 52153B 52157C 52158C 52159 52167A 52168A 52191C 52192C 52561 52565A 52615 9010906140 9011914013 9011914013 9016850039 9016850039 9017906070 9046706017 9046706017 9046709029 9046709089 9046709089 9046804079 9046804079
Part # Description Qty Price
Common parts
90109-06140
90119-14013
90168-50039
90179-06070
90467-06017
90467-09029
90467-09089
90468-04079

(9009- )

Click highlighted areas on diagram

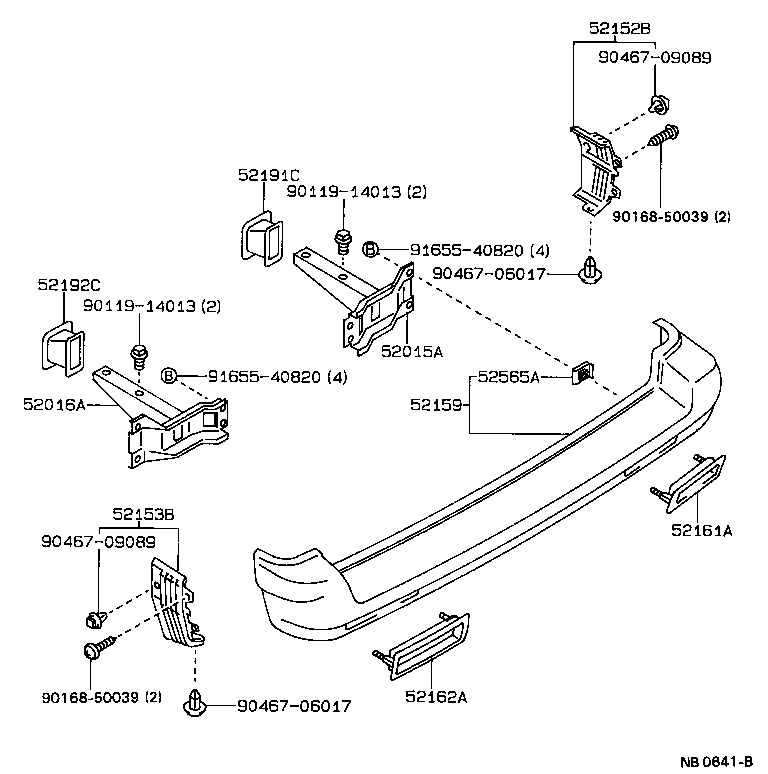

diagram 52015A 52016A 52152B 52153B 52159 52161A 52162A 52191C 52192C 52565A 9011914013 9011914013 9016850039 9016850039 9046706017 9046706017 9046709089 9046709089 9165540820 9165540820
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-12210

AE95

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-12210

AE95

 1
52152B - EXTENSION, REAR BUMPER, RH
52152-1226003

AE95

GRAY M,168

 1
52152-1226014

AE95

DARK BLUE MICA M,25M ,8E9

 1
52152-1226017

AE95

GRAYISH GREEN M,6K6

 1
52152-1226012

AE95

RED MICA,3H4

 1
52152-1226003

AE95

GRAY M,168 ,27M

 1
52152-12250

AE95

 1
52152-1226002

AE95

SUPER RED 2,3E5

 1
52152-12260J0

AE95

DK BLUE MICA M,26T ,8J7

 1
52152-1226008

AE95

SUPER WHITE 2,040

 1
52152-12260G0

AE95

GRAYISH GREEN ME,6M3

 1
52152-1226027

AE95

MEDIUM KHAKI M,22S

 1
52152-12260G0

AE95

GRAYISH GREEN ME,20W ,6M3

 1
52152-12260D0

AE95

RED MICA M,3K4

 1
52152-12260B0

AE95

DK BLUEISH GRAY M,183

 1
52152-12260J1

AE95

DK. BLUE M.M.,8G5

 1
52153B - EXTENSION, REAR BUMPER, LH
52153-12260B0

AE95

DK BLUEISH GRAY M,183

 1
52153-1226017

AE95

GRAYISH GREEN M,6K6

 1
52153-12250

AE95

 1
52153-12260D0

AE95

RED MICA M,3K4

 1
52153-12260J0

AE95

DK BLUE MICA M,26T ,8J7

 1
52153-1226003

AE95

GRAY M,168 ,27M

 1
52153-12260G0

AE95

GRAYISH GREEN ME,6M3

 1
52153-1226012

AE95

RED MAICA,3H4

 1
52153-1226002

AE95

SUPER RED 2,3E5

 1
52153-1226008

AE95

SUPER WHITE 2,040

 1
52153-12260G0

AE95

GRAYISH GREEN ME,20W ,6M3

 1
52153-1226027

AE95

MEDIUM KHAKI M,22S

 1
52153-1226003

AE95

GRAY M,168

 1
52153-12260J1

AE95

DK. BLUE M.M.,8G5

 1
52153-1226014

AE95

DARK BLUE MICA M,25M ,8E9

 1
52159 - COVER, REAR BUMPER
52159-1A080

AE95

 1
52161A - PIECE, REAR BUMPER, RH
52161-1202017

AE95

GRAYISH GREEN M,6K6

 1
52161-1202014

AE95

DARK BLUE MICA M,25M ,8E9

 1
52161-12020J0

AE95

DK BLUE MICA M,26T ,8J7

 1
52161-1202003

AE95

GRAY M,168 ,27M

 1
52161-1202002

AE95

SUPER RED 2,3E5

 1
52161-1202027

AE95

MEDIUM KHAKI M,22S

 1
52161-1202012

AE95

RED MAICA,3H4

 1
52161-12010

AE95

 1
52161-12020G0

AE95

GRAYISH GREEN ME,20W ,6M3

 1
52161-12020J1

AE95

DK. BLUE M.M.,8G5

 1
52161-12020B0

AE95

DK BLUEISH GRAY M,183

 1
52161-12020D0

AE95

RED MICA M,3K4

 1
52161-1202003

AE95

GRAY M,168

 1
52161-1202008

AE95

SUPER WHITE 2,040

 1
52161-12020G0

AE95

GRAYISH GREEN ME,6M3

 1
52162A - PIECE, REAR BUMPER, LH
52162-1204003

AE95

GRAY M,168

 1
52162-12040J0

AE95

DK BLUE MICA M,26T ,8J7

 1
52162-1204012

AE95

RED MAICA,3H4

 1
52162-1204017

AE95

GRAYISH GREEN M,6K6

 1
52162-1204002

AE95

SUPER RED 2,3E5

 1
52162-1204003

AE95

GRAY M,168 ,27M

 1
52162-1204008

AE95

SUPER WHITE 2,040

 1
52162-12040B0

AE95

DK BLUEISH GRAY M,183

 1
52162-12040G0

AE95

GRAYISH GREEN ME,6M3

 1
52162-12030

AE95

 1
52162-12040J1

AE95

DK. BLUE M.M.,8G5

 1
52162-1204027

AE95

MEDIUM KHAKI M,22S

 1
52162-1204014

AE95

DARK BLUE MICA M,25M ,8E9

 1
52162-12040D0

AE95

RED MICA M,3K4

 1
52162-12040G0

AE95

GRAYISH GREEN ME,20W ,6M3

 1
52191C - SEAL, REAR BUMPER ARM, RH
52191-12020

AE95

 1
52192C - SEAL, REAR BUMPER ARM, LH
52192-12010

AE95

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-16020

AE95

 8
