AE95L-CWMNKW (1990)
Toyota Corolla Wagon
Production
Sep 1990
-
Aug 1995
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9009- )

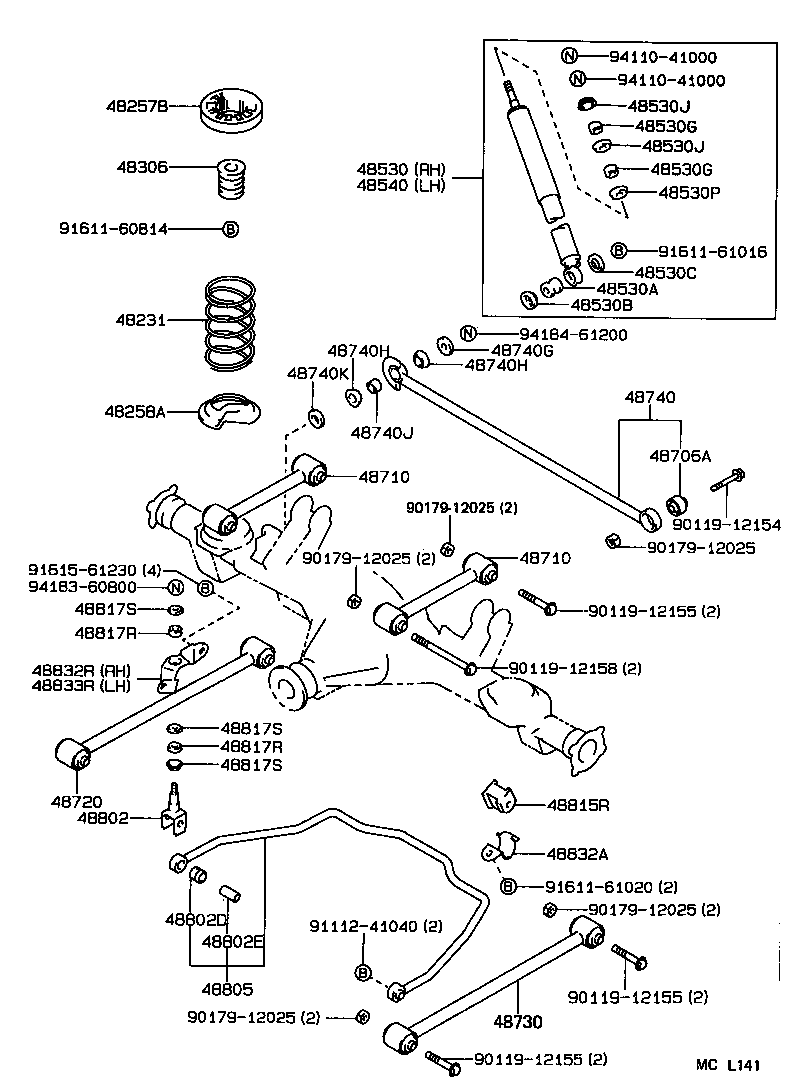

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48231 - SPRING, COIL, REAR | ||||
| 48231-1A880 |
AE95 |
2 | ||
| 48257B - INSULATOR, REAR COIL SPRING, UPPER | ||||
| 48257-12020 |
AE95 |
2 | ||
| 48258A - INSULATOR, REAR COIL SPRING, LOWER | ||||
| 48258-12010 |
AE95 |
2 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-12070 |
AE95 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80101 |
AE95 |
1 | ||
| 48531-80437 |
AE95 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
AE95 |
2 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03004 |
AE95 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03012 |
AE95 LH |
1 | ||
| 90948-02047 |
AE95 RH |
1 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01003 |
AE95 UPR |
2 | ||
| 90948-01018 |
AE95 LWR |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01003 |
AE95 UPR |
2 | ||
| 90948-01018 |
AE95 LWR |
2 | ||
| 48530J - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02002 |
AE95 |
4 | ||
| 48530J - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02002 |
AE95 |
4 | ||
| 48530P - RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02007 |
AE95 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80101 |
AE95 |
1 | ||
| 48531-80437 |
AE95 |
1 | ||
| 48706A - BUSH SUB-ASSY, REAR LATERAL CONTROL ROD | ||||
| 48706-14010 |
AE95 |
1 | ||
| 48710 - ARM ASSY, UPPER CONTROL | ||||
| 48710-12140 |
AE95 |
2 | ||
| 48710 - ARM ASSY, UPPER CONTROL | ||||
| 48710-12140 |
AE95 |
2 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-12080 |
AE95 |
1 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48720-12080 |
AE95 |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-12040 |
AE95 |
1 | ||
| 48740G - WASHER, PLATE, NO.1(FOR REAR LATERAL CONTROL ROD) | ||||
| 90201-12010 |
AE95 |
1 | ||
| 48740H - BUSH, NO.1(FOR REAR LATERAL CONTROL ROD) | ||||
| 90385-20007 |
AE95 |
2 | ||
| 48740H - BUSH, NO.1(FOR REAR LATERAL CONTROL ROD) | ||||
| 90385-20007 |
AE95 |
2 | ||
| 48740J - BUSH, NO.2(FOR REAR LATERAL CONTROL ROD) | ||||
| 90386-20001 |
AE95 |
1 | ||
| 48740K - WASHER, PLATE, NO.2(FOR REAR LATERAL CONTROL ROD) | ||||
| 94612-12000 |
AE95 |
1 | ||
| 48802 - LINK SUB-ASSY, STABILIZER | ||||
| 48802-12040 |
AE95 |
2 | ||
| 48802D - BUSH, STABILIZER LINK | ||||
| 90385-11021 |
AE95 |
2 | ||
| 48802E - SPACER(FOR REAR STABILIZER BAR) | ||||
| 90560-10275 |
AE95 |
2 | ||
| 48805 - BAR SUB-ASSY, REAR STABILIZER | ||||
| 48805-12090 |
AE95 |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-20020 |
AE95 |
2 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-12010 |
AE95 |
4 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-12010 |
AE95 |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02025 |
AE95 CTR |
2 | ||
| 90948-02024 |
AE95 UPR,LWR |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02025 |
AE95 CTR |
2 | ||
| 90948-02024 |
AE95 UPR,LWR |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02025 |
AE95 CTR |
2 | ||
| 90948-02024 |
AE95 UPR,LWR |
4 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-22020 |
AE95 |
2 | ||
| 48832R - BRACKET, REAR STABILIZER BAR, NO.1 RH | ||||
| 48832-12011 |
AE95 |
1 | ||
| 48833R - BRACKET, REAR STABILIZER BAR, NO.1 LH | ||||
| 48833-12011 |
AE95 |
1 | ||
| Common parts | ||||
| 90119-12154 | ||||
| 90119-12155 | ||||
| 90119-12158 | ||||
| 90179-12025 | ||||
| 91112-41040 | ||||
| 91611-60814 | ||||
| 91611-61016 | ||||
| 91611-61020 | ||||
| 91615-61230 | ||||
| 94110-41000 | ||||
| 94183-60800 | ||||
| 94184-61200 | ||||
(9009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48231 - SPRING, COIL, REAR | ||||
| 48231-1A880 |
AE95 |
2 | ||
| 48257B - INSULATOR, REAR COIL SPRING, UPPER | ||||
| 48257-12020 |
AE95 |
2 | ||
| 48258A - INSULATOR, REAR COIL SPRING, LOWER | ||||
| 48258-12010 |
AE95 |
2 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-12070 |
AE95 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80101 |
AE95 |
1 | ||
| 48531-80437 |
AE95 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
AE95 |
2 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03004 |
AE95 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03012 |
AE95 LH |
1 | ||
| 90948-02047 |
AE95 RH |
1 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01003 |
AE95 UPR |
2 | ||
| 90948-01018 |
AE95 LWR |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01003 |
AE95 UPR |
2 | ||
| 90948-01018 |
AE95 LWR |
2 | ||
| 48530J - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02002 |
AE95 |
4 | ||
| 48530J - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02002 |
AE95 |
4 | ||
| 48530P - RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02007 |
AE95 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80101 |
AE95 |
1 | ||
| 48531-80437 |
AE95 |
1 | ||
| 48706A - BUSH SUB-ASSY, REAR LATERAL CONTROL ROD | ||||
| 48706-14010 |
AE95 |
1 | ||
| 48710 - ARM ASSY, UPPER CONTROL | ||||
| 48710-12140 |
AE95 |
2 | ||
| 48710 - ARM ASSY, UPPER CONTROL | ||||
| 48710-12140 |
AE95 |
2 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-12080 |
AE95 |
1 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48720-12080 |
AE95 |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-12040 |
AE95 |
1 | ||
| 48740G - WASHER, PLATE, NO.1(FOR REAR LATERAL CONTROL ROD) | ||||
| 90201-12010 |
AE95 |
1 | ||
| 48740H - BUSH, NO.1(FOR REAR LATERAL CONTROL ROD) | ||||
| 90385-20007 |
AE95 |
2 | ||
| 48740H - BUSH, NO.1(FOR REAR LATERAL CONTROL ROD) | ||||
| 90385-20007 |
AE95 |
2 | ||
| 48740J - BUSH, NO.2(FOR REAR LATERAL CONTROL ROD) | ||||
| 90386-20001 |
AE95 |
1 | ||
| 48740K - WASHER, PLATE, NO.2(FOR REAR LATERAL CONTROL ROD) | ||||
| 94612-12000 |
AE95 |
1 | ||
| 48802 - LINK SUB-ASSY, STABILIZER | ||||
| 48802-12040 |
AE95 |
2 | ||
| 48802D - BUSH, STABILIZER LINK | ||||
| 90385-11021 |
AE95 |
2 | ||
| 48802E - SPACER(FOR REAR STABILIZER BAR) | ||||
| 90560-10275 |
AE95 |
2 | ||
| 48805 - BAR SUB-ASSY, REAR STABILIZER | ||||
| 48805-12090 |
AE95 |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-20020 |
AE95 |
2 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-12010 |
AE95 |
4 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-12010 |
AE95 |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02025 |
AE95 CTR |
2 | ||
| 90948-02024 |
AE95 UPR,LWR |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02025 |
AE95 CTR |
2 | ||
| 90948-02024 |
AE95 UPR,LWR |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02025 |
AE95 CTR |
2 | ||
| 90948-02024 |
AE95 UPR,LWR |
4 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-22020 |
AE95 |
2 | ||
| 48832R - BRACKET, REAR STABILIZER BAR, NO.1 RH | ||||
| 48832-12011 |
AE95 |
1 | ||
| 48833R - BRACKET, REAR STABILIZER BAR, NO.1 LH | ||||
| 48833-12011 |
AE95 |
1 | ||
| Common parts | ||||
| 90119-12154 | ||||
| 90119-12155 | ||||
| 90119-12158 | ||||
| 90179-12025 | ||||
| 91112-41040 | ||||
| 91611-60814 | ||||
| 91611-61016 | ||||
| 91611-61020 | ||||
| 91615-61230 | ||||
| 94110-41000 | ||||
| 94183-60800 | ||||
| 94184-61200 | ||||
